EverFocus NVIDIA Jetson AI BOX Ultra Board Series Manual de usuario
NVIDIA Jetson® AI BOX –
Ultra Board Series
Full Systems & Kits
for NVIDIA Jetson® Nano, Xavier NX, TX2 NX
User’s Manual
Ultra Board Series
Full Systems
Ultra Board Series
Kit
Copyright © EverFocus Electronics Corp.
Release Date: September 2022
E V E R F O C U S E L E C T R O NI C S C O R P O R A T I O N
NVIDIA Jetson® AI BOX
Ultra Board Series
Full Systems & Kits
for NVIDIA Jetson® Nano, Xavier NX, TX2 NX
User’s Manual
1995-2022 EverFocus Electronics Corp.
www.everfocus.com.tw
Disclaimer
All the images including product pictures or screen shots in this document are for example only. The
images may vary depending on the product and software version. Information contained in this document
is subject to change without notice.
Copyright
All rights reserved. No part of the contents of this manual may be reproduced or transmitted in any form
or by any means without written permission of the EverFocus Electronics Corporation.
-NVIDIA, the NVIDIA logo, and Jetson are trademarks of the NVIDIA Corporation
-ITE is a trademark of Integrated Technology Express, Inc.
-IBM and VGA are trademarks of International Business Machines Corporation.
-Ubuntu is a registered trademark of Canonical
-All other product names or trademarks are properties of their respective owners.
ii
Safety Precautions
Please read the following safety instructions carefully. It is advised that you keep this manual
for future references.
All cautions and warnings on the device should be noted.
All cables and adapters supplied by EverFocus are certified and in accordance with the
material safety laws and regulations of the country of sale. Do not use any cables or
adapters not supplied by EverFocus to prevent system malfunction or fires.
Make sure the power source matches the power rating of the device.
Position the power cord so that people cannot step on it. Do not place anything over the
power cord.
Always completely disconnect the power before working on the system’s hardware.
No connections should be made when the system is powered as a sudden rush of power
may damage sensitive electronic components.
If the device is not to be used for a long time, disconnect it from the power supply to avoid
damage by transient over-voltage.
Always disconnect this device from any AC supply before cleaning.
While cleaning, use a damp cloth instead of liquid or spray detergents.
Make sure the device is installed near a power outlet and is easily accessible.
Keep this device away from humidity.
Place the device on a solid surface during installation to prevent falls.
Do not cover the openings on the device to ensure optimal heat dissipation.
Watch out for high temperatures when the system is running.
Do not touch the heat sink or heat spreader when the system is running.
Never pour any liquid into the openings. This could cause fire or electric shock.
As most electronic components are sensitive to static electrical charge, be sure to ground
yourself to prevent static charge when installing the internal components. Use a grounding
wrist strap and contain all electronic components in any static-shielded containers.
If any of the following situations arises, please contact our service personnel
-Damaged power cord or plug
-Liquid intrusion to the device
-Exposure to moisture
-Device is not working as expected or in a manner as described in this manual
-The device is dropped or damaged
-Any obvious signs of damage displayed on the device
DO NOT LEAVE THIS DEVICE IN AN UNCONTROLLED ENVIRONMENT WITH TEMPERATURES
BEYOND THE DEVICE’S PERMITTED STORAGE TEMPERATURES (SEE SPECIFICATION) TO
PREVENT DAMAGE.
iii
FCC Statement
This device complies with Part 15 FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received including
interference that may cause undesired operation.
Caution:
There is a danger of explosion if the battery is incorrectly replaced. Replace only with the same
or equivalent type recommended by the manufacturer. Dispose of used batteries according to
the manufacturer’s instructions and your local government’s recycling or disposal directives.
Attention:
Il y a un risque d’explosion si la batterie est remplacée de façon incorrecte.
Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le constructeur.
Recycler les batteries usées en accord avec les instructions du fabricant et les directives
gouvernementales de recyclage.
iv
TABLE OF CONTENTS
1. Introduction................................................................................................................... 1
1.1 Features .......................................................................................................................... 1
1.2 Dimensions ..................................................................................................................... 2
1.3 Packing List..................................................................................................................... 4
1.4 Optional Accessories ...................................................................................................... 4
1.5 Physical Description ....................................................................................................... 5
1.6 Carrier Board .................................................................................................................. 6
2. Jumpers and Connectors on the Motherboard.............................................................. 11
3. Specification ................................................................................................................ 14
3.1 UB Full Systems & Kits.................................................................................................. 14
3.2 UB Kit Accessory - EUA 1200 USB Camera................................................................... 15
Ultra Board Series
Full Systems & Kits for NVIDIA Jetson®Nano, Xavier NX, TX2 NX
1
1. Introduction
EverFocus Ultra Board Series (UB Series) are compact edge AI devices for NVIDIA Jetson® Nano,
Xavier NX, TX2 NX, which are divided into full systems and kits for flexible uses. The full systems,
eNVP-JNN-AI-UB000, eNVP-JNX-AI-UB000 and eNVP-JTX-AI-UB000, are compact AI Boxes based on
NVIDIA® Jetson™for general and commercial markets. With ARM® Cortex®-A57 MPCore processor
and rich interfaces including HDMI display output, USB, COM, and GbE, the UB Series aim to
deliver high-quality performance for multiple computing applications. Installed with EverFocus in-
house designed software, these products provide basic NVR functions of real-time live view, video
recording, video playback, alarm notification and etc.
1.1 Features
eNVP-JNN-AI-UB000 &
UB Kit for Jetson® Nano
eNVP-JNX-AI-UB000 &
UB Kit for Jetson® Xavier NX
eNVP-JTX-AI-UB000 &
UB Kit for Jetson® TX2 NX
Quad-Core Arm®
Cortex®-A57 MPCore
processor
128-core NVIDIA
Maxwell™ GPU
Onboard 4 GB 64-bit
LPDDR4 memory
(25.6GB/s)
Quad-Core Arm®
Cortex®-A57 MPCore
processor
128-core NVIDIA
Maxwell™ GPU
Onboard 4 GB 64-bit
LPDDR4 memory
(25.6GB/s)
Dual-Core NVIDIA
Denver 2 64-Bit CPU and
Quad-Core Arm®
Cortex®-A57 MPCore
processor
256-core NVIDIA Pascal™
GPU
Onboard 4 GB 128-bit
LPDDR4 memory
Supports GbE x 1
Supports GbE x 2
Supports GbE x 2
--
Supports M.2 E-key 2030
x 1 (for WiFi/BT module)
Supports M.2 E-key 2030
x 1 (for WiFi/BT module)
Fanless AI edge embedded box PC
Supports CAN bus x 1
Supports USB3.0 x 3, USB2.0 x 1
Supports MicroUSB x 1 (for Flash OS)
Supports M.2 M-key 2280 x 1 (for NVMe SSD)
Supports M.2 B-key 3052/3042 x 1 (for 5G/4G)
Supports UART x 1, RS485 x 1, I2C x 2, SPI x 2, GPIO x 6, +5V Output x 2, +3.3V Output x 2
DC 12V input
** For more details about the model spec, please refer to Chapter 3 Specification.
Chapter
1
Ultra Board Series
Full Systems & Kits for NVIDIA Jetson®Nano, Xavier NX, TX2 NX
2
1.2 Dimensions

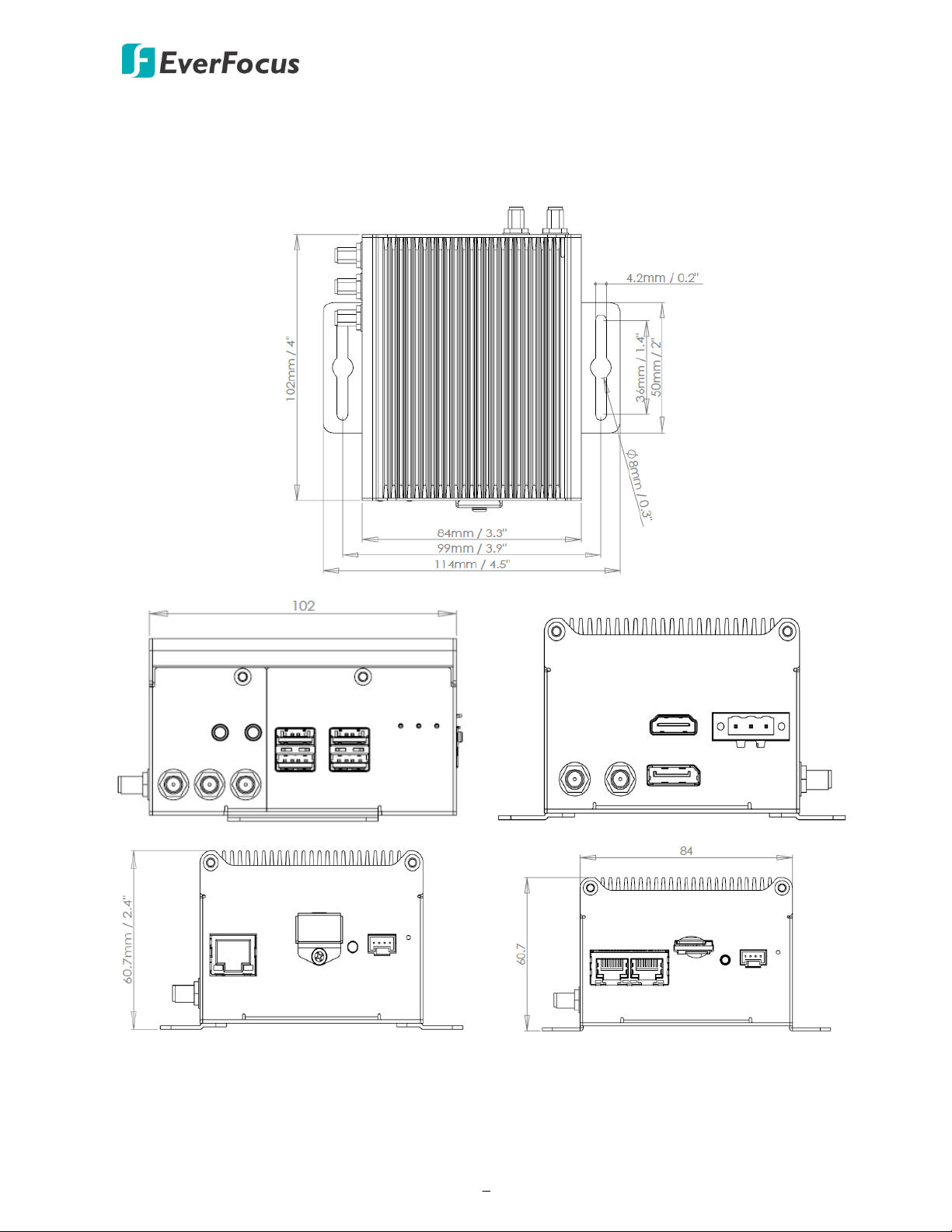

1.2.1. UB Full Systems
↑eNVP-JNN-AI-UB000
(GbE x 1)
↑eNVP-JNX-AI-UB000 / eNVP-JTX-AI-UB000
(GbE x 2)
Ultra Board Series
Full Systems & Kits for NVIDIA Jetson®Nano, Xavier NX, TX2 NX
3

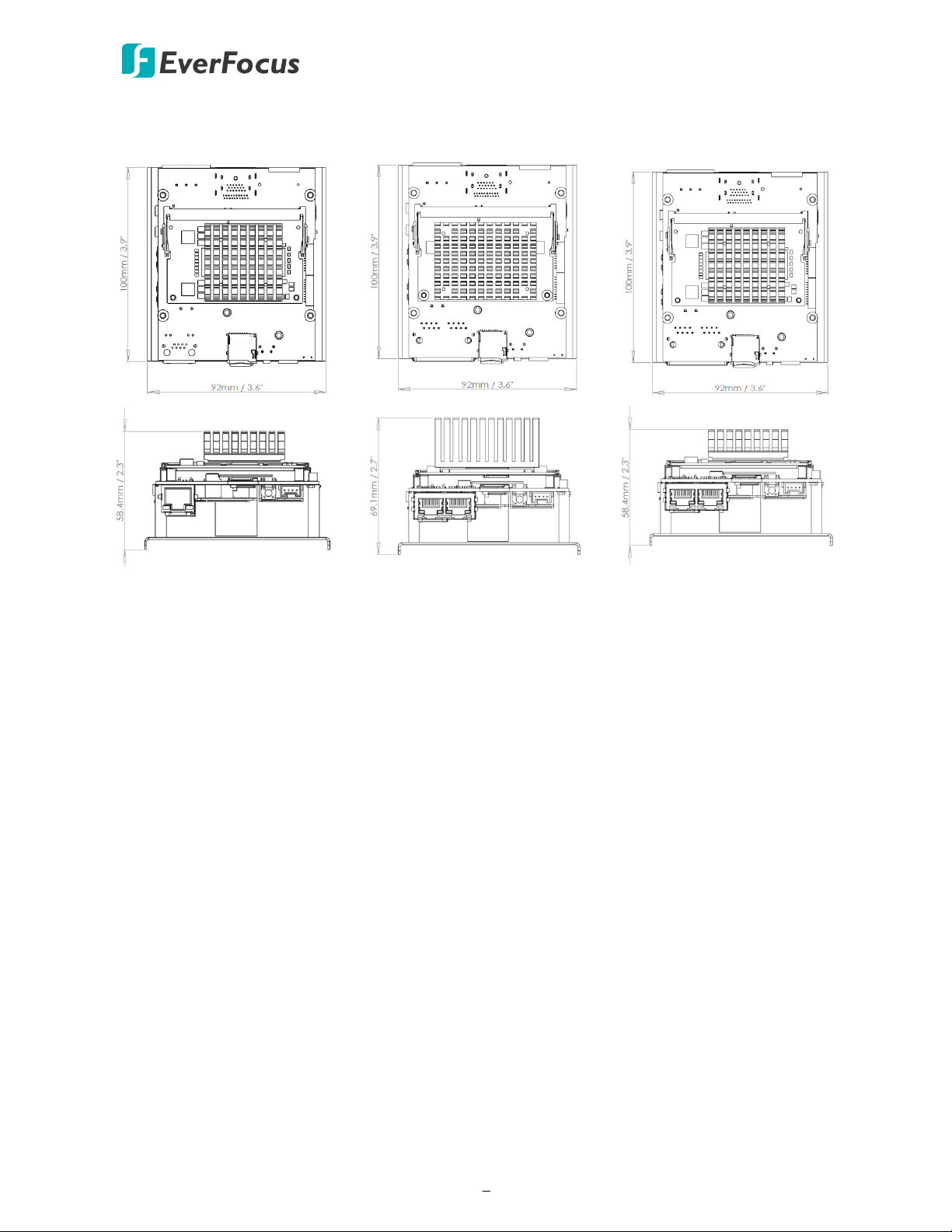

1.2.2. UB Kit
↑UB Kit for Jetson® Nano
↑UB Kit for Jetson® Xavier NX
↑UB Kit for Jetson® TX2-NX
Ultra Board Series
Full Systems & Kits for NVIDIA Jetson®Nano, Xavier NX, TX2 NX
4
1.3 Packing List
UB Full Systems
UB Kit
AI Box x 1
3-pin terminal block x 1
UB Kit x 1
EUA1200 USB Camera x 1
12V Power Adapter x 1
Power Cable x 1
MicroUSB to USB Cable x 1
10-pin I/O Cable x 4
CAN bus Cable x 1
**UB Kit for Jetson® Xavier NX, TX2-NX will
also be installed with M.2 M-key 2280 NVMe
SSD 128G.
Note:
Equipment configurations and supplied accessories vary by country. Please consult your
local EverFocus office or agents for more information.
Contact the shipper if any items appear to have been damaged in the shipping process.
Please also keep the shipping carton for possible future use.
1.4 Optional Accessories
UB Full Systems Only
3ENTR00DTH0001R
I/O Cable Kit
4B01XUD12060AS2
Adpater (In:100-240V / Out: DC12V 5A 60W)
3ENTR00DTH0004R
Fan Kit
4K02X00000030AR
Power Cord EU
4K02X00000020AR
Power Cord US
3ENTR00DTH0003R
LE910C4-EU M.2 B-KEY 3042 CAT4 4G Kit
Ultra Board Series
Full Systems & Kits for NVIDIA Jetson®Nano, Xavier NX, TX2 NX
5

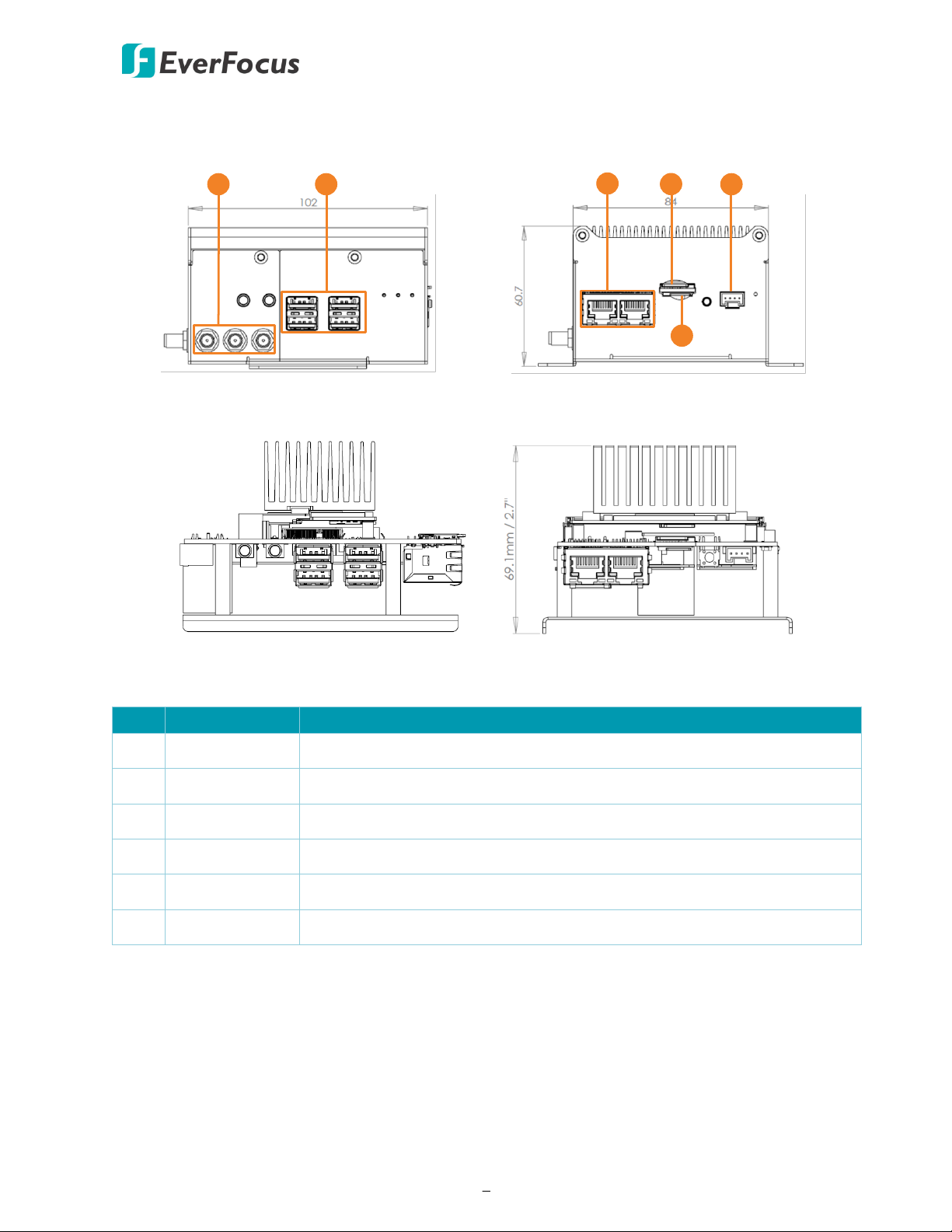

1.5 Physical Description
13462
5
↑UB Full Systems
↑UB Kits
No.
Name
Description
1
ANT
Antenna ports
2
USB
USB ports.
3
LAN
Ethernet ports
4
SD Card Slot
Insert SD card into the card slot
5
SIM Card Slot
Insert SIM card into the card slot
6
CAN bus
CAN bus port
Este manual sirve para los siguientes modelos
