Event Lighting PARP12x8 Manual de usuario

PRO PAR

Model No. PARP12x8

USER MANUAL

For safety, please read this user manual carefully before initial use.

Event Lighting reserves the right to revise the manual at any time. Information and specifications within this

manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any

errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.

www.event-lighting.com.au

Ver 33

www.event-lighting.com.au

CONTENTS

Safety Instructions

- Power input & power Linking

Product Installation

- Fuse replacement

Diagrams

- Dimensions

Control Board Operation

- Menu map

- Static colour mode chart

DMX chart

Technical specifications

Warranty

www.event-lighting.com.au

Safety Instructions

WARNING

• Do not open this device, there is no user-serviceable parts inside. Risk of electric shock.

• Do not look at the light source when the device is on.

• CAUTION: This unit's housing may be hot during and after operation.

• Install this device in a location with adequate ventilation, at least 20 inch (50 cm) from adjacent surfaces.

• Do not leave any flammable material within 50 cm of this unit while operating or connected to power.

• Use a safety chain when mounting this device overhead.

• Do not operate this device outdoors or in any location where dust, excessive heat, water, or humidity may affect it.

• Do not operate this device if the housing, lenses, or cables appear damaged.

• Do not connect this device to a dimmer or rheostat.

• ONLY connect this device to a grounded and protected circuit.

• ONLY use the hanging bracket to carry this device.

• In case of a serious operating problem, stop using immediately.

• The maximum ambient temperature is 104° F (40° C). Do not operate this device at higher temperatures.

Product Installation

This device can be mounted in many orientations provided each individual device is secured by the use of correct

mounting bracket.

Use a safety chain when mounting this device overhead.

Fuse Replacement

If the fine-wire fuse of the device fuses, only replace the fuse by a fuse of same type and rating.

Before replacing the fuse, unplug mains lead.

Procedure:

Step 1: Unscrew the fuse holder on the rear panel with a fitting screwdriver from the housing (anticlockwise).

Step 2: Remove the old fuse from the fuse holder.

Step 3: Install the new fuse in the fuse holder.

Step 4: Replace the fuse holder in the housing and fix it.

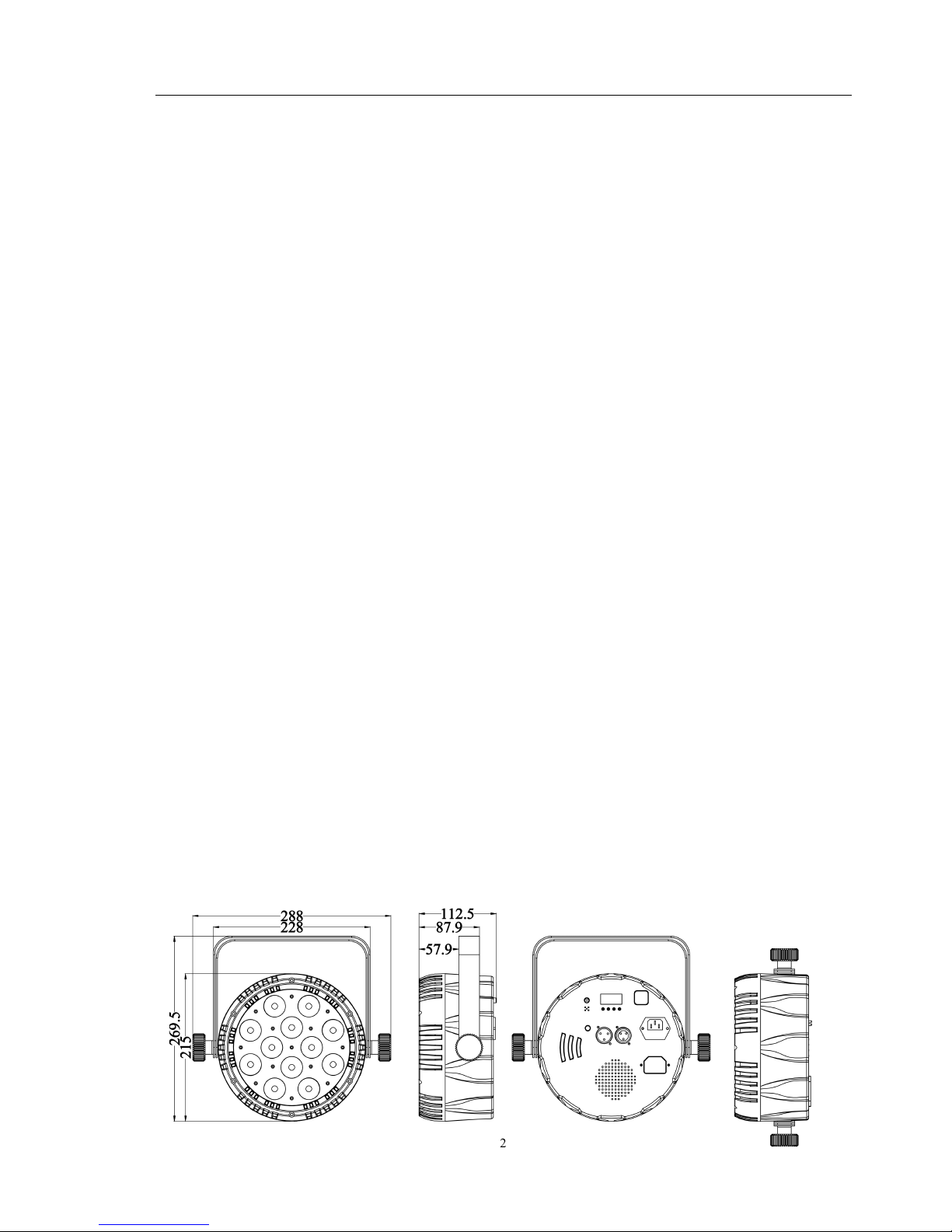

Dimensions

www.event-lighting.com.au

CONTROL BOARD OPERATION

Menu Map

Select DMX address

Select DMX channel mode (CH-1: 4ch / CH-2: 9ch)

Set program speed

Select built-in program

Select sound active mode

Select static colour mode

(See static colour mode chart below)

Set strobe speed (Hz)

Set red colour intensity

Set green colour intensity

Set blue colour intensity

Set white colour intensity

Set dimmer speed

(nod0: fastest / nod4: slowest)

Toggle LED display on / off

Current operating temperature

Show current software version

Restore settings to factory default

www.event-lighting.com.au

Static colour mode

Value:

Function:

Red

Green

Blue

White

Red + White

Green + White

Blue + White

Green + Blue

Red + Blue

C10

Red + Green

C11

Red + Green + Blue

C12

Green + Blue + White

C13

Red + Blue + White

C14

Red + Green + White

C15

Red + Green + Blue + White

www.event-lighting.com.au

DMX Chart

4 channels Mode

Channel

Value

Function

000-255

Red: 0% ~ 100%

000-255

Green: 0% ~ 100%

000-255

Blue: 0% ~ 100%

000-255

White: 0% ~ 100%

9 channels Mode

Channel

Value

Function

Note

000-255

Master DIMMER 0% ~ 100%

000-255

Red: 0% ~ 100%

000-255

Green: 0% ~ 100%

000-255

Blue: 0% ~ 100%

000-255

White: 0% ~ 100%

000-012

Strobe OFF

013-255

Strobe (slow-fast)

000-009

No Function

010-019

Program 1

020-029

Program 2

030-039

Program 3

040-049

Program 4

050-059

Program 5

060-069

Program 6

070-079

Program 7

080-089

Program 8

090-099

Program 9

100-109

Program 10

110-119

Program 11

120-129

Program 12

130-139

Program 13

140-255

Sound active mode

000-255

Speed of auto programs (slow ~ fast)

Ch7 must be set between

10-139

000-255

Colour fade time (jump ~ fade)

Mode must be set to “nod0”

www.event-lighting.com.au

TECHNICAL SPECIFICATIONS

Power

Input Voltage: 100~240V AC, 50/60 Hz

Power Consumption: 77W

Connection: IEC in

Fuse: T2A, 250V

Photometric

Light Source: 12pcs 4-in-1 RGBW 8W LED

Beam Angle: 25°

PWM: 1200 Hz

LED Lifespan: 50,000 hours

Effects:

Dimming: 0~100%

Strobe: 0~20 Hz

Control

Protocol: DMX512

DMX Channels: 4 / 9

Interface: 3-pin XLR in & out

Built-in Programming: Yes

Display: 4-button & 4-digit LED display control panel

Cooling: Fan

Housing

Materials: Metal & Flame retardant ABS

Finishing: Matte black

IP rating: IP20

Net Weight: 2.3 kg

Overall Size: 288 x 270 x 113 mm

WARRANTY

Please refer to your local dealer or please contact Event Lighting Pty Ltd

Website: www.event-lighting.com.au.
