EUTECH INSTRUMENTS CYBERSCAN PC 5000 PHCONDUCTIVITY METER Manual de usuario

Instruction Manual

CyberScan PC 5500/ 5000

Bench pH, Ion & Conductivity Meter/ Bench pH & Conductivity Meter

(Also Applicable for CyberScan PCD 5500)

Technolo

ade

68X292329

Rev.1 08/03

PREFACE

Thank you for selecting a Eutech Instruments CyberScan Series

5000 bench meter. This meter measures pH, conductivity and ion

(PCD5500 & PC5500 only).

The instruction manual serves to explain the use of the CyberScan

Series 5000 bench meters as a step-by-step operational guide to

help you familiarize with the meter’s features and functions. It is

structured sequentially with illustration of diagrams that explains the

various functions and setup menus available.

This manual is written to cover as many anticipated applications and

uses of the CyberScan 5000 series bench meters as possible. If

there are doubts in the use of the meter, please do not hesitate to

contact the nearest Eutech Instruments’ Authorized Distributors or

call us at (65) 6778-6876 for Eutech Instruments’ Customer Service

Dept. for assistance.

Kindly remember to complete the warranty card and mail it back to

your Authorized Distributors or Eutech Instruments Pte Ltd.

Eutech Instruments reserve the rights to change, make improvement

and modify specifications without prior notice and cannot accept any

responsibility for damage or malfunction to the instrument caused by

improper use.

TABLE OF CONTENTS

1INTRODUCTION 1

1.1 Introducing the CyberScan Series 1

2UNPACKING THE METER 2

3GETTING STARTED 3

3.1 Connectors (PCD 5500 only) 3

3.2 pH Electrodes & Ion Specific Electrodes (PCD5500 & PC5500 only 6

3.3 Conductivity Probes 8

4USING THE METER 10

4.1 Touch screen Operation 11

4.2 Choosing a channel (for PCD5500 & PC5500 only) 12

4.3 Button Functions 14

5SYSTEM SETUP 16

5.1 Access system setup 17

5.2 Select Language 19

5.3 Set Date 21

5.4 Set Time 23

5.5 Set Beeper Status 25

5.6 Select procedural level 27

5.7 Set Print Configuration 29

5.8 Set Baud Rate 31

5.9 Set Number of Bits 32

5.10 Set Stop Bits 33

5.11 Set Parity 34

5.12 Set Operator 35

5.13 Set Display Contrast 37

5.14 Display Meter Information 39

5.15 Reset to Factory Defaults 40

6pH SETUP 41

6.1 Access pH setup 42

6.2 Set Sample ID# 44

6.3 Select Buffer Group 48

6.4 Set pH Custom Buffer Group 50

6.5 Select Buffer Recognition 52

6.6 Select Auto Read Mode 53

6.7 Set pH Stability Criteria 54

6.8 Set Default Temperature 56

6.9 Set Isopotential Point 58

6.10 Set Alarm Limits 60

6.11 Set Print Criteria 62

6.12 Set Print Interval 64

6.13 Set Data Storage Criteria 66

6.14 Set Display Resolution 68

6.15 Set Display Configuration 70

6.16 View Stored Data 72

7mV SETUP 76

7.1 Access mV Setup 77

7.2 Set Display Resolution 81

8ION SETUP 83

8.1 Access Ion Setup 84

8.2 Select Ion Method 86

8.3 Select Measurement Units 88

8.4 Select Electrode Type 90

8.5 Set Significant Digits 92

9CONDUCTIVITY SETUP 94

9.1 Access the Conductivity Setup 95

9.2 Select Cell Constant 99

9.3 Select Reference Temperature 101

9.4 Set Temperature Coefficient 103

9.5 Perform Replatinization 105

9.6 Set Significant Digits 109

10 pH OPERATION 111

10.1 Standardizing 113

10.2 pH Measurements 117

11 mV OPERATION 119

11.1 mV Measurement 120

12 ION OPERATION 121

12.1 Direct Reading Methods 123

12.2 Incremental Methods 129

12.3 Known Addition Method 131

12.4 Known Subtraction Method 135

12.5 Analate addition 137

12.6 Analate Subtraction 139

13 CONDUCTIVITY OPERATION 141

13.1 Conductivity Standardization 143

13.2 Measurement 146

14 CLEANING 148

15 TROUBLE SHOOTING 149

16 COMPLIANCE 150

17 APPENDIX 151

17.1 Determining Isopotential Points Experimentally 151

17.2 Data Management 152

17.3 Factory Default Settings 153

17.4 pH Theory 155

17.5 ISE Theory 160

17.6 Conductivity Theory 164

18 METER SPECIFICATIONS 169

19 ACCESSORIES 171

19.1 Replacement Meters and Adapters 171

19.2 General Purpose pH / ORP Electrodes SP 172

19.3 Specialty pH Electrode NP 173

19.4 pH Buffer Solutions & Single Use Sachets SP 174

19.5 ORP Solutions SP 174

19.6 Conductivity & TDS 442 Standard Solutions SP 174

20 WARRANTY 175

Instruction Manual CyberScan PC5500/ 5000

1 INTRODUCTION

1.1 Introducing the CyberScan Series

Thank you for selecting a Eutech Instruments CyberScan Bench

meter. This manual describes the operation of the CyberScan Series

5000 bench meter. The state-of-art meter that you have purchased is

easy to operate and will guide you through the various functions by

displaying easy to understand prompts. This instruction manual

should answer any questions that might arise in operating your meter,

however, do not hesitate to call our Technical Support at (65) 6778

6876 (ext 839) or fax at (65) 6773 0836.

This bench meter provides microprocessor precision in a compact

benchtop design that is easy to use. One touch screen controls all

procedures, letting you:

Measure pH, absolute mV, relative mV or Conductivity

Select one of three sets of standard buffer groups

Implement automatic buffer recognition

Standardize with up to five standard or customer buffers

Customise your display screen and +

operating parameters

Assign operator and sample identification numbers

Store 250 data points (1000 for PCD5500) in the meter’s

memory or transfer data to a computer or printer.

Access extensive online help with just a touch a button

It all adds up to rapid, completely automatic, intuitive operation.



You will find this symbol appearing in this manual; it indicates useful

tips that ease your meter operation.

Instruction Manual CyberScan PC5500/ 5000

2 UNPACKING THE METER

The following is a listing of what you should have received with your

new CyberScan meter.

Meter package includes

Meter

Power adapter (120 VAC/ 12VDC) OR (220 VAC/ 12 VDC)

depending on order code.

Electrode arm support bracket

Electrode arm

ATC probe

Instruction Manual

If any of these items are missing, please contact your nearest

Authorized Distributor.

Accessory conductivity probes and ion selective electrodes are

available and can be ordered by contacting any Authorized Distributor

or Eutech Instruments Marketing (65) 67786876.

Instruction Manual CyberScan PC5500/ 5000

3 GETTING STARTED

3.1 Connectors (PCD 5500 only)

1. Review the layout and arrangement of the rear connector panel.

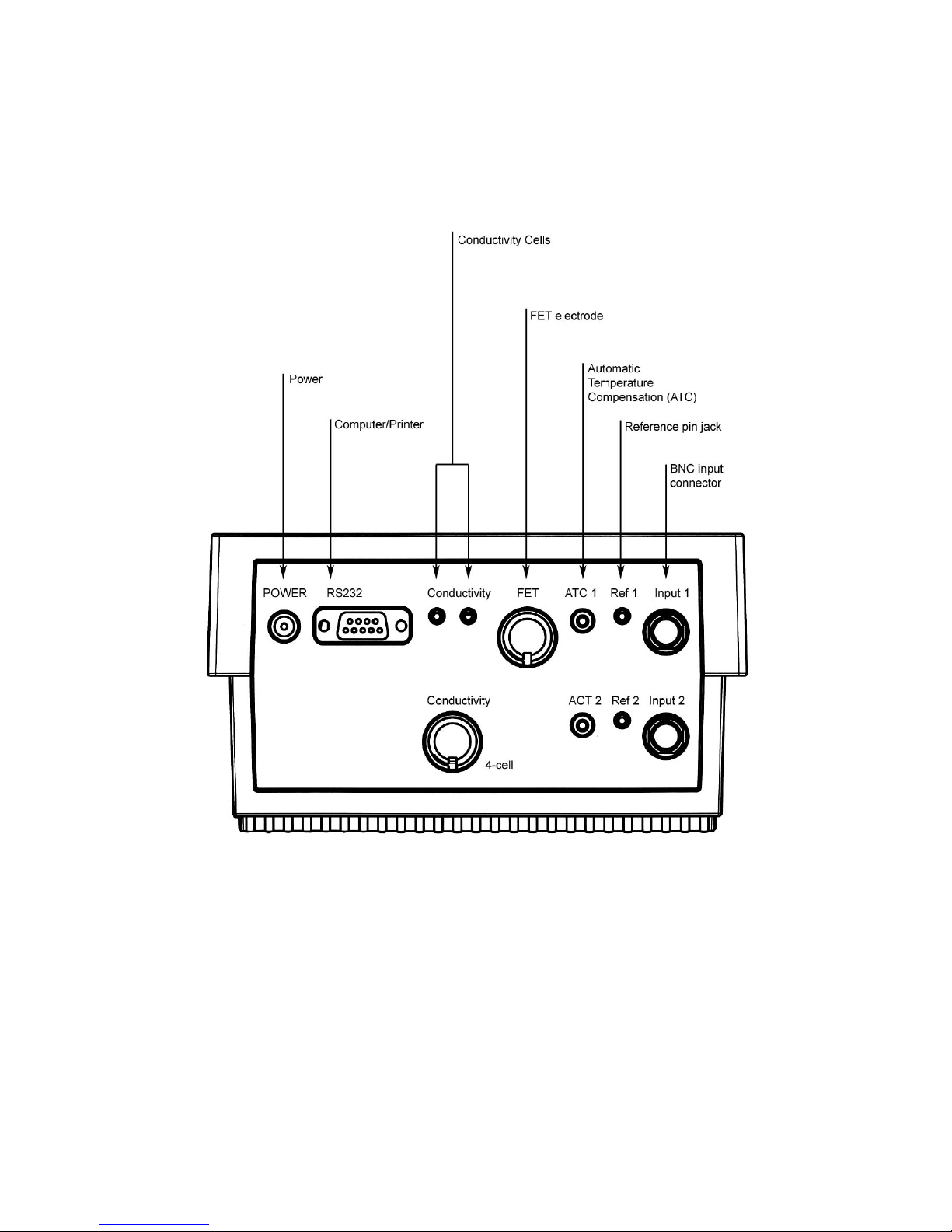

Back Panel of PCD 5500

Instruction Manual CyberScan PC5500/ 5000

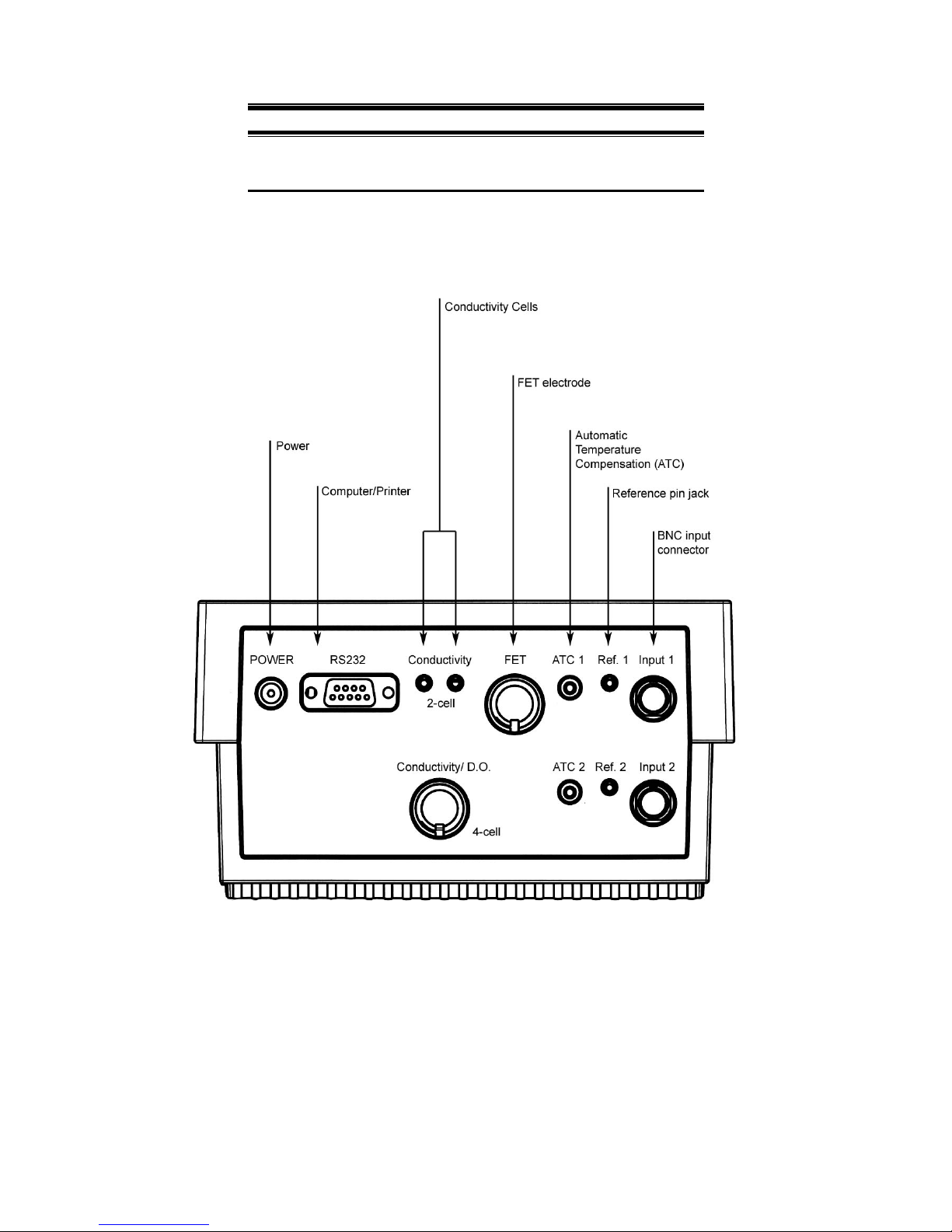

Back Panel of PC 5500/ 5000

Instruction Manual CyberScan PC5500/ 5000

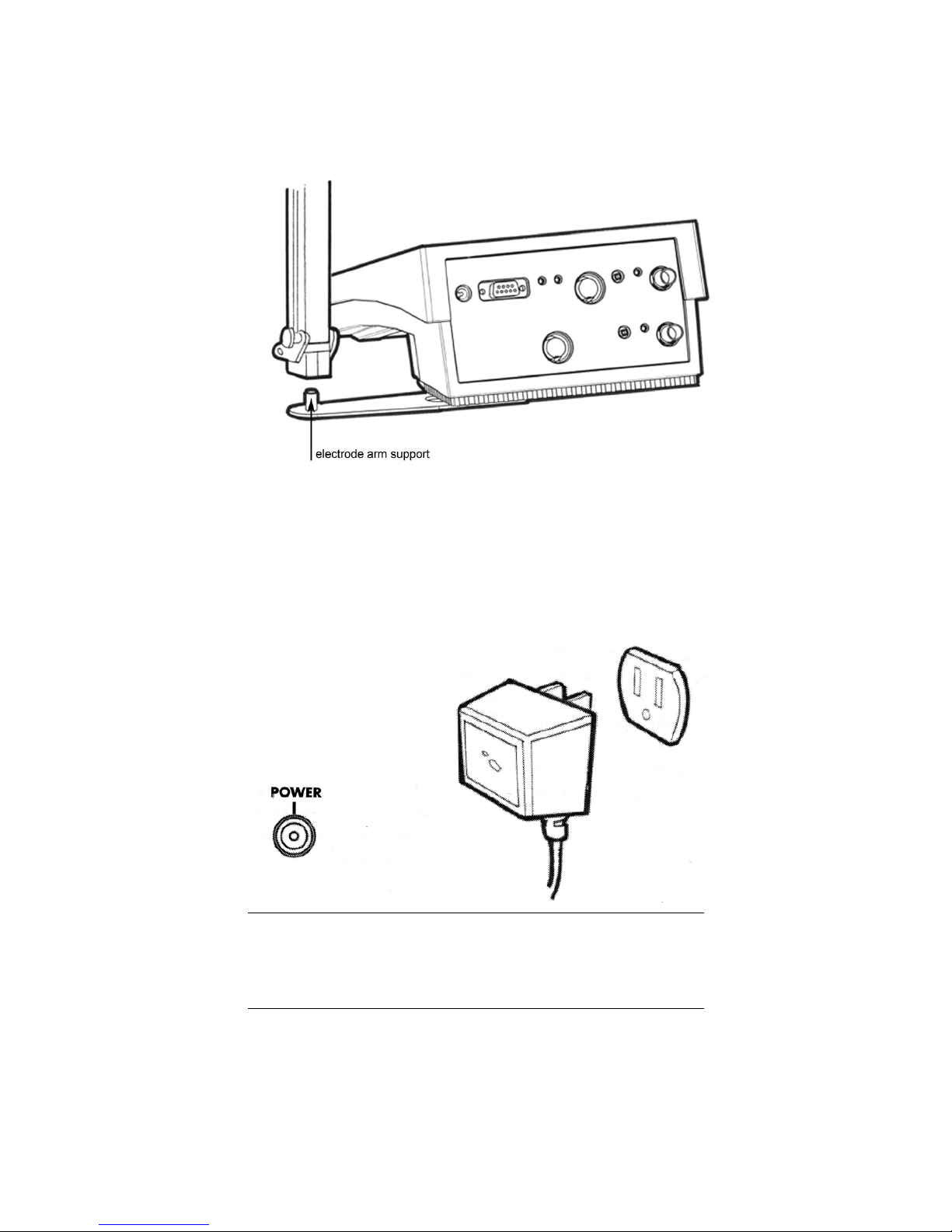

2. Connect the electrode arm to the base.

3. Connect the power cable to the connector cable to the rear

connector panel power jack and to a power source.



To connect RS232, see Data Management on Section 17.2.
