European Home Joist Hoja de datos
1
Element4 Modore Fireplaces EuropeanHome.com
Joist
Designer Surround
Installation Guide
Exclusively designed to fit these
Element 4 Modore Fireplaces:
August 2018
140 18595
2
Element4 Modore Fireplaces EuropeanHome.com
TABLE OF CONTENTS
Important Information 3
Specications and Dimensions 5
Pre-Installation Planning 6
Installation 7
Maintenance 12
Warranty 13
3
IMPORTANT INFORMATION
Element4 Modore Fireplaces EuropeanHome.com
PRODUCT INSTALLATION RECORD
Installer: Please complete this form. Customer: Please retain this information.
Purchased From
Date of Purchase
Installed By
Date of Installation
Surround Serial Number
Thank you for your purchase of a Designer Surround for Element4!
Since your Designer Surround for Element4 is designed to install, and perform, like ceramic tile, it should be
installed by a professional.
Please refer to your dealer for additional information for professional installers .
Element4 Modore Fireplaces EuropeanHome.com
JOIST SURROUND PANELS
4
52” Metal 63” Metal 84” Metal 96” Metal 16 13/16”Tile 16 3/4”Tile 17 1/8”Tile
95 Joist 1 2 - - 1 - -
140 Joist - - 1 2 - 1 -
185 Joist 4 - - 1 - - 1
63”
84”
96”
Joist Metal Panels
6”
6”
6”
16 13/16”
12”
52”
6”
Each surround contains Metal and Tile Panels according to the chart, above.
All surround panels are 7/16”thick
Joist Tile Panels
24” 12”
16 3/4” 17 1/8”
SPECIFICATIONS and DIMENSIONS
5
Element4 Modore Fireplaces EuropeanHome.com
95 Fireplace
72”
SPECIFICATIONS and DIMENSIONS
5
140 Fireplace
185 Fireplace
105”
118”
34 3/4”
35 1/8”
Tile Tile
Tile
Tile
34 13/16”
52”
63”
63”
84”
96”
96”
52”
52”
52”
52”
96”
Element4 Modore Fireplaces EuropeanHome.com
6
PRE-INSTALLATION PLANNING
BEFORE YOU BEGIN

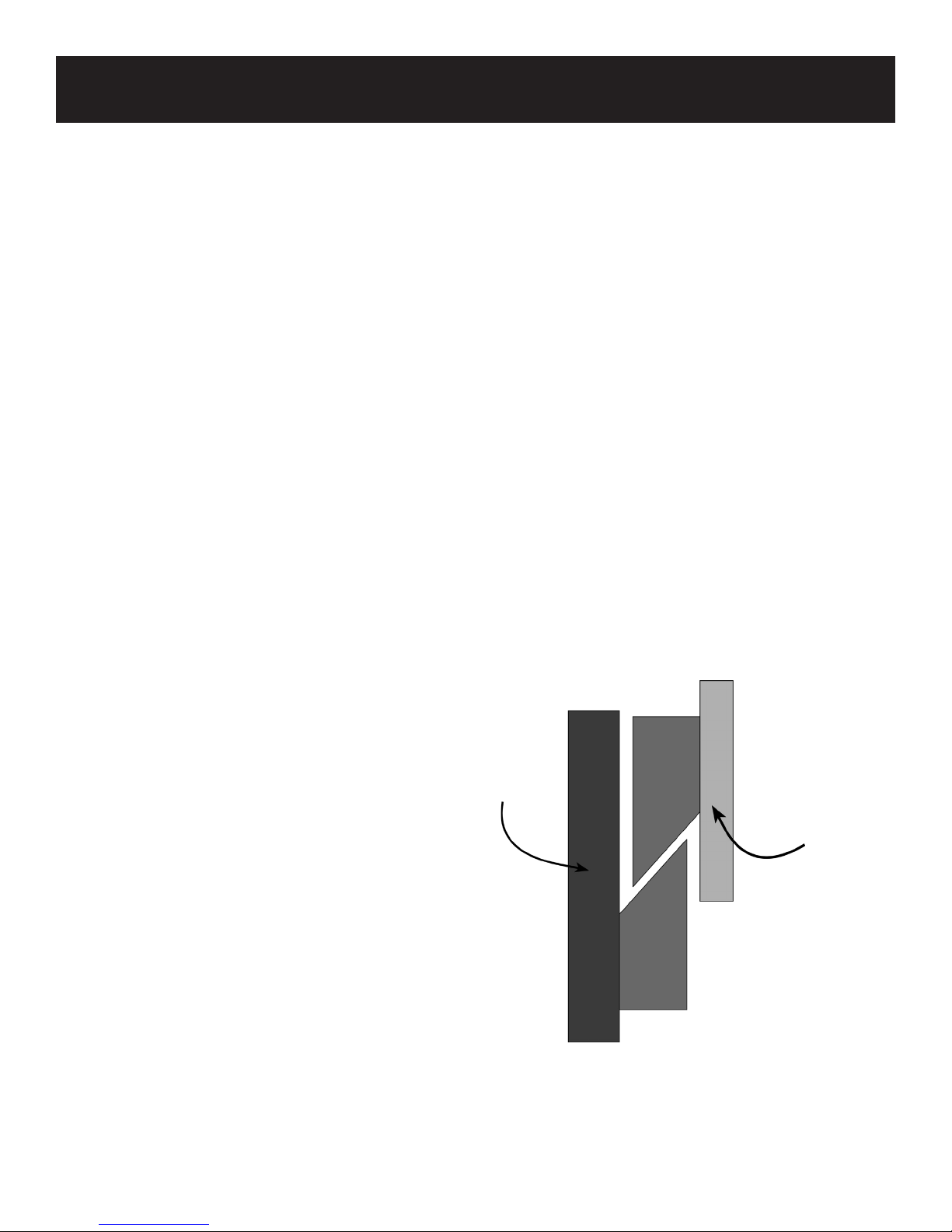

These surrounds are intended to be installed in the same manner as a french cleat system. (See image below)
Please read these instructions thoroughly before proceeding. There is information which is important for safe
and eective installation.
Please inspect the shipment for completeness and any damage. Contact your retailer if any damage is found.
Do not install the surround with any damaged or substituted parts.
For the best nished results, please consider hiring a professional Carpenter or Contractor to install these
surround panels. Dealer can also be referred.
Before you begin your installation you should have the following tools and supplies:
• Gloves
• Pencil
• Impact Gun
• Drill
• Level
• Tape Measure and Framing Square
• Lint-free Cloth
• Stud-nder
• #8 Screws (Bugle Head)
Included with the Surround Panels:
• Various sized Z-Clips
Wall
Surround
Element4 Modore Fireplaces EuropeanHome.com
INSTALLATION
7
LAYING OUT THE PANELS
The panels of the Designer Surround for Element4 are made to t against the replace opening and each other.
First, hold a metal panel up to the lower edge of the replace and mark the wall with a light pencil line along
the lower edge of the metal panel(s). Then draw a straight line parallel to the right edge of the replace open-
ing at the distance shown below as appropriate for your surround model. The intersection of these two lines
is the starting point for the installation.
Layout Lines for the Joist 95
(not to scale)
12” down from replace
25” right of
replace opening
Starting
Point
Layout Lines for the Joist 140
(not to scale)
40” right of
replace opening
Starting
Point
Layout Lines for the Joist 185
(not to scale)
27” right of
replace opening
Starting
Point
12” down from replace
12” down from replace
Element4 Modore Fireplaces EuropeanHome.com
INSTALLATION
8
The metal panels and tile panels should be applied to the wall in the order shown below. They will be hung on
the wall using z-clips by the system described on page 6,9,10 and 11.
95 Fireplace
140 Fireplace
185 Fireplace
Tile 3 (Tile)
4 (Metal)
1 (Metal)
4 (Metal)
3 (Tile)
Joist 95
Joist 140
Joist 185
6 (Metal)
Tile 5 (Tile)
2 (Metal)
INSTALLATION: WALL LAYOUT
1 (Metal)
2 (Metal)
4 (Metal)
3 (Metal)
1 (Metal)
2 (Metal)
8 1/4”
10”
7 1/2”
Element4 Modore Fireplaces EuropeanHome.com
INSTALLATION: WALL LAYOUT + Z-CLIPS
9
NOTE ABOUT ZCLIPS
Z-clips installed on the wall should have the interlocking side facing up. The slotted side of the clips face
the wall. The length of the clips is to account for contact with the existing wall stud behind the wall sheet-
ing. Mount the Z-clips to studs only.
ZCLIP INSTALLATION PREP REFER TO GRAPHICS ON PAGES 1011
• Use a stud-nder to mark the stud locations above, below, and anking the replace within the relevant
area you will be installing the surround. Screw into these locations for structural integrity. Note, you can
drill into the replace cabinet using 3/4” self tapping screws.
• The included z-clips should exceed 16”slightly. Holes are predrilled to 16” to line up with the rule of 16”
on center. There should be center drilled holes as well.
• Before sinking the second screw, make sure you level the clip o along the guideline.
Ideal Stud Framing Example
Element4 Modore Fireplaces EuropeanHome.com
INSTALLATION
10
6”
6”
24” 12”
Layout Lines for the Joist 95
(not to scale)
Layout Lines for the Joist 140
(not to scale)
Layout Lines for the joist 185
(not to scale)
6”
6”
6”
24” 24”
6”
6”
6”
24” 12”
6”
Using the starting point and the edges of the replace, mark lines on the wall using the measurements
appropriate to your model, below.
Red lines Represent guidelines for Z-clip; draw these in as guides for mounting.
2 3/16”
2 3/16”
2 5/16”
2 5/16”
2 5/16”
2 5/16”
2 3/16”
2 3/16”
2 5/16”
2 5/16”
2 3/16”
2 3/16”
INSTALLATION: WALL LAYOUT
