EUROCOM 5100-C DeskNote Lite Manual de usuario

User’s Manual

This manual is for the EUROCOM 5100C DeskNote

ENJOYTHE PURCHASE OF YOUR NEWEUROCOM 5100 DeskNote.

Notice

The companyreserves the right to make anyupdates, revisions or changes

to the information contained herein as and when deemed necessary.The

companyis under no obligation to notifyanypurchaser or end-user of such

actions in advance or afterwards.

1999

Trademarks

DeskNoteis a registered trademarkof Eurocom Corporation.

IBM PC, OS/2, PS/2, EGA, and VGA are registered trademarks of

International Business Machines Corporation.

Intel, Pentium are trademarks of Intel Corporation.

MS-DOS, Microsoft Windows, Windows NT and Microsoft Mouse are

registered trademarks of Microsoft Corporation.

Sound Blaster Pro is a trademark of Creative Labs, Inc.

SystemSoft is a registered trademark of SystemSoft Corp.

Other brand and product names are trademarks of their respective

companies.

Table of Contents

Chapter 1 : Getting Started1-1

!Unpacking 1-2

!Operating Environment 1-3

!Powering the System 1-4

By AC Power Adapter 1-4

By Battery Pack 1-5

!Opening the LCD Cover 1-6

LED Indicators on the LCD Cover 1-7

!Top-Front View 1-8

LCD Panel 1-8

Stereo Speakers 1-8

Trackpad and Buttons 1-8

Keyboard 1-8

Microphone 1-8

System Status LED Indicators 1-10

Power Button 1-10

!Rear View 1-12

!Left-Side View 1-14

Infrared 1-15

!Right-Side View 1-16

5.25” CD-ROM Drive 1-16

Ventilation 1-16

Chapter 2 : Operation2-1

Replacing the Processor 2-2

Reinstalling Heat Sink 2-3

Accessing the Memory Sockets 2-5

Installing Memory Module 2-6

Removing Memory Module 2-7

!Using Hard Disk Drive 2-8

Removing 2-8

Replacing Hard Disk Drive 2-9

!Using Floppy Disk Drive 2-10

Inserting/Removing Diskettes 2-10

Replacing Floppy Disk Drive 2-11

!Using CD-ROM 2-12

Removing CD-ROM Module 2-13

Loading Compact Discs 2-14

Handling Compact Discs 2-15

!Using PC Card Sockets 2-16

Inserting PC Cards 2-16

Removing PC Cards 2-16

!Using Hot Keys 2-18

Windows 95 Special Keys 2-19

!Using Numeric Keypad 2-20

!Using Power Management 2-21

Advanced Power Management (APM 1.2) 2-21

Advanced Configuration and Power Interface (ACPI) 2-21

Global Standby 2-21

Hard Disk Standby 2-21

Suspend and Resume 2-22

!Attaching Peripheral Devices 2-24

Attaching a Security Lock 2-24

Attaching a Parallel Printer 2-25

Attaching a TV Set 2-26

Attaching a USB-compatible Device 2-27

Attaching a Serial Mouse 2-28

Attaching an External Monitor (CRT) 2-29

Attaching a PS/2 Keyboard or Mouse 2-30

Chapter 3 : BIOS Utilities 3-1

!Power on Self Test (POST) 3-2

POST Message: Normal Operation 3-2

POST Message: Error Detected 3-3

!System Configuration Utility 3-4

Information in the System Configuration Utility 3-4

Initiating the System Configuration Utility 3-5

Working with the Menu Bar 3-6

Working with the Pull-down Menu 3-7

Features of the System Configuration Utility 3-8

Appendix A: Specifications I

1-1

Chapter 1: Getting Started

Chapter 1 : Getting Started

This chapter provides you with the short instruction on your DeskNote

computer system that will help you to get the basic understanding about the

computer.

!Unpacking

!Operating Environment

!Powering the System

By AC Power Adapter

By Battery Pack

!Opening the LCD Cover

!Top-Front View

!Rear View

!Left-side View

!Right-side View

1-2

User’s Manual

!Unpacking

Carefully unpack the DeskNote computer and the included accessories

(Figure 1-1). Check the items one by one. If there is something wrong,

contact your dealer immediately.

"DeskNote Computer.

"Carrying Bag.

"Power Adapter.

"Power Cord.

"User Manual.

"PS/2 Transfer Cable.

"Battery Pack.

"Drivers/Manual CD.

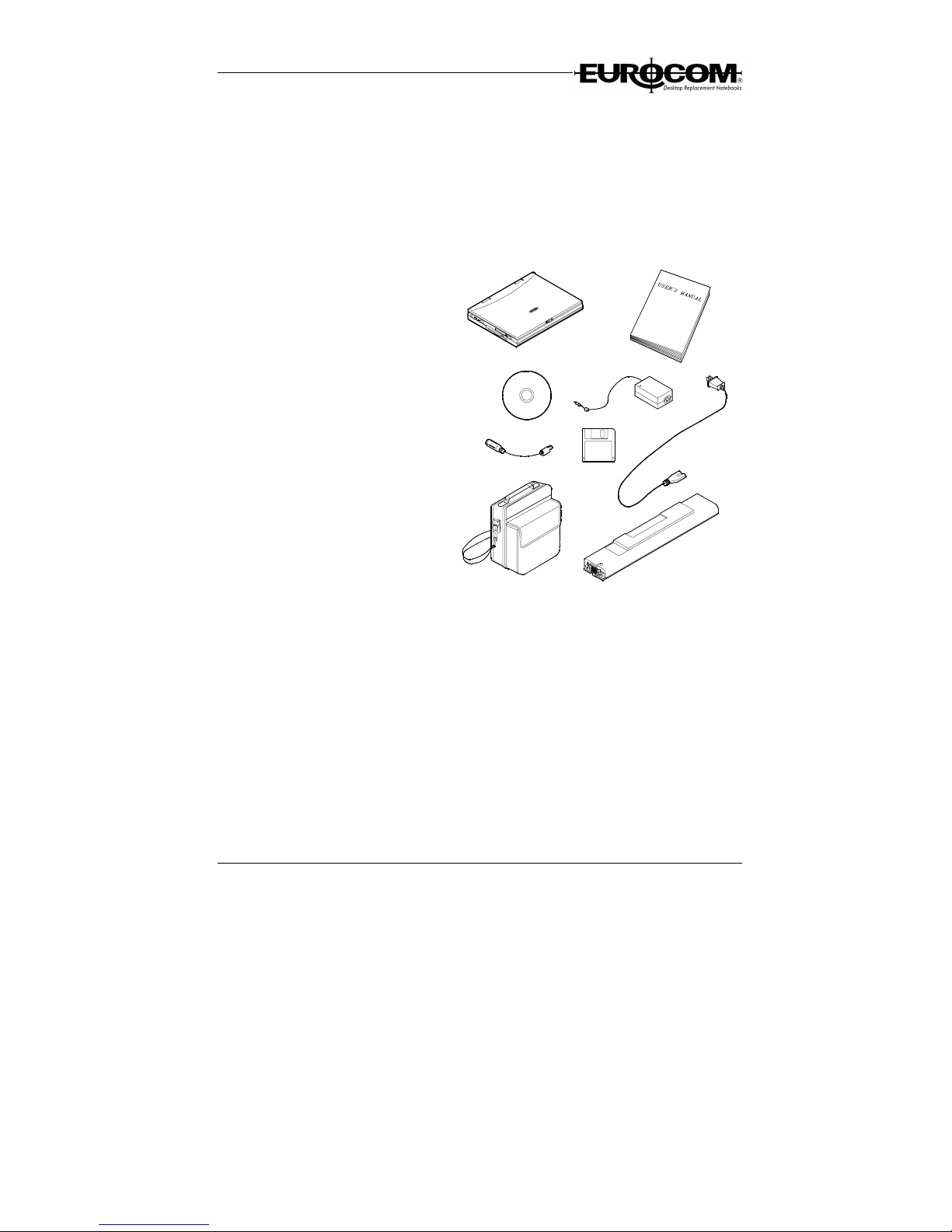

Figure 1-1

1-3

Chapter 1: Getting Started

!Operating Environment

As with any other precision electronic equipment, proper care and

operation of your computer will prolong the use period. Make sure that the

computer is not:

"Exposed to excessively heat or direct sunlight.

"Shocked or vibrated.

"Exposed to strong magnetic fields.

"Left in a place where foreign matter or moisture may affect the

system.

Figure 1-2

1-4

User’s Manual

Powering the System

You can use the AC power adapter or battery pack to power the computer

system.

By AC Power Adapter

Use only the power adapter that comes with your computer. An incorrect

type of power adapter will cause damage to the computer and its

components.

1. Plug the power adapter cord into the AC-in socket on the rear panel of

the computer.

2. Connect the power adapter with the power cord.

3. Plug the power cord into a properly grounded outlet (Figure 1-3).

4. Refer to Chapter 1, LED Indicators for more information on system

power status.

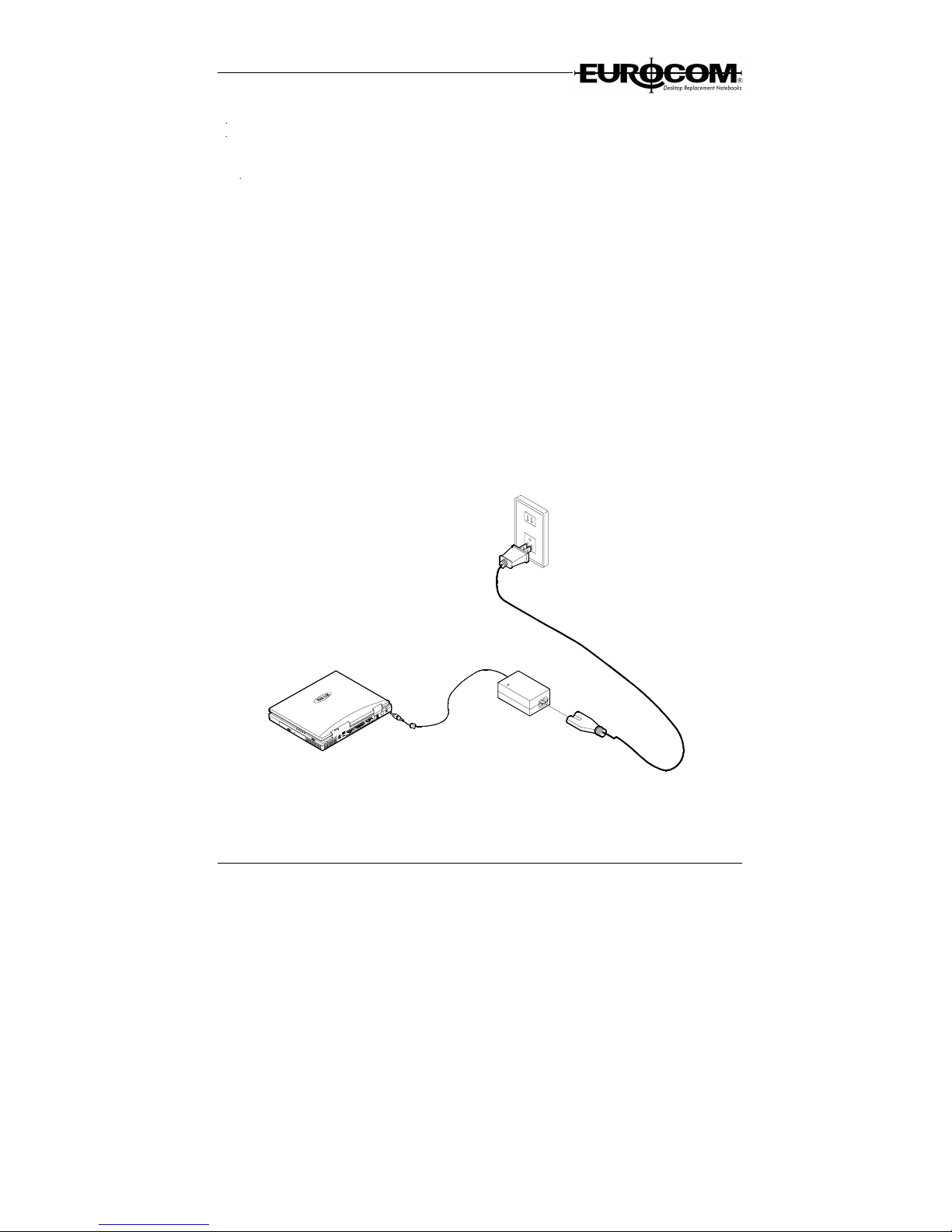

Figure 1-3

1-5

Chapter 1: Getting Started

By Battery Pack

The battery pack provides power for continuous portable operation of the

computer. When using the battery no external power source is required.

The actual operation time is related to the application and the configuration

you’re using.

Inserting

1. Turn the computer over.

2. Fit the battery pack firmly into the computer.

3. The latch will click into the place when it is seated.

Removing

1. Turn the computer over.

2. Press the latch in the indicated direction to release the battery pack

(Figure 1-4).

3. Carefully lift the battery pack from the computer (Figure 1-5).

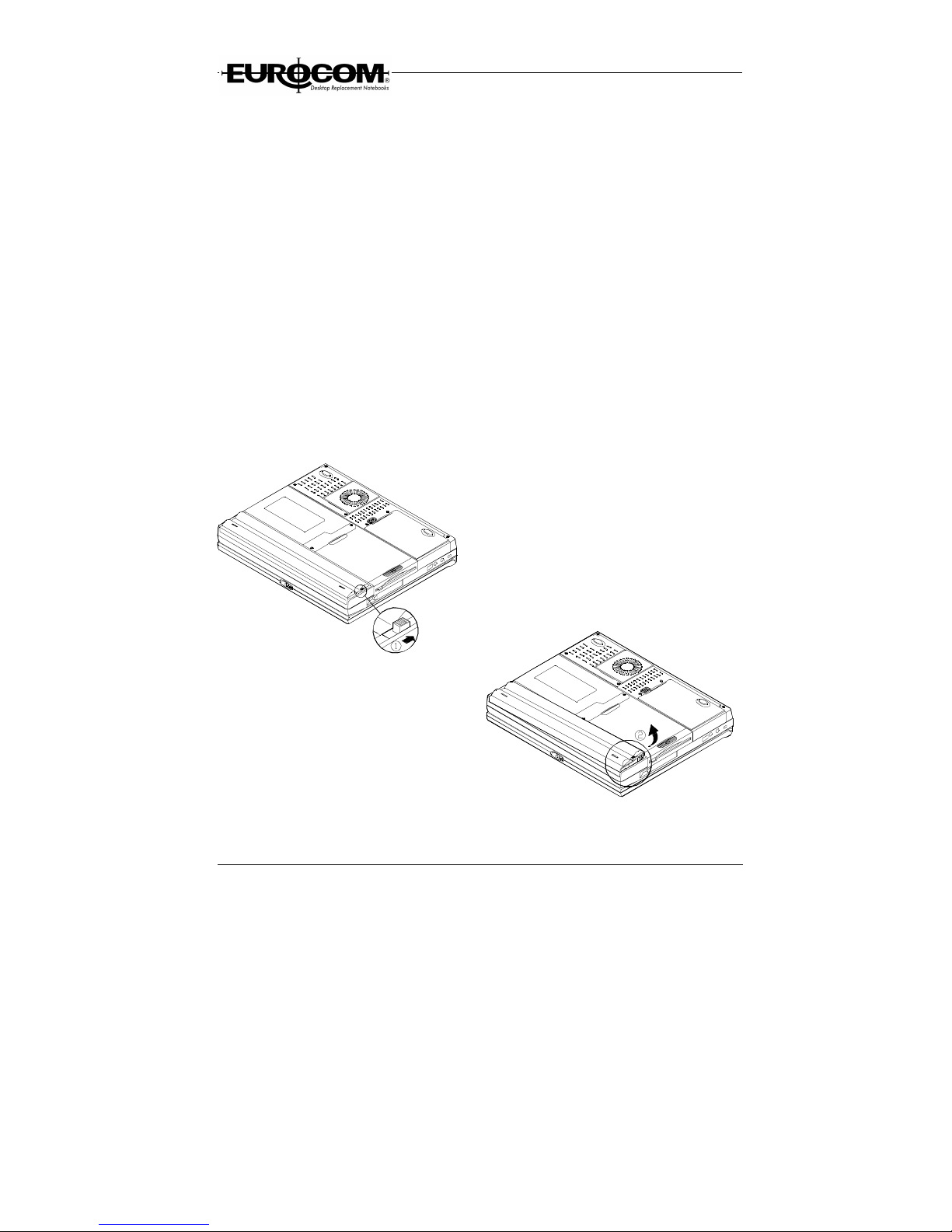

Figure 1-4

1-6

User’s Manual

!Opening the LCD Cover

1. Move the latch to the right to release the top cover. (Figure 1-6).

2. Lift the top cover to reveal the LCD panel and keyboard (Figure 1-7).

3. Adjust the LCD panel to a comfortable viewing angle.

4. Press the power button to turn the system on or off (refer to Chapter1,

Top-Front View for more information on the power button).

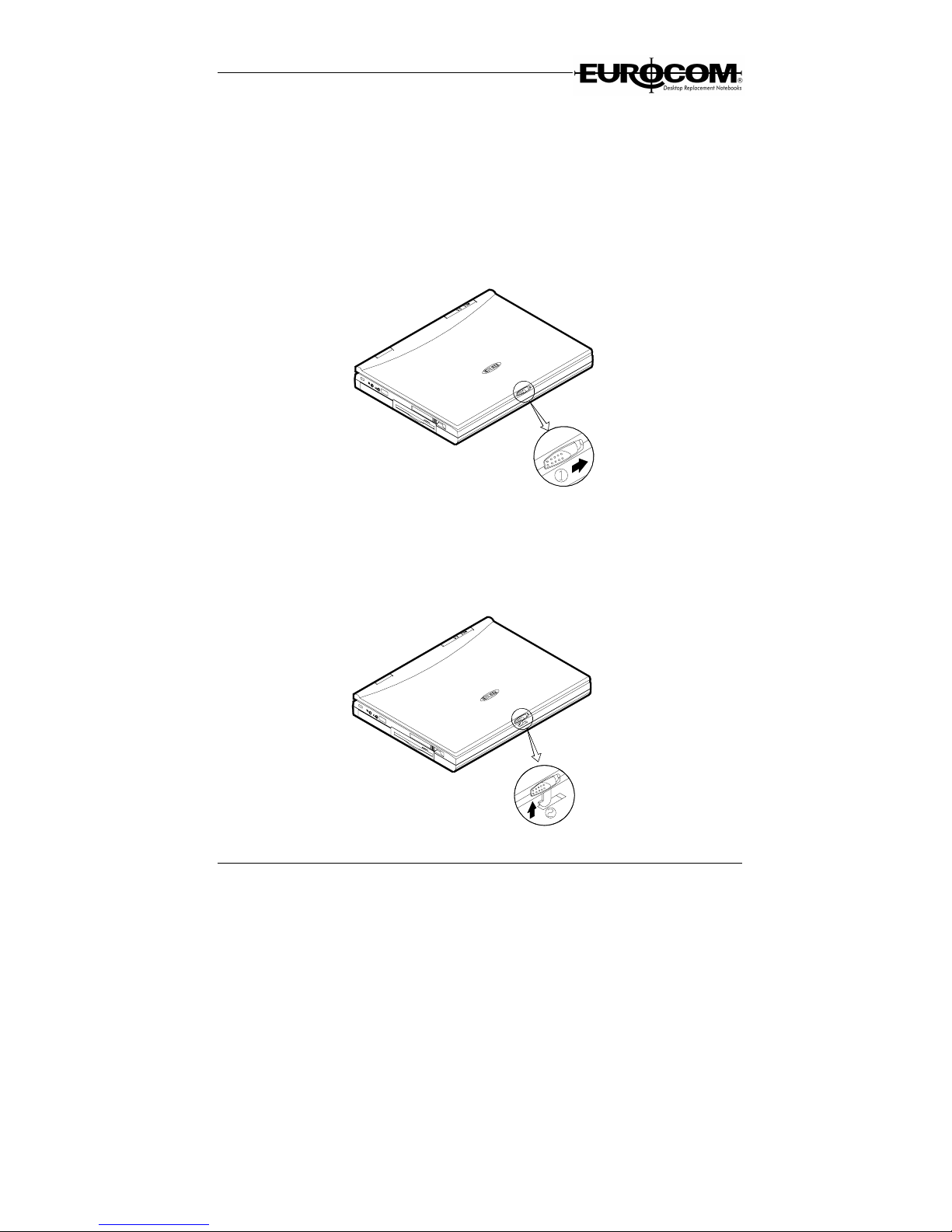

Figure 1-6

ure 1-7
