Eurocave 059 Manual de usuario

Wine cabinet installation

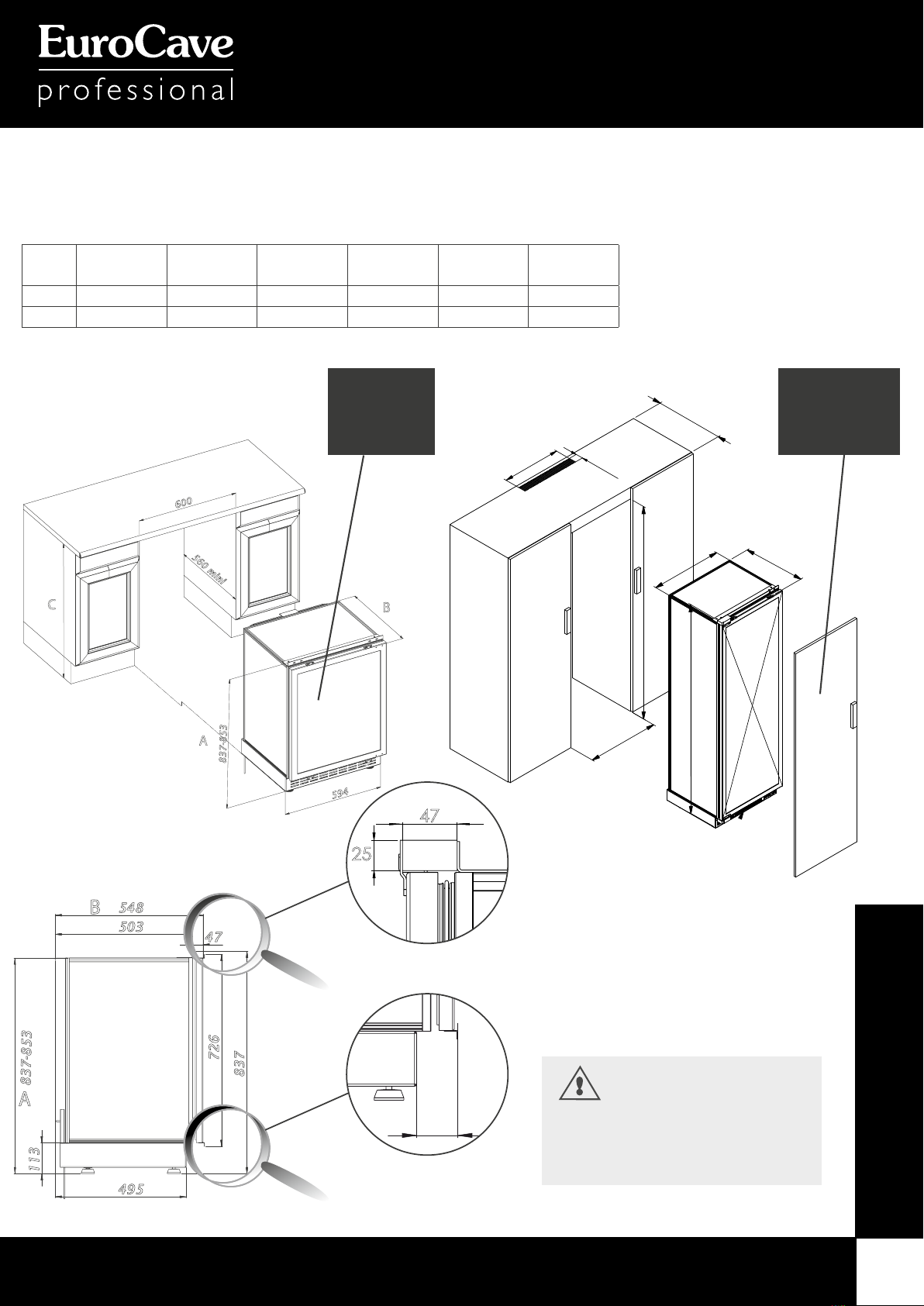

Flush-ﬁtting diagrams - Compact 59

www.eurocave.co.uk

Compact Range

Dimensions to be observed

See chapter “Adjusting the feet and securing the cabinet”

50 mini

1802 mini

594

600

570 mini

1797 mini

540 mini

059 259

259: It is essential that the unit

inside which the cabinet will be

ﬁtted has an opening at the top, at the

back, measuring at least 540mm in length

and 50mm in width (see technical door

diagram).

A max. A min. A max. A min. B C min.

with raising piece*with raising piece*

059 853 837 896 880 548 842

259 1813 1797 1856 1840 565 1802

.for a technical door

600

560

mini

594

837-853

548

503

113

837

726

495

837-853

69,5

600

560

mini

594

837-853

548

503

113

837

726

495

837-853

Weight of

door face:

15 Kg max.

Weight of

door face:

17,5 Kg max.

www.eurocave.co.uk

Compact Range

.tnevriatnorfehttcurtsboreveN

This could result in poor functioning

of the cabinet.

On the side of the axis of rotation

of the door, position it at least 3 mm

from the adjacent unit.

The plug must be accessible after the appliance has been

installed. For medium and large models, it is essential that

the cabinet is fastened to the unit. Check that the appliance

is securely fastened to the unit and that the unit is securely

fastened to the wall.

If your door is glazed, never place it on its side as it may

break.

The wine cabinet’s 4 feet can be adjusted in height.

.tuhssniamerroodehttahtgnirusne,sdrawrofecnailppaehttliT.tehcas”seirossecca“ehtnideilppus)8(seceipgnisiarlanogaxehehtesu,yrassecenfI-

Unscrew the back feet and t the raising pieces,using a 17 mm open-ended spanner. Screw the 2 back feet onto the raising pieces.

Repeat the procedure for the 2 front feet,this time tilting the appliance backwards.

- Use suitable screws to secure the wine cabinet underneath the work top or inside the unit via the holes provided in the hinges.

(to be carried out only when the cabinet is empty)

- Position the cabinet so that it is level underneath the work top or inside the unit

- Open the cabinet door to 90°

- Fasten the door face of the kitchen unit onto the cabinet door (8 screws supplied)

- Ensure that the seal is completely air tight

Size 059 259

Tech door height (in mm) 676 1656

Tech door width (in mm) 592 592

Tech door thickness (in mm) 29 29

Seal thickness (in mm) 10 10

Total thickness (in mm) 39 39

Max.weight of door face (in kg) 17.5 17.5

Door face + door total weight (in kg) 16 39.5

N.B.!

.the air vent

.rotation of the door

.access to the plug

.glass door

Adjusting the feet and securing the cabinet

Fastening a unit door to a technical door

Do not

obstruct

Wine cabinet installation

Flush-ﬁtting diagrams - Compact 59

- Your panel must be 726 mm high

1) Remove the top hinge, fit the technical cross angle (support of the top

technical hinge) on the top panel of the cellar (3 screws per side).

2) Fit the top technical hinge and tighten slightly the screws.

3) Remove the bottom hinge, install the support of the bottom technical hinge.

4) Fit the bottom technical hinge on its support and tighten slightly the screws.

5) Fit the technical door on the technical hinges.

6) Adjust the door (see inset).

7) Tighten the screw of the hinges.

8) Remove the door lock plate.

Bottom Technical

Hinge Support

Top Technical

Hinge Support

Door adjustment:

level the cellar, align the

hinge chest side with the

hinge door side, adjust the

door in order to obtain a

gap of 14 mm between the

inner frame of the door

and the frame of the chest.

Check using a sheet of

paper if the seal is airtight

on all it tower of the cellar

when the door is closed.

TopTechnical

Hinge Support

TECHNICAL DOOR ASSEMBLY

www.eurocave.co.uk

email:[email protected]

57 Chiltern Street London W1U 6ND

Phone:+44 (0)20 7935 4679

60mm

25mm

84mm

60mm

25mm

592mm

Ref:059

726mm

Ref:259

1709mm

Ref:059

676mm

Ref:259

1659mm

Mounting clamp

Clamp holes Hinge

TECHNICAL DOOR ASSEMBLY

Wine cabinet

Technical door

Fitted door

www.eurocave.co.uk

email:[email protected]

57 Chiltern Street London W1U 6ND

Phone:+44 (0)20 7935 4679
