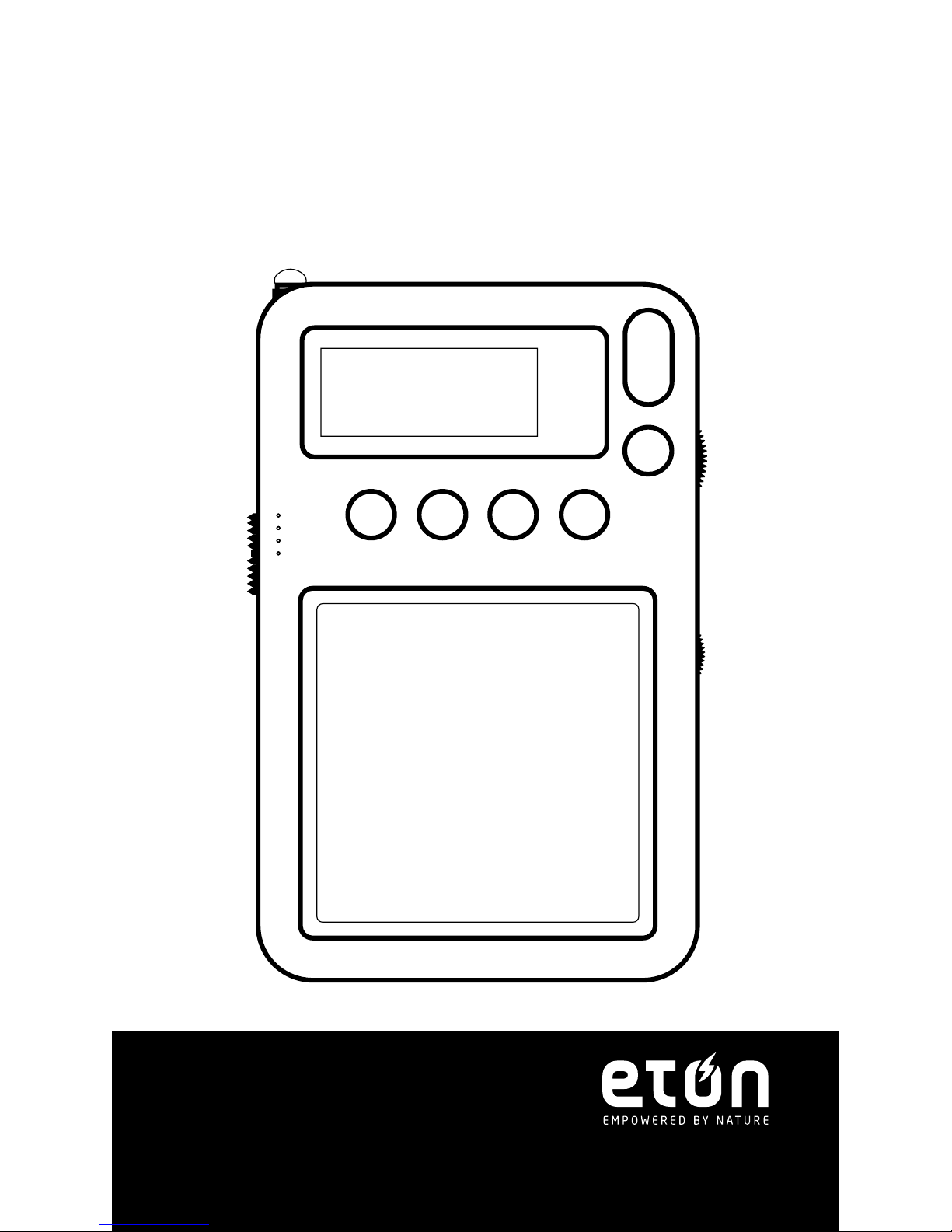

OWNER’S MANUAL

MINI

Super Compact AM/FM Shortwave Radio with

Digital Display

MINI OWNER’S MANUAL

Features:

1Power

2Display

3Alarm

4Time

5Lock Button

6Hour

7Minute

8Speaker

9Tune Dial

10 DC Jack

11 Volume Dial

12 Telescopic Antenna

13 Band Switch

14 Earphone Jack

15 Battery

Compartment’s

Cover

MEET THE MINI

Thank you for purchasing the Etón MINI. We want

you to thoroughly enjoy the use of this product.

To take advantage of its many excellent and

unique features, we urge you to carefully read the

user’s manual.

FRONT

MINI OWNER’S MANUAL

SIDES TOP

BACK

MINI OWNER’S MANUAL

BATTERIES

1. Remove the battery compartment’s cover by

pushing the cover toward the bottom of the

product.

2. Install two ‘AAA’ batteries (not included)

according to the polarity diagram.

3. Turn on the unit.

PREVENTING BATTERY ACID LEAKAGE:

To minimize the possibility of battery acid

leakage, only use high quality alkaline, lithium

or rechargeable nickel-metal-hydride batteries.

Never intermix old with new, or different brands

or types of batteries. Damage caused by battery

acid leakage is not covered by this product’s

warranty.

If the sound becomes low or distorted, replace

with new batteries. Prior to long term radio

storage, remove the batteries to prevent possible

battery leakage.

ADAPTER

The MINI’s AC adapter’s is rated at 3 Volts.

1. Plug one port of the adaptor into the AC

socket and plug the other port into the DC

jack.

2. Turn on the unit.

MINI OWNER’S MANUAL

Note: The MINI will not charge batteries when powered via an AC

adapter.

POWER ON / OFF

1. Install the batteries.

2. Press the <POWER> button shortly to turn on

the unit.

3. The word “on” will appear on the display.

4. After turning on the unit, press the <POWER>

button shortly again to turn off the unit.

LOCK FUNCTION

Push the <LOCK> switch in the upper right corner

of the unit down to lock (disable)all of the buttons

for the MINI.

SETTING THE TIME

1. Install the batteries.

2. With the radio off, hold down the <TIME>

button. At the same time, press the <HOUR>

button shortly to set the hour, press the <MIN>

button shortly to set the minute. After settings,

release the <TIME> button to nish setting.

SETTING THE ALARM FUNCTION

Set the Alarm Time

1. Install the batteries.

2. Hold <ALARM> button down, the alarm time

which was set last time and “ALARM” indicator

MINI OWNER’S MANUAL

appears in the display, at the same time, press

<HOUR> shortly to set the hour and press

<MIN> shortly to set the minute. After setting,

release <ALARM> button and the unit will

save the settings automatically.

Activate the Alarm Function

1. After setting the alarm time, select the band.

2. Press <ALARM> button shortly, the “ALARM”

indicator appears and the alarm function is

activated.

3. When reach the alarm time, the unit will turn

on automatically and play the program which

you selected.

Deactivate the Alarm Function

Press <ALARM> button shortly once, if the

“ALARM” indicator disappears from the display,

the alarm function is canceled.

ADJUST THE VOLUME

1. Turn on the unit.

2. Rotate the <Volume>dial to adjust the volume.

SELECT THE BAND

1. Turn on the unit.

2. Push the <BAND> switch to select FM/AM/

SW1/SW2.

MINI OWNER’S MANUAL

NOTES: When selecting the FM band, “FM” appears in the display; when

selecting the AM (MW) band, “MW” appears in the display; when selecting

the SW1/SW2 band, “SW” appears in the display.

TUNING IN STATIONS

1. Turn on the unit.

2. Adjust the volume.

3. Select the band.

4. For best reception of FM and SW programs:

5. Extend the telescopic antenna fully, position

the radio close to a window, adjust the

<TUNE>dial to the desired frequency and

rotate the antenna for best reception.

When listening to AM (MW):

The radio uses an internal, directional, ferrite

bar antenna for AM (MW). Please adjust the

<TUNE>dial to the desired frequency and rotate

the entire radio for the best reception.

NOTE: When listening to AM (MW) you need not extend the telescopic

antenna.

LISTENING TO SHORTWAVE

Shortwave allows listening to stations from

around the world. During the day, frequencies

above 13 MHz provide the best reception. At

night, frequencies below 13 MHz provide the best

MINI OWNER’S MANUAL

reception. To learn more use a search site on the

Internet or refer tothe two books below:

PASSPORT TO WORLD BAND RADIO

Published by International Broadcasting Services

(IBS); IBS North America, Box 300, Penn’s Park PA

18943. Phone: (215) 598-9018. www.passband.

com.

WORLD RADIO TV HANDBOOK Published

in the USA by Watson-Guptill Publications, 770

Broadway, 7th Floor, New York, NY 10003-9595.

www.watsonguptill.com.

CAUTIONS:

• Do not expose the radio to sunlight, leave it

close to a heat source, or leave it in a place with

excessive dust or mechanical shock.

• Do not expose the radio to rain or a humid

environment.

• Do not change or modify the radio.

• Remove the batteries if the radio is not to be

used for a long time. Otherwise, there may be

battery acid leakage and/or corrosion. Battery

acid leakage and the damage caused by leaked

batteries are not covered by this warranty.

MINI OWNER’S MANUAL

USING EARPHONES

• Please do not use earphones at a high volume

and do not use it for extended periods of time.

• Please turn off the radio before sleeping.

• Please do not use the earphones while driving or

riding/walking across a road.

SPECIFICATIONS

1. Frequency Range:

FM: 87 - 108 MHz

MW: 520 - 1710 KHz

SW1: 5.90 - 10.00 MHz

SW2: 11.65 - 18.00 MHz

2. Noise Limit Sensitivity:

FM ≤ 10μV

MW ≤ 1mv/m

SW ≤ 30μV

3. Signal Selection ≥ 40dB

4. Power Supply

Batteries: 2xAAA Size (2x1.5V)

DC: 3V

5. Speaker: D45mm 16Ω 0.25W

6. Earphones: D3.5mm

7. Dimensions: 70 x 110 x 14 mm

8. Weight: Approx 92g (excl. Batteries)

MINI OWNER’S MANUAL

NEED HELP? CONTACT US.

Etón Corporation

1015 Corporation Way, Palo Alto, CA 94303, USA

1-800-872-2228 (U.S.)

1-800-637-1648 (Canada)

650-903-3866 (worldwide)

M-F, 8:00AM-4:30PM, Pacic Standard Time

www.etoncorp.com.

WARNING

• Do not expose this appliance to rain or moisture.

• Do not submerge or expose for extended period

to water.

• Protect from high humidity and rain.

• Only operate within specied temperature

range (0 °C to 40 °C).

• Unplug or remove batteries immediately if liquid

has been spilled or any object has fallen into the

apparatus.

• Clean only with a dry cloth. Do not use

detergents or chemical solvents as this might

damage the nish.

• Do not remove cover [or back].

• Refer servicing to qualied service personnel.
