EtherWAN EW75000 Series Instrucciones de montaje

Installation and Setup Guide

EW75000 Hardened Wireless LAN Access Point

FastFind Links

Introduction

Installation

Configuration

Dissemination or reproduction of this document, or its contents, is not authorized except where expressly

trademark registration.

Disclaimer of Liability

The information contained in this document is subject to change without notice. EtherWAN is not liable for

any errors or omissions contained herein or for resulting damage in connection with the information

provided in this manual.

All other trademarks are property of their respective owners.

Warranty

For details on the EtherWAN warranty replacement policy, please visit our web site at:

https://kb.etherwan.com/index.php?CategoryID=13

Products Supported by this Manual:

EW75200-0804, EW75200-1304, EW75200-2104, EW75000-08, EW75000-13, EW75000-21

iii

EW75000 Hardened Wireless LAN Access Point

Preface

Audience

This guide is designed for the person who installs, configures, deploys, and maintains the

Ethernet network. This document assumes the reader has moderate hardware, computer, and

Internet skills.

Document Revision Level

This section provides a history of the revision changes to this document.

Revision Document Version

Date Description

A Version 1 12/27/2017

Changes in this Revision

This is first version of this document.

Document Conventions

This guide uses the following conventions to draw your attention to certain information (see

following page).

EW75000 Hardened Wireless LAN Access Point

Safety and Warnings

This guide uses the following symbols to draw your attention to certain information.

Symbol Meaning Description

Note Notes emphasize or supplement important points of the main text.

Tip Tips provide helpful information, guidelines, or suggestions for performing tasks more

effectively.

Warning Warnings indicate that failure to take a specified action could result in damage to the

device, or could result in serious bodily injury.

Electric Shock Hazard

This symbol warns users of electric shock hazard. Failure to take appropriate precautions

such as not opening or touching hazardous areas of the equipment could result in injury or

death.

Abbreviations

The following abbreviations are used throughout this manual.

ABR: Area Border Router

AES: Advanced Encryption Standard

AP: Access Point

BFD: Bidirectional Forwarding Detection

DUT: Device Under Test

EAP: Extensible Authentication Protocol

IKE: Internet Key Exchange

LSA: Link State Announcement

MME: Mesh Made Easy

NAT: Network Address Translation

SSID: Service Set Identifier

SUT: System Under Test

TKIP: Temporal Key Integrity Protocol

WDS: Wireless Distribution System

WPA2: Wireless Protected Access 2

WPS: Wi-Fi Protected Setup

VRF: Virtual Routing and Forwarding

NOTE: The terms “EX75000 series” and “eWAV” are used interchangeably in this manual.

EW75000 Hardened Wireless LAN Access Point

Contents

Preface ..................................................................................................................... iii

Changes in this Revision ........................................................................................... iii

Document Conventions ............................................................................................. iii

Safety and Warnings ................................................................................................ iv

Abbreviations ........................................................................................................... iv

Contents ................................................................................................................... v

1 Introduction ........................................................................................................... 7

EW75000 Series Model Reference............................................................................ 8

2 Installation ............................................................................................................. 9

Unpacking the Hardware ........................................................................................... 9

Supplying Power ....................................................................................................... 9

Digital Configuration ................................................................................................ 10

Connect Antennas ................................................................................................... 10

Physical Installation ................................................................................................. 11

Grounding ............................................................................................................... 12

Surge Protection ...................................................................................................... 12

Reset Button ........................................................................................................... 13

LED Status Indicators .............................................................................................. 13

3 Configuration ...................................................................................................... 14

Quick Set ................................................................................................................. 14

Description of Quick Set Modes .............................................................................. 15

Advanced Mode ...................................................................................................... 16

Description of Menu Items ................................................................................. 17

Example: Set Up a Point to Point Link Using QuickSet ............................................ 45

Configure the Access Point................................................................................ 45

Configure the Subscriber Unit ............................................................................ 46

Example: Set Up a Point to Point Link Using Advanced Mode ................................. 47

Configure the Access Point................................................................................ 47

Configure the Subscriber Unit: ........................................................................... 49

EW75000 Hardened Wireless LAN Access Point

Specifications .......................................................................................................... 50

Technology ........................................................................................................ 50

Antenna ............................................................................................................. 50

A.3 Power .......................................................................................................... 50

Wireless ............................................................................................................. 51

A.5 Physical ....................................................................................................... 52

Regulatory Approvals ........................................................................................ 52

Interference Statement ...................................................................................... 53

EW75000 Hardened Wireless LAN Access Point

1 Introduction

The eWAV EW75000 series is a family of hardened outdoor wireless access points

(WAP) and client bridges providing high speed wireless connectivity for harsh and

demanding environments. Comprised of high-power, long-range single and

dual-band IEEE 802.11ac MIMO wireless radios with gigabit IEEE802.3at PoE

connectivity, the series is hardened against extreme temperatures and water ingress.

eWAV delivers the power and range (up to 40 kilometers) to wirelessly connect

remote networks, or extend existing networks in an efficient and cost-effective way. It

supports 2.4 GHz 802.11 b/g/n for local device access like laptops, wireless IP

cameras, or mobile devices, and also 5 GHz 802.11ac/a/n for long distance data

transmission. Maximum transmission speeds are up to 300 Mbps on 2.4GHz and 866

Mbps on the 5GHz band.

The series can be used for Point-to-Point (PTP) wireless networks, connecting two

locations together through line of sight (LOS). Typical PTP applications include

building to building connectivity, replacing fiber-optic cable, and wireless failover for

wired connections.

Point-to-Multipoint (PTMP) wireless communication is also supported. PTMP

wireless networks connect access points to multiple locations through both LOS and

non-line-of-sight (NLOS). Some common PTMP applications are: Connecting

multiple buildings, video surveillance systems, and replacing fiber-optic cable.

Installation is greatly simplified by Power-over-Ethernet support, allowing for

mounting in locations where there is no power outlet. Network administrators can

control the transmission power and setting remotely, including bandwidth control and

traffic shaping. Wireless encryption is supported for added security.

EW75000 Hardened Wireless LAN Access Point

EW75000 Series Model Reference

Model Image Mode Wireless Modules

EW75200-0804

Access Point 2.4G, 5G (AP)

EW75200-1304

Access Point 2.4G, 5G (AP)

EW75200-2104

Access Point 2.4G, 5G (AP)

EW75000-08

Access Point 5G (AP)

EW75000-13

Subscriber unit 5G (Subscriber)

EW75000-21

Subscriber unit 5G (Subscriber)

EW75000 Hardened Wireless LAN Access Point

2 Installation

Unpacking the Hardware

Unpack the items and confirm that no items are missing or damaged. Your package

should include:

 One EW75000 series hardened wireless access point (AP) or subscriber unit

 Zero, two or four omnidirectional antennas, depending on model

 Mounting bracket set

 Grounding wire

 Quick installation guide

If any item is damaged or missing, notify your authorized EtherWAN representative. Keep

the carton, including the original packing material, in case you need to store the product or

return it.

Supplying Power

All EW75000 series models are PoE Powered Devices, and have no AC or DC power

socket. Power is supplied through an Ethernet cable plugged into the RJ45 port. The

cable must be connected to a switch that supports PoE, or an inline power injector.

Maximum power consumption is 13 watts.

Warning: Do not apply power to the device until all supplied antennas have been

securely attached.

RJ-45 PoE Port

EW75000 Hardened Wireless LAN Access Point

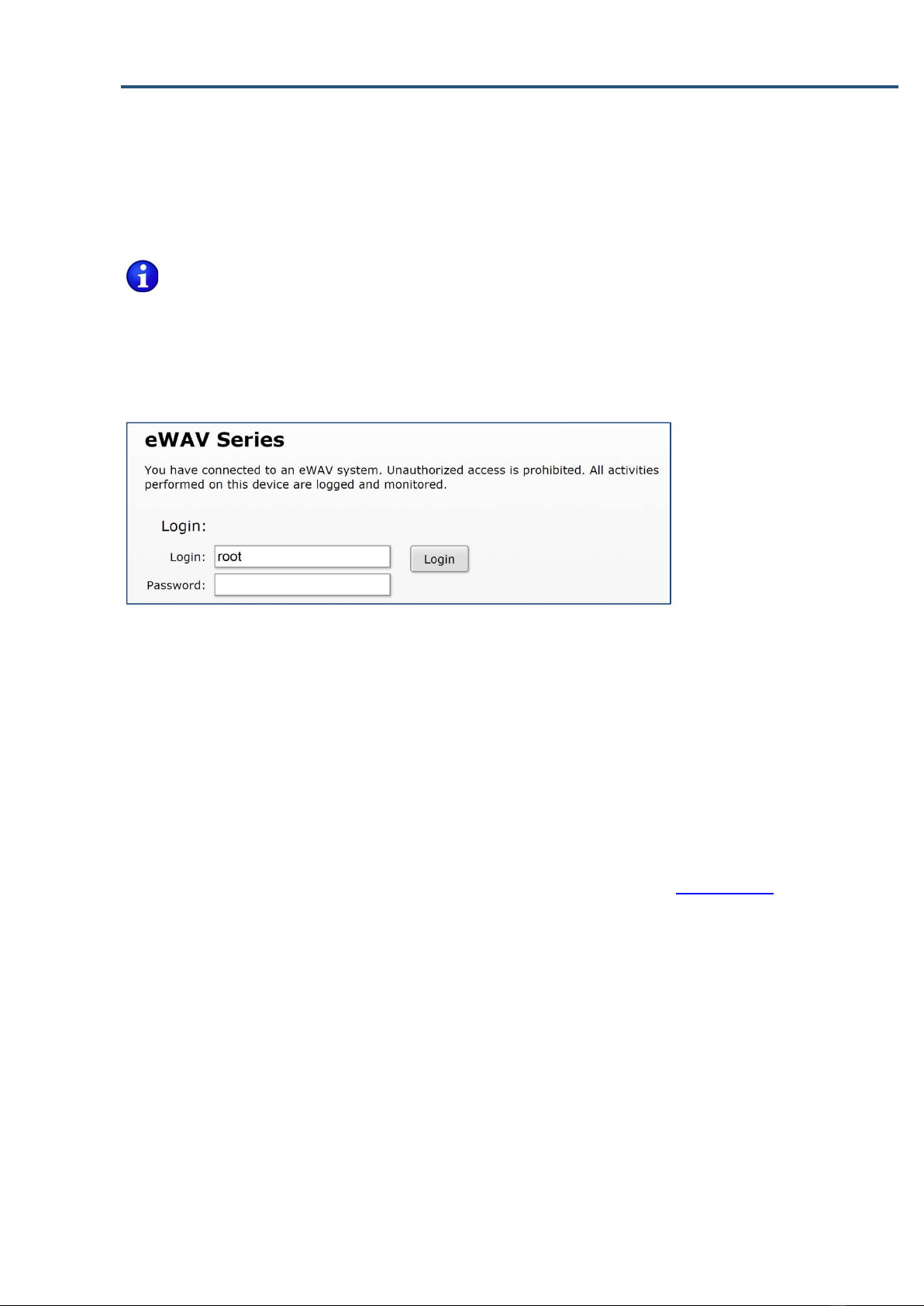

Digital Configuration

Use an Ethernet cable to connect a PC to the PoE switch or power injector, and another

cable to connect the switch/injector to the EW75000. Use a web browser to navigate to the

default IP address, and log in.

Note: The PC being used to configure the EW75000 Series must be on the same

subnet as the EW75000. It may be necessary to change the PC’s IP address temporarily.

The default IP address is 192.168.1.20

User name is root, no password.

If you need to reset the switch to its default configuration from a remote location, you will

need to log in with full administrator rights.

Password: eWAV750o0!

It is highly recommended to change both the root and administrator passwords before

putting the device into regular service.

The Quick Set page will display by default. Select the function mode from the drop-down

menu in the upper right corner. The fields displayed depend on the mode selected.

Alternatively, you can exit the Quick Set page by clicking the “Advanced Mode” tab in the

upper right corner, and going directly to the main screen. See chapter on configuration for

details.

Connect Antennas

The EW75000 is equipped with an internal directional antenna, which provides

long-distance coverage in the direction it is pointing.

Depending on the model, your AP might come with two 5 GHZ and/or two 2.4GHz

antennas. Screw the antennas into the corresponding threaded sockets in the housing.
