EtherWAN EX3101 Manual de usuario

Ethernet Extender

User’s Manual 1

Preface

This manual describes how to install and use the Ethernet Extender. The

Ethernet Extender introduced here provides one channel for Ethernet over

VDSL.

The Ethernet Extender fully complies with IEEE 802.3 10BaseT and IEEE

802.3u 100BaseTX standards.

In this manual, you will find:

yProduct overview

EATURES ON THE ETHERNET EXTENDER

yIllustrative LED functions

yInstallation instructions

ySpecifications

Ethernet Extender

2 User’s Manual

Table of Contents

PREFACE ...............................................................................1

TABLE OF CONTENTS..............................................................2

INTRODUCTION .......................................................................3

PRODUCT OVERVIEW ..........................................................3

PRODUCT FEATURES ..........................................................3

PACKING LIST ....................................................................3

ONE-CHANNEL ETHERNET EXTENDER .....................................4

PORTS ...............................................................................4

VDSL MODE SETTINGS ......................................................4

FRONT PANEL &LEDS.......................................................4

INSTALLATION ........................................................................6

SELECTING A SITE FOR THE EQUIPMENT ..............................6

CONNECTING TO POWER.....................................................6

INSTALLING IN A CHASSIS ...................................................7

USE PANEL MOUNT KIT........................................................8

SPECIFICATIONS...................................................................10

Ethernet Extender

User’s Manual 3

Introduction

The Ethernet Extender provides one channel for Ethernet over VDSL. It

can be used as a stand-alone device or with a standard 19” chassis.

Product Overview

Product Features

yOne 10/100BaseTX (TX) Ethernet port with RJ-45 connector

yAuto negotiation of speed and duplex mode on TX port

yAuto MDIX on TX port

yComplies with IEEE 802.3 10BaseT and IEEE 802.3u 100BaseTX

standards

yOne Ethernet over VDSL port with RJ-11 connector

yEthernet over VDSL port auto senses the speed of

1/3/5/10/15/20/25/30Mbps

yOne DIP switch for configuring VDSL local or remote mode

STATUS LEDS

yExternal AC to DC power adapter

yUsed as a stand-alone device or with a chassis

yHot-swappable when used with a chassis

Packing List

When you unpack this product package, you will find the items listed below.

Please inspect the contents, and report any apparent damage or missing

items immediately to our authorized reseller.

yTHE ETHERNET EXTENDER

yUSER’S MANUAL

yAC to DC Power Adaptor

Ethernet Extender

4 User’s Manual

One-Channel Ethernet Extender

Ports

The Ethernet Extender provides one TX port and one VDSL port.

For the TX port, it uses RJ-45 connector and auto senses the speed of

10/100Mbps.

For the VDSL port, it uses RJ-11 connector and auto senses the speed of

1/3/5/10/15/20/25/30Mbps.

VDSL Mode Settings

VDSL mode settings are made very simple by means of a DIP (Dual Inline

Package) switch at the rear panel of the VDSL Extender.

DIP switch

There is one pin on the DIP switch for VDSL mode settings. Refer to the

table below for more details. One end must be set to Loc and the other to

Rmt when two devices are connected.

Loc Rmt

The device operates in local mode The device operates in remote mode

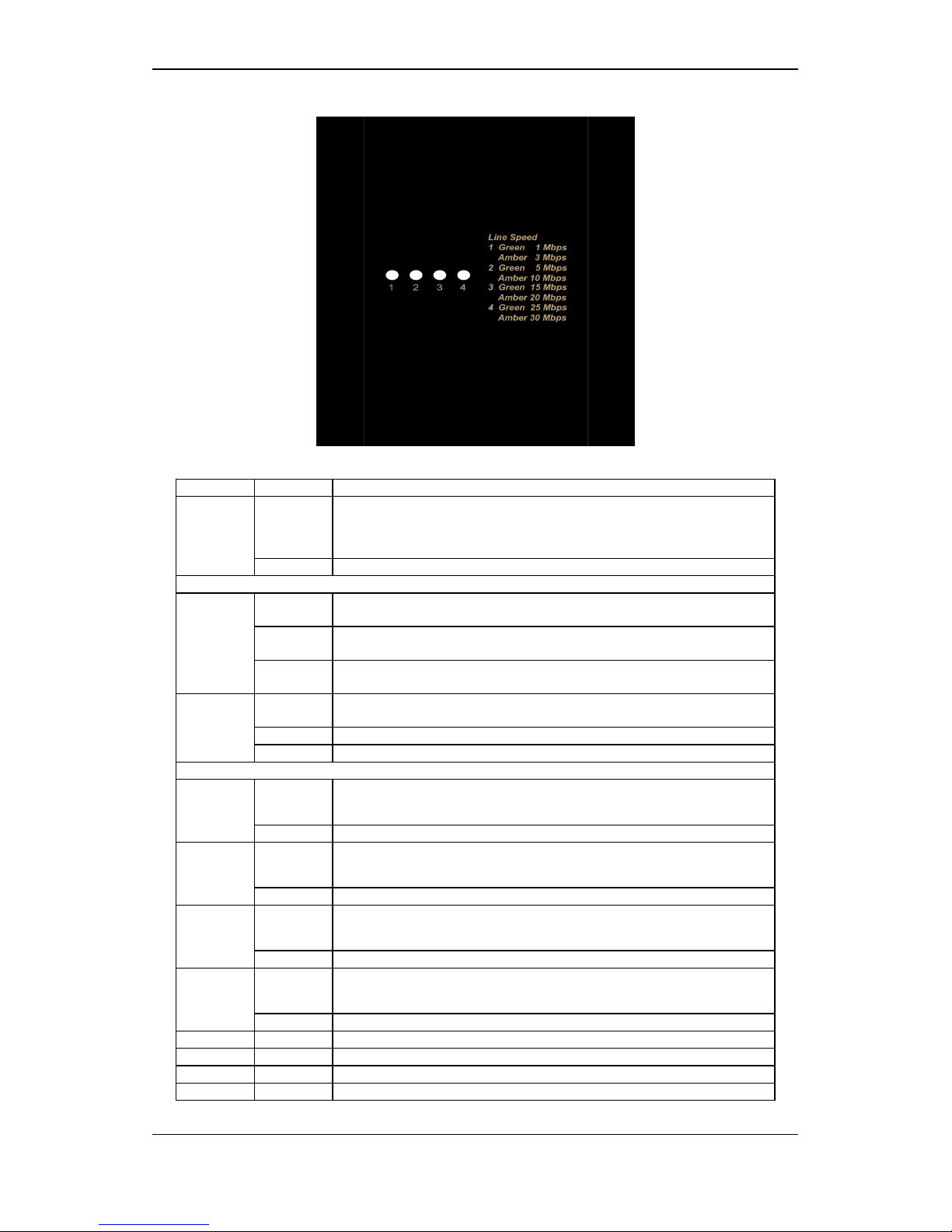

Front Panel & LEDs

LED Indicators

The LED indicators give you instant feedback on status of the Ethernet

Extender:

Ethernet Extender

User’s Manual 5

LEDs State Indication

Steady Power on

PWR STANDS FOR POWER

Pwr

Off Power off

Ethernet

Steady A valid Ethernet connection established

Lnk stands for LINK

Flashing Transmitting or receiving Ethernet data

Act stands for ACTIVITY

Lnk/Act

Off Neither valid Ethernet connection established nor

transmitting/receiving Ethernet data

Steady Ethernet Connection in full duplex mode

Fdx stands for FULL-DUPLEX

Flashing Collision occurred

Fdx

Off Ethernet Connection in half-duplex mode

Ethernet over VDSL

GREEN

The VDSL port transmitting/receiving at 1Mbps, up to 1900M

Amber The VDSL port transmitting/receiving at 3Mbps, up to 1700M

GREEN THE VDSL PORT TRANSMITTING/RECEIVING AT 5MBPS,UP TO 1600M

Amber The VDSL port transmitting/receiving at 10Mbps, up to 1500M

GREEN

The VDSL port transmitting/receiving at 15Mbps, up to 1400M

Amber The VDSL port transmitting/receiving at 20Mbps, up to 1000M

GREEN

The VDSL port transmitting/receiving at 25Mbps, up to 800M

Amber The VDSL port transmitting/receiving at 30Mbps, up to 600M

Rmt Steady The device operates in remote mode

Loc Steady The device operates in local mode

Err Steady Error occurred

Lnk Steady A valid VDSL connection established

Ethernet Extender

6 User’s Manual

Installation

This chapter gives step-by-step installation instructions for the Ethernet

Extender.

Selecting a Site for the Equipment

As with any electric device, you should place the equipment where it will

not be subjected to extreme temperatures, humidity, or electromagnetic

interference. Specifically, the site you select should meet the following

requirements:

zThe ambient temperature should be between 0 to 60 degrees Celsius.

zThe relative humidity should be less than 90 percent, non-condensing.

zSurrounding electrical devices should not exceed the electromagnetic

field (RFC) standards for IEC 801-3, Level 2 (3V/M) field strength.

zMake sure that the equipment receives adequate ventilation. Do not

block the ventilation holes on each side of the equipment.

zThe power outlet should be within 1.8 meters of the product.

Connecting to Power

yThis Ethernet Extender is a plug-and-play device.

yConnect the supplied AC to DC power adaptor to the receptacle on the

rear panel of the Ethernet Extender, and then attach the plug into a standard

AC outlet with a voltage range from 100 to 240VAC.

Ethernet Extender

User’s Manual 7

Installing in a Chassis

The Ethernet Extender can be fit into any of the expansion slots on a

special designed chassis.

yFirst, install the Ethernet Extender onto a carrier supplied with the chassis:

Step 1- Unscrew the carrier from the desired expansion slot on the chassis.

Step 2- Fit the Ethernet Extender onto the carrier.

Ethernet Extender

8 User’s Manual

yWhen the Ethernet Extender is completely seated onto the carrier, insert

the carrier to the guide rails of the expansion slot.

yCarefully slide in the carrier until it is fully and firmly fit the chassis. Fasten

the screws onto the carrier.

<NOTE> Never insert any Ethernet Extender into the chassis directly

without using the supplied carriers. The carriers allow secure and consistent

placement of the Ethernet Extenders into the chassis backplane without

causing any damage.

Use panel mount kit

The Ethernet Extender can use panel mount kit to fix on the panel.

Ethernet Extender

User’s Manual 9

Step 1- Loosen the screws by the side of the unit.

Step 2- Fit the panel mount kit onto the unit and fasten the screws.

Ethernet Extender

10 User’s Manual

Specifications

Applicable Standards IEEE 802.3 10BaseT

IEEE 802.3u 100BaseTX

ETHERNET OVER VDSL

Fixed Ports 1 x 10/100Mbps Ethernet port with RJ-45 connector

1 x Ethernet over VDSL port with RJ-11 connector

Speed

10BaseT

100BaseTX

ETHERNET OVER VDSL

10/20Mbps for half/full-duplex

100/200Mbps for half/full-duplex

1, 3, 5, 10, 15, 20, 25, 30MBPS

Cable

10BaseT

100BaseTX

ETHERNET OVER VDSL

2-pair UTP/STP Cat. 3, 4, 5

2-PAIR UTP/STP CAT.5

Straight telephone wires

Switching Method Store-and-Forward

Forwarding rate 14,880/148,800pps for 10/100Mbps

Per Unit- (7 LEDs): Pwr; Rmt, Loc, 1, 2, 3, 4LED Indicators

Per Port-

RJ-45 (2 LEDs): Lnk/Act; Fdx

RJ-11 (2 LEDS): ERR,LNK

Dimensions W80.3 × D109.2 × H23.8 mm

(3.2 X 4.3 X 0.94 IN.)

Weight 0.15kg (5.3 oz.)

Power External power adaptor 12VDC, 0.2A

Power Consumption 2.4W Max.

Operating Temperature 0°C ~ 60°C

Storage Temperature -25°C ~ 70°C

Humidity 10 ~ 90%, non-condensing

Emissions FCC part 15 Class A, CE Mark
