ETAS ES1336.1 Manual de usuario

ES1336.1 Angle Synchronous Measurement Board

User’s Guide

The data in this document may not be altered or amended without special

notification from ETAS GmbH. ETAS GmbH undertakes no further obligation

in relation to this document. The software described in it can only be used if

the customer is in possession of a general license agreement or single license.

Using and copying is only allowed in concurrence with the specifications

stipulated in the contract.

Under no circumstances may any part of this document be copied, repro-

duced, transmitted, stored in a retrieval system or translated into another

language without the express written permission of ETAS GmbH.

The names and designations used in this document are trademarks or brands

belonging to the respective owners.

V1.0.0 R03 EN - 07.2018

Contents 3

Contents

1Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.1 Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1.2 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1.3 Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

1.4 Taking the Product Back and Recycling . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.1 Signal Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.1.1 Input Circuitry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.1.2 Electrical Strength and Impedance Converter . . . . . . . . . . . . . . 11

2.1.3 Threshold Comparison . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.1.4 Ground and Shielding. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.2 Synchronization Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2.3 Angle Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2.4 Diagnostic Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

2.5 Measurement Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

2.6 Start of Angle Measuring after Initialization . . . . . . . . . . . . . . . . . . . . . . . 17

3Pin Assignment and Display Elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

3.1 “Input 0-19” Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

3.2 “DIAG 0-7” Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Contents4

3.3 LEDs for Status Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

4Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

4.1 Digital Output Cable with BNC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

5Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

6ETAS Contact Addresses. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Introduction 5

1 Introduction

This User’s Guide describes the ES1336.1 Angle Synchronous Measurement

Board.

It consists of the following chapters:

• Introduction

• "Hardware" on page 11

• "Pin Assignment and Display Elements" on page 19

• "Accessories" on page 23

• "Technical Data" on page 25

• "ETAS Contact Addresses" on page 27

CAUTION!

Some components of the ES1336.1 Angle Synchronous Measure-

ment Board may be damaged or destroyed by electrostatic dis-

charges. Please keep the board in its storage package until it is

installed.

The ES1336.1 Angle Synchronous Measurement Board should

only be taken from its package, configured and installed at a

working place that is protected against static discharge.

WARNING!

The components, connectors and conductors of the ES1336.1

Angle Synchronous Measurement Board may carry dangerous

voltages. These voltages may even exist when the ES1336.1 is not

installed in the ES4100, ES4105 or ES4300 or the ES4100, ES4105

or ES4300 is powered off.

Make sure that the ES1336.1 is protected against contact during

operation. Disconnect all connections to the ES1336.1 before

removing the board.

Introduction6

1.1 Applications

The ES1336.1 Angle Synchronous Measurement Board is used to acquire and

evaluate digital ECU signals.

This means:

• The acquisition and evaluation of speed-synchronous (= angle-synchro-

nous) signals such as injection and ignition signals.

• The acquisition and evaluation of asynchronous (usually pulse-width

modulated) signals such as exhaust gas recirculation and canister purge

valve.

• The acquisition and evaluation of static (switch) signals such as ventila-

tor control and malfunction indicator lamp.

A whole range of measurement modes is available for this, e.g. pulse

integration and pulse count, detection of peak amplitudes and the measuring

of rise and fall times (in piezo injector control).

1.2 Features

The ES1336.1 Angle Synchronous Measurement Board has the following fea-

tures:

• 20 independent input channels

• Two inputs for battery voltages which are used for the threshold values

when digitizing input signals

• Eight diagnostic outputs for monitoring digitized, FPGA-internal signals

(e.g. in an oscilloscope).

• Speed/angle clock generator module

• Many speed-synchronous and time-synchronous measurement modes

Introduction 7

The following figure shows the front panel of the ES1336.1 Angle Synchro-

nous Measurement Board.

Fig. 1-1 Front Panel of the ES1336.1 Angle Synchronous Measurement

Board

ES1336.1

INPUT 0-19 DIAG 0-7

L0ER L1

ETAS

Introduction8

1.3 Block Diagram

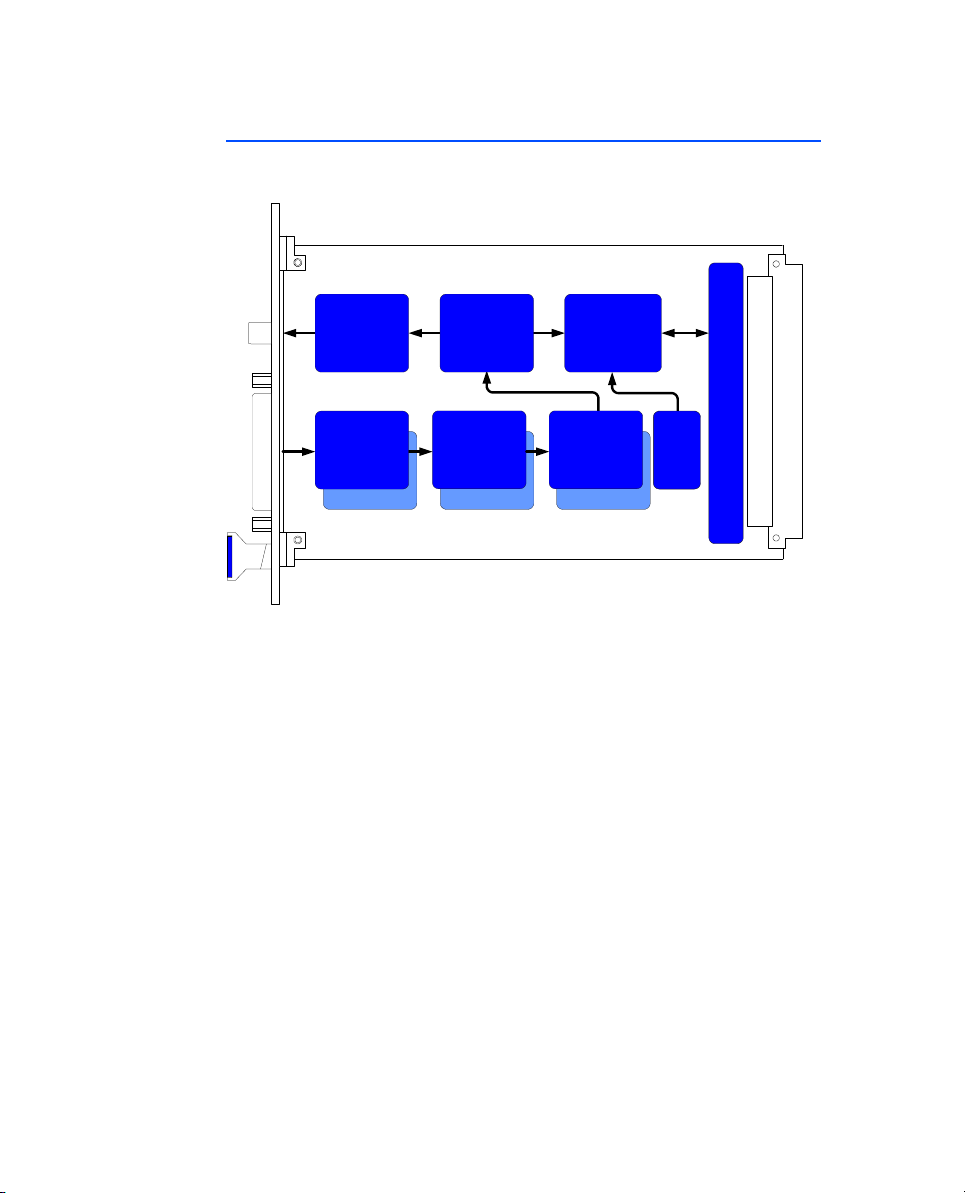

Fig. 1-2 shows the block diagram of the ES1336.1 Angle Synchronous Mea-

surement Board.

Fig. 1-2 Block Diagram of the ES1336.1 Angle Synchronous Measure-

ment Board

CH19CH19

Impedance

Converter

CH0

CH19

VMEbus Interface

CH0

Processor

(FPGA)

Diagnostic

Outputs

Edge

Recognition

(FPGA)

Overvoltage

Protection

CH0

A/D

Converter

CH0

Serial

Flash

Introduction 9

1.4 Taking the Product Back and Recycling

The European Union has passed a directive called Waste Electrical and Elec-

tronic Equipment, or WEEE for short, to ensure that systems are setup

throughout the EU for the collection, treating and recycling of electronic

waste.

This ensures that the devices are recycled in a resource-saving way represent-

ing no danger to health or the environment.

Fig. 1-3 WEEE Symbol

The WEEE symbol on the product or its packaging shows that the product

must not be disposed of as residual garbage.

The user is obliged to collect the old devices separately and return them to the

WEEE take-back system for recycling.

The WEEE directive concerns all ETAS devices but not external cables or batter-

ies.

For more information on the ETAS GmbH Recycling Program, contact the ETAS

sales and service locations (see "ETAS Contact Addresses" on page 27).
