ESYLUX PD 360/8 Basic Manual de operación y mantenimiento

MA00607802

ESYLUX GmbH | An der Strusbek 40

22926 Ahrensburg | Germany

[email protected] | www.esylux.com

Detailed operating instructions

PD 360/8 Basic

EB10430411

PD 360i/8 Basic

EB10430435

PD 360/24 Basic

EB10430855

PD 360i/24 Basic

EB10430879

PD 360/24 Basic SMB

EB10430893

PD 360i/24 Basic SMB

EB10430916

PD 360/8 Basic SMB

EB10430480

PD 360i/8 Basic SMB

EB10430473

OPERATING INSTRUCTIONS

2 / 17

PD 360/8 Basic PD 360i/24 Basic PD 360/24 Basic SMB

PD 360i/8 Basic PD 360/8 Basic SMB PD 360i/24 Basic SMB

PD 360/24 Basic PD 360i/8 Basic SMB

Table of contents

1 Description 3

2 Safety instructions 3

3 Operation/functionality 4

3.1 Conditions in which the lighting is switched on 4

3.2 Conditions in which the lighting is switched off 4

3.3 Switching delay – not in pulse mode 4

4 Installation/connection 5

4.1 Masking the field of detection 7

5 Activation 7

5.1 Overview of factory settings 7

6 Settings 8

6.1 Control via external "S" button 8

6.2 Configuring parameters via remote control 8

6.3 Mobil-PDi/MDi 8

6.4 Mobil-PDi/MDi temporary settings 9

6.5 Programming the Mobil-PDi/MDi 9

6.6 Mobil-PDi/MDi-universal 11

6.7 Mobil-PDi/MDi-universal temporary settings 11

6.8 Programming the Mobil-PDi/MDi-universal 13

7 Technical data 15

8 Troubleshooting 15

8.1 Maintenance 16

8.2 Cleaning 16

9 ESYLUX manufacturer’s guarantee 17

OPERATING INSTRUCTIONS

3 / 17

PD 360/8 Basic PD 360i/24 Basic PD 360/24 Basic SMB

PD 360i/8 Basic PD 360/8 Basic SMB PD 360i/24 Basic SMB

PD 360/24 Basic PD 360i/8 Basic SMB

1 Description

The ESYLUX ceiling-mounted presence detector is a passive infrared presence detector

that responds to moving heat sources, such as people walking.

The presence detector is designed for small rooms and passageways that benefit from

natural light.

Note: Use this product only as intended (as described in the user instructions).

The device must not be changed, modified or painted — doing so will void any warranty

claims. You must check the device for damage immediately after unpacking it. If there is

any damage, you should not install the device under any circumstances.

If you suspect that safe operation of the device cannot be guaranteed, you should turn

the device off immediately and make sure that it cannot be operated unintentionally.

2 Safety instructions

• Work on the 230-V power system must be carried out by authorised personnel only,

with due regard to the applicable installation regulations/standards

• Switch off the power supply before installing the system

• On the input side, the device is to be protected against short circuits with a 10-A

circuit breaker

• Protection type IP 40 for interior use

OPERATING INSTRUCTIONS

4 / 17

PD 360/8 Basic PD 360i/24 Basic PD 360/24 Basic SMB

PD 360i/8 Basic PD 360/8 Basic SMB PD 360i/24 Basic SMB

PD 360/24 Basic PD 360i/8 Basic SMB

3 Operation/functionality

• 360° field of detection, 8 m / 24 m range at an installation height of 2.5 m

• Automatically controls light channels depending on presence and daylight

• With zero-cross switching

3.1 Conditions in which the lighting is switched on

The lighting is switched on if the target brightness value is below the preset lux value

and movement is detected in the field of detection. Further movement is acknowledged

by the sensor with two short flashes of the red LED (the LED can be switched off; see

"Configuring parameters via remote control").

3.2 Conditions in which the lighting is switched off

The lighting is switched off if no movement is detected in the field of detection and the

preset switch-off delay time has elapsed.

3.3 Switching delay — not in pulse mode

When persons are present, in order to avoid sudden changes in brightness caused by

undesired switching on/off of the lighting, the detector will only be triggered after a time

delay.

Example: a passing cloud could potentially cause unnecessary switching.

Time delay from light to dark: 30 sec. = red LED lights up during this period.

Time delay from dark to light: 5 min. = red LED flashes during this period.

OPERATING INSTRUCTIONS

5 / 17

PD 360/8 Basic PD 360i/24 Basic PD 360/24 Basic SMB

PD 360i/8 Basic PD 360/8 Basic SMB PD 360i/24 Basic SMB

PD 360/24 Basic PD 360i/8 Basic SMB

4 Installation/connection

Note: Switch off the power supply before installing the system.

• The detectors can be flush mounted or surface mounted, and are also suitable for

recessed ceiling mounting using accessories

Recessed mounting Recessed ceiling mounting (see accessories)

for suspended ceilings

Surface mounting Surface mounting

with spacers

OPERATING INSTRUCTIONS

6 / 17

PD 360/8 Basic PD 360i/24 Basic PD 360/24 Basic SMB

PD 360i/8 Basic PD 360/8 Basic SMB PD 360i/24 Basic SMB

PD 360/24 Basic PD 360i/8 Basic SMB

• Specifications regarding the range of the detector relate to an ambient temperature of

approx. 20°C

• Movement crossways to the detector is optimal for triggering the detector; head-on

approaches to the detector are more difficult to detect and therefore the range of the

detector is significantly reduced

• The detector should be positioned depending on the available space and usage

requirements

• Make sure that the detector has a clear line of sight, as infrared beams cannot

penetrate solid objects

• Connect the detector in accordance with the circuit diagram

Single connection

Parallel connection

LPhase, 230 V

Lighting

Neutral conductor

Push button

24 m

11 m

8 m

PD ... 24 Basic

8 m

6 m

4 m

PD ... 8 Basic

OPERATING INSTRUCTIONS

7 / 17

PD 360/8 Basic PD 360i/24 Basic PD 360/24 Basic SMB

PD 360i/8 Basic PD 360/8 Basic SMB PD 360i/24 Basic SMB

PD 360/24 Basic PD 360i/8 Basic SMB

4.1 Masking the field of detection

Use the lens mask provided to mask out specific areas of detection.

5 Activation

Connect the power supply.

A warm-up phase of 25seconds is initiated. The red LED flashes.

During this time, the lighting is switched on.

5.1 Overview of factory settings

Factory settings

Light value approx. 500lux

Switch-off delay time 5 min.

Sensitivity 100 %

The manual setting element values are active on delivery. The values can be overridden

at any time by programming the detector using one of the optional remote controls.

OPERATING INSTRUCTIONS

8 / 17

PD 360/8 Basic PD 360i/24 Basic PD 360/24 Basic SMB

PD 360i/8 Basic PD 360/8 Basic SMB PD 360i/24 Basic SMB

PD 360/24 Basic PD 360i/8 Basic SMB

6 Settings

6.1 Control via external "S" button

The ceiling-mounted presence detector is equipped with a connection for an external

button (S terminal). This can be used to switch the lighting on and off manually.

Modes activated by pressing the external button:

Press button for approx. 1 second: The lighting is switched on or off

(for the duration of the switch-off delay time)

Press button for approx. 3 second: The lighting is switched on or off continuously

for 4 hours

Further parameters can be configured via remote control. Remote controls can be

purchased as accessories.

6.2 Configuring parameters via remote control

Only models:

PD 360i/8 Basic EB10430435 PD 360i/24 Basic EB10430879

PD 360i/8 Basic SMB EB10430473 PD 360i/24 Basic SMB EB10430916

Note: For optimum reception, when programming the settings, point the remote control

at the detector. Please note that if the sensor is exposed to direct sunlight, the standard

detection range of approx. 8 m may be dramatically reduced due to the sun's infrared rays.

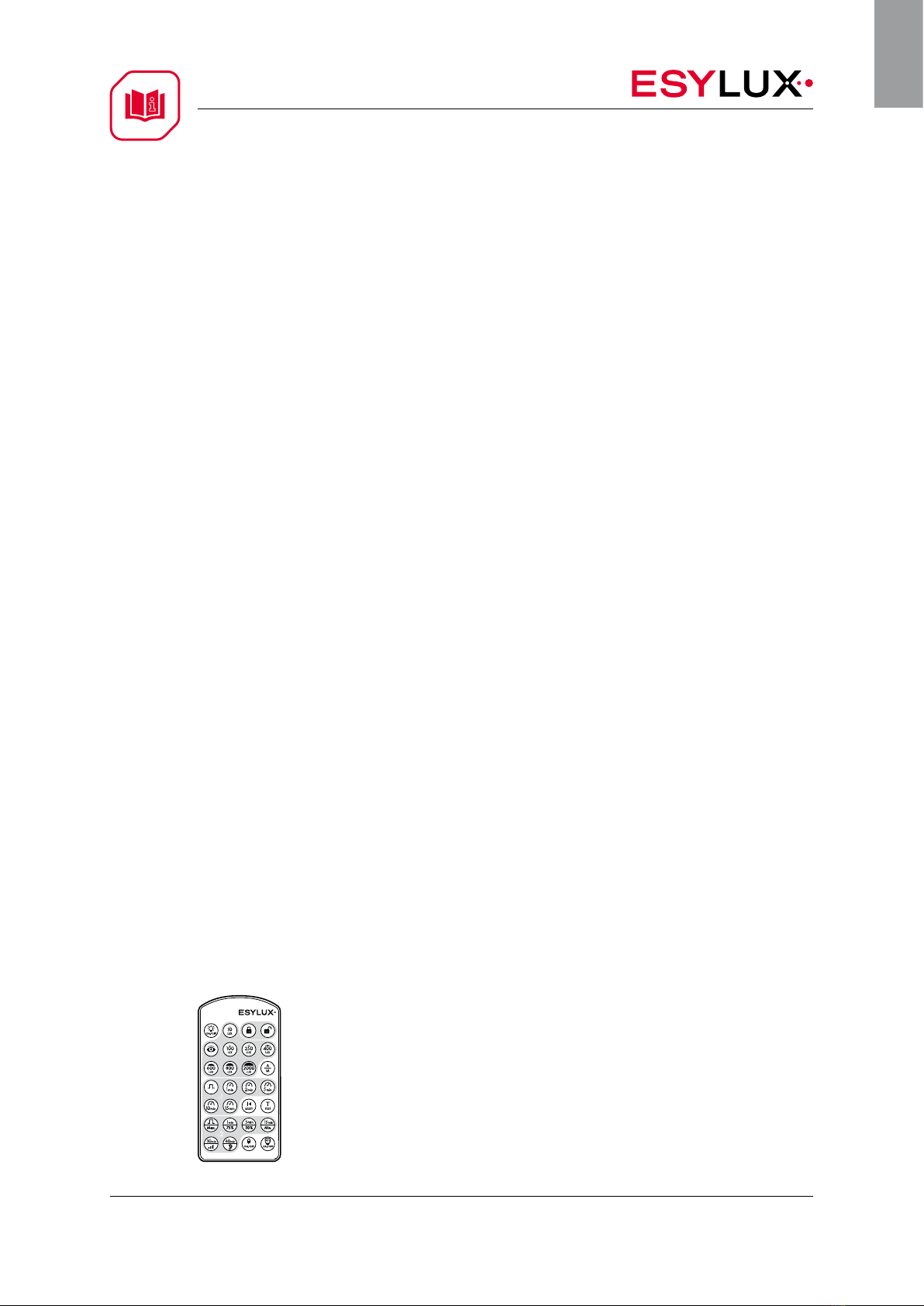

6.3 Mobil-PDi/MDi (EM10425509)

OPERATING INSTRUCTIONS

9 / 17

PD 360/8 Basic PD 360i/24 Basic PD 360/24 Basic SMB

PD 360i/8 Basic PD 360/8 Basic SMB PD 360i/24 Basic SMB

PD 360/24 Basic PD 360i/8 Basic SMB

6.4 Mobil-PDi/MDi temporary settings

Parameter configurations are only temporarily applied.

Function Customised setting

ON/OFF

Switching the lighting ON/OFF manually.

Note: The "ON/OFF" mode can be cancelled by pressing the "Reset" button.

"ON" acknowledgement: Movement detected in the field of detection is

acknowledged with two short flashes of the red LED.

"OFF" acknowledgement: Movement detected in the field of detection is

acknowledged with one short flash of the red LED.

Reset/settings

Temporarily set values are cleared and the detector returns to the manually

preset operating mode.

4 h ON/OFF

The lighting is switched on or off continuously for approx. 4 hours. If no

movement is detected in the field of detection and the preset switch-off delay

time has elapsed, the detector returns to the previous operating mode.

Note: The "4 h ON/OFF" mode can be cancelled by pressing the "Reset" button.

6.5 Programming the Mobil-PDi/MDi

Alterations to parameters are applied permanently.

Function Customised setting

Enter programming mode

The detector goes into programming mode.

Acknowledgement: The red LED lights up permanently and the lighting is

switched on continuously.

Exit programming mode

The set parameters are stored on the detector.

Acknowledgement: The red LED is switched off.

Set the brightness switching value, max. 2000 lux

The detector switches the lighting on if the target brightness value is below

the preset lux value and movement is detected in the field of detection.

Acknowledgement: The red LED flashes three times.

OPERATING INSTRUCTIONS

10 / 17

PD 360/8 Basic PD 360i/24 Basic PD 360/24 Basic SMB

PD 360i/8 Basic PD 360/8 Basic SMB PD 360i/24 Basic SMB

PD 360/24 Basic PD 360i/8 Basic SMB

Function Customised setting

The detector operates in daytime mode

Light measurement is no longer active.

Take a reading of the current ambient light value

The detector switches the lighting on if the target brightness value is below the

preset lux value and movement is detected.

Acknowledgement: The red LED and the lighting are switched off for approx.

5 seconds while the reading is taken.

Fully automatic/semi-automatic mode

The lighting can be controlled in fully automatic and semi-automatic modes.

Fully automatic: The lighting is switched on depending on the set lux value

and movement being detected. If movement is no longer detected, the preset

switch-off delay time will start. The relevant active status can be optionally

overridden using the external "S" button.

Acknowledgement: The red LED flashes three times.

Semi-automatic: Control (activation of the lighting) via the external "S"

button. The lighting remains switched on as long as movement is detected and

the target brightness value is greater than the preset lux value.

Acknowledgement: The red LED is switched off for approx. 2 seconds.

Short pulse

As soon as movement has been detected in the field of detection, the detector

switches the lighting on for approx. 5 second and off for approx. 5 seconds.

This function can be used to control automatic stairwell lights, for example.

Acknowledgement: The red LED is switched on for approx. 5 seconds and off

for 5 seconds.

Switch-off delay time

The switch-off delay time starts once movement is no longer detected in the

field of detection.

Acknowledgement: The red LED flashes.

PIR sensitivity

Settings: maximum (100 %), 75 %, 50 %, minimum (25%)

The sensitivity of the detector for the purpose of detecting movement can be set.

Acknowledgement: The red LED flashes three times.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Sensor de seguridad de ESYLUX

ESYLUX

ESYLUX PD-C360i/24 KNX UP Manual de usuario

ESYLUX

ESYLUX EM10041006 Manual de usuario

ESYLUX

ESYLUX PD-FLAT 360i/6 mini DALI Manual de usuario

ESYLUX

ESYLUX COMPACT APC10 DALI-2 Manual de usuario

ESYLUX

ESYLUX PD 360/8 KNX BASIC Manual de usuario

ESYLUX

ESYLUX PD-C360i/24 DUODIMplus-FM Manual de usuario

ESYLUX

ESYLUX SMB MD 360i/24 Basic SMB Manual de operación y mantenimiento

ESYLUX

ESYLUX EP10427404 Manual de usuario

ESYLUX

ESYLUX MD 180i/16 BASIC CH Manual de usuario

ESYLUX

ESYLUX RC 230i KNX Manual de usuario

ESYLUX

ESYLUX PD-C180i KNX ECO Manual de usuario

ESYLUX

ESYLUX EP10426155 Manual de usuario

ESYLUX

ESYLUX MD-C 180i/16 Touch Manual de operación y mantenimiento

ESYLUX

ESYLUX PD-C360i/24 DIMplus-FM Manual de usuario

ESYLUX

ESYLUX PD-C360i/8 DUO DALI Manual de usuario

ESYLUX

ESYLUX PD-C360i/24 KNX ECO Manual de usuario

ESYLUX

ESYLUX PD-C360i/24 DUOplus-FM Manual de usuario

ESYLUX

ESYLUX PROTECTOR WD 9 V Manual de usuario

ESYLUX

ESYLUX MD-C360i/6 mini Manual de usuario

ESYLUX

ESYLUX COMPACT PD-C 360/8 BMS DALI-2 Manual de usuario

ESYLUX

ESYLUX DEFENSOR MD 200 24 IR 1C IP55 WH Manual de usuario

ESYLUX

ESYLUX MD-C360i/6 mini Manual de usuario

ESYLUX

ESYLUX MD-C360i/8 Series Manual de usuario

ESYLUX

ESYLUX PROTECTOR KRF TCV 2G Guía del usuario

Manuales populares de Sensor de seguridad de otras marcas

THORLABS

THORLABS PDA10JT Manual de usuario

Waeco

Waeco UV-DETECT Manual de usuario

Intermatic

Intermatic IOS-DSIMF Manual de usuario

urmet domus

urmet domus 1083 Manual de usuario

Siemens

Siemens AZL66 Series Manual de usuario

BTI

BTI Profiline Multi Finder Manual de usuario

Challenger

Challenger SL01 Manual de usuario

DMP Electronics

DMP Electronics 1122INT Manual de usuario

Rielta

Rielta Ladoga MK-RK Manual de usuario

Mirion Technologies

Mirion Technologies ACCURAD PRD Manual de usuario

Bosch

Bosch DS835 Manual de usuario

DBI SALA

DBI SALA EZ Stop Manual del operador

Lamptime

Lamptime ST05C Manual de usuario

Ubiquiti

Ubiquiti MFI-MSC Manual de usuario

Subsite

Subsite 910R Instrucciones de instalación

Satel

Satel OPAL Pro Manual de usuario

Aleph

Aleph XC-1XTEU Manual de usuario

Pima

Pima LARIS QUAD Manual de usuario
