GSM/GPRS/GPS TELECARE SYSTEM

User Quick Guide

HELPY OOPS

DESCRIPTION

Helpy Oops is an emergency device specifically designed for personal

security, especially in relation to people with cognitive or mobility

impairment, either temporary or permanent.

Equipped with GSM, GPRS and GPS modules, Helpy Oops allows the

remote handsfree communication, to send emergency calls after an

accidental fall or by pressing a pushbutton, to send alarms if the end

user crosses the borders of geographical safety areas, to detect the

position of the end user in trouble.

WARNINGS AND PRECAUTIONS

Helpy Oops has been designed , developed and manufactured according to specific

criteria for quality, reliability and top performance adopted by the producer; it must be

used as prescribed in the present user manual. Esse-ti declines any liability arising from

the improper use of the product. Warning: for correct operation, it is recommended to

use the product in areas where GSM coverage is guaranteed by the SIM card provider.

Esse-ti declines any liability for improper device operation due to mobile network

failures. The SIM card must always be topped up so as to guarantee a sufficient credit for

emergency calls. Make sure all above mentioned conditions are met with before using

the device. Warning: Helpy Oops is a personal device suitable for notifying emergency

and rescue situations which does not relieve users from adopting all other necessary

measures prescribed under the specific case.

CONFORMITY DECLARATION

Esse-ti S.r.l. having its seat in Via G. Capodaglio 9, 62019 Recanati (MC), Italy,

hereby declares that the device HELPY OOPS is manufactured in Italy and

complies with the following regulations:

- EN 50385:2002 GSM

- EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013

- EN 301489-1 V1.9.2

- EN 301489-3 V1.6.1

- EN 301489-7 V1.3.1

- EN 301511 V9.0.2

- EN 300440 V1.4.1

marking applied inside product.16/06/2015

MAIN FEATURES AND CHARACTERISTICS

Quad-Band GSM/GPRS Module.

GPS Module.

Inertial system: accelerometer / gyroscope / barometer

Power supply: 3,7 V 1150 mAh rechargeable LiPo battery

Micro-USB connector for power and PC connection

Locale configuration:

- via PC

Remote configuration:

- via SMS

Sending out an emergency call:

- upon pressing Pushbutton 1

- upon fall detection

Emergency-call modes:

- phone call

- SMS

- SMS then call

- pre-alarm SMS (waiting for callback) and then voice call

Functions and alerts:

- SMS for low-battery alert

- SMS for periodic test

- SMS for GPS tracking

- geofencing

- room-monitor

- standard phone call by pressing Pushbutton 2

- receiving incoming calls automatically or by pressing

Pushbutton 2

Volume adjustment through Pushbutton 2

Phonebook (12 listings)

ACCESSORIES INCLUDED

Fixing clip

Necklace hole

Silicone protection

USB adapter

HARDWARE DESCRIPTION

A Loudspeaker

B Pushbutton 2

C LED

D Pushbutton 1

E Microphone

F Micro-USB connector

G Necklace hole

H Clip

IMicro SIM Card holder

K3,7V 1150 mAh LiPo battery

Pushbutton 2

- to send or end a standard

phone call

- to reset an alarm

- to answer an incoming call

- to adjust the conversation

volume

- to visualize the LED status

Pushbutton 1

- to power on HELPY OOPS

- to send an alarm

GSM / ALARM LED

BATTERY / CONVERSATION

LED

GPS LED

Tabla de contenidos

Otros manuales de Sistema de seguridad de Esse-ti

Esse-ti

Esse-ti HELPY 2W-V BASIC Manual de usuario

Esse-ti

Esse-ti ST56 GMV Manual de usuario

Esse-ti

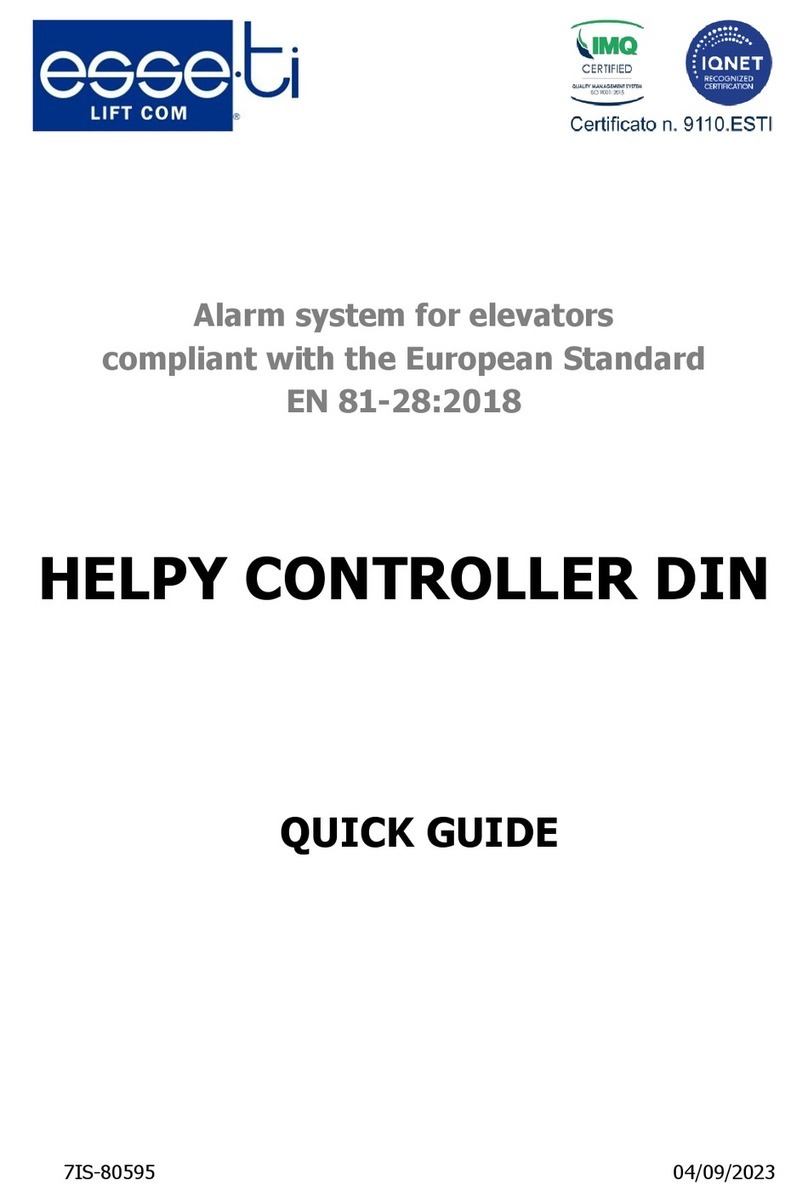

Esse-ti HELPY CONTROLLER DIN Manual de usuario

Esse-ti

Esse-ti HELPY COMPACT Series Manual de usuario

Esse-ti

Esse-ti Helpy GSM Manual de usuario

Esse-ti

Esse-ti HELPY 2W-LCP Manual de usuario

Esse-ti

Esse-ti Helpy GSM-RM Manual de usuario

Esse-ti

Esse-ti HELPY QUICK INTL Manual de usuario

Esse-ti

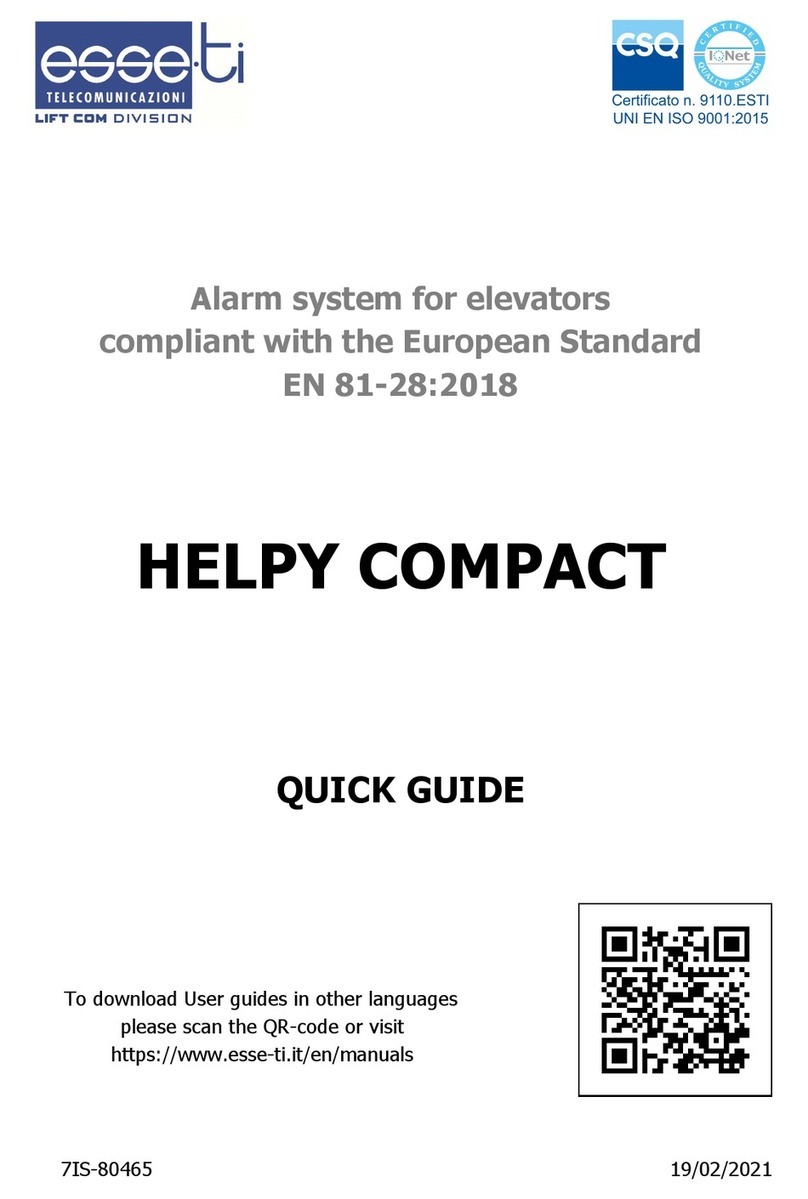

Esse-ti HELPY COMPACT Manual de usuario
