Installation Manual

EDACS®

Monogram

Series

MOBILE RADIO 800 MHz

ericssonz

This manual covers Ericsson and General Electric products

manufactured for and sold by Ericsson Inc.

NOTICE!

Repairs to this equipment should be made only by an authorized service

technician or facility designated by the supplier. Any repairs, alterations

or substitution of recommended parts made by the user to this equipment

not approved by the manufacturer could void the user’s authority to

operate the equipment in addition to the manufacturer’s warranty.

NOTICE!

This manual is published by Ericsson Inc., without any warranty. Improvements and changes to this manual necessitated by

typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by

Ericsson Inc., at any time and without notice. Such changes will be incorporated into new editions of this manual. No part of this

manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and

recording, for any purpose, without the express written permission of Ericsson Inc.

TABLE OF CONTENTS

Page No.

INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . 3

UNPACKING AND CHECKING EQUIPMENT . . . . . . . 3

MOBILE EQUIPMENT . . . . . . . . . . . . . . . . . . 3

STATION EQUIPMENT (In addition to Radio) . . . . . 3

PLANNING THE INSTALLATION . . . . . . . . . . . . . . 5

EQUIPMENT REQUIRED . . . . . . . . . . . . . . . . 5

INSTALLATION IN VEHICLES POWERED

BY LIQUEFIED (LP) GAS . . . . . . . . . . . . . . . . 6

INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . 7

RUNNING CABLES . . . . . . . . . . . . . . . . . . . 7

RUNNING THE POWER CABLE . . . . . . . . . . . . 7

MOUNTING THE RADIO . . . . . . . . . . . . . . . . 8

MICROPHONE . . . . . . . . . . . . . . . . . . . . . . 8

OPTION INSTALLATION . . . . . . . . . . . . . . . . . . . 9

ANTENNA - OPTION MGAN1D . . . . . . . . . . . . 9

NOISE SUPPRESSION KIT - OPTION MGPD1A . . 10

EXTERNAL SPEAKER KIT - OPTION MGZM9F . . 10

ALARM POWER RELAY - OPTION MGSU1C . . . . 12

DESKTOP STATION INSTALLATION . . . . . . . . . . . 12

INSTALLATION OF THE POWER SUPPLY . . . . . 14

INTRODUCTION

This manual contains installation instructions for the EDACS

MONOGRAM SERIES Mobile Radio, Desktop Station, and associated

accessories. These instructions cover the mounting and cabling of the mobile

radio and station setup. Interconnection diagrams are located at the back of the

manual for your reference. Before installation, the radio should be

programmed using an IBM compatible personal computer and the following

items:

Programming Cable RPM 113 2510/1

Programming Software AE/LZY 213 766

UNPACKING AND CHECKING EQUIPMENT

The EDACS MONOGRAM SERIES Radio may be provided for either

station or mobile applications. When ready for installation, carefully unpack

the radio and identify each item in the shipping container. If damage has

occurred to the equipment during shipment, file a claim with the carrier

immediately. The available options for the Mobile Radio are identified in

Table 1.

MOBILE EQUIPMENT

•EDACS MONOGRAM SERIES Mobile Radio . . KRD 103 123/2

•Microphone . . . . . . . . . . . . . . . . . . . . . MGMC5X

•Microphone Hangar and Mounting Hardware . . . TBD

•PowerCable,8 feet . . . . . . . . . . . . . . . . . RPM 113 2509/1

•Mobile Mounting Bracket

and Associated Hardware . . . . . . . . . . . . . SXA 120 4253/1

•Operator’s Manual.. . . . . . . . . . . . . . . . . AE/LZT 123 1920

•Installation Manual . . . . . . . . . . . . . . . . . AE/LZT 123 1921

STATION EQUIPMENT (In addition to Radio)

•Power supply . . . . . . . . . . . . . . . . . . . . MGPS5V

•Station Microphone . . . . . . . . . . . . . . . . MGMG7A

Table 1 - OPTIONAL EQUIPMENT

Option Description

MGAN1D Antenna

MGPD1A Noise Suppression Kit

MGZM9F External Speaker, MIL-STD-810C & D, 5” x 5”

External Speaker Cable, 9 inches

MGSU1C Alarm Power Relay Kit

MGMC5Z DTMF Microphone

MGMC5X Microphone

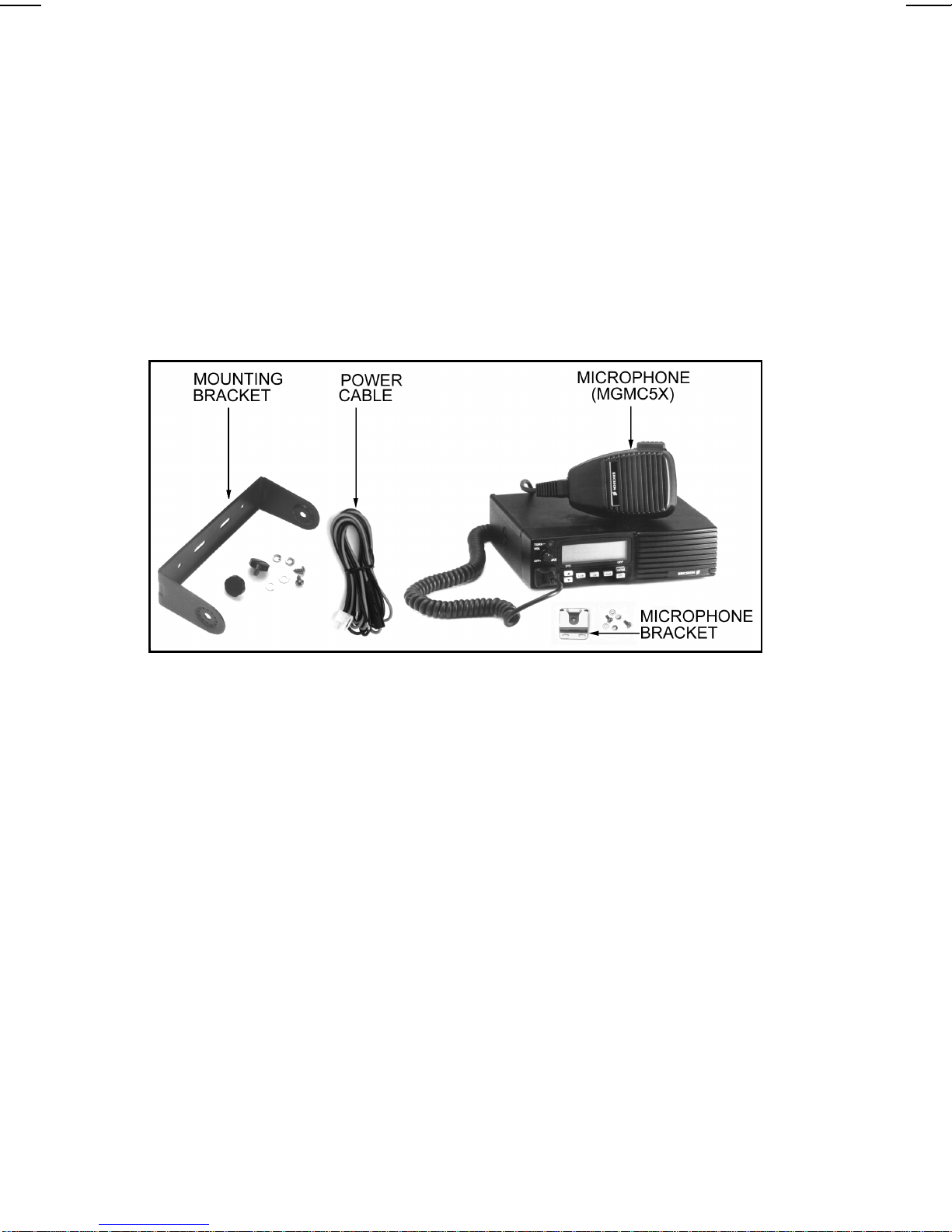

Figure 1 - Radio Components and Mounting Hardware

PLANNING THE INSTALLATION

Before starting, plan the radio installation carefully so that it will be:

•safe for the operator and passengers.

•convenient for the operator to use.

•neat.

•protected from water damage.

•easy to service.

•out of the way of auto mechanics.

It is suggested that the radio be installed by one of the many Authorized

Service Centers located throughout the United States. These experienced

service centers can provide a proper radio installation and make any final

adjustments that may be needed.

EQUIPMENT REQUIRED

The equipment required for installing the mobile radio is listed below:

•Electric drill for drilling mounting holes.

•Drills and circle cutters as follows:

•No.25 (0.149 inch) drill for No.10 self-tapping screws.

•5/8-inch Drill or circle cutter for power cable.

•3/4-inch circle cutter, hole saw or socket punch for antenna

(optional).

•Phillips and flat-blade screwdrivers, and 1/4-inch and 5/16-inch hex-

head drivers for mounting screws.

Interference with Vehicular Electronics - Electronic fuel injection

systems, electronic anti-skid braking systems, electronic cruise controls

systems, etc., are typical of the types of electronic devices which may

be prone to malfunction due to the lack of protection from radio

frequencyenergypresentwhentransmitting.Ifthevehiclecontainssuch

equipment, consult the dealer for the make of vehicle and enlist his aid

in determining if such electronic circuits will perform normally when

the radio is transmitting.

WARNING

INSTALLATION IN VEHICLES POWERED BY

LIQUEFIED (LP) GAS

Radio installation in vehicles powered by liquefied petroleum gaswith the

LP-gas container in the trunk or other sealed-off space within the interior of

the vehicle must conform to the National Fire Protection Association Standard

NFPA 58 which requires that:

•Space containing radio equipment shall be isolated by a seal from the

space containing the LP-gas container and its fittings.

•Outside filling connections shall be used for the LP-gas container.

•The LP-gas container space shall be vented to the outside of the vehi-

cle.

Be careful to avoid damaging some vital part of the vehicle (fuel tank,

transmission housing, etc.) when drilling mounting holes. Always check

to see how far the mounting screws will extend below the mounting

surface before installing. If pilot holes must be drilled, remove all metal

shavings from drilling holes before installing screws.

CAUTION

Radio installations in vehicles powered by liquefied petroleum gasmust

conform to the following requirements.

WARNING

For passenger safety, mount the radio securely so that the unit will not

break loose in the event of a collision. This is especially important in

station wagons, vans and similar type installations where a loose radio

could be extremely dangerous to the vehicle occupants.

WARNING

INSTALLATION

RUNNING CABLES

To assure the feasibility of cable routes you plan to use, itis suggested that

you run these cables before installing the radio. Be sure to leave some slack in

each cable so that the radio may be pulled out for servicing with the power

applied.

Route the cables away from locations where they will be exposed to heat

(exhaust pipes, mufflers, tailpipes, etc.), battery acid, sharp edges, or

mechanicaldamage,orwheretheywillbeanuisancetoautomobilemechanics,

the driver, or passengers. Keep wiring away from ignition circuits to help

prevent noise pickup on the radio equipment.

In addition, try to utilize existing holes in the fire wall and trunk wall and

thechannelsaboveorbeneath thedoors.Youmayalsousethechannelsthrough

door and window columns, where they are convenient, unless you plan to

install rigid or flexible conduit in which to run the cables.

RUNNING THE POWER CABLE

The power cable consists of a red lead, and a black lead, a 2 pin systems

plug, and an in-line fuseholder. A 10 ampere 32 volt fuse is included.

To install the power cable, start with the plug end of the cable at the

location of the radio and run the two leads to the fire wall drill 1/2 inch hole

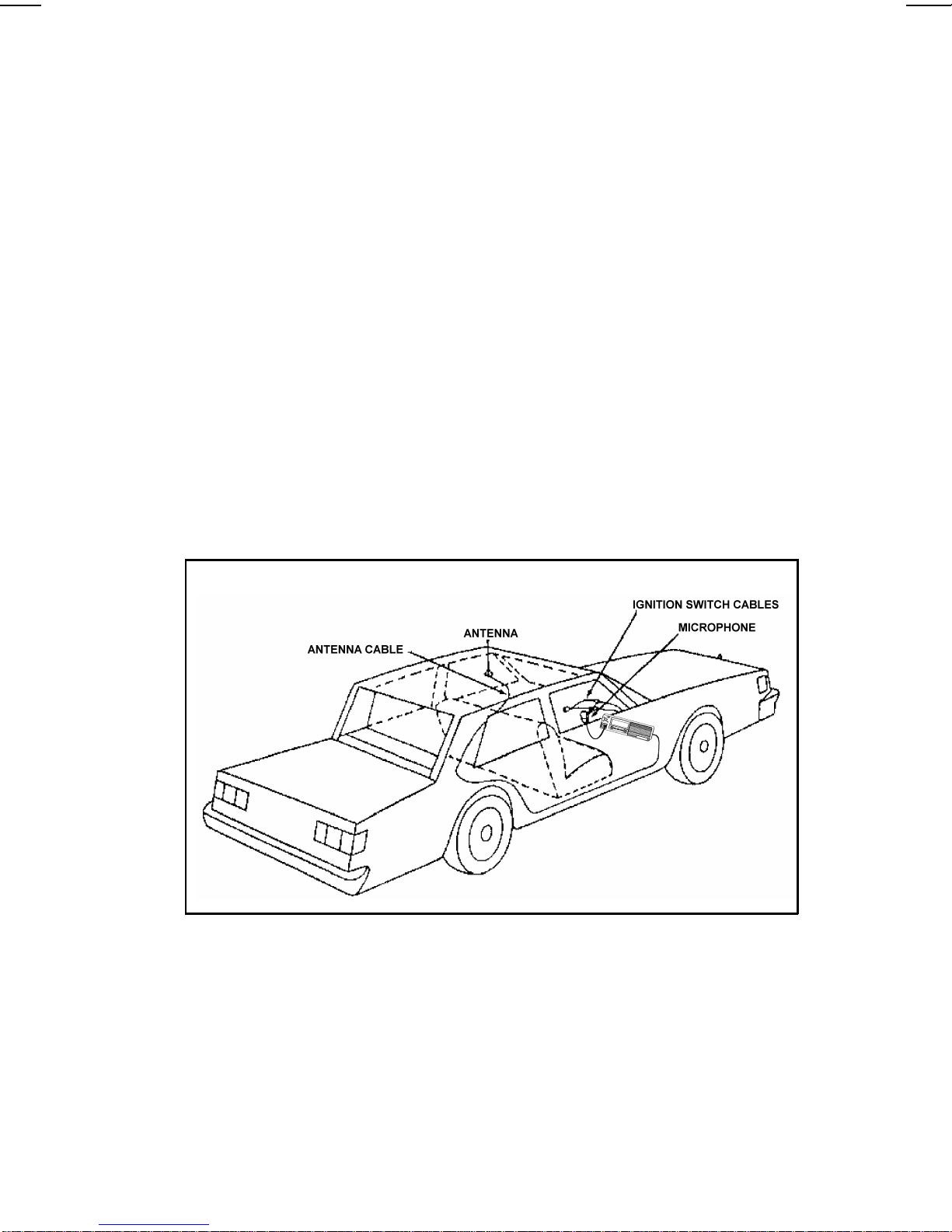

Figure 2 - Typical Cable Routing

(or preferably use an existing hole) and insert the cable through the hole. Coil

any surplus cable and tie it out of the way. Be sure to leave some slack in the

cable so the radio may be pulled out for servicing with power applied and the

antenna connected.

Connect the red fused lead to the positive (+) battery terminal, and the

black to the negative (-) battery terminal.

MOUNTING THE RADIO

Use the supplied mounting bracket as a template to locate the positions

for each of the drill holes. After drilling the mounting holes, install the

mounting bracket using the two sheet metal screws provided. Mount the radio

as shown in Figure 3. Be sure to leave enough room at the read of the radio for

the power cable connection.

MICROPHONE

Mount the microphone hangar to theside of theradio using thetwo screws

provided (or where it will be within easy reach of the operator but will not

interferewithsafe operationof the vehicle). Connectthe microphone pluginto

the microphone connector on the radio and tighten the retaining screws in the

plug.

InsomeinstallationsanadditionalnoisefiltersuchasOptionMGPD1A

may be needed for satisfactory performance.

NOTE

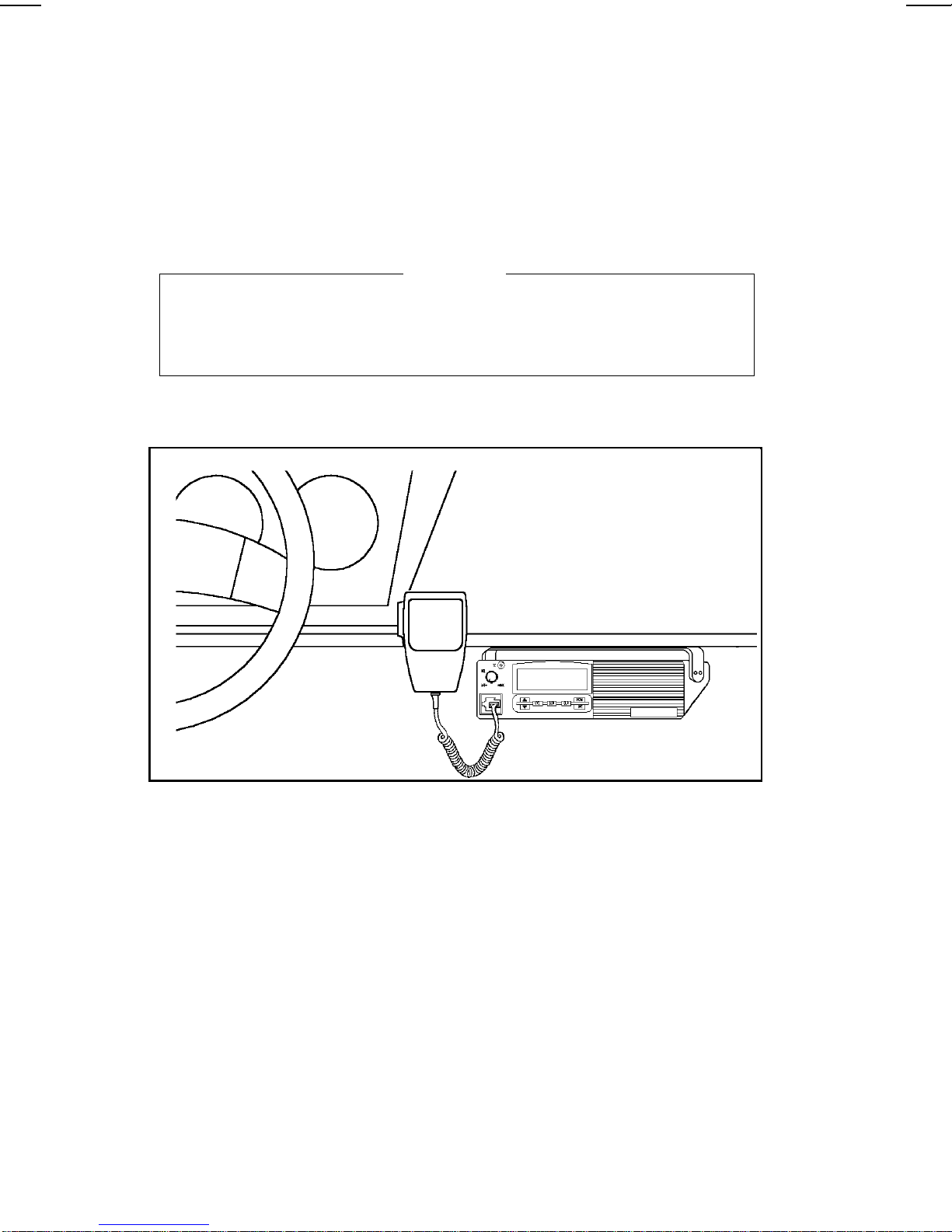

Figure 3 - Typical Installation

OPTION INSTALLATION

ANTENNA - OPTION MGAN1D

Installation instructions for the antenna are packaged with the antenna.

The antenna must be installed in accordance with good engineering practice

for optimum results.

The most effective mounting position is usually in the center of the roof

of the vehicle or the center of the rear deck. The antenna cable will normally

run from the radio, behind sections of the interior trim to a door or window

post. Then run up between the roof and headliner in the passenger

compartment to the antenna base.

Try to route the cable away from locations where it will be exposed to

heat, sharp edges or mechanical damage, and where it will be out of the way

of the driver, passengers or mechanics. Wherever possible, use existing holes

in the trunk wall, and the channels above or beneath doors and window

columns.

Avoid routing the antenna cable near any electronic modules or along side

any vehicle wiring.

Once the antenna is installed, connect it to the antenna connector on the

rear of the radio.

The microphone hangar must be connected to the radio chassis

(ground) for proper hookswitch operation. If an alternate location is

preferred (other than to the radio chassis), a separate ground wire must

be connected from the microphone hangar to battery (-) or to the radio

chassis.

NOTE

In station applications, the radio may not operate properly with the

antenna mounted near the radio. Always mount the antenna at least 5

feet away from the radio.

CAUTION

NOISE SUPPRESSION KIT - OPTION MGPD1A

Refer to the noise suppression kit option installation manual that is

included with this option.

EXTERNAL SPEAKER KIT - OPTION MGZM9F

The external speaker kit includes a speaker (option MGLS1F) and an

external speaker adapter cable (option MGCE3F).

1. Select a speaker location that directs the speaker toward the operator but

does not cause interference with his vision. It also should not present a

hazard in the event of an accident The speaker may be mounted on the

lower edge of the instrument panel, the fire wall, or above the windshield

in some trucks. Use the mounting bracket as a template for locating the

mounting holes, and mount the speaker as shown in Figure 4.

2. Connect the plug end of the external speaker cable to the speaker.

3. Plug the other end of the speaker cable into the external speaker jack on

the rear of the radio.

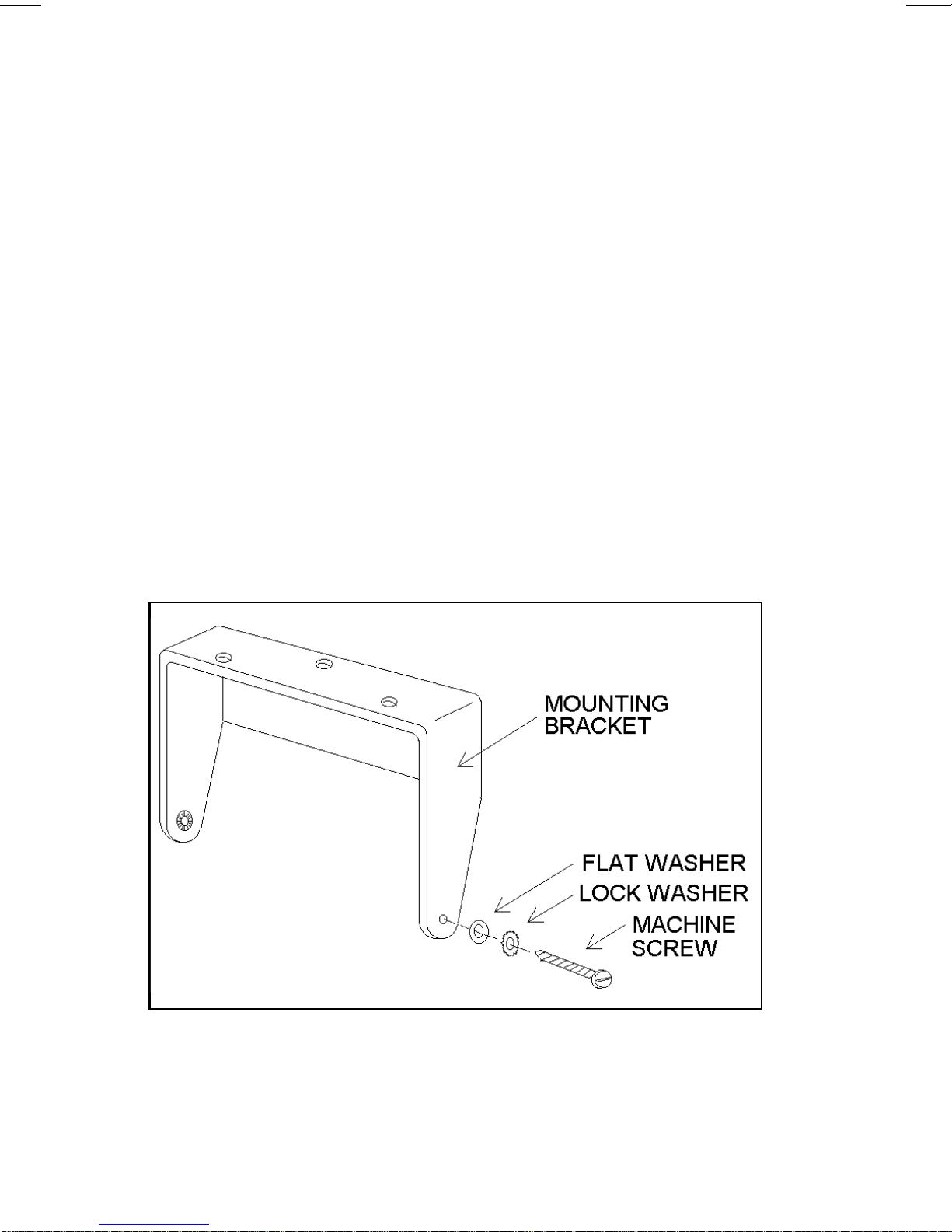

Figure 4 - Mounting The Speaker

Otros manuales para EDACS Monogram Series

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Radio de Ericsson

Ericsson

Ericsson MDX SERIES Manual de usuario

Ericsson

Ericsson 2203 Instrucciones de funcionamiento e instalación

Ericsson

Ericsson MDX LBI-39015C Manual de usuario

Ericsson

Ericsson MDX LBI-38848C Manual de usuario

Ericsson

Ericsson 4408 Instrucciones de funcionamiento e instalación

Ericsson

Ericsson LBI-38862A Manual de usuario

Ericsson

Ericsson MGM 450 Manual de usuario

Ericsson

Ericsson MPI-II VHF Manual de usuario

Ericsson

Ericsson 2219 Manual de usuario

Ericsson

Ericsson LBI-39015B Manual de usuario

Ericsson

Ericsson LBI-38610A FMD Manual de usuario

Ericsson

Ericsson MDX LBI-39014A Manual de usuario

Ericsson

Ericsson MDX SERIES Manual de usuario

Ericsson

Ericsson ALLEGRA EDACS Manual de usuario

Ericsson

Ericsson ORION Manual de usuario

Ericsson

Ericsson LBI-39012A Manual de usuario

Ericsson

Ericsson EDACS MDX Manual de usuario

Ericsson

Ericsson MDX LBI-39015 Manual de usuario

Ericsson

Ericsson MINI-LINK TN R3 ETSI Manual de lista de piezas

Ericsson

Ericsson LBI-38848E Manual de usuario

Ericsson

Ericsson Orion 38901E Manual de usuario

Ericsson

Ericsson 2217 Manual de usuario

Ericsson

Ericsson RBS 2207 Hoja de instrucciones

Ericsson

Ericsson RBS 2207 Especificaciones técnicas

Manuales populares de Radio de otras marcas

EisSound

EisSound KBSound iSelect Manual de usuario

Midland

Midland 1001LWX Manual de usuario

Konig

Konig HAV-SR41 Manual de usuario

Roberts

Roberts exprssion Manual de usuario

VDigi

VDigi DD3.0 Manual de usuario

Radio Shack

Radio Shack 21-1863 Manual de usuario

Roberts

Roberts Stream 207 Manual de usuario

Sony

Sony Walkman SRF-M97 Manual de usuario

Stanley

Stanley FatMax FMC770 Manual de usuario

auna

auna DAB-Radio 10026947 Manual de usuario

SOUNDMASTER

SOUNDMASTER UR190 Manual de usuario

HYT

HYT TC-320 Manual de usuario

auna multimedia

auna multimedia Yellowstone 10026851 Manual de usuario

B-Tech

B-Tech GMRS-V2 Manual de usuario

Weierwei

Weierwei VEV-V8 Manual de usuario

SOUNDMASTER

SOUNDMASTER DAB750 Manual de usuario

Telefunken

Telefunken TF-1505 Manual de usuario

Makita

Makita LXRM03 Manual de usuario
