Bluetooth Module
for Ericsson DT590 cordless telephone
User Guide
User Guide
Cordless DT590 Bluetooth2
EN/LZT 103 017 R1A
© Ericsson Enterprise AB 2006
3Cordless DT590 Bluetooth
Table of Contents
Table of Contents
page
Welcome .......................................................... 4
Description ....................................................... 6
Installation ........................................................ 7
Operation ....................................................... 16
Maintenance .................................................. 19
Welcome
Cordless DT590 Bluetooth4
Welcome
This User Guide shows you how to install the Bluetooth module in
the Ericsson DT590 cordless phone and how to pair and operate
the telephone with a Bluetooth headset.
The Bluetooth module is placed in the battery compartment and
connected with a connector.
Bluetooth technology replaces the cord between the cordless
phone and the headset. This allows the user to move more freely
and eliminates the risk of a headset cord getting stuck.
Bluetooth module supports the Bluetooth 1.2 standard.
The latest version of this User Guide can also be downloaded from:
http://www.ericsson.com/enterprise/
5Cordless DT590 Bluetooth
Welcome
Copyright
All rights reserved. No parts of this publication may be reproduced,
stored in retrieval systems, or transmitted in any form or by any
means, electronic, mechanical, photocopying, recording or
otherwise, without prior written permission of the publisher except
in accordance with the following terms.
If this publication is made available on Ericsson media, Ericsson
gives its consent to downloading and printing copies of the content
provided in this file only for private use and not for redistribution. No
parts of this publication may be subject to alteration, modification
or commercial use. Ericsson will not be liable for any damages
arising from use of an illegal modified or altered publication.
Warranty
ERICSSON MAKES NO WARRANTY OF ANY KIND WITH
REGARD TO THIS MATERIAL, INCLUDING, BUT NOT LIMITED
TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE. Ericsson shall not be
liable for errors contained herein nor for incidental or consequential
damages in connection with the furnishing, performance or use of
this material.
Declaration of Conformity
Hereby, Ericsson Enterprise AB, S-131 89 Stockholm, declares that
this telephone is in conformity with the essential requirements and
other relevant provisions of the R&TTE directive 1999/5/EC.
Details to be found at: http://www.ericsson.com/sdoc
Description
Cordless DT590 Bluetooth6
Description
The Bluetooth module is a small flat electronic board with an
integrated antenna moulded into plastic and a connector.
The Bluetooth module can be easily installed in the battery
compartment.
Article number: DPY 901 549/1
Note: To use the Bluetooth module your phone has to fulfill
certain hardware and software requirements. The minimum
hardware version is R2A. The hardware version is found on
the label under the battery (next to the article number
1/DPNANB 240 01/1). For further details please contact
your system administrator.
7Cordless DT590 Bluetooth
Installation
Installation
Turn off the phone by pressing NO until the display goes blank.
1 Remove the battery cover.
2 Completely remove the foam on the inside of the battery
lid.
3 Connect the Bluetooth module connector to the largest
connector on the phone. As the connector is asymmetric
it is not possible to connect the module in the wrong way.
4 Remove the backing paper from the tape on the
Bluetooth module.
5 Place the Bluetooth module so that it is centred on the
battery and the support at the end of the battery.
6 Close the battery lid.
7 Turn on the phone by pressing NO until the display starts.
Installation
Cordless DT590 Bluetooth8
9Cordless DT590 Bluetooth
Installation
Headsets
Since the Bluetooth module supports the Bluetooth 1.2 standard,
any headset that comply to this standard can be connected to the
phone.
Note: As your Bluetooth headset may have more or less
functions than described here, please refer to the user
guide for the Bluetooth headset.
Wear

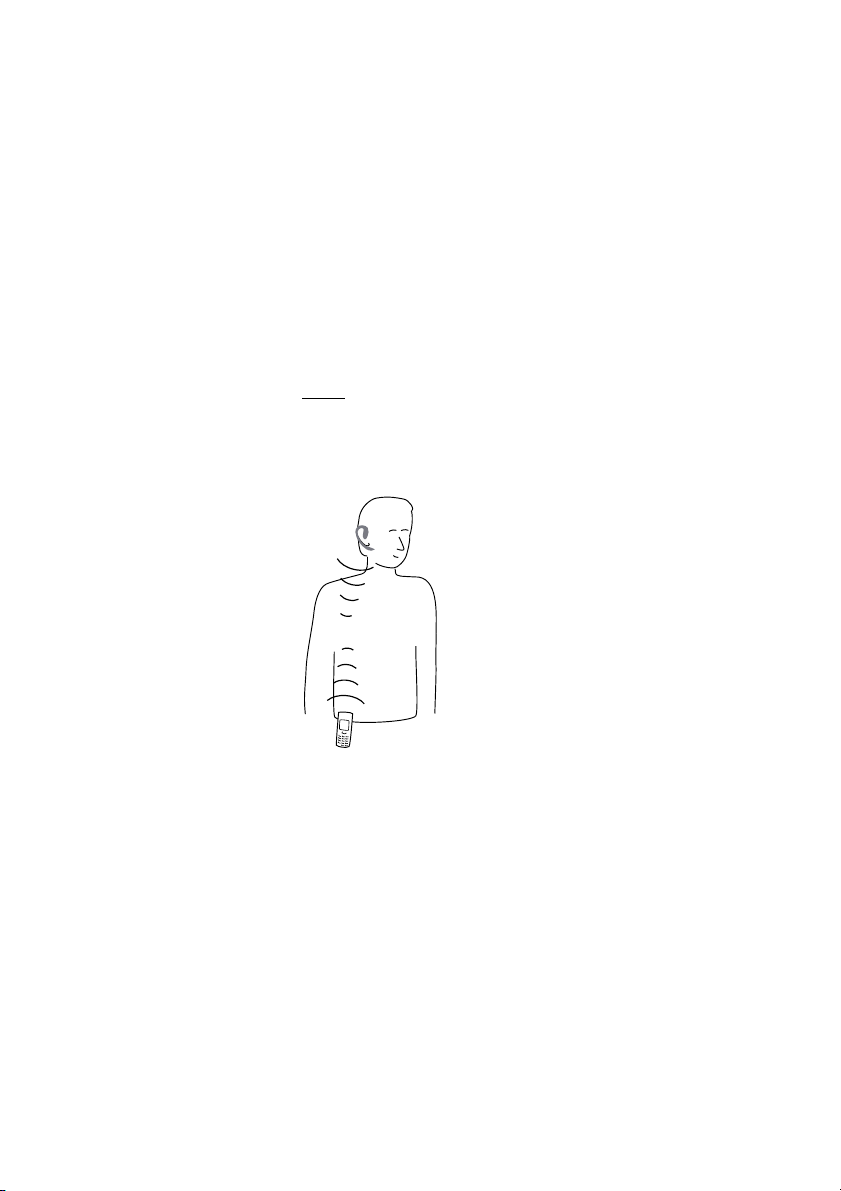

For optimal performance wear the Bluetooth headset and the
phone on the same side of your body. The best audio quality in the
headset is achieved when there are obstructions, including your
body, between the headset and the cordless phone.
026
Installation
Cordless DT590 Bluetooth10
Setup
Enable Bluetooth
¾Press.
ºSelect the “Toolbox” tab.
ºÜÛSelect the menu item ”Bluetooth” and confirm.
The following options are available:
•Enable
• Headset (greyed out)
ºÜÛSelect the menu item ”Enable” and confirm.
The menu options now change to:
•Disable
• Headset (active)
The activated Bluetooth function will be indicated by a symbol ( )
in the info row of the display.
Pair and connect a Bluetooth headset
Before a headset can be used a connection (pairing) between the
headset and the phone must be established. Please refer to the
user guide of the headset.
Place the Bluetooth headset and the phone next to each
other.
¾Press.
ºSelect the “Toolbox” tab.
ºÜÛSelect the menu item ”Bluetooth” and confirm.
ºÜÛSelect the menu item ”Headset” and confirm.
ºÜÛSelect the menu item ”Add new” and confirm.
