Ergotron DS100 Series Dimensiones

Conserve desk space by suspending up to five flat panel

monitors on a single base. Choose between multiple

configurations and adjustment ranges. Easily adjust the

height and position of all monitors to a comfortable,

ergonomically appropriate position. Patented pivot

mechanisms allow you to tilt, pivot and turn your flat panel

monitors for maximum efficiency. Free Standing, Desk

Clamp, and Grommet Mount Bases are available.

Highlights

• View multiple monitors

simultaneously with Ergotron’s

patented Paraview Technology

• Easily position the height

and angle of your monitors

for maximum comfort and

productivity

• Patented friction system

provides smooth long-life

adjustment while maintaining

touch-screen stability

• Handles flat panel monitors up

to 28 lbs (12.7 kg)

• Low-profile base minimizes

interference with items on desk

• Aluminum and steel

construction ensures long-

lasting durability

• Cable management system

organizes and routes cables

• Pivot technology tested for

50,000 cycles to ensure long-

lasting performance

• VESA® Flat Display Mounting

Interface (FDMI™) Standard

compliant for easy monitor

attachment

• 5-year warranty

Product Sheet

space-saving desk stands

Ergotron®DS100 Series

870-05-030, rev. 27/07/06

www.ergotron.com

Pivot is height-adjustable on pole.

Monitor attaches to pivot with screws,

or with optional tool-less thumb screws

(shown).

Cables are guided cleanly through

cable channels.

Orientation droite/

gauche

Vue du dessus Vue de côté

Ajustement

en hauteur

Vue de côté

Inclinaison haut/

bas sur 180°

Vue du dessus

Orientation droite/

gauche sur 180°

Vue de face

Rotation sur 360°

portrait/paysage (P/P)

Range of Motion:

Configuration Options:

33-090-200,

Free Standing

Base, 14" Pole,

Clamping Double

Pivot with P/L

33-091-200,

Free Standing

Base, 28" Pole,

(2) Clamping

Double Pivots

with P/L

33-092-200,

Free Standing

Base, 14" Pole,

28" Crossbar,

(2) Sliding Pivots

33-095-200,

Free Standing Base,

14" Pole, 46" Crossbar

w/ Center Pivot,

(2) Sliding Pivots

33-096-200,

Free Standing

Base, 28" Pole,

(2) 28" Crossbars,

(4) Sliding Pivots

33-284-200,

(2) Free Standing Bases,

(2) 14" Poles, 55" Crossbar,

Outboard Pole Clamps,

(4) Sliding Pivots

Individual components also available, including Free Standing, Desk Clamp, and Grommet Mount Bases.

Desk

Clamp

Base

Grommet

Mount

Base

Multiple monitors can be arranged in a parabola with Ergotron’s patented Paraview Technology. This layout increases data visibility, maintains a

single focal length for viewer’s eyes (less work for eye muscles), and utilizes available space efficiently.

Monitor Interface Pad Options:

• VESA MIS-D, 100/75, C

• Custom Interface Plate (contact Ergotron for details and availability)

Colors: Available in black only.

Base Options: Free Standing, Desk Clamp and Grommet Mount

Pole Heights: 14" (356 mm), 22" (559 mm), 28" (711 mm), 36" (914 mm)

Basic Specifications:

Crossbar Widths:

• 28" (711 mm) for two monitors

• 46" (1168 mm) for three monitors

• 55" (1397 mm) for four monitors, requires outboard pole clamps and

two bases/poles.

Accessory Options: Wrist Rests, Mouse Pads, Mouse Pouches,

CPU Holders, Surge Suppressors and Power Strips

Monitors can be aligned into a curved

profile to benefit viewing.

Slide pivot along crossbar to

accommodate different monitor widths.

Sleek low-profile base with durable finish

provides stability and space savings.

rev. 27/07/2006 870-05-030

Ergotron Europe

Beeldschermweg 3

3821 AH Amersfoort

The Netherlands

Tel: +31 33 45 45 600

Fax: +31 33 45 45 649

[email protected]

www.ergotron-europe.com

Otros manuales para DS100 Series

Otros manuales de Rack y soporte de Ergotron

Ergotron

Ergotron MX Desk Mount LCD Arm Manual de usuario

Ergotron

Ergotron LX Dual Side-by-Side Arm Manual de usuario

Ergotron

Ergotron 97-590 Manual de usuario

Ergotron

Ergotron StyleView Sit Stand Combo Arm Manual de usuario

Ergotron

Ergotron LX Desk Mount LCD Arm Manual de usuario

Ergotron

Ergotron DS100 Series Manual de usuario

Ergotron

Ergotron Neo-Flex Manual de usuario

Ergotron

Ergotron NeoFlex 18-931 Manual de usuario

Ergotron

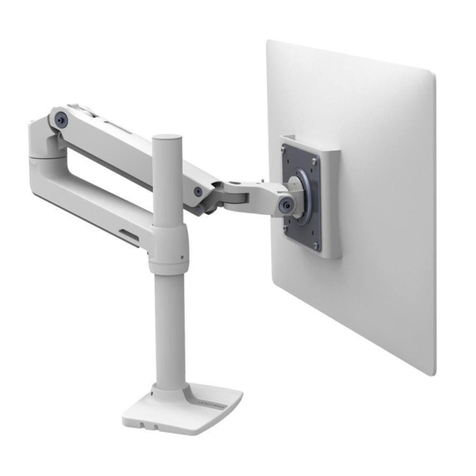

Ergotron LX Manual de usuario
