Ergotron Command Post Manual de usuario

1 of 6

888-01-014-00 rev. F • 09/19

Command Post

www.ergotron.com | USA: 1-800-888-8458 | Europe: +31 (0)33-45 45 600 | China: 400-120-3051 | Japan: [email protected]

User's Guide

For the latest User Installation Guide please visit: www.ergotron.com

Components

Tools Needed

3/8" (9.5mm)

Flat Washer

3/8" (9.5mm)-16

Hex Nut

3/8" (9.5mm) -16 x 1"

(25.4mm) Hex Head Screws

for 2x2 Posts only

1" (25.4mm) Plastic Spacer

for 3x3 and 4x4 Posts only

3/8" (9.5mm) -16 x 2" (50.8mm)

Hex Head Screws

For 3x3 and 4x4 Posts only

3/8" (9.5mm)

Split Lock Washer

8x 8x 8x

3x3

(76.2 mm)

3x3 Template

3/8" (9.5mm)

Carbide drill bit

9/16"

(14.3mm)

9/16"

(14.3mm)

Floor application only

- optional Ergotron

Concrete Anchor Kit

Ceiling appli-

cation only -

1/2" (12.7mm)

Anchor Rods

- customer

supplied

2 of 6

888-01-014-00 rev. F • 09/19

!WARNING

The Support Base must be securely installed to ensure safety. Since Ergotron has no control over the type

of ﬂ oor, ceiling, wall and/or ultimate mounting method, the user assumes all responsibility for this aspect of

the installation. If you have any questions in regard to your mounting system, see your building contractor.

DETERMINE MOUNTING LOCATION

Template

Mark four mounting holes

Floor

Below Ceiling

Above Ceiling

3 of 6

888-01-014-00 rev. F • 09/19

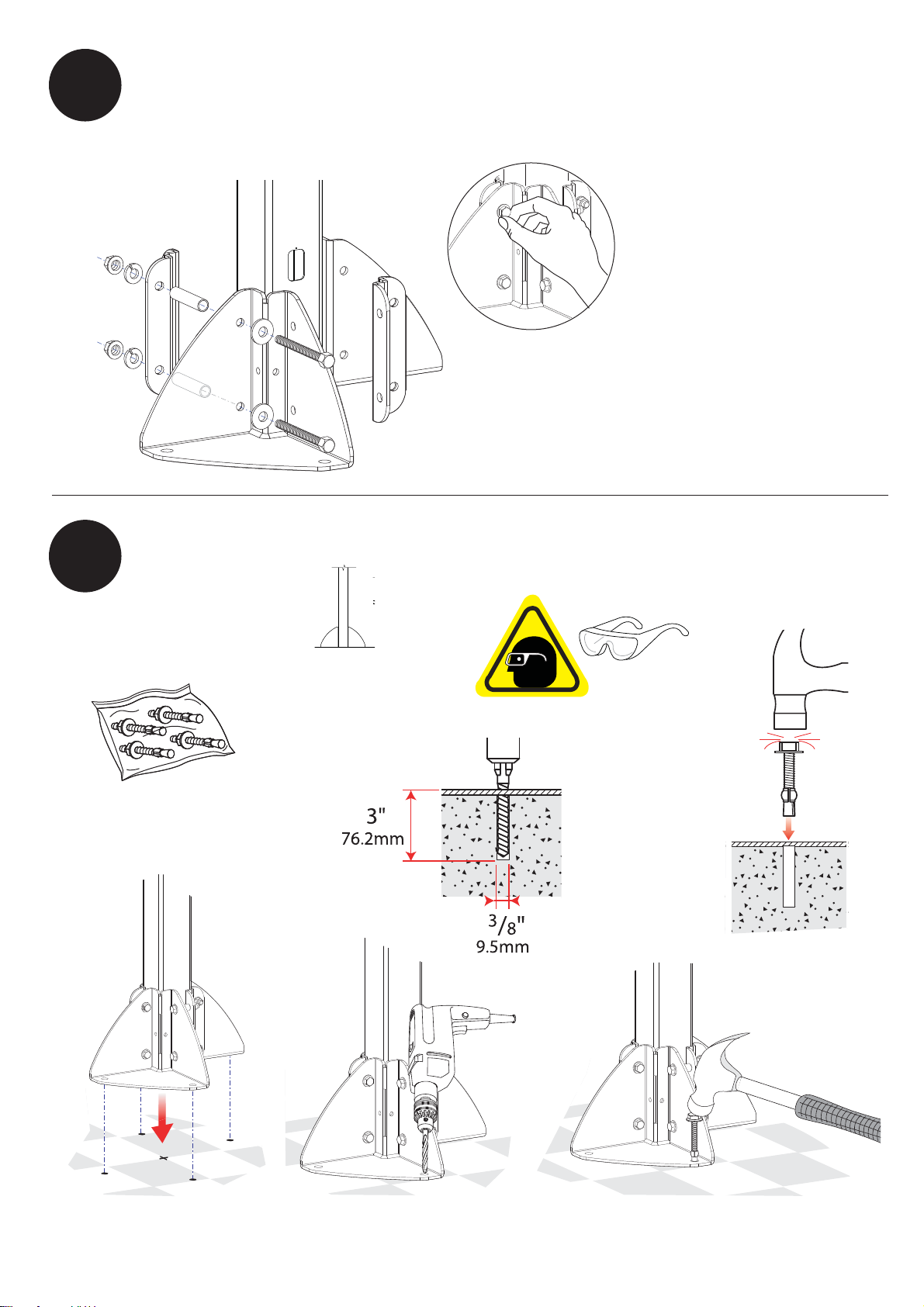

ASSEMBLE SUPPORT BASE

MOUNT BASE -

Typical Floor Conﬁ gurations

using optional Ergotron

Concrete Anchor Kit

Floor

4 of 6

888-01-014-00 rev. F • 09/19

Typical Ceiling Conﬁ gurations using customer

supplied 1/2" (12.7mm) Anchor Rods

Below ceiling

Above ceiling

MOUNT BASE - Ceiling

Below ceiling Above ceiling

5 of 6

888-01-014-00 rev. F • 09/19

300 lb force-inch

(25 lb force-foot)

(34 newton-meters)

TIGHTEN BASE AROUND POST PLUMB UP THE POST

Floor Ceiling

SECURE BASE TO SURFACE

400 lb force-inch

(33 lb force-foot)

(45 newton-meters)

MOUNT EQUIPMENT AND ROUTE CABLES

Floor Ceiling

6 of 6

888-01-014-00 rev. F • 09/19

www.ergotron.com |

USA: 1-800-888-8458

Europe: +31 (0)33-45 45 600

China: 400-120-3051

Japan: [email protected]

For local customer care phone numbers visit: http://contact.ergotron.com

For Service visit: www.ergotron.com

For Warranty visit: www.ergotron.com/warranty
