Ergotron StyleView Manual de usuario

(127 mm)

25˚

+12˚

20"

(508 mm)

12˚

STYLEVIEW®

QUICK REFERENCE

For more information on this or other Ergotron products, visit our website: www.ergotron.com

777-24-005-G-00 rev.A • 08/10

ERGONOMICS

RANGE OF MOTION

Working

customize - to your size

1 Set top of monitor screen about one inch below eye level - Release brake

and lift or lower riser as needed.

2 Tilt screen for comfortable viewing and to reduce eye and neck strain.

3 Pull keyboard tray forward and position mouse tray and mouse pouch on

right or left, as needed.

4 Work with elbows bent at about 90° to minimize muscle strain.

5 If the riser moves up and down with diculty, or if it drifts out of set

position, consult the product

manual for adjustment

information.

6 Stay in charge!

Powered carts should be

plugged into outlet as often as

possible to keep battery charged

and computer running.

Moving

stow - before you go

1 During normal movement, release brake and lower worksurface to

lowest position for optimal stability and unobstructed view.

2 Tuck away open trays and return mouse, scanner and other

accessories to their places.

3 Unlock both front casters.

4 Push cart from rear with elbows bent at about 90° to maximize

control and minimize muscle strain.

5 Don’t run out!

Before moving, make

sure cord is unplugged

from outlet and hooked

to basket for safe travel.

Remember, charge

battery fully 100%

every day!

Release Brake to move riser.

Loosen knob, tilt

Display to desired

position then

retighten knob.

123

456

STYLEVIEW®

QUICK REFERENCE

For more information on this or other Ergotron products, visit our website: www.ergotron.com

777-24-005-G-00 rev.A • 08/10

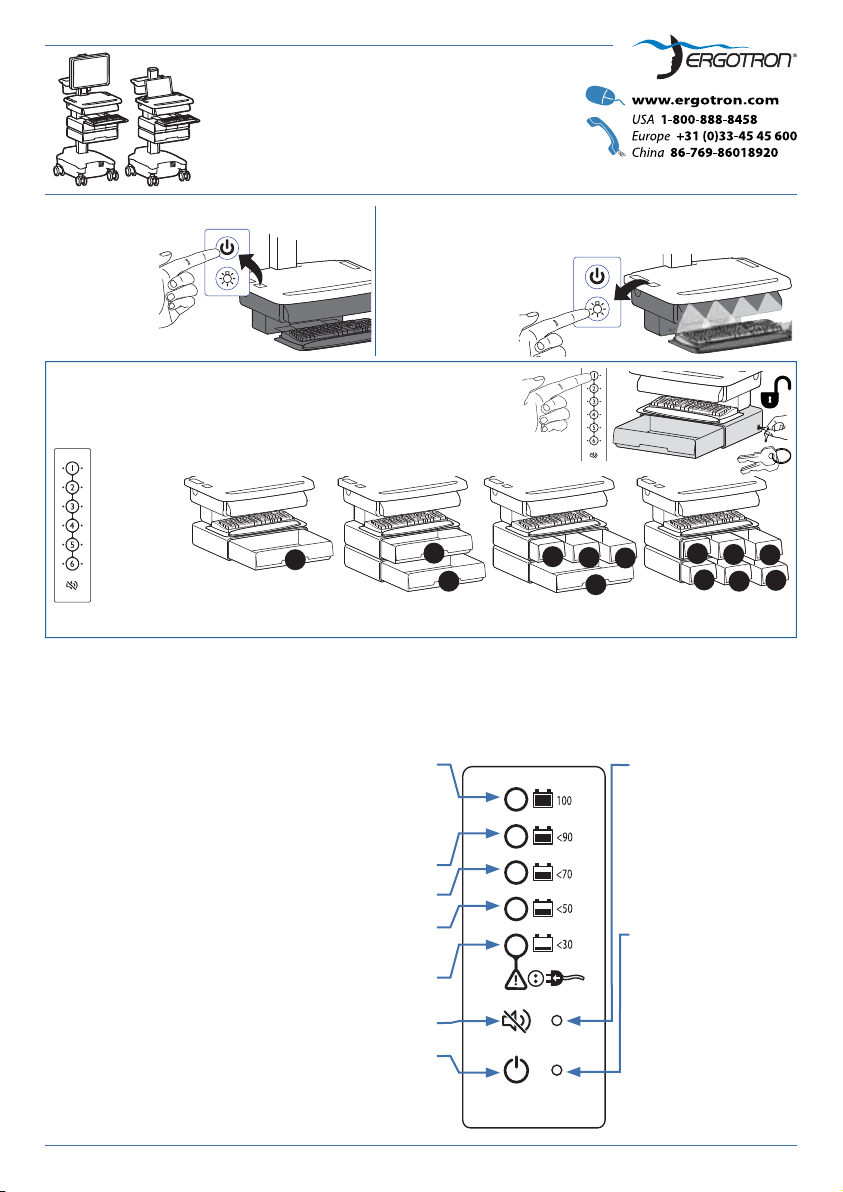

Battery has 100% charge.

Light ashes when charging (power cord plugged into wall outlet) Allow

battery to continue charging until light stops ashing. After light stops

ashing, it is OK to unplug the power cord from the wall. You can use cart

while charging.

Battery has less than 90% charge.

Battery has less than 70% charge.

Battery has less than 50% charge.

Battery has less than 30% charge. Light is red and alarm beeps. Plug-in power

cord and charge to 100%! You can use cart while charging.

Alarm Mute button. Pressing this will temporarily mute alarm.

Power button for internal power system outlets. Pressing this will provide or

remove power to/from components plugged into the internal outlets.

When lit, alarm is enabled and

will beep when battery charge

gets below 30%. For details on

enabling and disabling alarm

contact Ergotron Customer Care.

When lit, the power system is on.

When dark, power system is o.

This power system interface will alert you to the percentage of charge remaining in the cart battery with a series of steady

or ashing red, yellow or green lights, and an alarm that will beep when charge gets below 30%. Remember, the battery

needs to be charged to 100% every day, and you can use the cart while charging, so plug-in cord as often as possible to avoid

running out of power!

NOTE: Put monitor in power save mode to optimize battery run time.

READY ON

Pressing this button

will wake up your

computer from

hibernate or power

o.

KEYBOARD LIGHT

Your computer must be on for this light to function.

Keyboard Light will automatically

turn o after 15 minutes if not

manually turned o.

Lock Drawer:

• Wait 4 seconds for lock to engage automatically.

NOTE: Drawer must be fully closed to lock.

Unlock Drawer (3 methods):

• Enter Master PIN, then press desired drawer number*.

• Enter User PIN, then press desired drawer number*.

• Key - turn clockwise 1/4 turn

*Drawer Numbers:

NOTE: Frequent operation of

the cart while battery charge

levels are below 30% will

signicantly reduce the life

of your battery and may void

your battery warranty.
