ERGOMART SAA2045 Manual de usuario
SAA2045 MONITOR ARM
Installation Instructions
E.
G.
Slide tilter pin into end of arm.
Adjust vertical tilt resistance on tilter
head.
I.
F.
G.
Increase resistance to rotation at
articulation points by tightening small
set screws.
DO NOT OVERTIGHTEN.
Increase resistance to vertical travel
slightly with two hidden set screws on
bottom ends of lifting arm. This control
has modest effect and is set only after
gas cylinder floats LCD weight lessly.
1 2 3
4 5 6
7 8 9
Insert arm pin into completely attached
and assembled mount.
Put arm in horizontal position and
rotate wrench CLOCKWISE to WEAKEN
arm until monitor stays wherever it is
placed. See page 2 for more detailed
instructions.
C.
C.
C.
C.
A.
B.
D.
D.
D.
D.
Attach tilter head/VESA plate to
Monitor.
* Some monitors may require a spacer
hardware kit. See page 3 for details.
H.
H.
www.ergomart.com | 888 420 3200
Please call Ergomart at
888 420 3200
with your questions
www.ergomart.com
Ergonomic solutions for office and light industrial work environments
©2016 Ergomart. All rights reserved.
PAGE 1 OF 3
7/32" Allen Wrench
s
3/32" Allen Wrench
(1)
(2)
How do I counterbalance my arm?
Press the arm down to
approximately parallel with
the desk prior to turning the
strength adjustment screw.
If the arm drifts upward, turn
the adjustment screw clockwise.
If the arm drifts downward, turn
the adjustment screw counter-
clockwise.
Depending on the weight of
your monitor, you may have
to make 15-20 turns.
In some instances, further
counterbalance adjustments
are needed to allow the arm’s
instant height adjustment
function to work properly.
If your arm is not staying in
position after performing
step 1, follow these steps:
With arm in raised position,
tighten set screw (1).
With arm in horizontal position,
tighten set screw (2).
Do not over tighten screws.
_
Ergonomic solutions for office and light industrial work environments
©2016 Ergomart. All rights reserved.
1
2
IMPORTANT!
• Monitor must be on arm
• Arm must be in mount
www.ergomart.com | 888 420 3200
SAA2045 MONITOR ARM
Installation Instructions
PAGE 2 OF 3
www.ergomart.com | 888 420 3200
F. 10-32 x 3/8" FPhMS w/Lock Patch 1
G. 7/32" Allen Wrench 1
H. 3/32" Allen Wrench 1
I. Cable Cap 1
.25" Spacer Hardware Kit
(4) .25" Spacers
(4) M4 x 18mm Phillips Pan Head
Screws
Order # SPKT-1/4
.5" Spacer Hardware Kit
(4) .5" Spacers
(4) M4 x 25mm Phillips Pan Head
Screws
Order #SPKT-1/2
OPTIONAL SPACER KITS: In some cases, the mounting surface on your monitor may be recessed further than
permitted by VESA® standards. As a result, a spacer kit may be required.

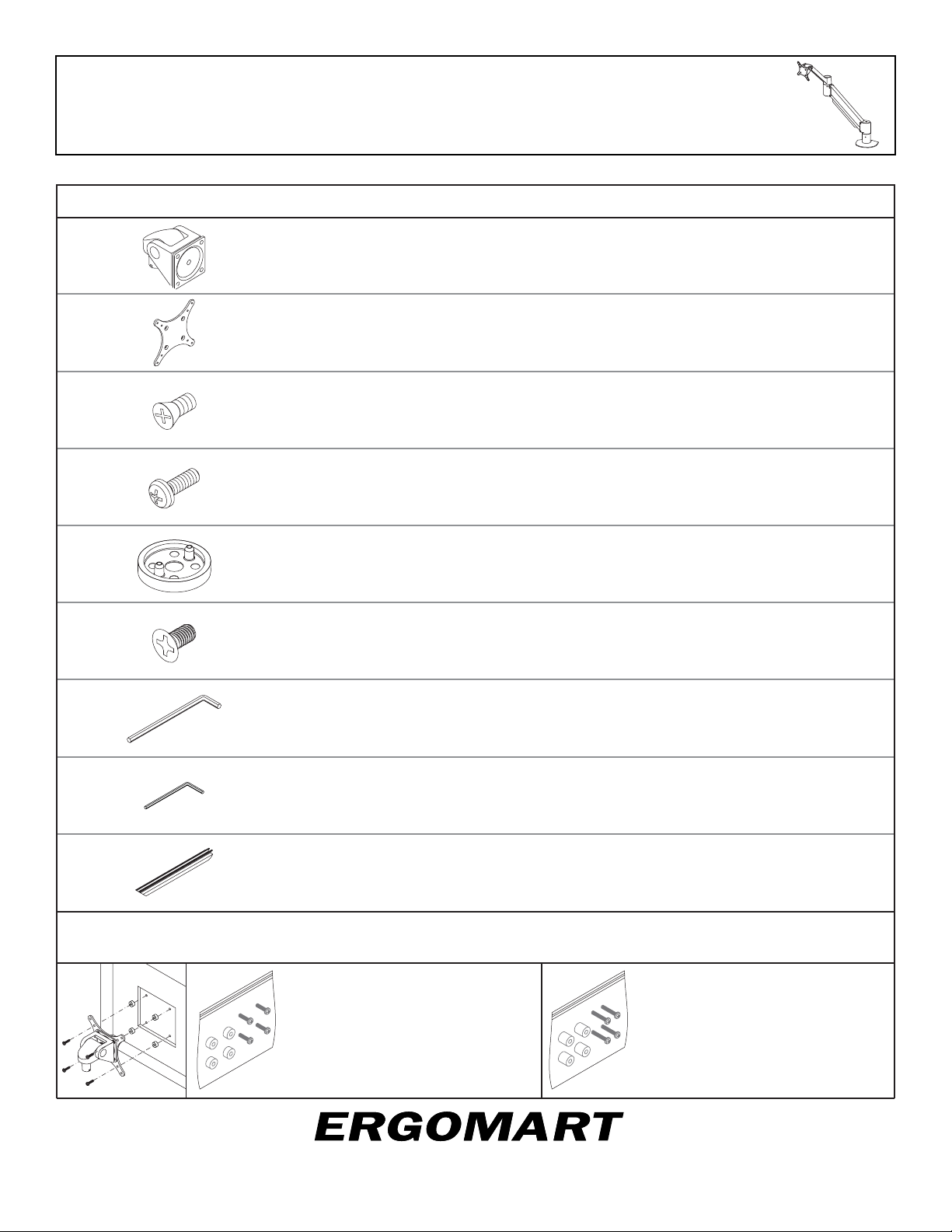

A. Monitor Tilter 1
ITEM
75/100mm VESA®Adapter Plate 1
10-32 x 3/8" Phillips Flat Head Screw 1 (4-pack)
M4 x 12mm Phillips Pan Head Screw 1 (4-pack)
Dog Washer 1
C.
B.
D.
E.
DESCRIPTION / PART NO. QUANTITY
SAA2045 MONITOR ARM
Parts List
Ergonomic solutions for office and light industrial work environments
©2016 Ergomart. All rights reserved.
PAGE 3 OF 3
