ErgoAV ERTSL1-01B Manual de usuario
THANK YOU FOR CHOOSING THIS ERGOAV PRODUCT!
At ErgoAV, we want to add value to your AV experience by providing the highest
quality products and services in the industry. If you have any concerns or
comments, please contact us.
ErgoAV Customer Care
Phone (877) 419-7832 M-F 8am to 8pm CST
email: [email protected]
website: www.ergoav.com
adress: 9501 Louisiana Ave N, #200 Brooklyn Park, MN 55445
Model: ERTSL1-01B
Table Top TV Stand Instruction Manual
V1.0
English pages: 02-15 French pages: 16-29 Spanish pages: 30-43
For safety strap
installations you will
need to verify your wall
construction

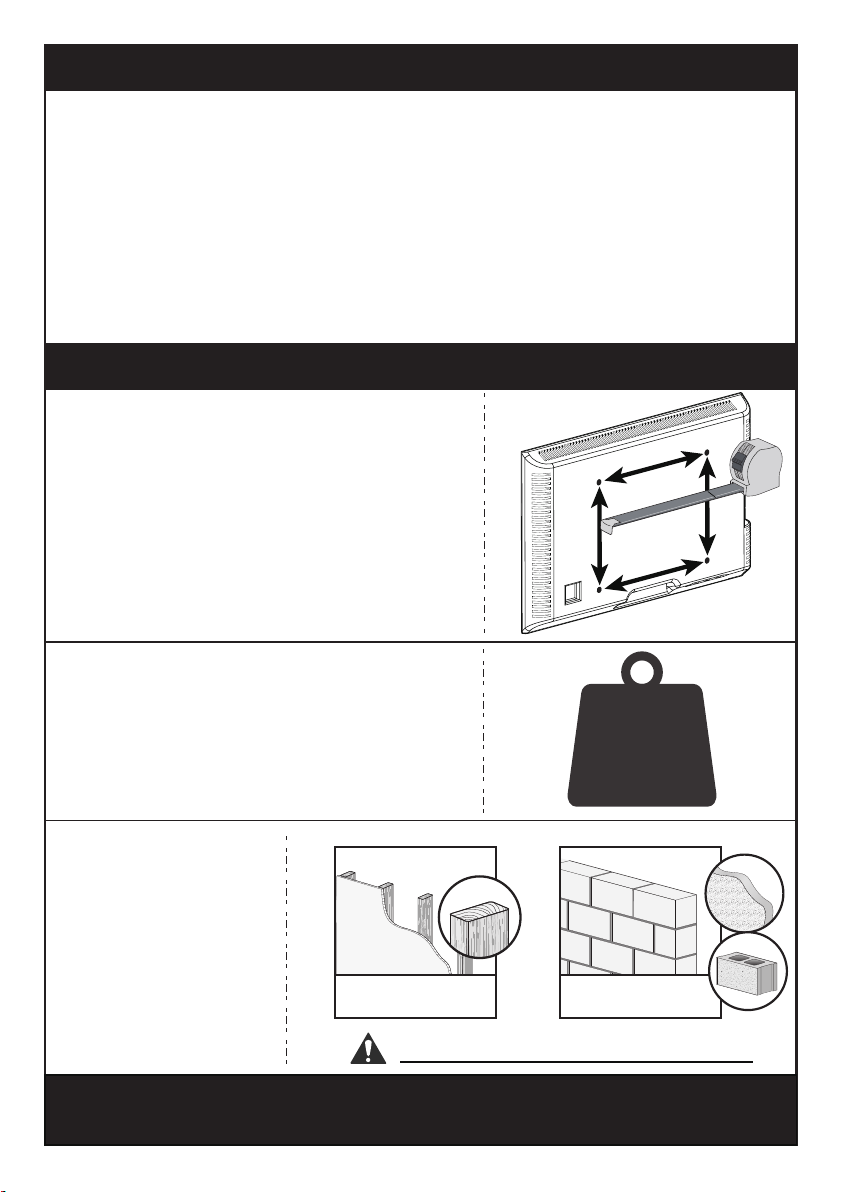

Before getting starting, let's make sure this mount is perfect for you!
IMPORTANT SAFETY INFORMATION
CAUTION: Avoid potential personal injuries and property damage!
Do not use this product for any purpose that is not explicitly specified in this
manual. Do not exceed weight capacity. We are not liable for damage or
injury caused by improper mounting, incorrect assembly or inappropriate use.
Please carefully read all instructions before attempting assembly. If you do
not understand the instructions or have any concerns or questions, please
contact our Technical Support line at (877) 419-7832 or customer service at
If your TV weighs more than 99 lbs,
Do not use this product. 99lbs/
44.9kg
Measure Your TV VESA Pattern:
Minimum: 100x100mm/4x4 in (WxH）
Maximum: 600x400mm/23.6x15.7 in (WxH）
1
W
H
Solid Concrete
or Concrete Block
DO NOT install into drywall alone.
Wood Studs
(with Drywall)
If this mount is NOT compatible, please contact our Technical Support line at
mount.
If your TV is not between the minimum
and maximum measurements, do not
use this product.
02 03 04 05 06 07 08 09 10 11 12 13 14 15
16 17 18 19 20 21 22 23 24 25 26 27 28 29
30 31 32 33 34 35 36 37 38 39 40 41 42 43
(B1) x4
M4/M5
Washer
(B2) x4
M6/M8
Washer
Supplied Parts and Hardware
WARNING: This product contains small items that could be a choking
hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. Do not
use damaged or defective parts. lf you require replacement parts, please
contact our Technical Support line at (877) 419-7832 or customer service at
• Please note: Not all hardware included in this package will be used.
Tools Needed (Not lncluded)
AwlStud Finder
Tape Measure
Tape
Measure
Tape
Measure Pencil
Pencil
1/8 in (3mm)
Wood Drill Bit
5/16 in (8mm)
Concrete Drill Bit Hammer
Drill
Drill
Phillips
Screwdriver
Phillips
Screwdriver
Phillips
Screwdriver
For safety straps installation into concrete wall
For safety strap installatcon into wood table/furniture and wood stud applications
For TV Stand assembly
(N) x2
TV Bracket
Supplied Parts and Hardware for Step 1
02 03 04 05 06 07 08 09 10 11 12 13 14 15
16 17 18 19 20 21 22 23 24 25 26 27 28 29
30 31 32 33 34 35 36 37 38 39 40 41 42 43
Step 1 Secure the TV Brackets [N] to the TV
Select TV Bolts
Only one bolt size fits your TV.
(C2) x4
M4x30mm
Bolt
(C1) x4
M4x12mm
Bolt
(D1) x4
M6x15mm
Bolt
(D2) x4
M6x35mm
Bolt
(E1) x4
M8x15mm
Bolt
(E2) x4
M8x35mm
Bolt
(E3) x4
M8x50mm
Bolt
(F1) x8
L2.5mm
Spacer
(F2) x4
L10mm
Spacer
(F3) x4
L22mm
Spacer
Bolts and Spacers are shown in actual size.
OR OR
M6 M8M4
02 03 04 05 06 07 08 09 10 11 12 13 14 15
16 17 18 19 20 21 22 23 24 25 26 27 28 29
30 31 32 33 34 35 36 37 38 39 40 41 42 43
N
When attaching the TV Brackets to the
back of the TV, ensure the Up Arrows are
pointing to the top of the TV and are
equally centered on the back of the TV.
UP
Please Note: When using the spacers it is important to note that they can be used in
multi-layers (meaning stacked). If you have any difficulty understanding how to install
the TV bolts or spacers, please contact our Technical Support line at (877) 419-7832
Bolt length: Verify adequate thread engagement with bolts or bolts/spacers
combination. We recommend thread engagement by at least 5 turns.
-Too short will not hold the TV.
-Too long will damage the TV.
Too Short Correct Too Long
Bump
See Option C Cables
See Option D Recessed Holes
See Option E
Spacers
Parts Needed if You Have a TV as Shown Below
F1+F1 F1+F2 F1+F3F1+F1+F2 F1+F1+F3 F2+F3 F1+F2+F3 F1+F1+F2+F3
Curved TV
See Option B
02 03 04 05 06 07 08 09 10 11 12 13 14 15
16 17 18 19 20 21 22 23 24 25 26 27 28 29
30 31 32 33 34 35 36 37 38 39 40 41 42 43
Phillips Screwdriver
(Not lncluded)
Phillips Screwdriver
(Not lncluded)
B1/B2
C2/D2/E2/E3
F1/F2/F3
Refer back to Spacer Instructions
on Page 5, If NEEDED
Option A (For Flat Back TV )
B1/B2
C1/D1/E1
Height Location #1 Height Location #2 Height Location #3
TV Brackets have “three height locations”, which determines the height
position of your TV while attaching your TV on the stand in Step 5 on page 12.
You can choose the proper height.
Option B (For Curved Back TV)
Spacers must be tall enough so that the curve on the back
of the TV will not interfere with the mounting plate.
02 03 04 05 06 07 08 09 10 11 12 13 14 15
16 17 18 19 20 21 22 23 24 25 26 27 28 29
30 31 32 33 34 35 36 37 38 39 40 41 42 43
N
F1/F2/F3
C2/D2/E2/E3
B1/B2
Phillips Screwdriver
(Not lncluded)
Refer back to Spacer Instructions
on Page 5, If NEEDED
Phillips Screwdriver
(Not lncluded)
Refer back to Spacer Instructions
on Page 5, If NEEDED
B1/B2
C2/D2/E2/E3
F1/F2/F3
Option C (For TV with A “Bump”)
Spacers must be large enough so TV bracekts are
flush (NO GAP) on bump.
Option D (for TV with Cable Interference)
For cable interference, use spacers [F1], [F2] and [F3] to
create extra space between the TV and TV brackets.
02 03 04 05 06 07 08 09 10 11 12 13 14 15
16 17 18 19 20 21 22 23 24 25 26 27 28 29
30 31 32 33 34 35 36 37 38 39 40 41 42 43
B1/B2
N
F1/F2/F3
C2/D2/E2/E3
Step 2-1
(W) x6
Foot Pad
(R) x1
Reinforcement
Plate
(Y) x1
Trim Ring
This bolt is shown in
actual size.
(L) x3
M6x25mm Bolt (P) x1
Support Pillar
(O) x1
Tempered
Glass Base
(V) x1
5/32 in (4mm)
Allen Key
Place foot pads [W] to the painted side of the tempered glass
base [O] in the corners.
Step 2 Assemble the Base
O
W
Refer back to Spacer Instructions
on Page 5, If NEEDED
Phillips Screwdriver
(Not lncluded)
Supplied Parts and Hardware for Step 2
Option E (For Recessed Holes ）
The spacer need to fill in the recessed holes on the basis
of the TV so that the TV brackets are as close to the TV
as possible.
02 03 04 05 06 07 08 09 10 11 12 13 14 15
16 17 18 19 20 21 22 23 24 25 26 27 28 29
30 31 32 33 34 35 36 37 38 39 40 41 42 43
(M) x1
TV Plate
(Q) x4
M6 Nut
(T) x4
D6.5 Washer
(X) x2
Safety Strap
Supplied Parts and Hardware for Step 3
(V) x1
5/32 in (4mm)
Allen Key
(V) x1
3/8 in (10mm)
Wrench
This bolt is shown in actual size.
Step 2-2 Connect the support pillar [P] to tempered glass base [O]
When assembling the pillar, ensure the
side of the reinforcing plate [R] with
paper is facing the glass base [O].
Do Not overtighten the bolts [L].
L
Y
P
P
L
V
V
R
R
O
OTable
(S) x4
M6x50mm Bolt
W
02 03 04 05 06 07 08 09 10 11 12 13 14 15
16 17 18 19 20 21 22 23 24 25 26 27 28 29
30 31 32 33 34 35 36 37 38 39 40 41 42 43
Location #1
Location #2
Location #3
Connect TV plate [M] and safety
straps [X] to support pillar [P] using
bolts [S], washers [T] and nuts [Q].
Step 3 Connect the TV Plate [M] to Support Pillar [P]
Mounting Location #1
Mounting Location #2
Mounting Location #3
Note: Before attaching the TV Mounting
Plate to the pillar, measure the distance
from the upper hook on the TV Bracket
to the bottom of the TV. Then refer to
chart below for the recommended
mounting location. To add an additional
2” of space between your TV and the
base, use the lower hooks located on
the TV Brackets. We always recom-
mend using the lowest possible attach-
ment location for the safest assembly.
Distance from the hooks on the TV
Brackets to the bottom of the TV Recommended TV Mounting
Plate Location
20 1/8" to 23 1/2"
16 3/4" to 20 1/8"
Less Than 16 3/4"
Location #1
Location #2
Location #3
M
S
V
V
Q
T
X
02 03 04 05 06 07 08 09 10 11 12 13 14 15
16 17 18 19 20 21 22 23 24 25 26 27 28 29
30 31 32 33 34 35 36 37 38 39 40 41 42 43
