Epson PowerLite Pro Cinema 9350 Manual de usuario

PowerLite®Pro Cinema 9350/9700 UB

Home Theater Projector

User’s Guide

any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior

written permission of Seiko Epson Corporation. The information contained herein is designed only for use with

this Epson product. Epson is not responsible for any use of this information as applied to other products.

Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties for

damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse, or abuse of

this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to

strictly comply with Seiko Epson Corporation’s operating and maintenance instructions.

Seiko Epson Corporation shall not be liable for any damages or problems arising from the use of any options or

any consumable products other than those designated as Original Epson Products or Epson Approved Products by

Seiko Epson Corporation.

Trademarks

Epson and C2Fine are registered trademarks, 1080Perfect is a trademark, and Epson Exceed Your Vision is a

registered logomark of Seiko Epson Corporation.

PowerLite and PrivateLine are registered trademarks, DigiScan and AccuCinema are trademarks, and Extra Care

and Epson Connection are service marks of Epson America, Inc.

HDMI, the HDMI logo, and High-Definition Multimedia Interface are registered trademarks

of HDMI Licensing, LLC.

Pixelworks, DNX, and the DNX logo are trademarks of Pixelworks, Inc.

x.v.Color is a trademark of Sony Corporation.

General Notice: Other product names used herein are for identification purposes only and may be trademarks of

their respective owners. Epson disclaims any and all rights in those marks.

This information is subject to change without notice.

CPD-28064

Contents 3

Contents

Introduction 6

Projector Parts 7

Remote Control 9

Optional Accessories 10

Registration and Warranty 10

Using This Manual 11

Setting Up the Projector 12

Choosing a Location 12

Installing the Projector 16

Connecting the Cables 18

Connecting Video and Computer Equipment 18

Making Other Connections 20

Installing Batteries in the Remote Control 21

Turning the Projector On and Off 21

Turning On the Projector 21

Turning Off the Projector 22

Selecting the Image Source 23

Positioning the Image 24

Making Basic Adjustments 26

Focusing and Zooming 26

Choosing the Aspect Ratio 27

Choosing the Color Mode 28

Advanced Color Adjustments 29

Adjusting the Gamma Setting 30

Adjusting RGBCMY 31

Locking the Projector 32

4Contents

Making Detailed Adjustments 33

Using the Menu System 33

Changing How the Menus Display 35

Adjusting the Picture Quality 35

Input Brightness Settings 35

Sharpness and Picture Quality Settings 37

Color Settings 40

Adjustments for Computer Images 42

Selecting Memory Settings and Resetting the Projector 43

Selecting Memory Settings 43

Creating Memory Settings 44

Renaming Memory Settings 44

Deleting Saved Memory Settings 45

Resetting the Projector 45

Customizing Projector Features 46

Image Sizing 46

Screen Options 47

Other Setup Options 47

Maintenance 50

Cleaning the Lens 50

Cleaning the Projector Case 51

Cleaning and Replacing the Air Filter 51

Replacing the Lamp 53

Resetting the Lamp Usage Timer 56

Checking the Projector Status 56

Storing the Projector 57

Transporting the Projector 57

Contents 5

Problem Solving 58

What To Do When the Lights Come On or Flash 58

Solving Picture Problems 60

Solving Remote Control Problems 63

Where to Get Help 64

Specifications 65

General 65

Lamp 65

Remote Control 66

Dimensions 66

Electrical 66

Environmental 67

Safety 67

Compatible Video Formats 67

ESC/VP21 Command Codes 69

Notices 71

Important Safety Information 71

FCC Compliance Statement 73

Declaration of Conformity 74

Epson America, Inc. Limited Warranty 74

Index 76

6Introduction

Introduction

The PowerLite®Pro Cinema 9350/9700 UB projector lets you enjoy theater-quality images

in the relaxing environment of your own home. Designed especially for home cinema use, it

offers these outstanding features:

■Native 1080p (1920 × 1080) resolution, dynamic contrast ratio up to 200000:1 (50000:1

for the Pro Cinema 9350), and up to 1600 lumens (2000 lumens for the Pro Cinema

9350) of brightness (white light output and color light output) for incredibly rich, sharp

images in any room lighting

■Auto Iris system that constantly controls the light output based on the gamma and

black/white levels of your projected content, for perfectly adjusted images and deepest

blacks

■Epson C2Fine®3LCD technology for reliable picture quality, increased contrast ratio and

uniform colors

■1080Perfect™video processing (using HQV®Reon-VX technology for the Pro Cinema

9700 UB)for more film-like images free of noise or artifacts

■10-bit color quality (digital only for the Pro Cinema 9350) for unmatched color accuracy,

with over a billion colors available

■Epson AccuCinema™color management delivered by the built-in optical Cinema Filter

blocks out excess light for an expanded, purer color range and sophisticated grayscale

tracking

■HDMI®(High-Definition Multimedia Interface®) port for superior, uncompressed

digital video

■True 16:9 wide-format projection

■Flexible setup configurations, including front projection and ceiling mounted, with

vertical and horizontal offset lens shift

■Seven color modes, including x.v.Color™, to quickly optimize viewing for different

lighting environments, and a vast array of custom color adjustments

Introduction 7

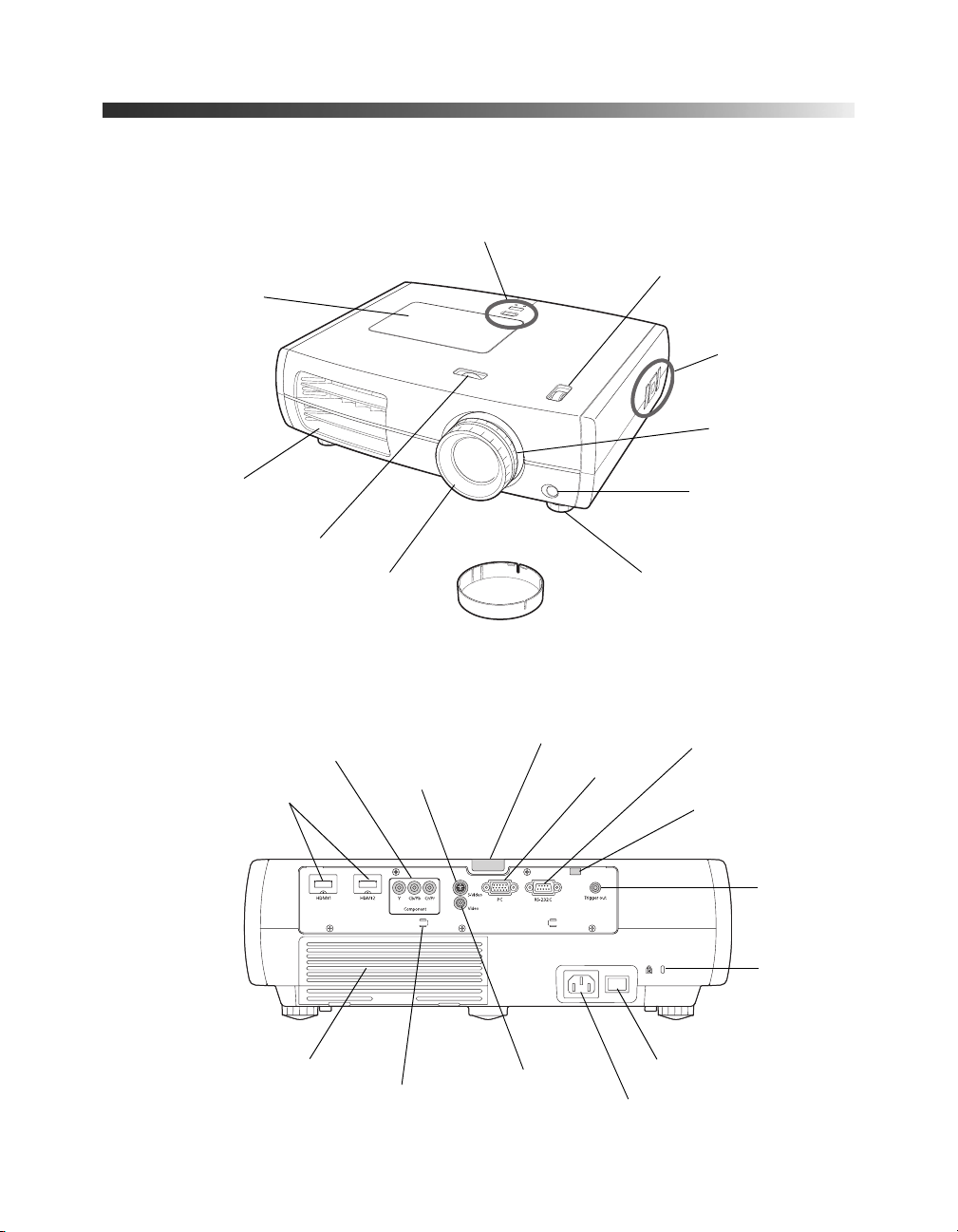

Projector Parts

Control panel (top)

Ventilation slots

Lens cover

Vertical lens shift dial

Adjustable foot

Video port

HDMI ports

Component

video port

AC power inlet

Infrared receiver

Kensington®

lock port

Infrared receiver

Horizontal lens shift dial

S-Video port

Control (RS-232C) port

Trigger out

port

PC port

Zoom ring

Focus ring

Main power switch

Front

Back

Lamp cover

Control panel

(side)

Air intake (filter)

Lamp cover release

Cable holder

8Introduction

Power

button

Menu navigation

button

Esc button

Exits the current

menu item

Menu button

Displays the

menus

Warning lights

Mounting bracket

attachment points

Enter button

Selects menu items or

opens the line menu

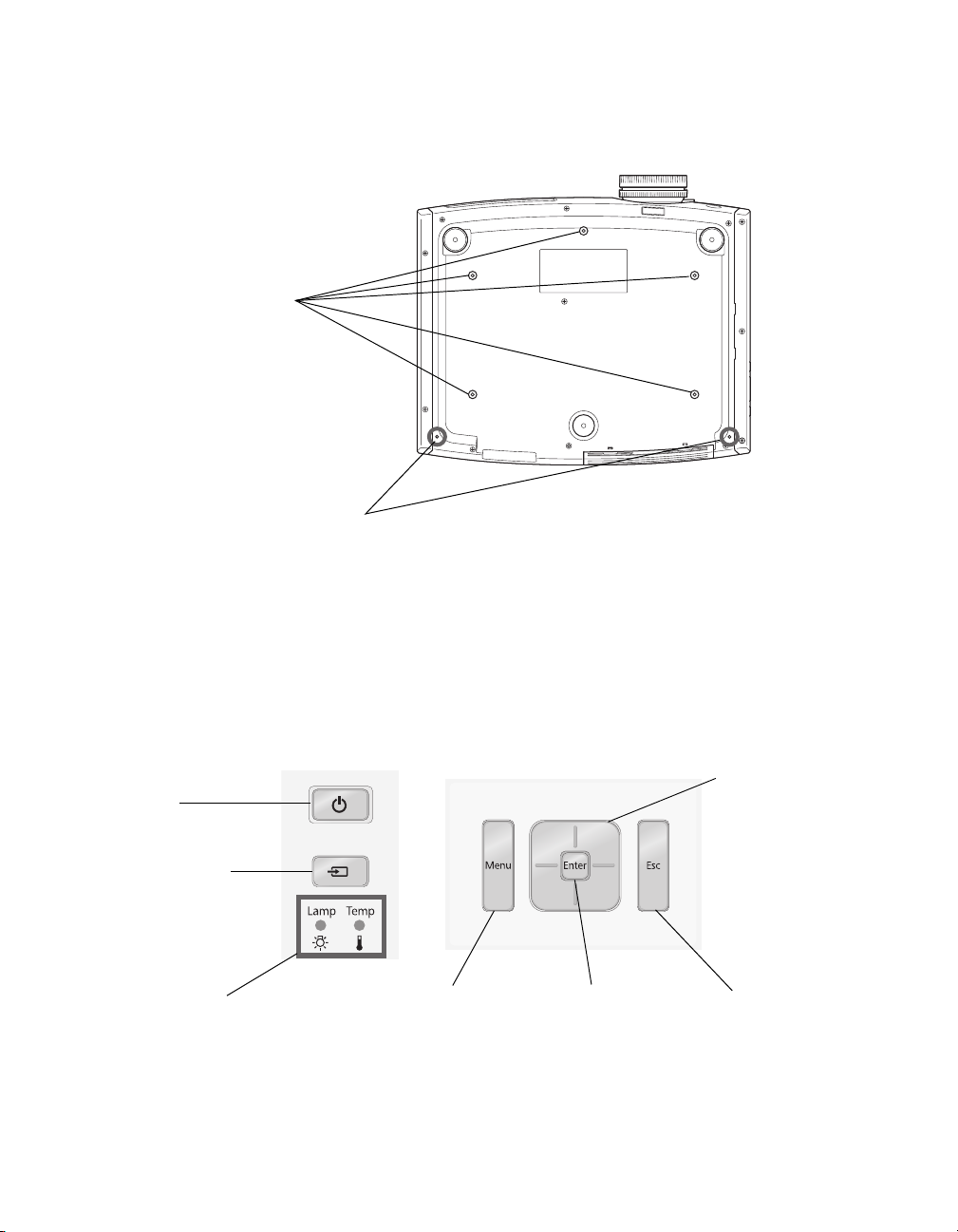

Bottom

Projector Control Panel

Optional cable cover

attachment points

(brass colored)

Top control panel Side control panel

Source button

Switches the

video input source

Introduction 9

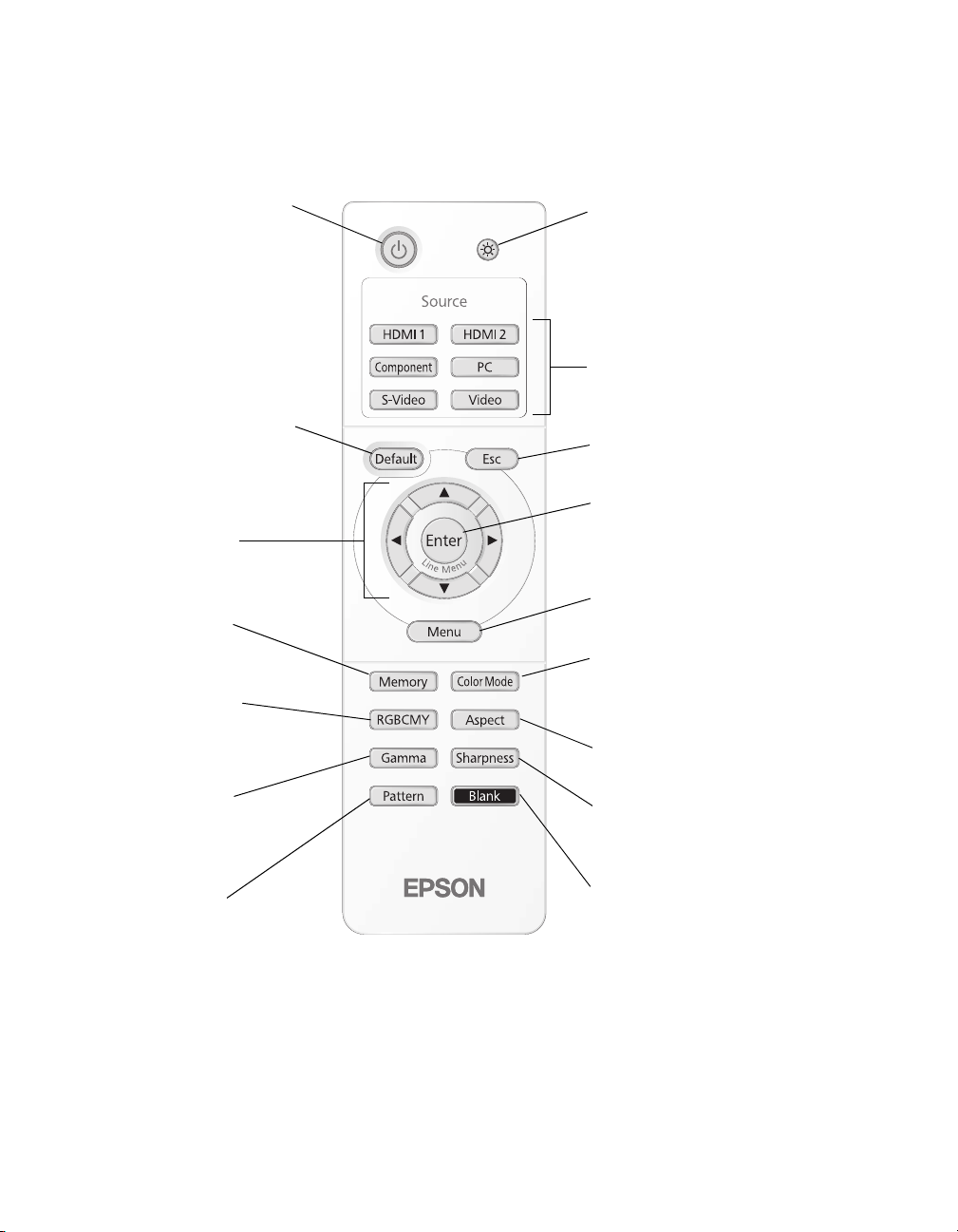

Remote Control

Source buttons

Switch between equipment

connected to the projector

Color Mode button

Optimizes viewing for

different lighting environments

Power button

Turns projector on or off

Memory button

Recalls custom

picture settings

Menu navigation

buttons

Pattern button

Displays test patterns

to adjust the image

Menu button

Displays the projector’s menus

Aspect button

Changes the picture’s aspect ratio

Esc (escape) button

Exits the current menu item

Blank button

Temporarily stops projection or

hides the menu screen

Enter/Line Menu button

Selects menu items or opens

the line menu

Gamma button

Adjusts the gamma values

of the screen display

Default button

Restores default settings

when menu is displayed

Sharpness button

Adjusts image sharpness

Illumination button

Lights the remote control

buttons for easy viewing

RGBCMY button

Adjusts the hue,

saturation, and brightness

for each color

10 Introduction

Optional Accessories

Epson provides the following optional accessories for the projector:

In addition to the accessories listed above, 1-year and 2-year extended service plans are

available. You can purchase these plans and other accessories from an authorized Epson

reseller. To find the nearest reseller, please call 800-GO-EPSON (800-463-7766). To

purchase online, visit www.epsonstore.com (U.S. sales) or www.epson.ca (Canadian sales).

Registration and Warranty

Your projector comes with a basic three-year carry-in warranty. For details, see page 74.

In addition, Epson offers free Extra CareSM Home Service. In the unlikely event of an

equipment failure, you won’t have to wait for your unit to be repaired. Instead, Epson will

ship you a replacement unit anywhere in the United States or Canada. See your Extra Care

Home Service brochure for details.

To register, simply follow the registration instructions on the CD, or register online at

epson.com/webreg. Registering also lets you receive special updates on new accessories,

products, and service.

Product Part number

Replacement lamp V13H010L49

Air filter replacement V13H134A21

Kensington security lock (anti-theft device) ELPSL01

Cable cover V12H003003

Projector mount ELPHB800

Fixed Anamorphic Lens Kit (Pro Cinema 9700 UB only) ELPFALKP

Anamorphic lens kit (Pro Cinema 9700 UB only) ELPALK2
