Epson EMP-TW100 Manual de usuario

Connecting to aVideo Source

Using the Remote Control and

Operating Range

Before Using the Remote Control

Connecting to a Computer

Setup

Screen Size and Setting-up Distance

Setting-up Methods

START

Munchen SET UP GUIDE English-hyoshi

Inserting the Batteries and Battery

Replacement Period

Printed in Japan

404067500E

02.10-1.5A(C05)

Before Using the Remote Control

The batteries are not inserted into the remote control at the time of purchase, and so you

need to insert them before the remote control can be used.

Remove the battery compartment cover.

While pressing the cover here, lift the cover up.

Insert the batteries.

Make sure the polarities of the batteries are correct.

Replace the battery compartment cover.

After inserting the tab of the battery cover, push the

cover down until it clicks into place.

Munchen SET UP GUIDE English-01

If the remote control becomes slow in responding or if it stops working, the batteries may

be spent. Replace the batteries with new ones.

Use the following type of batteries as replacements.

Alkaline dry cell LR6 (AA) x 2

Inserting the Batteries and Battery

Replacement Period

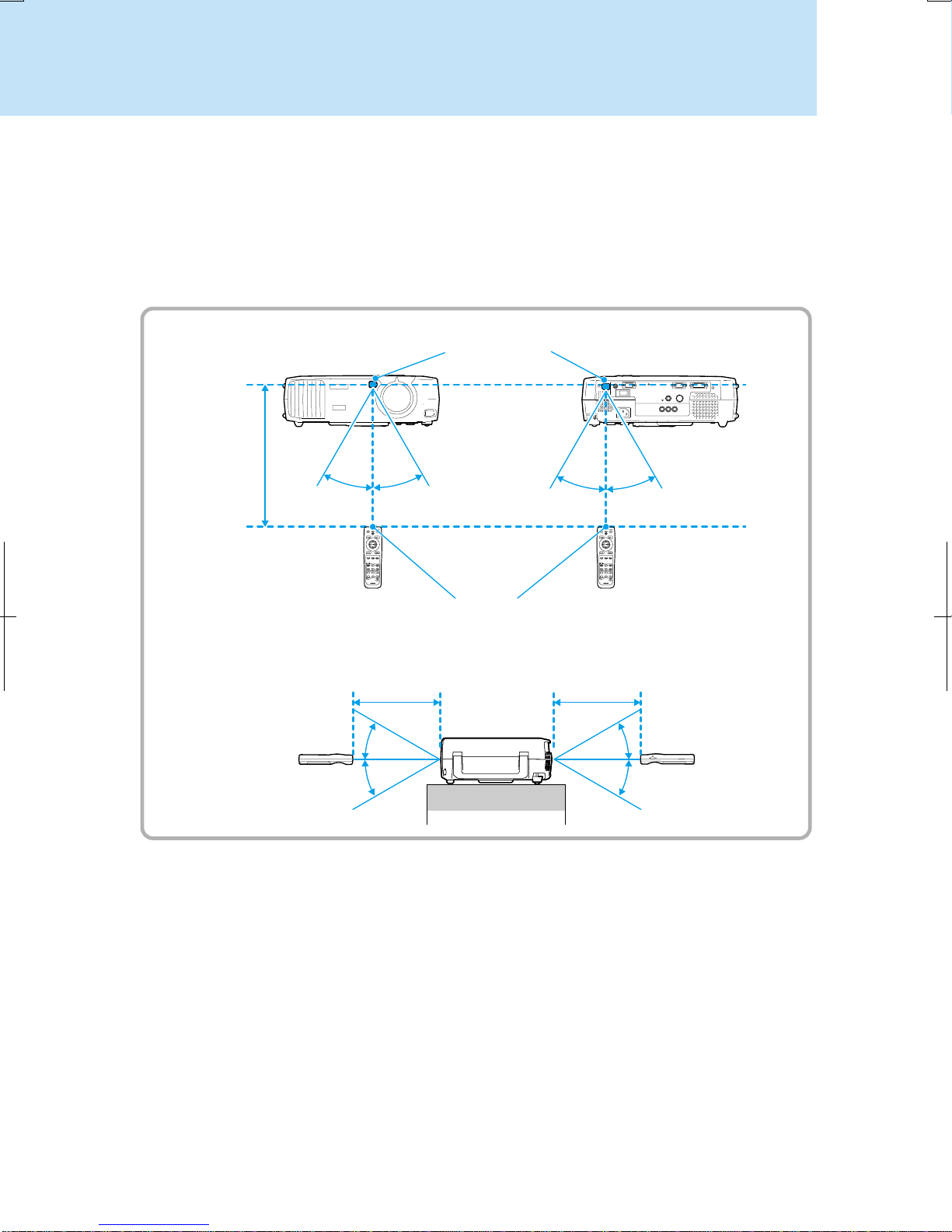

Operating

distance

Approx.

10 m

(30 ft)

Operating range (horizontal)

Operating range (vertical)

Approx. 30˚

Operating distance

Approx. 10 m

(30 ft)

Operating distance

Approx. 10 m

(30 ft)

Approx. 30˚

Approx. 30˚ Approx. 30˚ Approx. 30˚Approx. 30˚

Using the Remote Control

and Operating Range

Remote control light-receiving area

Remote control light-emitting area

Munchen SET UP GUIDE English-02

Point the remote control light-emitting area toward one of the remote control light-

receiving area on the projector and operate the remote control buttons.

Use the remote control within the ranges indicated below. If the distance or angle between

the remote control and the remote control light-receiving area is outside the normal

operating range, the remote control may not work.

300"

(660 × 370)

Screen size

20 cm

(7.9 inches)*

Distance from center

of lens to bottom edge

of screen (cm)

*When installing against a wall, leave a space of about 20 cm (7.9 inches)

between the projector and the wall.

30"

(66 × 37)

40"

(89 × 50)

60"

(130 × 75)

80"

(180 × 100)

100"

(220 × 120)

200"

(440 × 250)

0.9 – 1.2

1.2 – 1.6

1.8 – 2.5

2.5 – 3.4

3.1 – 4.3

6.3 – 8.6

9.5 – 13.0

5.1

5.0

6.8

6.7

10.2 13.7

13.6

17.1

17.0

34.3

34.0

51.4

51.0

Setup

The distance between the projector and the screen determines the actual image size.

Recommended distance : 0.9m - 13.0m (2.9 - 42.6 feet)

While referring to the table below, position the projector so that the images are projected

at the optimum size.

Screen size (cm (feet))

30"

(66 × 37 (2.1 × 1.2))

40"

(89 × 50 (2.8 × 1.6))

60"

(130 × 75 (4.2 × 2.4))

80"

(180 × 100 (5.7 × 3.2))

100"

(220 × 120 (7.2 × 4.1))

200"

(440 × 250 (14.4 × 8.2))

300"

(660 × 370 (21.6 × 12.1))

5.0 – 5.1

(0.16 – 0.17)

6.7 – 6.8

(0.22 – 0.22)

10.2

(0.33)

13.6 – 13.7

(0.45 – 0.45)

17.0 – 17.1

(0.56 – 0.56)

34.0 – 34.3

(1.12 – 1.13)

51.0 – 51.4

(1.67 – 1.69)

Approximate projection

distance* (m (feet)) Distance in Fig.

A below (cm (feet))

0.9 – 1.2

(2.9 – 3.9)

1.2 – 1.6

(3.9 – 5.2)

1.8 – 2.5

(5.9 – 8.2)

2.5 – 3.4

(8.2 – 11.1)

3.1 – 4.3

(10.1 – 14.1)

6.3 – 8.6

(20.6 – 28.2)

9.5 – 13.0

(31.1 – 42.6)

Screen Size and Setting-up Distance

The projector’s lens allows a zoom ratio of up to about 1.35.The

image size at the maximum zoom setting is about 1.35 times bigger

than the image size at the minimum zoom setting.

The image size will be reduced when keystone correction is carried

out.

* Distance and dimensions should be used as a guide for installation. The actual distance will vary depending on

projection conditions.

Munchen SET UP GUIDE English-03

Front projection

Rear projection using a

translucent screen

Rear projection onto a

translucent screen with the

projector installed to the ceiling

Front/ceiling projection

The projector supports the following five projection methods, allowing you to choose the

best method for displaying your images.

After setting up the projector, refer to the User's Guide for details on turning on the power

and adjusting settings such as the screen size. ( "Basic Operations" in User's Guide)

Setting-up Methods

When turning the projector upside

down, attach the rubber stands that

are included.

This can prevent the control panel

from directly touching the

installation surface.

Be sure to read the separate

Safety Instructions/ World-Wide Warranty

Terms

before setting up the projector.

* A special method of installation is required in order to suspend the projector from the ceiling. Please

contact the place of purchase if you would like to use this installation method.

* When installing to the ceiling or projecting from behind the screen, set the Projection command in the

Settings environment setting menu to match the method of projection being used.

("Settings"menu in User's Guide)

Rubber stands

(Attach in

3 places)

Projecting from locations such as the

top of a cabinet with the projector

turned upside-down

When installing the projector upside down, set

the Projection command in the Settings

environment setting menu to "Front/Ceiling".

("Settings" menu in User's Guide)

Munchen SET UP GUIDE English-04

Connecting to aVideo Source

Projecting Component Video Images

Make the connections, and then change the Input A or Input B command in

the Advanced environment setting menu to "YCbCr" or "YPbPr" to match

the input signal.("Advanced" menu in

User's Guide

)

For HDTV (750p or 1125i), "YPbPr" will be selected regardless of the above setting.

For SDTV(525i,625i), "YCbCr" will be selected regardless of the above setting.

Turn off the power for both the projector and the video source before connecting them.

If the power for either device is on at the time of connection, damage may result.

Check the shapes of the cable connectors and the device ports before making the

connections.If you try to force a connector to fit a device port with a different shape or

number of terminals, a malfunction or damage to the connector or port may result.

Refer to the Optional Accessories appendix in the separate User's Guide for details of the

optional cables.

If connecting using a component video cable (commercially-available)

If connecting using a component video cable (optional)

To component video output port

Continued

Munchen SET UP GUIDE English-05

Component video cable

(commercially-available)

Red

Blue

Green

To Input A port

Component video cable (optional)

To Input B port

Projecting Composite Video Images

Projecting S-Video Images

To video output port

Munchen SET UP GUIDE English-06

RCA video cable (yellow)

(commercially-available)

To Video port (yellow)

To video output port

(yellow)

S-Video cable

(commercially-available)

To S-Video port

Depending on the combination of the VCR and the video cassette used for

the playback, the color of the projected images may flicker or the correct

color may not be displayed. In this case, select "Advanced" and set

"Progressive" to OFF for improving the playback quality.

("Advanced" menu in

User's Guide

)

Projecting RGB Video Images

To RGB output port

Munchen SET UP GUIDE English-07

Digital video cable DVI-D/DVI-D

(optional)

To A-RGB/D-RGB DVI-I port

For a RGB connection, a commercially available adapter or converter

cable might be required.

Connecting to a Computer

The projector cannot be connected to some types of computer, or projection of images

may not be possible even if actual connection is possible. Make sure that the computer you

intend to use satisfies the conditions given below.

Condition 1:The computer must have a image signal output port.

Check that the computer has a port such as an RGB port, monitor port or

CRT port which can output image signals. If the computer has a built-in

monitor, or if using a laptop computer, it may not be possible to connect the

computer to the projector, or alternatively you may need to purchase a

separate external output port. Refer to the documentation for your computer

under a heading such as "Connecting an external monitor" or similar for

further details.

Condition 2:The display resolution and frequency of the connected computer

must be within the range specified in the "List of Supported Signal

Resolutions" "List of Supported Signal Resolutions" (p.9)

Some computers may have functions for changing the output resolution.

Refer to the documentation for the computer and change the setting to within

a range given in the list of supported resolutions.

Turn off the power for both the projector and the computer before connecting them.

If the power for either device is on at the time of connection, damage may result.

Check the shapes of the cable connectors and the device ports before making the

connections.If you try to force a connector to fit a device port with a different shape

or number of terminals, damage to the connector or port may result.

Munchen SET UP GUIDE English-08

You may need to purchase a separate adapter to connect the

computer to the projector, depending on the shape of the computer's

monitor port. Refer to the documentation for the computer for details.

The commercially available adapter set is required in order to connect

the projector to a Macintosh computer.

Do not bind the power cord together with the DVI-D/DVI-D digital video

cables or DVI analog cable, otherwise it may cause interference in the

projected images or operating errors.

To monitor port

Digital video cable DVI-D/DVI-D

DVI analog cable

(optional)

To A-RGB/D-RGB DVI-I port

Munchen SET UP GUIDE English-kaizoudo

List of Supported Signal Resolutions

Units: dots

Aspect

640 × 480

640 × 360

(When zoomed)

768 × 576

768 × 432

(When zoomed)

640 × 480

640 × 360

(When zoomed)

1920 × 1080

1280 × 720

Signal Resolution

SDTV(525i, 60Hz)

(D1)

SDTV(625i, 50Hz)

SDTV(525p)

(D2)

HDTV(1125i)16:9

(D3)

HDTV(750p)16:9

(D4)

Normal

(Default)

960 × 720

(4:3 aspect)

960 × 720

(4:3 aspect)

960 × 720

(4:3 aspect)

1280 × 720

(16:9 aspect)

1280 × 720

(16:9 aspect)

590 × 442

(4:3 aspect)

Through

700 × 525

(4:3 aspect)

1178 × 664

(16:9 aspect)

590 × 442

(4:3 aspect)

886 × 498

(16:9 aspect)

1280 × 720

(16:9 aspect)

Squeeze

1280 × 720

(16:9 aspect)

1280 × 720

(16:9 aspect)

–

1280 × 720

(16:9 aspect)

Zoom

1280 × 720

(16:9 aspect)

1280 × 720

(16:9 aspect)

–

Squeeze

Through

786 × 442

(16:9 aspect)

934 × 525

(16:9 aspect)

786 × 442

(16:9 aspect)

–

Component Video

Units: dots

TV(NTSC)

Aspect

Signal

640 × 480

640 × 360

(When zoomed)

768 × 576

768 × 432

(When zoomed)

Resolution Normal

(Default)

960 × 720

(4:3 aspect)

960 × 720

(4:3 aspect)

1280 × 720

(16:9 aspect)

Squeeze

1280 × 720

(16:9 aspect)

1280 × 720

(16:9 aspect)

Zoom

1280 × 720

(16:9 aspect)

590 × 442

(4:3 aspect)

Through

700 × 525

(4:3 aspect)

Squeeze

Through

786 × 442

(16:9 aspect)

934 × 525

(16:9 aspect)

TV(PAL, SECAM)

Composite Video/S-Video

Aspect

Signal Resolution Normal

(Default)

PC98 640 × 400 1152 × 720 1280 × 720 640 × 400

VGA60*,

SDTV(525p) 640 × 480

640 × 360 (When zoomed) 960 × 720 1280 × 720 640 × 480

SVGA

56/60*/72/75/85/, iMac*1 800 × 600

800 × 450 (When zoomed) 960 × 720 1280 × 720 800 × 600

XGA

43i/60*/70/75/85, iMac*1 1024 × 768

1024 × 576 (When zoomed) 960 × 720 1280 × 720 –

1152 × 864

70/75/85 1152 × 864

1152 × 648 (When zoomed) 960 × 720 1280 × 720 –

QVGA

60*/75/85 1280 × 960

1280 × 720 (When zoomed) 960 × 720 1280 × 720 –

SXGA

43i/60*/75/85 1280 × 1024

1280 × 720 (When zoomed) 900 × 720 1280 × 720 –

MAC13” 640 × 480 960 × 720 1280 × 720 640 × 480

MAC16” 832 × 624 960 × 720 1280 × 720 832 × 624

MAC19” 1024 × 768 960 × 720 1280 × 720 –

1280 × 720 –MAC21” 1152 × 870 954 × 720

SDTV

(525i, 60Hz) 640 × 480

640 × 360 (When zoomed) 960 × 720 1280 × 720 590 × 442

SDTV

(625i, 50Hz) 768 × 576

768 × 432 (When zoomed) 960 × 720 1280 × 720 700 × 525

SDTV

(625p) 768 × 576

768 × 432 (When zoomed) 960 × 720 1280 × 720 700 × 525

HDTV

(750p*) 1280 × 720 1280 × 720 – 1280 × 720*2

HDTV

(1125i, 1125p) 1920 × 1080 1280 × 720 – 886 × 498

Zoom Through

Units: dots

640 × 480

640 × 360 (When zoomed) 960 × 720 1280 × 720 640 × 480

VESA

72/75/85, iMac*1

EGA 640 × 350 1280 × 700 640 × 3501280 × 700

RGB Video/Computer

* indicates resolutions that are compatible with both analog and digital formats.

*1 This connection is not possible for models which are not equipped with aVGA output port.

*2 Images are displayed at a zoom ratio of 100%.

It may also be possible to project signals with specifications that are not listed above. However, not all projector functions may be available for

such signals

Otros manuales para EMP-TW100

Tabla de contenidos

Otros manuales de Proyector de Epson

Epson

Epson PowerLite 1945W Manual de usuario

Epson

Epson PowerLite 750c Manual de usuario

Epson

Epson LS300BATV Manual de usuario

Epson

Epson PowerLite Pro Z8000WUNL Manual de usuario

Epson

Epson PowerLite S10+ Manual de usuario

Epson

Epson EB-93 Manual de usuario

Epson

Epson PowerLite Cinema 200 Dimensiones

Epson

Epson EF12 Manual de usuario

Epson

Epson Projector Instrucciones de instalación

Epson

Epson Powerlite Pro G5950NL Manual de usuario

Epson

Epson PowerLite Home Cinema 700 Manual de usuario

Epson

Epson PowerLite 76c Manual de usuario

Epson

Epson EB-L20002U Manual de usuario

Epson

Epson PowerLite Home Cinema 640 Hoja de especificaciones

Epson

Epson PowerLite Home Cinema 5020UBe Hoja de especificaciones

Epson

Epson PowerLite 8300i withEasyMP.net module Manual

Epson

Epson PowerLite 1725 Manual de usuario

Epson

Epson PowerLite 92 Manual de usuario

Epson

Epson EH-TW7400 Manual de usuario

Epson

Epson PowerLite S27 Hoja de especificaciones

Epson

Epson PowerLite Home Cinema 3020e Manual de operación y mantenimiento

Epson

Epson PowerLite 7000 Manual de usuario

Epson

Epson PowerLite Home Cinema 2000 Manual de usuario

Epson

Epson EH-LS650B Manual de usuario

Manuales populares de Proyector de otras marcas

iEmmet

iEmmet MP-312 Manual de usuario

Sony

Sony VPL-HS10 Marketing Specifications & Features Manual de usuario

Sony

Sony VPL-HW65ES Manual de servicio

Toshiba

Toshiba TLP-791U Manual de usuario

Philips

Philips LC1341 Guía de referencia

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manual de usuario

NEC

NEC NP600S EDU Manual de usuario

BenQ

BenQ SH753P Manual de usuario

Eiki

Eiki EK-623U series Manual de usuario

Christie

Christie LHD700 Manual de usuario

Navitar

Navitar FX Manual de usuario

InFocus

InFocus LitePro 560 Manual de usuario

Sony

Sony SRX-R815P Manual de usuario

Vivitar

Vivitar DP1500 X Manual de usuario

Acer

Acer C20 Series Manual de usuario

Asus

Asus ZenBeam Latte Manual de usuario

BOXLIGHT

BOXLIGHT CP-322i/CP-634i Manual de usuario

JVC

JVC 1108TTH-AO-AO Manual de usuario
