Epson EMP-800 / 810 Manual de usuario

WARNING Never look into the lens while

the projector's power is turned on.

Be sure to read the User,s Guide thoroughly before using this projector.

QUICK REFERENCE GUIDE

Setting Up Adjust the distance between the projector and

the screen until the desired image size is obtained.

* When installing to wall, leave a space of about

7.87 inches (0.2m) between the projector and the wall.

Page 18 of User's Guide screen size

projection distance

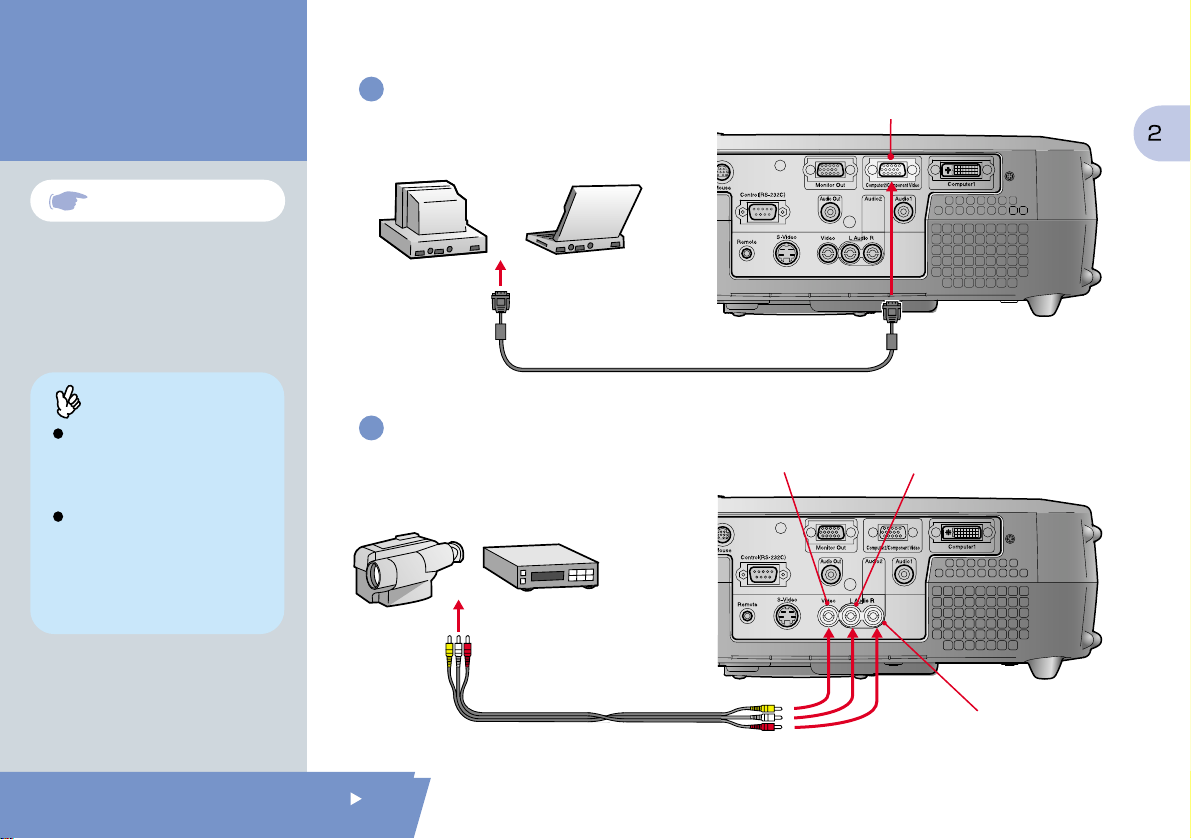

Connections Connecting to a Computer

Connecting to aVideo Source

* Turn off the power for both the projector and the other equipment before connecting them.

Computer cable (accessory)

A/V cable (accessory)

To computer's

monitor port

(video port)

To video output connector (yellow)

To audio output L connector (white)

To audio output R connector (red)

Video connector (yellow)

Audio R connector (red)

Audio L connector (white)

You may need to use an optional

adapter or purchase a separate adapter

to connect the computer to the projector,

depending on the shape of the

computer's monitor port.

If connecting component video source

(such as a DVD player), you can use the

optional component video cable to

connect the source to the Computer

2/Component Video connector at the

rear of the projector.

Computer 2/Component Video connector

Pages 19--34 of User's Guide

Tip

Setting Up /

Connections

Projecting Remove the lens cover.

Connect the power cord to the projector.

Turn on the power for the

input source.

In the case of a VCR, press the PLAY button.

Press the button to turn on the

projector's power.

Connect the power cord to an electrical outlet.

If using the remote control, set

the R/C switch to the ON

position and then press the

button.

will start flashing green and

projection will start.

(Warm-up in progress)

The indicator will light orange.

Operation

indicator

Pages 36--38 of User's Guide

If images do not appear ...

If you have other problems ...

If a laptop computer or a computer with a

LCD screen has been connected to the

projector, you may need to change the

output destination for video signals

depending on the computer keys ( or

) or the computer's settings.The

output destination can normally be

changed by holding down the computer's

key and pressing one of the

Function keys.

Once the source has been changed, after

a short wait the projector will start

projecting. If the output has been

changed to external output, only the

external output should be used.

For details, refer to the documentation

provided with your computer.

Change the input

signal.

Refer to the online

Help information.

After restarting the computer,

change the Control Panel

monitor and sound settings

so that Mirroring is active.

* Refer toTroubleshooting.

Projector Remote Control

Tip

Press , and

then follow the

instructions.

Examples of changing output

NEC

Panasonic

TOSHIBA

IBM

SONY

FUJITSU

Macintosh

Projecting

Adjustment Adjusting the projection angle

Adjusting the image size and focus

Front adjustable foot Foot adjust button

Focus adjustment

Image size adjustment

See page 7.

If you change the projection angle, you

may get keystone distortion in the

images.You can use the , ,

and buttons on the projector's

control panel to correct keystone

distortion.

You can adjust the amount of extension for the front adjustable foot to adjust the projection angle.

The angle can be adjusted horizontally within a range of approximately 10°.

Turn to Wide to increase the size

Turn to Tele to reduce the size

Tip

Pages 41,42, 43 and 46 of

User's Guide

Automatically adjusting computer images to the

optimum settings

Press on the projector's control panel or on the remote control.The tracking,

display position and synchronization will be automatically adjusted.

Other adjustments

Press on the projector's control panel or on the remote control.The setting menu will be displayed on

the projection screen, and you can then adjust settings such as brightness, contrast and sharpness.

Projector Remote Control

Using the on-screen menus

Projector Remote Control

Main menu Projector Remote control

Move up

Move down

Move

right

Return

Move

left

Select

Move

down Move

right

Move

left

Move

Adjustment /

Turning Off the Projector

Adjustment

If the images have keystone distortion ...

Press on the projector's control panel to correct the keystone distortion.

If using both horizontal and vertical keystone correction,

carry out in the following order.

1 .With the front adjustable foot retracted, set the projector so that it is fully horizontal.

2 . Extend the front adjustable foot to adjust the angle as necessary.

3 . Adjust the vertical keystone distortion until both sides of the picture are vertical.

4 . Adjust the horizontal keystone distortion until the top and bottom edges of the picture are both horizontal.

Correcting keystone distortion

Pages 44 and 45 of User's Guide

When keystone correction is carried

out, the projected image will become

smaller.

The keystone correction settings are

memorized, so that if you change the

position or angle of the projector, you may

need to readjust the keystone correction

settings.

To return an altered keystone correction

setting to the factory default setting, do

the following.

To restore the vertical keystone correction

to the default setting:While holding down

the button, press the button for

1 second or more.

To restore the horizontal keystone

correction to the default setting:While

holding down the button, press the

button for 1 second or more.

If the images become uneven in

appearance after keystone correction is

carried out, decrease the Sharpness

setting.

Correction in

vertical direction

Correction in

horizontal direction

Tip

Turning Off

the Projector

Press the button twice to turn off the

projector's power.

Turn off the power for the equipment connected

to the projector.

Check that is lit steadily with an orange color,

and then disconnect the power cord.

If the power cord is disconnected while is still flashing orange, it may cause problems with

projector operation.

will start flashing orange. (Cool-down in progress/approx.2 minutes)

* Set the R/C switch on the remote control to the OFF position.

Operation indicator

Pages 39 and 40 of

User's Guide

Adjustment /

Turning Off the Projector

Functions for

Enhancing Projection

Using the remote control for one-person presentations

The remote control can be used to carry out the same functions as left-clicking and right-clicking mouse buttons

on a computer.You can use the remote control to control the computer's mouse pointer from a distance.

When using the remote control as a

wireless mouse, you need to connect

the projector as follows.

Use a USB cable to connect the

projector to the USB port of a

computer.

If the mouse function does not work

after connecting a PS/2 mouse, you

will need to restart the computer.

Use only the accessory mouse

cable provided, otherwise the

wireless mouse function may not

operate correctly.

Mouse pointer movement

Tilt the button in the direction you want

the mouse pointer to go.

Mouse clicks

Mouse/USB port

Mouse/USB connector

Mouse cable

(accessory)

This projector is equipped with a variety of useful functions

for enhancing projection.

Refer to the corresponding pages of the User's Guide for

details on each function.

Wireless mouse function

Page 25 of User's Guide

For left clicks: Press [Left] For right clicks:Press [Right/Esc]

Tip
