Epson EMP-715 - XGA LCD Projector Manual de usuario

Before use

Installation

Connections

Projection

Useful Functions

Adjustments and

Setting

Troubleshooting

Maintenance

Others

Using the EasyMP

Function

Printed in Japan

90010653

01.05-.9A(C01)

Engcover-F DICF4390010653

Accessory Verification

Check to confirm that the following items are included in the package when removing the pro-

jector and accessories from the box. Contact your dealer if any items are found to be missing.

·Projector

Lens Cover with string

· Remote Control · 2AA Batteries for

the remote control

(three-cell alkaline batter-

ies)

· Power Cord · Computer Cable

(mini D-Sub 15pin/

mini D-Sub 15pin)

· RCA Audio Cable

(Red/White/Yel-

low)

· USB Mouse Cable

· PS/2 Mouse Cable · Owner’s Manual

(this document)

·Temporary

Warr ant y

·MemoryCardSet

(8Mbyte compact flash

card + PC card adapter)

·EasyMPSoftware

(CD-ROM)

· Dummy card

(Dummy card and card

case)

PS/2 MOUSE

*The memory set

has been inserted

into the projector.

715_505E.bk Page 1 Friday, May 25, 2001 10:24 AM

Features - 1

EMP-715/505E Features.fm

■

■■

■Features

● Crystal clear screen

Clarity has been vastly improved.

Provides crystal clear projections even in bright areas, perfect for presentation purposes.

● Wide range of display resolution

Uses a newly-developed high resolution liquid crystal panel.

(1024×768)

● Compact and light

A compact body makes it easy for carrying around.

(approximately 2.7Kg, 6 litres)

● Supports the D output port

Supports digital tuners up to D4 ratings.

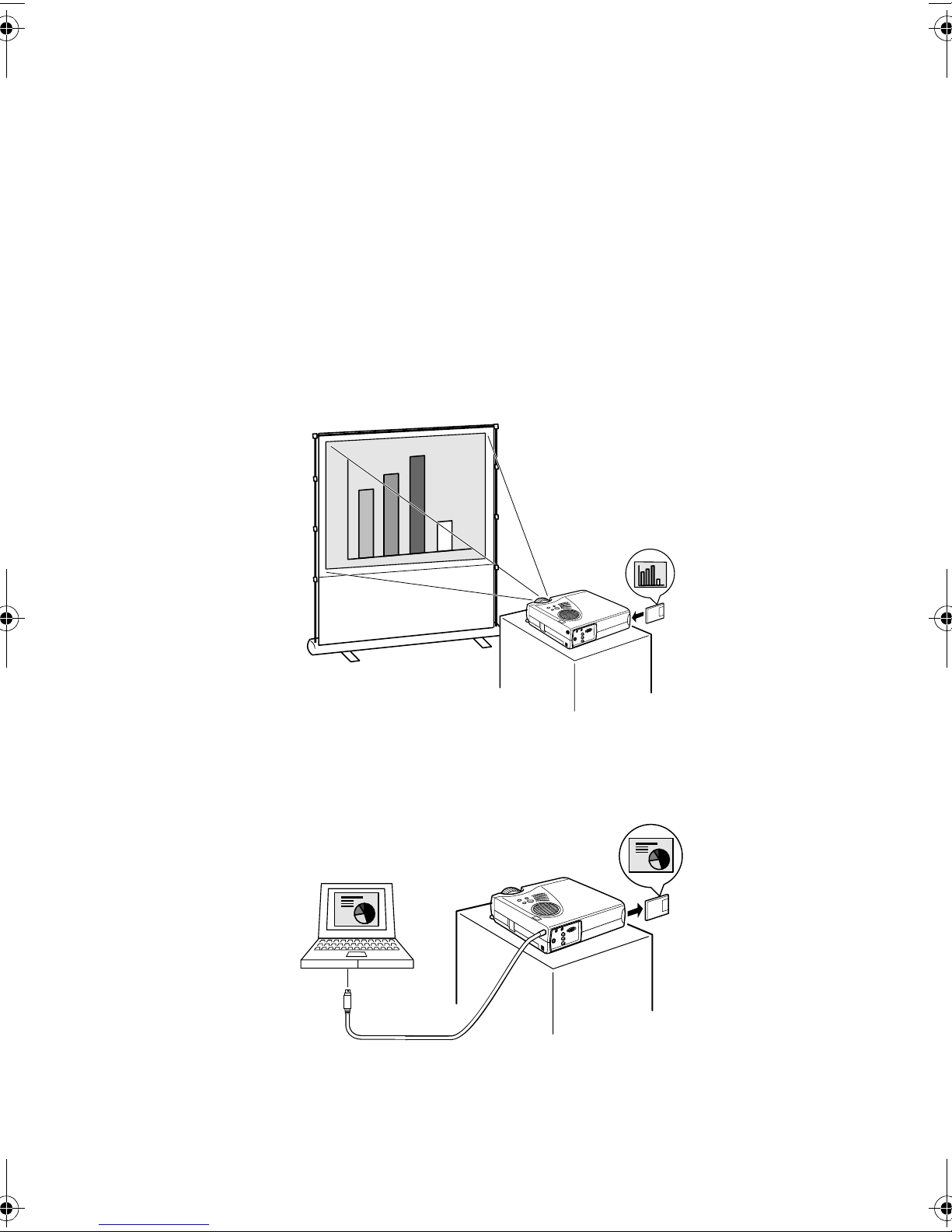

● Mounting the PCMCIA card slot

The data saved onto the memory card can be projected for presentation purposes.

● USB port mounted

In addition to enabling the use of a USB mouse, this also allows data to be transmitted to the

projector's memory card when connected to a computer (only when a list of files is displayed

with EasyMP.)

715_505E.bk Page 1 Friday, May 25, 2001 10:24 AM

2- Contents

■

■■

■Contents

Features 1

Using this manual 7

Symbol displays ...................................................................7

Power cords for use abroad .................................................7

Safety Precautions 8

Before Using This Equipment 13

Parts, Names and Operations 13

Projector .............................................................................13

Remote Control ..................................................................17

Range of Remote Control Operations ................................20

Inserting the Remote Control Batteries ..............................21

Installation 22

Installation Procedure 22

Screen size and projection distance ..................................23

Projection angles ................................................................24

Connections 25

Connecting the projector to a computer 25

Eligible computers ..............................................................25

In the case of the mini D-Sub 15 pin ..................................27

Sound connection ..............................................................28

Connecting external audio equipment ................................29

Connecting up the mouse (wireless mouse function) ........30

715_505E.bk Page 2 Friday, May 25, 2001 10:24 AM

Contents- 3

Connecting the video equipment 32

In the case of composite image signals ............................. 32

In the case of S image signals ........................................... 32

In the case of component

(color differential*) image signals ....................................... 33

In the case of the digital tuner's D output port ................... 34

Projecting 35

Projection 35

Preparations ....................................................................... 35

Commencing projection ..................................................... 37

Ending 40

Adjusting the Projection Position 43

Feet adjustments ............................................................... 43

Adjusting the Projection Size 44

Zoom adjustment ............................................................... 44

Keystone adjustment ......................................................... 45

Picture Quality Adjustment 46

Focus adjustment ............................................................... 46

Auto adjustment (when projecting computer images) ........ 46

Tracking adjustments

(when projecting computer images) ................................... 47

Synchronization adjustments

(when projecting computer images) ................................... 47

Introduction of Functions 48

Useful Functions 49

715_505E.bk Page 3 Friday, May 25, 2001 10:24 AM

4- Contents

Help Function .....................................................................49

Projection Cutting 51

A/V Mute Function ..............................................................51

Freeze Function .................................................................51

Switching Image Sizes 52

Enlarging Images (E-zooming function) 54

Effect Function 55

Cursor/Stamp .....................................................................55

Box .....................................................................................56

Spotlight .............................................................................57

Bar .....................................................................................58

Cancelling effects ...............................................................58

P in P Function 59

Adjustment and Settings 60

Volume Adjustment 60

Menu Configuration 61

Menu items .........................................................................61

Menu Operations 63

Operation method ..............................................................63

Setting items ......................................................................65

Image capture ....................................................................69

User logo registration .........................................................71

Using the EasyMP Function 73

715_505E.bk Page 4 Friday, May 25, 2001 10:24 AM

Contents- 5

Function description 73

Inserting the memory card 74

Viewing EasyMP files 76

Switching projected images across to EasyMP ................. 77

Operations on the file list display ....................................... 78

Operating scenarios 82

Playing back scenarios ...................................................... 82

Editing scenarios ................................................................ 83

Creating scenarios 86

Install the EasyMP Software .............................................. 86

Creating scenarios ............................................................. 87

Transmitting scenarios ....................................................... 91

Connecting up computer with USB cables 93

Connections and installation of the USB driver .................. 93

Browsing the memory card from the computer .................. 94

Troubleshooting 96

Operation Indicator ............................................................ 96

Lamp Indicator ................................................................... 97

Temperature Indicator ........................................................ 98

When the Indicators Provide No Help 99

The image is not projected ................................................. 99

The image is unclear ........................................................ 103

The image is cut up (Large)/Small ................................... 104

The image color is bad ..................................................... 105

The image is dark ............................................................ 105

No sound .......................................................................... 106

The remote control will not work ...................................... 106

715_505E.bk Page 5 Friday, May 25, 2001 10:24 AM

6- Contents

The projector will not switch off

(after the [Power] button has been pressed) ....................107

Problems with EasyMP images ........................................107

Problems when using the EasyMP Software ...................107

Maintenance 108

Cleaning the Projector, Cleaning the Lens,

Cleaning the Air Filter 108

Cleaning the projector ......................................................109

Cleaning the lens .............................................................109

Cleaning the Air Filter .......................................................109

Replacing the Air Filter 110

Replacement method .......................................................110

Replacing the Lamp 111

Replacement method .......................................................112

Others 114

Optional Parts 114

Transportation 115

Terminology 116

Specifications 118

Check Sheet 119

World-Wide Warranty Terms 121

Index 125

715_505E.bk Page 6 Friday, May 25, 2001 10:24 AM

Using this manual - 7

EMP-715/505E safe.fm

■

■■

■Using this manual

Symbol displays

A variety of picture displays have been used in this manual and on the actual product to ensure

that the projector is used correctly and safely in order to prevent risks to users and other people,

and to prevent damage to property. Explanations for these displays are provided below. Ensure

that they are fully understood before reading this manual.

Point: Includes supplementary explanations and useful tips.

See page: Indicates reference pages

*: Refer to the terminology

·Usage of the terms“this unit”and “this projector”in this manual

The terms “this unit”and “this projector”appear regularly in this manual, and these

terms also cover the accessories supplied with the projector and other optional products.

Power cords for use abroad

The power cable supplied with the projector conforms to the Electrical Appliance and Material

Control Law and may also be used in Japan.

Ensure that power cords that conform to local laws are used when using the projector in overseas

countries.

Contact one of the numbers on the International Assurance Contact List for details on purchasing

power cables.

● General overseas conditions

The following conditions are common to all countries.

1. The power cord must be a three-core cord (with earth included) that contains the

authorization mark of the authorization organization of the country in which the

projector is to be used.

2. The power cord must have a minimum permissible current of 7A, an official rated

voltage of 125V, or an alternating current of 250V.

3. The power cord must be less than 4.5m in length.

4. The coupler (the connector for connecting to the projector, not the plug for use with a

wall-mounted socket) must conform to EN60320/IEC 320 rated inlets (standard sheet

C13.)

● Authorization organizations in each country

Note: The cords for America and Canada must be three-core SJT or SVT type cords.

Warning Displays details that may result in death or injury if

ignored.

Caution Displays details that may result in injury or damage to

property if ignored.

Country name Authorization organization Country name Authorization organization

America UL Sweden SEMKO

Canada CSA Denmark DEMKO

Great Britain BSI Germany VDE

Italy IMQ Norway NEMKO

Australia EANSW Finland FIMKO

Austria OVE France UTE

Switzerland SEV Belgium CEBC

715_505E.bk Page 7 Friday, May 25, 2001 10:24 AM

8 - Safety Precautions

EMP-715/505E safe.fm

■

■■

■Safety Precautions

Read and observe the following safety precautions to ensure safe use of the equipment.

Warning

●If any of the following abnormalities occur, switch off the power

supply immediately, remove the plug from the power socket and

contact your dealer or nearest address provided at page 121.

· The emission of smoke, strange odours or strange noises.

· When water or foreign objects have entered the inside of the unit.

· When the unit has been dropped or the case damaged.

Continuation of operations under these conditions may result in the

outbreak of fire or electric shocks.

Repairs should never be attempted by the user.

●The cabinet to the unit should never be opened by anyone other

than our service personnel.

The inside of the projector contains many high-voltage parts that may

result in the outbreak of fire, electric shocks or other incidents.

●Never use an electrical voltage other than that displayed.

The use of a voltage other than that specified may result in the out-

break of fire or electric shocks.

●Verify the specifications of the Power Cord.

The Power Cord supplied with the projector conforms to the electrical

specifications of the country of purchase. If the projector is to be used

in any other location, check the electrical voltage and shape of sock-

ets in the relevant country beforehand and purchase a cable that con-

forms to that country’s specifications.

●Never use damaged Power Cord.

Failure to observe this may result in the outbreak of fire or electric

shocks.

Also ensure that the following points are strictly observed.

· Never make any modifications to the Power Cord.

· Never place anything heavy on the Power Cord.

· Never bend, twist or pull the cable.

· Ensure that the cable is not installed near heaters.

Contact your dealer or nearest address provided at page 121 if the

power cord becomes damaged.

Abnormi noise

Abnormi oder

Other than

those specifie

715_505E.bk Page 8 Friday, May 25, 2001 10:24 AM

Otros manuales para EMP-715 - XGA LCD Projector

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Proyector de Epson

Epson

Epson EB-Z8355WUNL Manual de usuario

Epson

Epson EMP-X3 Manual de usuario

Epson

Epson EB-W8 Manual de usuario

Epson

Epson EX50 Manual de usuario

Epson

Epson EMP-9100 Manual de uso y cuidado

Epson

Epson EMP-TW100 Manual de usuario

Epson

Epson PowerLite 1750 Manual del sistema

Epson

Epson PowerLite Presenter L Manual de usuario

Epson

Epson PowerLite Pro G5350NL Manual de usuario

Epson

Epson EB-1485Fi Manual de usuario

Epson

Epson 6100i - PowerLite XGA LCD Projector Hoja de especificaciones

Epson

Epson 6110i - PowerLite XGA LCD Projector Hoja de especificaciones

Epson

Epson PowerLite S5 Series Guía de referencia

Epson

Epson PowerLite Pro Z8450WUNL Guía de referencia

Epson

Epson 830p - PowerLite XGA LCD Projector Manual de usuario

Epson

Epson PowerLite 62c Manual de usuario

Epson

Epson EMP-732 Manual de usuario

Epson

Epson PowerLite 8300i withEasyMP.net module Manual de usuario

Epson

Epson PowerLite 51c Manual de instrucciones

Epson

Epson V11H179020 - PowerLite S3 SVGA LCD Projector Manual de usuario

Epson

Epson PowerLite 955W Hoja de especificaciones

Epson

Epson PowerLite 2140W Hoja de especificaciones

Epson

Epson PowerLite 1751 Manual de usuario

Epson

Epson BrightLink 475Wi Manual de usuario

Manuales populares de Proyector de otras marcas

iEmmet

iEmmet MP-312 Manual de usuario

Sony

Sony VPL-HS10 Marketing Specifications & Features Manual de usuario

Sony

Sony VPL-HW65ES Manual de servicio

Toshiba

Toshiba TLP-791U Manual de usuario

Philips

Philips LC1341 Guía de referencia

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manual de usuario

NEC

NEC NP600S EDU Manual de usuario

BenQ

BenQ SH753P Manual de usuario

Eiki

Eiki EK-623U series Manual de usuario

Christie

Christie LHD700 Manual de usuario

Navitar

Navitar FX Manual de usuario

InFocus

InFocus LitePro 560 Manual de usuario

Sony

Sony SRX-R815P Manual de usuario

Vivitar

Vivitar DP1500 X Manual de usuario

Acer

Acer C20 Series Manual de usuario

Asus

Asus ZenBeam Latte Manual de usuario

BOXLIGHT

BOXLIGHT CP-322i/CP-634i Manual de usuario

JVC

JVC 1108TTH-AO-AO Manual de usuario
