Epson ELPMB67 Manual de usuario

Installation Guide

About this Guide

About the Explanations in this Guide

•This guide provides explanations for the following procedures.

•Installing the projector using the Ceiling Mount (ELPMB67)

•Installing the projector using a combination of the Ceiling Mount (ELPMB67) and Suspension Adapter (ELPFP15)

•Illustrations of the projector used in this guide may differ from the projector you are using.

Contents

About this Guide

About the Explanations in this Guide . . . 1

Introduction

UsingtheProductSafely ............... 3

SafetyIndications .......................3

GeneralInformationIndications.............3

NotesonInstallation ..................... 3

NotesontheInstallationLocation ............ 5

PackageContents ....................... 6

ELPMB67 ............................ 6

ELPFP15 ............................ 7

Specifications . . . . . ................... 9

ELPMB67 .............................. 9

ELPFP15 .............................. 9

Installation Method

Preparation ......................... 11

CheckingtheInstallationLocation ........... 11

Attaching the projector mount to the projector

.................................... 11

Attachingtheprojectormount ...........11

PreparingtheSuspension Adapter (whenUsing

ELPFP15) ............................. 11

InstallingonaCeilingoraWall ........ 14

Securing the Ceiling Plate/Ceiling Mount Pipe

totheInstallationSurface ................. 14

Wheninstallingonaconcretesurface......14

When attaching to an aluminum truss

(ELPMB67only) ...................... 15

Attaching the projector mount to the ceiling

plate ................................ 16

Adjustingthepositionoftheimage .......... 17

Adjusting the vertical position of the image

.................................. 17

Adjustingtheangleoftheimage.........19

Adjustingthesizeoftheimage ........... 19

Installingthesafetywire .................. 20

Connecting the Ceiling Mount to the ceiling

withawire ......................... 20

Connecting the Ceiling Mount to the

projectorwithawire .................. 22

Introduction

Using the Product Safely

For your safety, read all the instructions in this guide before using this product. Incomplete or incorrect

installation could cause damage to the product or result in personal injury or property damage. Keep this

installation manual at hand for later reference.

Read the User'sGuide and SafetyInstructions for your projector and follow the instructions in these documents.

Safety Indications

The documentation and this product use graphical symbols to show how to use this product safely.

The indications and their meaning are as follows. Make sure you understand them properly before reading

the guide.

Symbol Explanation

Warning This symbol indicates information that, if ignored, could possibly result in serious injury or

even death due to incorrect handling.

Caution This symbol indicates information that, if ignored, could possibly result in personal injury or

physical damage due to incorrect handling.

General Information Indications

Symbol Explanation

Symbol indicating an action that must not be done

Symbol indicating an action that should be done

Symbol indicating related or useful information

Notes on Installation

Warning

This product is for projectors. If anything other than a projector is mounted, the weight

may result in damage.

If this product or projector falls, it could cause death or personal injury.

Installation should be performed by a qualified technician with the necessary skills and

knowhow.

Incomplete or incorrect installation could cause the product or projector to fall and cause personal

injury or an accident.

Do not attach anything other than an Epson projector to this product.

Doing so could cause the mount to fall or break and cause personal injury or an accident.

Follow the steps in this guide to install the product, and be sure to use the bolts and screws

specified in this guide.

If the instructions are not followed, this product may fall, resulting in personal injury or an accident.

Introduction

Warning

Handle the power cord carefully to avoid fire or electric shock.

Incorrect handling could cause fire or electric shock. Observe the following precautions when

handling:

•

Do not handle the power plug with wet hands.

•

Do not use a power cord that is damaged or modified.

•

Do not pull the power cord with too much force when routing the cable through the setting plate.

Do not install the product in a location where it might be exposed to vibration or shock,

which could cause damage to the projector or mounting surface.

This could cause damage to the projector or mounting surface. If this product falls, it could cause

death or personal injury.

The installation work should be performed by at least two qualified service personnel. If

you need to loosen any screws while installing, be careful not to drop the mount.

If this product falls, it could cause death or personal injury.

The installation surface requires enough strength to hold the projector and this product.

Before installing, check the total mass of the projector and this product to ensure that the instal-

lation surface is strong enough to support the weight. If the wall is not strong enough, reinforce

the wall before installation.

Do not hang on the mount or hang a heavy object on it. Or do not hang a heavy object on

the mount.

If this product falls, it could cause death or personal injury.

Do not use adhesives, lubricants, or oils to install or adjust the product.

If you use adhesives to prevent the screws from loosening or things such as lubricants or oils on

the slide plate fixing part of the projector, the case may crack and cause the projector to fall,

resulting in personal injury or property damage.

Tighten all screws firmly after adjustment.

Otherwise, the projector or mount may fall and cause personal injury or property damage.

Never loosen the screws after installation.

Confirm on a regular basis that the screws have not become loose. If you find any loose screws,

tighten them firmly. Otherwise, the projector or mount may fall and cause personal injury or prop-

erty damage.

Attach the safety wire supplied to prevent the product from falling due to earthquakes or

vibrations.

Inspect the product on a regular basis to ensure there is no damage.

If any parts are damaged, stop using the setting plate immediately. If this product falls, it could

cause death or personal injury.

Do not use the projector in a location subject to combustible or explosive gas.

High temperatures within the projector may cause ignition and a fire to occur.

Only a specialist should remove or reinstall the projector, including for maintenance and

repairs.

See the projector's User's Guide for instructions on maintenance and repairs.

Introduction

Caution

Do not disassemble or remodel this product.

Install the product in a location free from humidity and dust to prevent the projector's lens

and optical components from becoming dirty.

Do not use excessive force when adjusting this product.

This product may break, resulting in personal injury.

Notes on the Installation Location

Warning

Do not install in a location subject to oily smoke or smoke for events.

If oils and so on stick to the slide plate fixing part of the projector, the case may crack and cause

the projector to fall, resulting in personal injury or property damage.

Caution

Do not install the product in a location where the operating temperature of the projector

might be exceeded.

Otherwise, damage may result. See the User's Guide supplied with the projector for the operating

temperature range.

Make sure there is enough space around the projector.

See the User's Guide supplied with the projector for the necessary space required.

Install the projector at a place away from other electric devices such as fluorescent lights

or air conditioning.

Some types of fluorescent lights could interfere with the remote control.

Introduction

Package Contents

ELPMB67

Part Name Application

A: Ceiling plate

B: Projector mount

Temporarily assembled at

the time of purchase. See

the illustration on the left to

separate the parts before

installing.

M6 x 15 mm hexagon socket head cap

bolts with washers (x4)

Used to attach the pro-

jector mount to the pro-

jector.

M8 x 16 mm hexagon socket head cap

bolts (x2)

Used to attach the pro-

jector to a wall.

Hexagonal wrenches (1 for M6 and 1 for

M8)

Safety wire set (for ceiling installation)

•

Safety wires (x2)

•

Wire clips (x2)

Used to connect the

product to the installa-

tion surface to prevent

the product from falling.

Introduction

Part Name Application

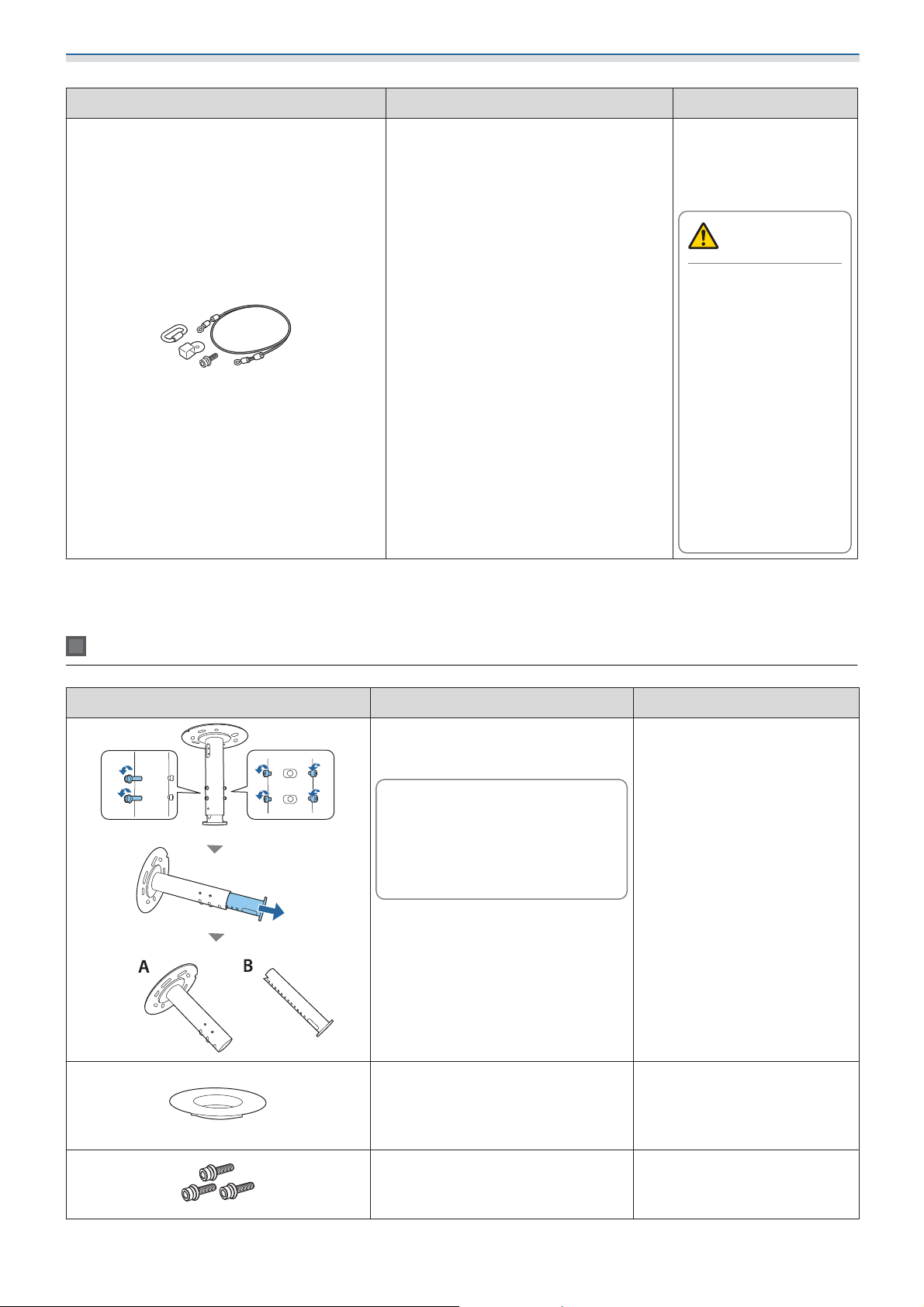

Safety wire set (for projector installa-

tion)

•

Safety wire (x1)

•

Carabiner (x1)

•

Wire ring (x1)

•

M6 x 15 mm bolt (x1)

Connect this product to

the projector to prevent

the projector from fall-

ing.

Warning

Do not attach the

wire ring to a projec-

tor that does not

have a dedicated

wire ring attachment

section.

Attaching it to a lo-

cation other than the

wire ring attachment

section may cause

the projector to fall

and cause personal

injury or an accident.

•Use only the supplied bolts to install the mount. Do not substitute these bolts with any other types.

•Gather the tools and parts you need before you begin installation.

ELPFP15

Part Name Application

A: Ceiling mount pipe

B: Adjustment pipe

Temporarily assembled

at the time of purchase.

See the illustration on

the left to separate the

parts before installing.

Veneer plate Install this to make the gap be-

tween the hole in the installa-

tion surface and the Suspen-

sion Adapter less noticeable.

M6 x 16 mm hexagon socket head

cap bolts

with washers (x3)

Used to attach the adjustment

pipe to the ceiling plate for the

ELPMB67.

Introduction

Part Name Application

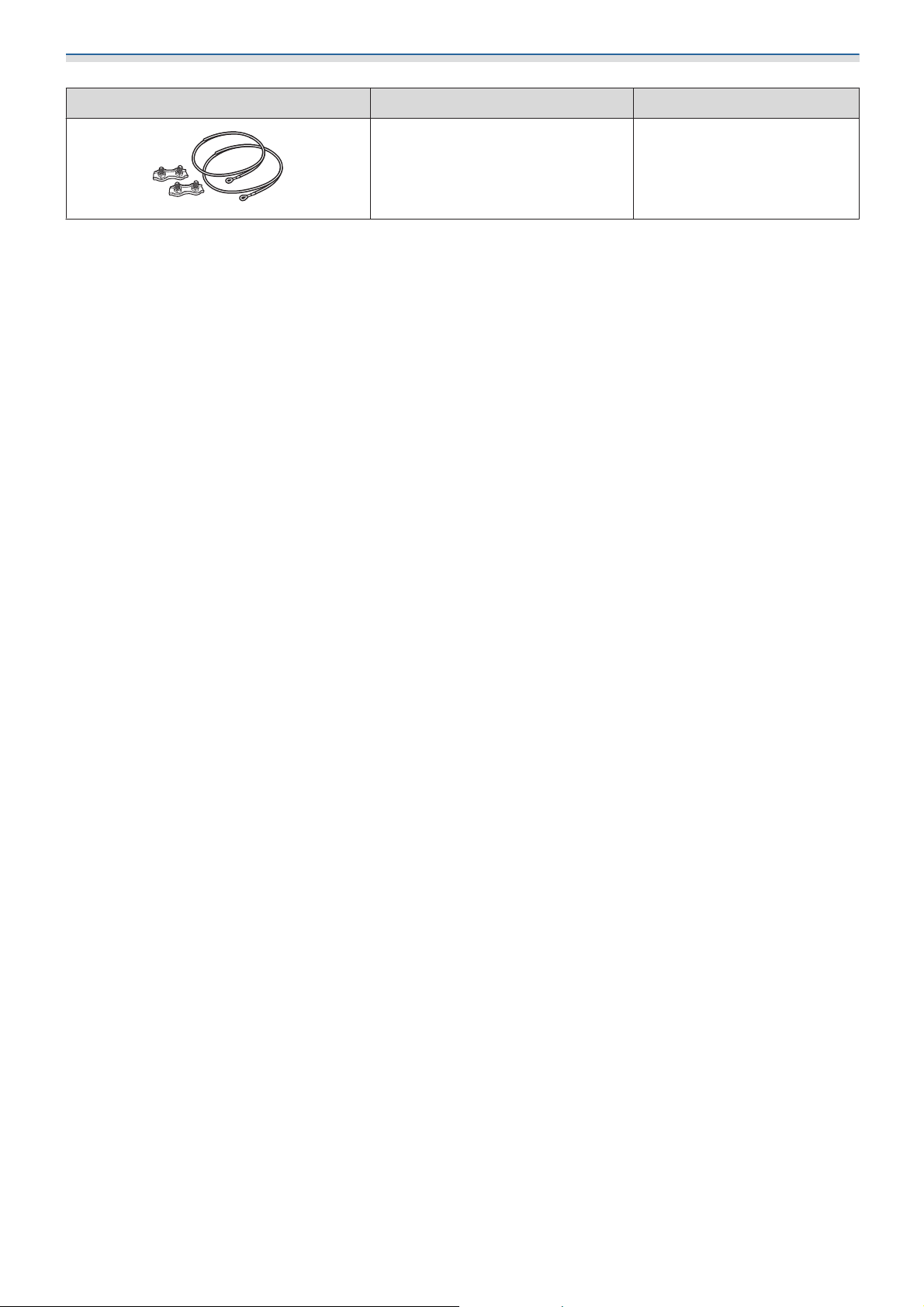

Safety wire set (for ceiling installa-

tion)

•

Safety wire (x2)

•

Wire clips (x2)

Used to connect the product

to the installation surface to

prevent the product from fall-

ing.

•Use only the supplied bolts to install the mount.

•Gather the tools you need.

Introduction

Specifications

ELPMB67

External dimensions when assembled 330 × 124 × 356 mm

Mass Approx. 5.7 kg

Load-bearing capacity 40 kg

Adjustment

range

Vertical tilt angle -15 to 5°

Horizontal tilt angle ±5°

Horizontal rotation angle ±5°

Front/back slide ±36 mm

Vertical tilt angle Horizontal tilt angle

Horizontal rotation angle Front/back slide

ELPFP15

External dimensions when

assembled

Φ270 × 352 mm

Mass Approx. 4.4 kg

Adjustment range 460 to 680 mm

(Distance between adjustment holes: 20 mm)

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Proyector de Epson

Epson

Epson PowerLite S4 Hoja de especificaciones

Epson

Epson BrightLink 425Wi Manual de usuario

Epson

Epson PowerLite Home Cinema 8350 Manual de lista de piezas

Epson

Epson ELPDC05 - High Resolution Document Imager... Manual de usuario

Epson

Epson EMP-S5 Manual de usuario

Epson

Epson EMP 7800 Manual de usuario

Epson

Epson BrightLink485wi Manual de usuario

Epson

Epson BrightLink 450Wi - Interactive Projector Manual de instrucciones

Epson

Epson dreamio EMP-TWD1 Manual de usuario

Epson

Epson PowerLite W16SK Manual de usuario

Epson

Epson PowerLite 51c Manual de usuario

Epson

Epson EMP-TS10 Manual de usuario

Epson

Epson PowerLite EB-L200SX Manual de usuario

Epson

Epson PowerLite Home 20 Hoja de especificaciones

Epson

Epson PowerLite 715c Hoja de especificaciones

Epson

Epson EB-955W Instrucciones de instalación

Epson

Epson PowerLite Pro Z8050WNL Manual del sistema

Epson

Epson PowerLite 83V Manual de usuario

Epson

Epson EB-X20 Manual de usuario

Epson

Epson EH-TW6100 Guía de configuración

Epson

Epson PowerLite Home Cinema 3020e Manual de operación y mantenimiento

Epson

Epson ActionLaser Original Guía de referencia

Epson

Epson EX31 Manual de usuario

Epson

Epson 1710C - PowerLite XGA LCD Projector Manual de usuario

Manuales populares de Proyector de otras marcas

iEmmet

iEmmet MP-312 Manual de usuario

Sony

Sony VPL-HS10 Marketing Specifications & Features Manual de usuario

Sony

Sony VPL-HW65ES Manual de servicio

Toshiba

Toshiba TLP-791U Manual de usuario

Philips

Philips LC1341 Guía de referencia

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manual de usuario

NEC

NEC NP600S EDU Manual de usuario

BenQ

BenQ SH753P Manual de usuario

Eiki

Eiki EK-623U series Manual de usuario

Christie

Christie LHD700 Manual de usuario

Navitar

Navitar FX Manual de usuario

InFocus

InFocus LitePro 560 Manual de usuario

Sony

Sony SRX-R815P Manual de usuario

Vivitar

Vivitar DP1500 X Manual de usuario

Acer

Acer C20 Series Manual de usuario

Asus

Asus ZenBeam Latte Manual de usuario

BOXLIGHT

BOXLIGHT CP-322i/CP-634i Manual de usuario

JVC

JVC 1108TTH-AO-AO Manual de usuario
