Epson TM-L90 series Manual de usuario

English

Peeler Model

User’s Manual

M00075901EN

2TM-L90 User’s Manual

English

in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the

prior written permission of Seiko Epson Corporation. No patent liability is assumed with respect to the use of

the information contained herein. While every precaution has been taken in the preparation of this book,

Seiko Epson Corporation assumes no responsibility for errors or omissions. Neither is any liability assumed

for damages resulting from the use of the information contained herein.

Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third

parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident,

misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or

(excluding the U.S.) failure to strictly comply with Seiko Epson Corporation’s operating and maintenance

instructions.

Seiko Epson Corporation shall not be liable against any damages or problems arising from the use of any

options or any consumable products other than those designated as Original Epson Products or Epson

Approved Products by Seiko Epson Corporation.

Depending on the area, the interface cable may be included with the product. If so, use that cable.

Seiko Epson Corporation shall not be held liable for any damage resulting from electromagnetic interference

that occurs from the use of any interface cables other than those designated as Epson approved products.

EPSON is a registered trademark of Seiko Epson Corporation in Japan and other countries/regions.

NOTICE: The contents of this manual are subject to change without notice.

TM-L90 User’s Manual 3

English

Safety Precautions

This section presents important information intended to ensure safe and effective use of

this product. Please read this section carefully and store it in an accessible location.

Key to Symbols

The symbols in this manual are identified by their level of importance, as defined below.

Read the following carefully before handling the product.

WARNING:

Warnings must be followed carefully to avoid serious bodily injury.

CAUTION:

Cautions must be observed to avoid minor injury to yourself, damage to your

equipment, or loss of data.

Note:

Notes have important information and useful tips on the operation of your

equipment.

Safety Precautions

WARNING:

Shut down your equipment immediately if it produces smoke, a strange

odor, or unusual noise. Continued use may lead to fire. Immediately unplug

the equipment and contact your dealer or a Seiko Epson service center for

advice.

Never attempt to repair this product yourself. Improper repair work can be

dangerous.

Never disassemble or modify this product. Tampering with this product may

result in injury or fire.

Be sure to use the specified power source. Connection to an improper power

source may cause fire.

Do not allow foreign matter to fall into the equipment. Penetration by

foreign objects may lead to fire.

If water or other liquid spills into this equipment, unplug the power cord

immediately, and then contact your dealer or a Seiko Epson service center

for advice. Continued usage may lead to fire.

Do not use aerosol sprayers containing flammable gas inside or around this

product. Doing so may cause fire.

4TM-L90 User’s Manual

English

CAUTION:

Do not connect cables in ways other than those mentioned in this manual.

Different connections may cause equipment damage and burning.

Be sure to set this equipment on a firm, stable, horizontal surface. The product may

break or cause injury if it falls.

Do not use in locations subject to high humidity or dust levels. Excessive humidity

and dust may cause equipment damage or fire.

Do not place heavy objects on top of this product. Never stand or lean on this

product. Equipment may fall or collapse, causing breakage and possible injury.

To ensure safety, unplug this product before leaving it unused for an extended

period.

Caution Labels

The caution labels on the product indicate the following precautions.

CAUTION:

The thermal head can be very hot during printing and immediately after printing.

Touching it may cause burns.

CAUTION:

Be careful not to injure your hands on the manual cutter when installing roll paper.

Restriction of Use

When this product is used for applications requiring high reliability/safety, such as

transportation devices related to aviation, rail, marine, automotive, etc.; disaster

prevention devices; various safety devices, etc.; or functional/precision devices, etc.; you

should use this product only after giving consideration to including fail-safes and

redundancies into your design to maintain safety and total system reliability. Because this

product was not intended for use in applications requiring extremely high reliability/

safety, such as aerospace equipment, main communication equipment, nuclear power

control equipment, or medical equipment related to direct medical care, etc., please make

your own judgment on this product’s suitability after a full evaluation.

TM-L90 User’s Manual 5

English

Unpacking

The following items are included for the standard specification printer. If any items are

damaged, contact your dealer.

❏Printer

❏Label roll paper

❏Power switch cover

❏Roll paper spacer

❏Screw for installation of roll paper spacer

❏Cover operation label

❏Wire saddle

❏Start Here

❏Manual CD

❏AC adapter*

❏AC cable*

* May not be included depending on the printer model.

Cover Operation Label

If you use the cover operation label included in the package, attach it in one of the

following locations:

a) Side of the operation panel

b) Beside the power switch

c) Side of the printer

6TM-L90 User’s Manual

English

Downloading Drivers, Utilities, and Manuals

Drivers, utilities, and manuals can be downloaded from one of the following URLs.

For customers in North America, go to the following web site:

http://www.epsonexpert.com/

For customers in other countries, go to the following web site:

https://download.epson-biz.com/?service=pos

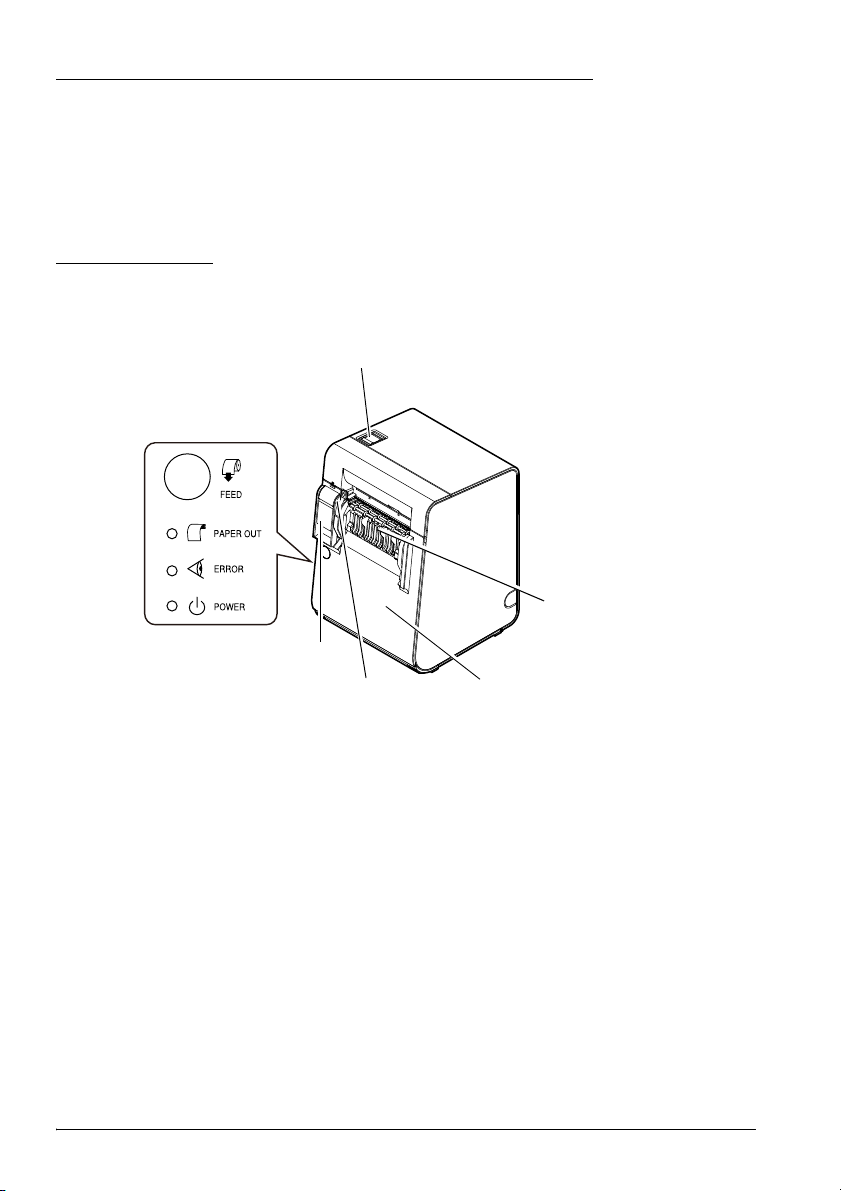

Printer Parts

Control Panel

POWER LED

Lights when the power is on, and is off when the power is off.

ERROR LED

Off when the printer is online, lights when the printer is offline, and flashes when an error

occurs.

PAPER OUT LED

Comes on when roll paper is used up or not installed. When roll paper is being installed, it

starts flashing when the first label comes out after the roll paper cover is closed, and goes

off when the

PAPER FEED

button is pressed. When the printer is issuing labels, it starts

flashing when a label is issued and goes off when the issued label is removed from the

peeler. It also flashes when the printer is in a wait status for the

FEED

button to be pressed.

FEED button

Feeds the roll paper.

Control panel

Roll paper cover

Cover open lever

Peeler cover

Peeler open lever

Power switch

(with a power switch softcover)

TM-L90 User’s Manual 7

English

Power Switch

Use the power switch on the top left of the printer to turn the printer on and off.

Power Switch Cover

You can use the enclosed power switch cover to make sure that the power switch is not

accidentally pressed. Peel off the backing tape and press the cover into place to install it.

You can turn the power switch on and off by inserting a pointed object such as a ballpoint

pen in the holes in the power switch cover.

WARNING:

If an accident occurs with the power switch cover attached, unplug the

power cord immediately. Continued use may cause fire or shock.

CAUTION:

Do not remove the power switch soft cover.

Power switch cover

8TM-L90 User’s Manual

English

Installing the Printer

You must install this printer vertically (with the paper exit at the front).

If the paper exit is blocked by label backing paper accumulating on a table or other surface,

a paper jam or other problem may occur. Install the printer in a location, such as at the

edge of a counter, where the backing paper will not accumulate near the paper exit.

CAUTION:

Never install the printer in locations that receive direct sunlight. The diffuse

reflection from the roll paper may cause the label peeler detector to malfunction.

Note:

You can install it either on a flat surface, or you can hang it on a wall by using the

optional bracket (WH-10).

To hang the printer on the wall, see the Wall Hanging Bracket Set Installation

Manual provided with the WH-10 for instructions.

WARNING:

When hanging the printer on the wall with the hanging bracket set, be

sure to attach a connector cover to the printer.

TM-L90 User’s Manual 9

English

Changing the Paper Width

This printer accommodates 80 mm wide roll paper with no adjustments.

For rolls from 38 mm to 70 mm wide, use the roll paper spacer included with the printer.

If the rolls are from 61 to 70 mm wide, break two tabs off the back of the roll paper spacer.

(You can still use widths from 38 mm to 60 mm with the roll paper spacer with the tabs

broken off) Follow the steps below to attach the roll paper spacer.

1. Pull the peeler open lever forward and open the peeler cover.

2. Pull the roll paper cover open lever forward, and open the roll paper cover.

3. Insert the roll paper spacer so that the front edge goes through the notch; then push

down the spacer so that the hook on the spacer and the shaft align.

Tabs

Notch

Front edge Roll paper spacer

10 TM-L90 User’s Manual

English

4. Push the roll paper spacer until you feel it clicks onto the shaft.

Check that the roll paper spacer slides smoothly to the left and right.

5. Slide the roll paper spacer to the appropriate width.

You can use the measurement printed inside the printer, aligning the inside edge of

the spacer with the desired measurement.

Note:

When you want to set the roll paper width from 61 mm to 70 mm, break off by

hand the two tabs of the spacer. (You can still also use widths from 38 mm to

60 mm with the spacer with the tabs broken off.)

6. Tighten the spacer with the screw included with the spacer.

(Although there are two holes, this is the only one to put the screw in.)

Shaft

Inside edge

Hook

Ruler

Hole for screw
