Version 1.2 01/05/2008 NJE

1. On the PC desktop, click Start then select Printers and

Faxes as shown to the right:

2. Right click on the Epson Stylus Pro 4400/50 Printer Icon

and select Properties from the context menu.

**For Windows XP users Only **

This is the first screen that will pop-up. Click on Printing

Preferences to get to the next screen.

3. Click on the Main tab to show the screen you will be

working in.

4. Under Mode, select the Custom option.

5. Then click on the advanced tab to setup the necessary

options for Subli-Printprofiles.

6. Select the settings as shown below:

7. Once settings are complete, click on the Save Settings

button to save these options so this process doesn’t have to be

completed each time printing is done.

Media Type: Photo Quality Ink Jet Paper

Color: Color/B&W

Print Quality: Fine 720dpi

Printer Color Management: Off (No ColorAdjustment)

Microweave: Preset to On

High Speed: On

Flip Horizontal: On

Finest Detail: On

Configuring the Epson Stylus Pro 4450

Printer Driver for Subli-Print .ICC Profiles

Note: Please be advised that the above driver settings may appear different from Windows 2000,

XP and Vista. Also driver release versions can appear different to the above.

8. Type Subli-Print in the Name Field and click Save.

9. Once you have your name saved and it is showing in the list window, click on close to return to the previous screen.

10. Click on OK under theAdvanced Tab to close that window. Then click on OK under the printing preferences window to

complete this task.

The previous settings are ideal for printing/transferring onto hard substrates such as

Ceramics, Metal, all Hardboard, etc. For softer substrates, the driver can be setup to print faster

using a lower resolution setting.

To add this setting, go through Steps 1-5. For step 6, select

the settings below.

When using the lower resolution settings for softer

substrates, you may need to increase the color density

when printing solid filled images. To do this, click on the

Paper Config button on theAdvanced screen and increase

the Color Density to around 20% and click on OK.

To save this setting follow steps 8-10.

Note: You don’t have to use Subli-Print as the name for this setting; you can use any name that will work for your process.

*** Note - Be sure to use a different Name for this setting

so that you don’t over write the previous options.***

Configuring the Epson Stylus Pro 4450

Printer Driver for Subli-Print .ICC Profiles

Media Type: Photo Quality Ink Jet Paper

Color: Color/B&W

Print Quality: Normal 360dpi

Printer Color Management: Off (No ColorAdjustment)

Microweave: Preset to On

High Speed: On

Flip Horizontal: On

Finest Detail: On

Subli-Print

Setting up CorelDRAW 10 +

Diagram 2

Before you start this section you will need to download the Xpres Subli-Print colour profile from the Xpres website.

The address is

www.xpres.co.uk/tech_support/downloads You can also find the profile on the Subli-Print CD supplied with

the bulk feed system. This disk can also be sent out upon request.

Close CorelDRAW. When you have downloaded the 'Subli_Print_4450_V1.icm' colour profile, right click on it and

choose 'Install Profile' from the top of the menu. Note: The profile will install automatically and will not give any feedback.

Also on some systems you will not be able to see the 'Install Profile' option. If this is the case change the .ICM extension

to .ICC then re-try.

Start CorelDRAW and click on Window > Colour Palettes. Tick the 'Default RGB palette'. Repeat the process then

un-tick 'Default CMYK palette'. Now click on Tools > Colour Management. You will now see the colour management

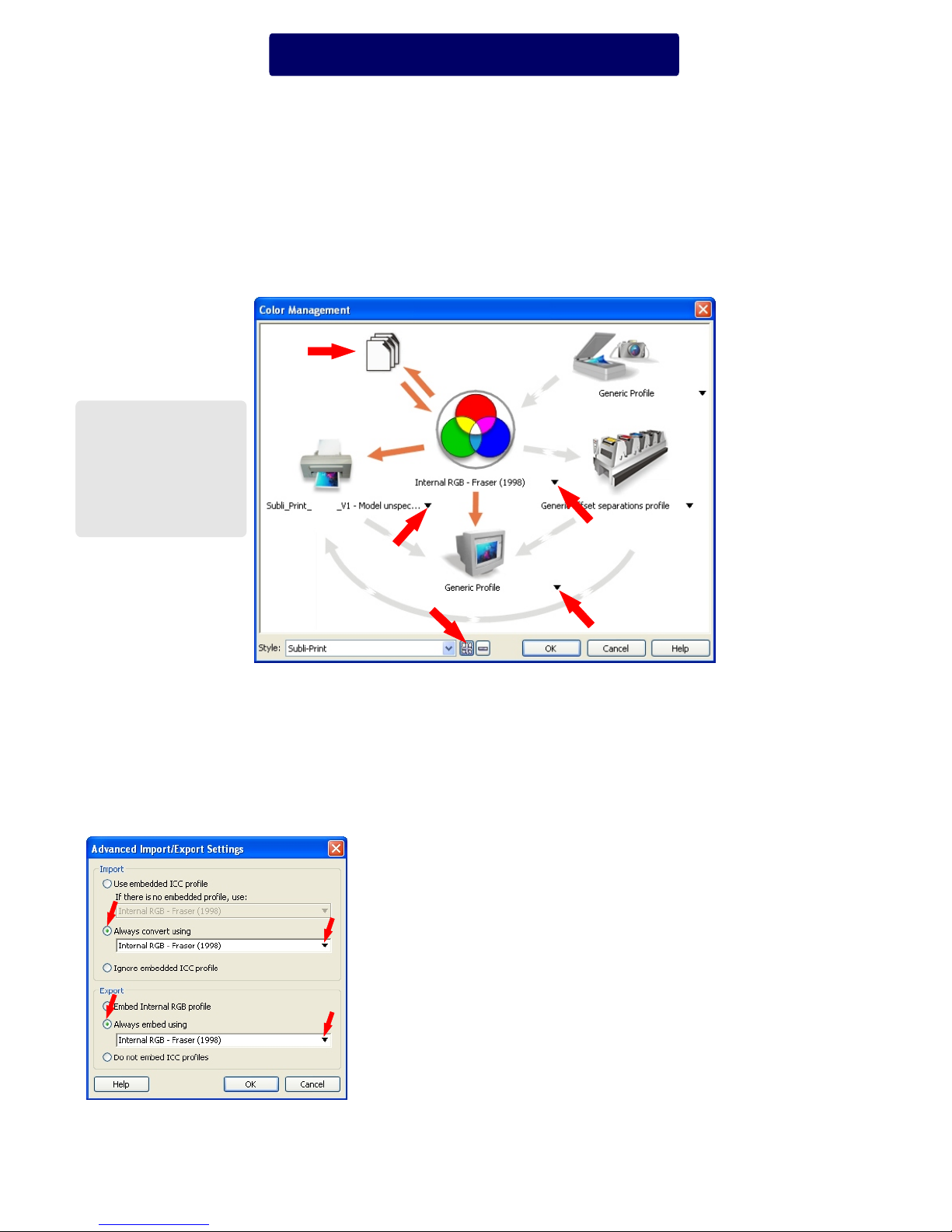

dialogue box appear as in diagram 1below.

First, all the (Orange/Grey) arrows need to be set as shown above. To change the colour of the

arrows (Orange colour switched on, Gray colour switched off). To turn the arrows on or off just click

on the arrow itself.

Configure Import-Export Settings: Click on the image of the paper to bring up the window shown

below (diagram 2). This window configures how CorelDRAW handles files that are imported to a

document.

Composite Printer: Select the Subli_Print_4450_V1 printer profile. Note: if you cant choose the

Subli_Print_4450_V1 from the drop down menu means the ICC profile is not yet installed on your

pc or you may not have restarted Corel since the ICC installation. Close and re-launch Corel.

Click Import: Always covert Using- Select Internal RGB Fraser

(1998) from the drop down menu.

Click Export: Always embed using- Select Internal RGB Fraser

(1998) from the drop down menu.

Click OK.

Diagram 1

4450

For CorelDRAW X3,

ensure you select RGB

under the 'color mode

used for effects' section

at the bottom on the

colour management

console.

Monitor: Select the ICC profile for your monitor (If you also have Adobe Photoshop on your system

you can select the profile you created in Adobe Gamma). You may also check out the website of your

monitor manufacturer for ICC profiles for your particular monitor. If you do not have an ICC colour

profile use the 'Generic Profile' instead.

Internal RGB Space: Select Internal RGB Fraser (1998)

Save your settings: Click the + button and name your settings Subli-Print then Click OK.

CorelDRAW's colour management is now setup. You can now work with your images as normal.

When you have your image ready on screen, click file > print. You will now see the print dialogue

box below (diagram 1).

The Epson 4400 properties will now show (diagram 2). Ensure the Subli-Print setting is highlighted.

If it is not click on 'Subli-Print' from the drop down list. Then click OK.

Now click on the Misc tab (diagram 3) and ensure the Subli_Print_4450_V1 is ticked.

Note: Ensure the 'Apply ICC profile' is un-ticked when using other printers.

Now click the print button.

Printing with the Subli-Print ICC profile

Diagram 1

Diagram 2 Diagram 3

CHARGING THE PRINTER WITH INK

Please read this section carefully before proceeding.

The Epson 4400 is shipped with 4seperate cartridges. These are listed 1 to 4

in the left hand bay only.

1. Matte Black 2. Cyan 3. Magenta 4. Yellow

Do not insert the original Epson inks into bays 1, 2, 3 and 4. Only insert the Subli-Print

cartridges into these bays.

1. Turn the printer on by pressing the power button. After a short time 'NO INK CRTG'

appears on the LCD.

2. Open the ink compartment covers and raise the blue ink levers.

3. Remove the Subli-Print ink cartridge from its pack and then shake ink cartridge

for best results.

The genuine Epson inks supplied with the printer are not required, please store these

with your printers documentation for future use.

Insert the cartridge into the slots using the configuration above, or the ink assignment

guide below. Incorrect installation of cartridge could damage the printer.

5. After inserting all ink cartridges in their corresponding slot, lower the ink levers.

The printer will now start the initial charging.

6. After approximately two minutes, ink lever messages appear on the LCD. Raise

or lower the ink levers accordingly until 'READY' appears on the LCD, which indicates

initial ink charging is completed.

INK ASSIGNMENT GUIDE

1234

BLACK

CYAN

MAGENTA

YELLOW

Xpres Subli-Print

Sublimation Inks

Working with templates

In this section you will learn how to open a sublimation template, import an image and use the power clip tool to fit the

image to the template. For this exercise we will use the 9cm² square coaster.

If you have had an installation by an Xpres engineer, you will find the templates in a folder on your desktop called 'Xpres'.

Otherwise you can either download these from the Technical Support section of our website

www.xpres.co.uk/tech_support/downloads

You can also find these on the Xpres Technical CD, and Subli-Print CD.

Click File > New From Template (diagram 1), click on the 'Browse' tab then point it towards where your Sublimation

templates are stored. Select the 'Coaster square.cdt' then click OK.

You will now see six square coaster templates open as in diagram 2. For this exercise we will work with one only.

Click on one of the coaster templates and hit the delete button on the keyboard. Repeat this process until you are

left with one. Click and drag the template to the centre of the page (diagram 3).

Import your image by clicking on File > Import. Select your image from the browse window and click the import button.

You will now see you image as in diagram 4. Click on the corner selection handles to down size the image slightly larger

than the template, as in diagram 5below.

Click on Effects > Power clip > Place inside container. You will now see a large black arrow appear, click on the edge or

inside to power clip the object to the template. You will now see the image appear inside (fitted) to the template as in

diagram 6.

Select

template

Diagram 1 Diagram 2

Diagram 3 Diagram 4

Diagram 5 Diagram 6

Working with templates continued

If your image does not fit the power clip correctly first time, right

click on the image and choose 'Edit Contents' from the drop down

menu (diagram 1). You can also click on Effects > Power Clip >

Edit Contents. Drag the image (you will see the image and the

template on the screen) until you have it in the right place. You can

even re-size the object in the 'Edit' state. When you are happy with

the image placement, right click and choose 'Finish Editing This

Level', from the drop down menu. You can also access this by

clicking on Effects > Power Clip > Finish Editing This Level.

Diagram 1

Your image is now ready to print. Refer to page 4on

printing with the .ICC colour profile.

All Xpres Sublimation templates are slightly larger than the actual substrate. You can leave the border of the template

visible as this helps to line up the substrate before taping it onto the transfer paper (use XP6006 Heat Tape to secure

the substrate to the transfer paper).

The only template you cannot leave the border on is the mug template as this will show up when printed.

To duplicate your image once fitted to the template refer to page 10 on duplicating objects

XP4072a (A4) & XP4073a (A3) XP4047 (A3+) is used for all hard surface and fabric substrates.

Print onto the bright white side only.

Tips on using templates

Sublimation paper usage and tips

Introducing CorelDRAW

& its tools

CorelDRAW is an extremely powerful program of which you will probably only need to use half

of the tools and features of the program. In this section we will introduce you to the tools in

CorelDRAW and what they do and also take you through the most common tasks you will need

to complete in CorelDRAW.

Below is an image of the toolbox in CorelDRAW with explanations of the tools based on Corel 11.

Pick Tool

Shaping Tools

Zoom Tools

Drawing Tools

Rectangle Tools

Ellipse Tools

Polygon Tools

Basic Shapes Tool

Text Tool

Interactive Tools

Eyedropper Tools

Outline Tool

Fill Tool

Interactive Fill Tool

Each of the tools shown here except the Pick tool and the Text tool

have extra tools hidden in what are called flyout menu's, to access

a fly out menu hold the left mouse button down on the corresponding

button and the menu will pop out allowing you access to the extra

tools.

Each of the flyout menus are shown below giving you a breakdown

of where all the tools are stored, on the next page we will go over the

most common tools and their functions.

Shaping Tools

Zoom Tools

Rectangle Tools

Interactive Tools Eyedropper Tools Outline Tool

Fill ToolInteractive Fill Tools

Ellipse Tools Polygon Tools Basic Shapes Tools

Drawing Tools

In order:

Shape Tool, Knife Tool, Eraser Tool, Smudge Brush, Roughen Brush,

Free Transform Tool

In order:

Zoom Tool, Pan Tool

In order:

Rectangle Tool,

3 Point Rectangle

In order:

Fill Tool, Fountain Fill, Pattern Fill, Texture Fill,

Postscript Fill, No Fill, Colour Docker Window

In order:

Interactive Fill, Mesh Fill

In order:

Eyedropper Tool,

Paintbucket Tool

In order:

Outline Pen Tool, Outline Colour Tool, No outline,

Various widths of line, Colour Docker Window

In order:

Blend Tool, Contour Tool,

Distortion Tool, Envelope Tool

Extrude Tool, Shadow Tool,

Transparency Tool

In order:

Ellipse Tool,

3 Point Ellipse Tool

In order:

Polygon Tool,

Graph Paper Tool,

Spiral Tool

In order:

Basic Shapes Tool, Arrow Shapes Tool,

Flowchart Shapes, Star Shapes, Callout Shapes

In order:

Freehand tool, Bezier Tool, Artistic Media Tool, Pen Tool,

Polyline Tool, 3 Point Curve, Interactive Connector,

Dimension Tool

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Impresora de Epson

Epson

Epson WF-3820 Series Manual de usuario

Epson

Epson FX-2190 Manual de instalación y operación

Epson

Epson SC-F10000 Series Manual de usuario

Epson

Epson R300 - Stylus Photo Color Inkjet Printer Manual de usuario

Epson

Epson Stylus Office BX600FW Series Manual de instrucciones

Epson

Epson TM-L90 series Manual de usuario

Epson

Epson Stylus Photo PX830FWD Guía del usuario

Epson

Epson Stylus Pro 7000 Series Manual de usuario

Epson

Epson SureColor P8570D Series Manual de usuario

Epson

Epson Disc Producer PP-100AP Manual de usuario

Epson

Epson FX-980 - Impact Printer Manual de usuario

Epson

Epson Stylus C40UX Manual de usuario

Epson

Epson R340 - Stylus Photo Color Inkjet Printer Manual de usuario

Epson

Epson STYLUS C43UX Manual

Epson

Epson SC-V7000 Manual de usuario

Epson

Epson SP7900HDR - Stylus Pro 7900 Color Inkjet... Manual de uso y mantenimiento

Epson

Epson TM-T88III series Manual de servicio

Epson

Epson STYLUS PHOTO R250 Series Manual de instrucciones

Epson

Epson PictureMate Dash PM 260 Manual de instrucciones

Epson

Epson Stylus COLOR 3000 Manual de usuario

Epson

Epson Stylus Pro 4880 Portrait Edition Manual de usuario

Epson

Epson EcoTank ET-15000 Series Manual de instrucciones

Epson

Epson TM-L60 II Manual de usuario

Epson

Epson Stylus Color Stylus Color II Manual de usuario

Manuales populares de Impresora de otras marcas

Lexmark

Lexmark 1400 Series Manual

Canon

Canon i70 Series Manual de usuario

Evolis

Evolis Elypso Manual de usuario

Kyocera

Kyocera FS-9530DN Manual de usuario

Canon

Canon LASER SHOT LBP-1210 Manual de usuario

Samsung

Samsung BIXOLON SRP-350plusF Manual de usuario

Canon

Canon PIXMA PRO-1 Series Manual de usuario

Canon

Canon PIXMA G3560 Guía de configuración

Dell

Dell Color Laser Printer 2130cn Manual de usuario

Tektronix

Tektronix Phaser 840 Manual de usuario

Canon

Canon CLBR 460ps Manual de usuario

Eltron

Eltron P210 Guide Manual de usuario

Ricoh

Ricoh MD-P1 Manual de usuario

Canon

Canon imagePASS-A2 Manual de usuario

Canon

Canon S820D Manual de usuario

IRA3D

IRA3D POETRY4 Manual de usuario

Ricoh

Ricoh Aficio AP400 Manual de usuario

BIXOLON

BIXOLON SRP-352plusV Manual de usuario
