Epson Home Cinema 2100 Guía de instalación

ECO-FLO CONTINUOUS INK SYSTEM

Perma

Jet

Assembly Instructions for

: 2100 Ink System

Epson 2100 Eco-Flo Shown

IMPORTANT

If your printer is new, set it up according to

the enclosed manufacturers instructions.

This is a check to ensure your new printer

and drivers are working correctly before the

Eco-Flo System is installed.

EPSON PRINTER Epson 2100

Part No. A26421

It is very important you read these instructions carefully before you begin!

We will take you through the following steps:

1Preparing your Injector

2Setting up of the Inks in the bottle tray

3Installation of the modified injector to your printer

4Fitting of the Tube Supports System

5Producing your first print.

Only start work on the installation once you have read the

instructions fully!

What you will need to Install the Eco-Flo 2100

•Complete Eco-Flo 2100 Kit

•Sharp Blade (Stanley Knife type) & Scissors

•Measuring Tape or Ruler

•Marking Pen or Pencil

•Paper Towels

Please read carefully before you continue and

refer to the components diagram over the

page.

What is included in your Eco-Flo 2100 Kit

•Injector Set with tubes attached

•Set of 7 Inks & empty 100ml bottles

•Black Tube Support Bracket with Hook &

Loop Fastener fitted

•Bottle Holder Tray

•Special Chip Block

•1 Grey/White Tube Clip with adhesive pad

•Installation Instructions and Profiles CD

•10ml Syringe & wing adaptor

•Pair of latex gloves

•Special Foam Block

•7 Tube Clamps

•7 Bottle Caps & Clear Piping Tubes

Check List for components

Black Tube

ort Bracket

Set of 7

125ml Inks Wing Adaptor

____________________________________________________________________________________________

Check Printer Condition

Injector Set &

Tubes

Bottle Holder Tray

Special Chip

Block

(Wrapped in

Protective

Packaging)

7 Empty 100ml

Bottles

Bottle Caps &

Clear Piping 7 Tube Clamps

Pair of Latex

Gloves

Tube Clip with

dhesive Pad

Special Foam

Block that may

not be required

10ml Syringe

If you have a brand new printer, follow the Epson instructions for setting up your printer. Use the Epson injectors

that came with the printer. Follow normal installation instructions for the software. Test the printer by printing

pictures. Learn how to use the Epson utilities to run a Nozzle pattern check and to run a Cleaning Cycle.

Make sure that the printer can produce a perfect nozzle pattern

before proceeding with Eco-Flo installation.

If you have been using the printer in the past, just make sure it produces a perfect nozzle pattern before proceeding

with the Eco-Flo installation. If the Nozzle pattern has any gaps whatsoever, then run cleaning cycles until it prints

perfectly.

DO NOT INSTALL THE ECO-FLO IF YOUR PRINTER IS NOT FULLY FUNCTIONAL

Disconnecting Power From the Printer

Push, but do not hold the INK button on the printer. This will move the injectors to the “replacement” position. After

they move to this position, which is just slightly to the left of the parked position, SWITCH OFF THE POWER AT

THE WALL SOCKET. Now the injector head can be moved from side to side by hand. We will tell you later when

to reconnect the printer power supply. Remove the original Epson injectors from the printer (Power is disconnected).

Set them aside on some paper towel. DONOT throw away, you may need them someday. Wrap in a zip-lock plastic

bag for cool dry safe keeping.

____________________________________________________________________________________________

INSTALLATION OF YOUR ECO-FLO KIT

Step 1 Removing the Injector Lid

You will need to remove the printer lid on the injector carrier as shown in this photo. Store this somewhere

safe should you ever wish to return the printer to it’s original setup. It is held in place by two ‘Lugs’ on either

side. Once you have one side disconnected, you will find it easy to slide out the lid.

Use a fine screw driver to do this and push one of the lugs into the direction of the print head and from one

side only as indicated below.

Fig.1

Step 2 Moving the Printer Head

You are now able to move the printer head manually to the centre area of the printer. See below.

Fig.2

Step 3 Bottle Preparation

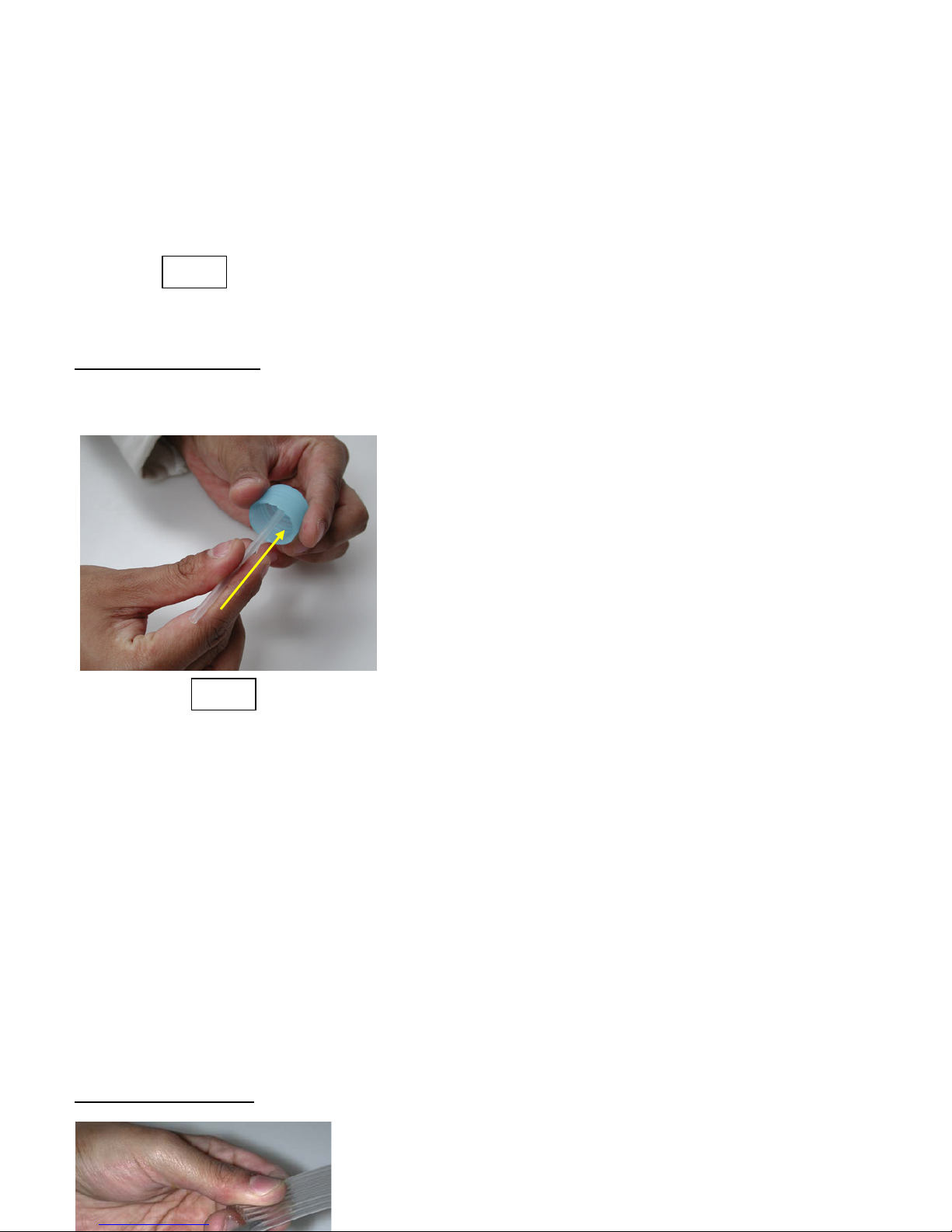

Locate the coloured bottle caps and straight lengths of plastic tubes. Insert the straight tube firmly into the bottom of

each bottle cap see Fig.3

Fig.3

Step 4 Tube Preparation

Using a pair of scissors separate all tubes by

snipping gently at the tube ends. Please see

Fig.4 to the left.

Fig.4

Strip back all the tubes by approx

150mm. Please note when assembling

the tubes to the bottle caps you may

need to strip back more of the tubing in

order for the bottles to be seated

correctly within the bottle tray.

Fig.5

Fig.6 showing tubes

stri

ed back

Step 5 Preparation of The Clamps & Inks

You are now ready to attach the tube clamp

to the tubes as indicated in Fig.7 to the left.

Now please fill all the bottles with the correct

inks; please ensure that all ink has been filled

correctly as indicated by the bottle caps that

are colour coded, see Fig.8 to the right.

Fig.7

Fig.8

Step 6 Positioning the ink Bottles in the Tray

You are now ready to position the ink bottles in the bottle holder tray as indicated below.

LM M

2100 Setup

Step 7 Assembling the Tubing to the Bottle Caps

When you have completed the above

process insert the correct tube to the

correct ink bottles. PLEASE TAKE

CARE when doing this as if this is

connected incorrectly there is no

turning back see Fig.9 & Fig.10

Fig.9 Fig.10

Wing Adaptor

Shown

Step 8 Priming the Ink Through the Injectors

You are now ready to start the ink priming process starting

with the YELLOW injector.

This process is carried out by inserting the 10ml syringe and

wing adaptor at the base of the injector. PLEASE ENSURE THAT

THE WING ADAPTOR (TIP ONLY) IS GENTLY INSERTED

INTO THE BASE OF THE INJECTOR, DO NOT push the tip any further

than 3mm (see diagram opposite) otherwise this will split the base of the

injector.

PLEASE ENSURE that you DOUBLE CHECK that the correct tube is

located to the correct ink bottle before pulling back on the syringe (see Fig.11).

Diagram showing

the wing adaptor tip

only inserted gently

in the base of the

injector.

At this point LOCK the tube with the white clamp see Fig.12 before

removing the syringe from the bottom base of the injector to avoid any

air travelling in the injector.

Any ink remaining in the syringe can be put back into the correct ink bottle. MAKE SURE you wash the syringe with

warm water ready for the next colour to be primed. Repeat this process for all the inks so that you finish up with a

set of injectors and tubes full of ink as illustrated in Fig.13.

Ink tube being

clam

Priming an

ector

Fig.11

Fig.12

Fig.13

Step 9 Install Chip Block & Injectors

Please place the Chip block as indicated in Fig.14 below making sure that this is correctly positioned & installed.

Once you have installed this you are ready to insert the set of 7 injectors in the printer carriage.

Carefully align them, and when you are happy the injectors are in position. PLEASE BE CAREFUL NOT TO PUSH

TOO HARD, AS THIS WILL CAUSE DAMAGE TO THE INJECTOR & PRINTER HEAD. Push the injectors home

until you feel a positive seated position see Fig.15 below.

Fig. 15 Picture shows injectors fully

installed in a 2100

Fig.14

Step 10 Positioning The Foam Block

You will need to move the printer head towards the right of the printer in order to do this.

You are now ready to install and position the foam block that needs to be inserted on the back of the injectors as

illustrated below. Please make sure that this has been pushed down correctly in place.

Fig.16

Step 11 Installing the Central Tube Support Bracket & Aligning the Tubes

The tubes can be inserted at this time through the available opening in the bracket – the tubing goes under

the bracket, then up and then through. It is advisable to slide the tubes as far forward to the front of the printer

within the tube support bracket as indicated in Fig.17 & Fig.18 below.

Next, you will notice that the Tube Support Bracket has both the Hook and Loop Velcro on it. The Hook portion of

the Velcro is going to end up attached to your printer. The Loop portion will remain on the Tube Support Bracket. Do

not separate the Hook and Loop.

Fig.18Fig.17

Use an alcohol or cleaning solution and clean the top of the printer housing where the Black Tube Support Bracket is

going to be attached. Then make sure the area is dry before proceeding.

Keeping them together, remove the adhesive backing from the Hook portion of the Velcro. Carefully install and align

the Tube Support Bracket in its proper location 85mm from the right edge of the recess, as shown in Fig.19 below.

30mm

85mm

Fig.19

Please ensure that the Central Tube Support Bracket, the top and bottom Velcro and loop are firmly stuck down to

the printer body.

Please ensure that the tubing has just enough slack to allow movement of the print head without restriction.

This can be done manually by moving the head to the left and right and checking that there is just enough

tubing to allow the print head to move freely, without it dragging against any part of the printer see Fig. 20 &

Fig. 21 below.

The tubing should look and

be assembled as the

diagrams opposite.

Fig.20

Fig.21

PLEASE NOTE, due to the nature of the tubing you may need to leave the head unit in the left hand position

as illustrated in Fig.20 left overnight in order for the tube to mould in the correct manner, at this stage you

may find that the FOAM BLOCK may not be required and in fact slide away, if this is the case remove the

block.

Step 12 Install Final Tube Clip

The last tube clip goes on the right edge of the printer

housing see Fig 22 opposite. Clean this area with alcohol

and wipe dry with paper towel.

Place the plastic clip onto the printer body, making sure it

is in the correct position to hold the tubes in a straight line

along the length of the printer to the Black Tube Support Bracket.

All the tubes must lay flat so they do not interfere with print

head motion. You must ensure that the tubes do not come

into contact with the printer body.

Fig.22

Step 13 Testing the System

Push the injectors to the far right and plug the printer back on. Have your graphics program (e.g Photoshop) open

and ready to use.
