Quick Setup

Here’s how to set up your new EPSON®printer ...

Remove any packing material from the printer, as described on

the Notice Sheet in the box. Save all the packaging so you can

use it if you need to transport the printer later. You’ll find these

items inside:

Place the printer flat on a stable desk near a grounded outlet.

Leave plenty of room in back for the cables and enough room

in front for opening the output tray.

Do NOT put the printer:

◗In an area with high temperature or humidity

◗In direct sunlight or dusty conditions

◗Near sources of heat or electromagnetic interference, such

as loudspeakers or cordless telephone base units.

Also, be sure to follow the Safety Instructions in the

Introduction of your User’s Guide.

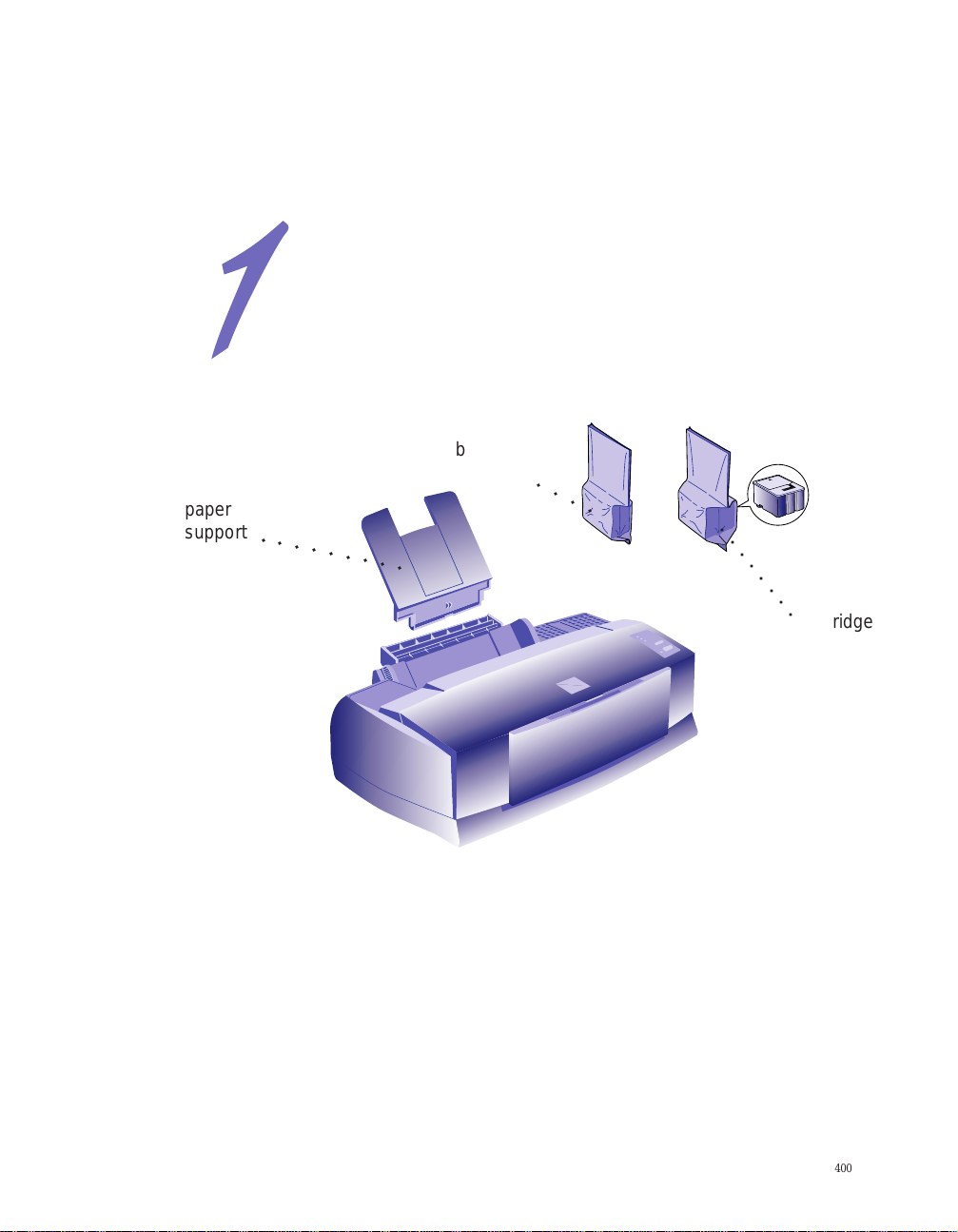

Unpack the Printer

○○○○○○○○○

○○○○

paper

support

black ink

cartridge

○○○○○○○○

color ink

cartridge

4006677

Untitled-1 5/22/97, 10:20 AM1

Attach the Paper Support

Caution:

Do not plug the printer

into an outlet

controlled by a wall

switch or timer, or on

the same circuit as a

large appliance. This

may disrupt the power,

which can erase

memory and damage

the power supply.

Plug In the Printer

Insert the paper support in the top slot on the back of the

printer.

First make sure the power is off. Check the power button;

it’s off when its surface is raised above the printer surface.

Plug the power cord into a properly grounded outlet.

○○○○○○○○○○○○○

power

Untitled-1 5/22/97, 10:20 AM2

1. Lower the output tray and raise the printer cover.

2. Press the power button to turn on the printer. The power

light flashes, the and ink out lights come on, and the ink

cartridge holders move to the left.

3. Lift up the black ink cartridge clamp.

4. Open the black ink cartridge package. Remove the yellow tape

seal on top.

Install the Ink Cartridges

Caution:

You must remove the

tape seal from the top

of the cartridge or you

will permanently

damage it. Don’t

remove the tape seal

from the bottom or ink

will leak.

Warning:

If ink gets on your

hands, wash them

thoroughly with soap

and water. If ink gets in

your eyes, flush them

immediately with water.

color ink

cartridge

○○○○○

○○○○

black ink

cartridge

Untitled-1 5/22/97, 10:20 AM3

5. Lower the ink cartridge into the holder with the label face

up and the arrow pointing toward the back of the printer.

6. Push down the clamp until it locks in place.

7. Press the color cleaning button. The print heads move

to the left again so you can install the color ink cartridge.

8. Follow steps 3 through 6 to install the color ink cartridge.

9. Press the load/eject button.

The printer moves the print heads and begins charging the ink

delivery system. The power light flashes, and the printer

makes various sounds. Charging can take up to seven minutes.

When it’s finished, you can close the printer cover.

Caution:

Never turn off the

printer when the

power light is

flashing.

Caution:

If the ink cartridge

holders move back to

the right before you

start the installation

process, don't try to

move them by hand.

Press the black

cleaning button and

hold it down for 3

seconds. This moves

the ink cartridge

holders back to the

loading position.

○○ ○ ○○○○○○

load/eject

button

○○○○○○○○○○

color

cleaning

button

○○○○○○○○○○○

black

cleaning

button

○○○○○○○○○

black ink

cartridge

Untitled-1 5/22/97, 10:20 AM4

1. Slide the left edge guide all the way left and pull out the

output tray extensions.

2. Fan a stack of plain paper and then even the edges.

3. Load the stack with the printable surface face up. Push the

paper against the right edge guide.

4. Slide the left edge guide back against the stack of paper.

Note:

Don’t load paper above

the arrow mark inside the

left edge guide.

Load the Paper

arrow

mark

○○ ○ ○○○○○○○

Untitled-1 5/22/97, 10:20 AM5

1. Turn off the printer.

2. Press the load/eject button and hold it down while you

press the power button. Continue to hold the buttons

until the power light starts to flash.

Pages showing a nozzle check pattern and samples of

fonts and colors begin to print.

3. Turn off the printer to end the test. If you have any

problems with the test, see Chapter 6 in your User’s Guide

for more information.

You can connect your EPSON Stylus™COLOR 800 to either an

IBM®-compatible PC or an Apple®Macintosh®

. You’ll need a

shielded, twisted-pair parallel cable to connect to a PC or an

Apple System Peripheral-8 cable to connect to a Macintosh.

For a complete list of system requirements, see the Introduc-

tion of your printer User’s Guide.

1. Turn off the printer and your computer.

2. Connect the cable to the printer’s parallel interface; then

squeeze the wire clips together until they lock in place. (If

your cable has a ground wire, connect it now.)

3. Connect the other end of the cable to your computer’s

parallel port and secure it as necessary.

Check the Printer

Note:

The printer is assigned to

parallel port LPT1; if you

want to use a different

port, see your Windows

documentation for

instructions.

Connect the Printer toYour Computer

Connecting to a PC

○○○○○○○○○○○○○

ground

wire

Untitled-1 5/22/97, 10:20 AM6

Connecting to a Macintosh

1. Turn off the printer and your Macintosh.

2. Connect one end of the cable to the serial connector on

the back of the printer.

3. Connect the other end of the cable to either the modem

port or the printer port on your Macintosh.

Now you need to install the printer software so you can

control printing from your computer. You must install the

software for the printer to work correctly. See the instructions

included with your EPSON printer software CD-ROM or

diskettes.

Install the Printer Software

Note:

If you want to use your

printer on a network, you

need to follow special

setup procedures. See

your

User’s Guide

for

more information.

Untitled-1 5/22/97, 10:20 AM7

EPSON is a registered trademark and EPSON Stylus is a trademark of SEIKO EPSON CORPORATION.

General Notice: Other product names used herein are for identification purposes only and may be trademarks of their respective owners.

EPSON disclaims any and all rights in those marks.

Printed on recycled paper with at least 10% post-consumer content.

Your EPSON Stylus COLOR 800 User’s Guide tells you how to:

◗print everything from a memo to a glossy photo

◗use your printer software to fine-tune your printouts

◗keep your printer working at its best

◗solve any problems you may have

You can also access EPSON’s convenient online help from the

printer software to get quick information while you’re printing.

SeeYour EPSON Documentation
