Replacing Consumable Products

You need to replace the following consumable products

when you are given a notice message on the control

panel display or in EPSON Status Monitor 2.

Replacing a toner cartridge

1. Open the front cover. If you can see the color that

youneedtoreplaceintheinstallwindow,gotostep

3. If you see a different color, go to the next step.

2. Push the switch up, then release it to unlock the

cartridges. Turn the round knob until it stops.

Repeat until the cartridge you want to replace

appears.

3. Turn the cartridge knob counterclockwise 90

degrees. Then pull the cartridge out of the slot.

4. Take a new cartridge out of package and gently

shake it back and forth and front to back.

Toner Cartridge (Yellow) S050016

Toner Cartridge (Magenta) S050017

Toner Cartridge (Cyan) S050018

Toner Cartridge (Black) S050019

Waste Toner Collector S050020

Photoconductor Unit S051061

Fuser Oil Roll S052002

Switch

Knob

LProof Sign-off:

Kimura _______

Nishi _______

Hoadley _______

Cardinal Quick Reference

Rev. C

A5 size Quick.fm

11/6/98 Pass 0

5. Hold the cartridge arrow side up and insert it all

the way into the cartridge slot. Then turn the

cartridge knob clockwise 90 degrees.

6. If you need to replace another cartridge, repeat

steps 2 to 5.

7. Close the front cover.

Replacing the photoconductor unit

1. Turn off the printer and open the front cover.

Note:

When replacing the photoconductor unit, make sure to

turn off the printer.

2. Turn the large lever counterclockwise 90 degrees.

3. Turn the small lever to the right.

Large lever

Small lever

Cardinal Quick Reference

Rev. C

A5 size Quick.fm

11/6/98 Pass 0

Proof Sign-off:

Kimura _______

Nishi _______

Hoadley _______

4. Pull the photoconductor unit out about 30 cm.

5. Grab the handle at the top of the photoconductor

unit and gently pull it all the way out.

6. Takea newphotoconductorunitoutofitspackage

and remove the protective sheet.

cCaution:

❏Be sure not to touch orscratch the surface

of the drum.

❏When replacing the photoconductor unit,

avoid exposing itto room lightany longer

than necessary,

7. Hold the handle at the top of the photoconductor

unit and place the unit on the guide rails. Insert it

all the way into the printer.

Drum

LProof Sign-off:

Kimura _______

Nishi _______

Hoadley _______

Cardinal Quick Reference

Rev. C

A5 size Quick.fm

11/6/98 Pass 0

8. Turn the small lever left.

9. Turn the large lever clockwise 90 degrees. Then

close the front cover.

Replacing the waste toner collector

1. Open the front cover.

2. Grasp the handle and tab of the waste toner

collector to release the lock. Then pull out the

collector.

3. Take out a new waste toner collector. Hold the

handle of the collector and insert it into the slot all

the way until the tab clicks.

4. Close the front cover.

Small lever

Large lever

Tab

Cardinal Quick Reference

Rev. C

A5 size Quick.fm

11/6/98 Pass 0

Proof Sign-off:

Kimura _______

Nishi _______

Hoadley _______

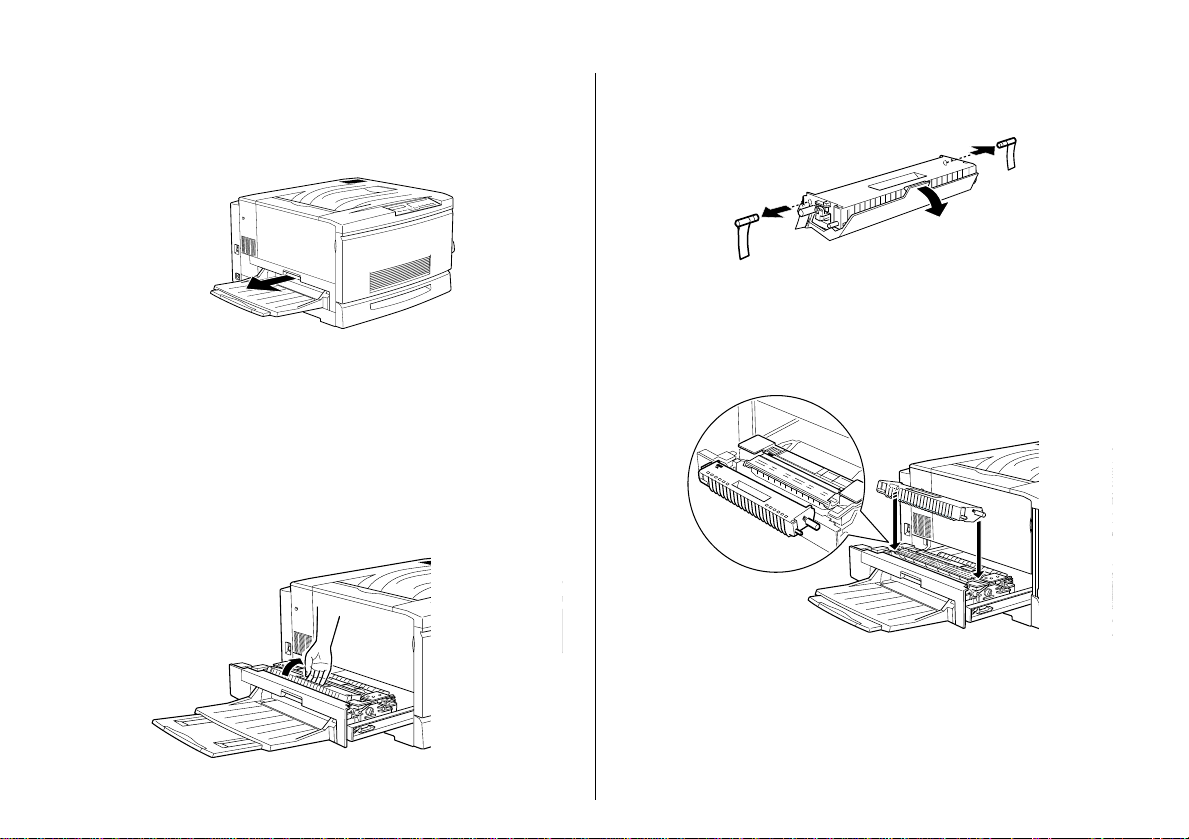

Replacing the fuser oil roll

1. Pull down the face-up tray. Hold the handle of the

fuser unit and pull it all the way out.

2. Grab the handle of the fuser oil roll and remove it.

wWarning:

Be careful not to touch the fuser, which is

marked CAUTION! HIGH TEMPERATURE

or the adjoining areas. If the printer has been in

use,the fuser and the areaaround it can be very

hot.

3. Take a new fuser oil roll from the box and remove

the cover and two shipping pins.

4. Holdtherollhandleandinsertitintothefuserunit,

matching the green marks on the roll and unit.

LProof Sign-off:

Kimura _______

Nishi _______

Hoadley _______

Cardinal Quick Reference

Rev. C

A5 size Quick.fm

11/6/98 Pass 0

5. Push the roll down firmly until it clicks into place.

6. Push the fuser unit into the printer until it clicks.

Clearing Jammed Paper

Make sure into follow these points when you clear

jammed paper:

❏Do not remove jammed paper by force. Pull it

gently in order to avoid tearing the paper which

can cause pieces to remain in the printer.

❏If jammed paper is torn and remains in the printer,

or if paper is jammed in an area not mentioned in

this manual, contact your dealer.

wWarning:

Be careful not to touch the fuser, which is marked

CAUTION! HIGH TEMPERATURE or adjoining

areas. If the printer hasbeen in use, the fuserand the

area around it can be very hot.

Clearing the paper cassette

1. Pull the paper cassette out slowly until it stops.

Remove any jammed paper.

2. Replace the paper stock in the paper cassette and

close it.

3. Pull the paper path unit out slowly until it stops.

Pull any jammed paper out from the bottom of the

paper path unit.

4. Close the paper path unit.

Paper cassette

Paper path unit

Cardinal Quick Reference

Rev. C

A5 size Quick.fm

11/6/98 Pass 0

Proof Sign-off:

Kimura _______

Nishi _______

Hoadley _______

Clearing the MP tray

1. Pull the jammed paper out gently.

2. Pull the paper path unit out until it stops. Open the

cover inside the unit by grasping the handle and

pulling upwards.

3. Turn the knob on the unit. The jammed paper

comes out. After the jammed paper is ejected

halfway, pull the paper up and out.

4. Close the unit cover.

5. Close the paper path unit firmly.

MP tray

Cover

Paper path unit

LProof Sign-off:

Kimura _______

Nishi _______

Hoadley _______

Cardinal Quick Reference

Rev. C

A5 size Quick.fm

11/6/98 Pass 0

Clearing the fuser unit

cCaution:

When paper is jammed the path to the face-up tray,

clear it from the fuser unit.

1. Pull the fuser unit out gently until it stops. Grasp

the handle of the fuser oil roll and remove it.

wWarning:

❏Be careful not to touch the fuser, which is

marked CAUTION! HIGH

TEMPERATURE or the adjoining areas.

If the printer hasbeen in use,the fuser and

the area around it can be very hot.

❏Reattach the fuser oil roll as soon as you

clear the jammed paper.

❏The roll should be always kept

horizontally. Do not tilt it or place it

against something, as it can cause oil

leakage and reduced print quality.

2. Turn theknob in the fuser unit to ejectanyjammed

paper. Pull out the jammed paper.

3. Reattach the fuser oil roll.

4. Close the fuser unit firmly.

Fuser oil roll

Fuser unit

Cardinal Quick Reference

Rev. C

A5 size Quick.fm

11/6/98 Pass 0

Proof Sign-off:

Kimura _______

Nishi _______

Hoadley _______

Clearing the output path cover

cCaution:

Whenpaperisjammedthepathtotheface-downtray,

clear it from the fuser unit.

1. Open the output path cover at the left side of the

printer.

2. Remove all jammed paper. If paper has jammed at

the top of the output path, gently lift it up. If it has

jammed near the bottom of the output path cover,

carefully pull it out of the printer.

3. Close the output path cover.

Clearing optional large capacity paper unit

1. Openthe feedercover on theright sideof the paper

unit. Pull any jammed paper out gently.

2. Close the feeder cover.

Note:

If the paper is jammed in the paper cassette mounted on the

paper unit, see "Clearing the paper cassette".

Output path cover

Feeder cover
