Enginko MCF-LW06424 Manual de usuario

2022/02/16 09:16 1/2 MCF-LW06424 Operating Manual

e n g i n k o . s u p p o r t . c e n t e r - http://www.enginko.com/support/

Table of Contents

MCF-LW06424 Operating Manual 1 ...............................................................................................

1. Description 1 ................................................................................................................................

2. Overview 2 ....................................................................................................................................

2.1 Technical data 2 .........................................................................................................................

3 Installation 3 ..................................................................................................................................

3.1 Connection 3 ..............................................................................................................................

3.2 Analog inputs 4 ..........................................................................................................................

3.3 Conﬁguration 6 ..........................................................................................................................

3.4 System led 7 ..............................................................................................................................

3.5 Firmware update 8 .....................................................................................................................

4. Setup 8 ..........................................................................................................................................

4.1 Period 8 ......................................................................................................................................

4.2 Thresholds 9 ..............................................................................................................................

4.3 Other settings 10 .......................................................................................................................

5. Diagnostic 11 ................................................................................................................................

6 LoRaWAN network 11 ...................................................................................................................

6.1 Activation 12 ..............................................................................................................................

6.2 Other settings 13 .......................................................................................................................

7 Passwords 13 .................................................................................................................................

8 General conﬁguration ﬁle 14 ......................................................................................................

8.1 Multi devices conﬁguration 15 ...................................................................................................

9 Payload 16 ......................................................................................................................................

10 Ordering code 16 ........................................................................................................................

11 Declaration of conformity 16 ....................................................................................................

12 FCC compliance for MCF-LW06424-US 16 ...............................................................................

13 Contacts 17 ..................................................................................................................................

Last update: 2022/02/16 09:15 manual_mcf-lw06424 http://www.enginko.com/support/doku.php?id=manual_mcf-lw06424

http://www.enginko.com/support/ Printed on 2022/02/16 09:16

2022/02/16 09:16 1/17 MCF-LW06424 Operating Manual

e n g i n k o . s u p p o r t . c e n t e r - http://www.enginko.com/support/

MCF-LW06424 Operating Manual

Important safety information

Read this manual before attempting to install the device! Failure to observe

recommendations included in this manual may be dangerous or cause a violation of the

law. The manufacturer will not be held responsible for any loss or damage resulting from

not following the instructions of this operating manual.

Do not dismantle or modify in any way.

Avoid mechanical stress

Do not use any detergent or alcohol to clean the device.

Disposal information for users

Pursuant to and in accordance with Article 14 of the Directive 2012/19/EU of the

European Parliament on waste electrical and electronic equipment (WEEE), and

pursuant to and in accordance with Article 20 of the Directive 2013/56/EU of the

European Parliament on batteries and accumulators and waste batteries.

The barred symbol of the rubbish bin shown on the equipment indicates that, at the end of its useful

life, the product must be collected separately from other waste.

Please note that the lithium batteries must be removed from the equipment before it is given as

waste and disposed separately. To remove the batteries refer to the speciﬁcations in the user manual.

For additional information and how to carry out disposal, please contact the certiﬁed disposal service

providers.

1. Description

MCF-LW06424 is able to read 4 analog inputs 4-20mA with a resolution of 12 bit. The inputs have an

insulation of 1000Vdc with respect to the power supply, and are protected against polarity inversion.

Last update: 2022/02/16 09:15 manual_mcf-lw06424 http://www.enginko.com/support/doku.php?id=manual_mcf-lw06424

http://www.enginko.com/support/ Printed on 2022/02/16 09:16

MCF-LW06424 is available with DIN rail option (MCF-DIN105):

2. Overview

2.1 Technical data

CPU Cortex M4

RTC

EEProm 32KB

Flash 1MB

Encryption AES 128 bit

LiPo 800mAh rechargeable battery

Class C LoRaWAN® stack EU868, AS923, AU915, US915

1000Vdc isolated analog inputs

2022/02/16 09:16 3/17 MCF-LW06424 Operating Manual

e n g i n k o . s u p p o r t . c e n t e r - http://www.enginko.com/support/

4 analog current inputs 4-20mA 12bits and disconnect alarm

4 programable thresholds for each channel

USB On The Go

IoT node setup ad ﬁrmware upgrade via USB interface

Power supply 10÷36Vdc

Storage temperature range -20°C ÷ +80°C

Working temperature range -10°C ÷ +70°C

Dimensions L x H X P: 81 x 60 x 50mm

3 Installation

3.1 Connection

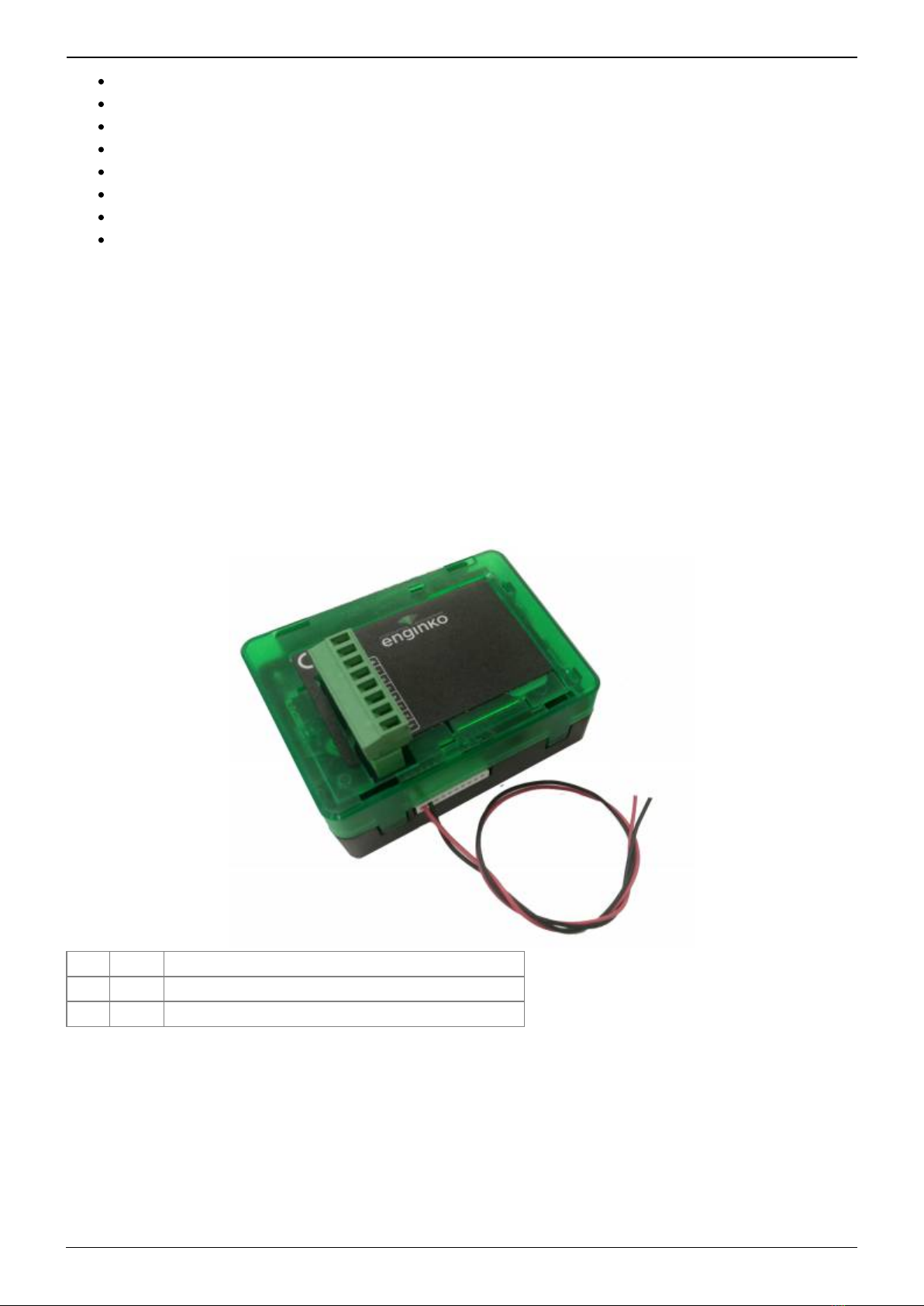

3.1.1 Power connection as stand-alone device

Please refer to following connections:

pin Name Description

J3.9 GND Negative power supply (BLACK)

J3.10 VDD Positive power supply range [10-36Vdc] (RED)

Power can also be supplied by USB.

3.1.2 Power connection with DIN rail option

Please refer to following connections:

Last update: 2022/02/16 09:15 manual_mcf-lw06424 http://www.enginko.com/support/doku.php?id=manual_mcf-lw06424

http://www.enginko.com/support/ Printed on 2022/02/16 09:16

Power supply:

Pin Name Description

J2.1 Vdc Positive power supply range [10-36Vdc]

J2.2 GND Negative power supply

Power can also be supplied by USB.

3.1.3 Antenna

The magnetic antenna must be positioned on a metal body. It should preferably be vertical and at

least 30 cm away from other metal bodies. The installation must take place in a place where the

LoRaWAN® signal coverage is good (SF=7 optimal, SF=12 weak). Use the provided clip to hold the

antenna connector in place, as in the picture:

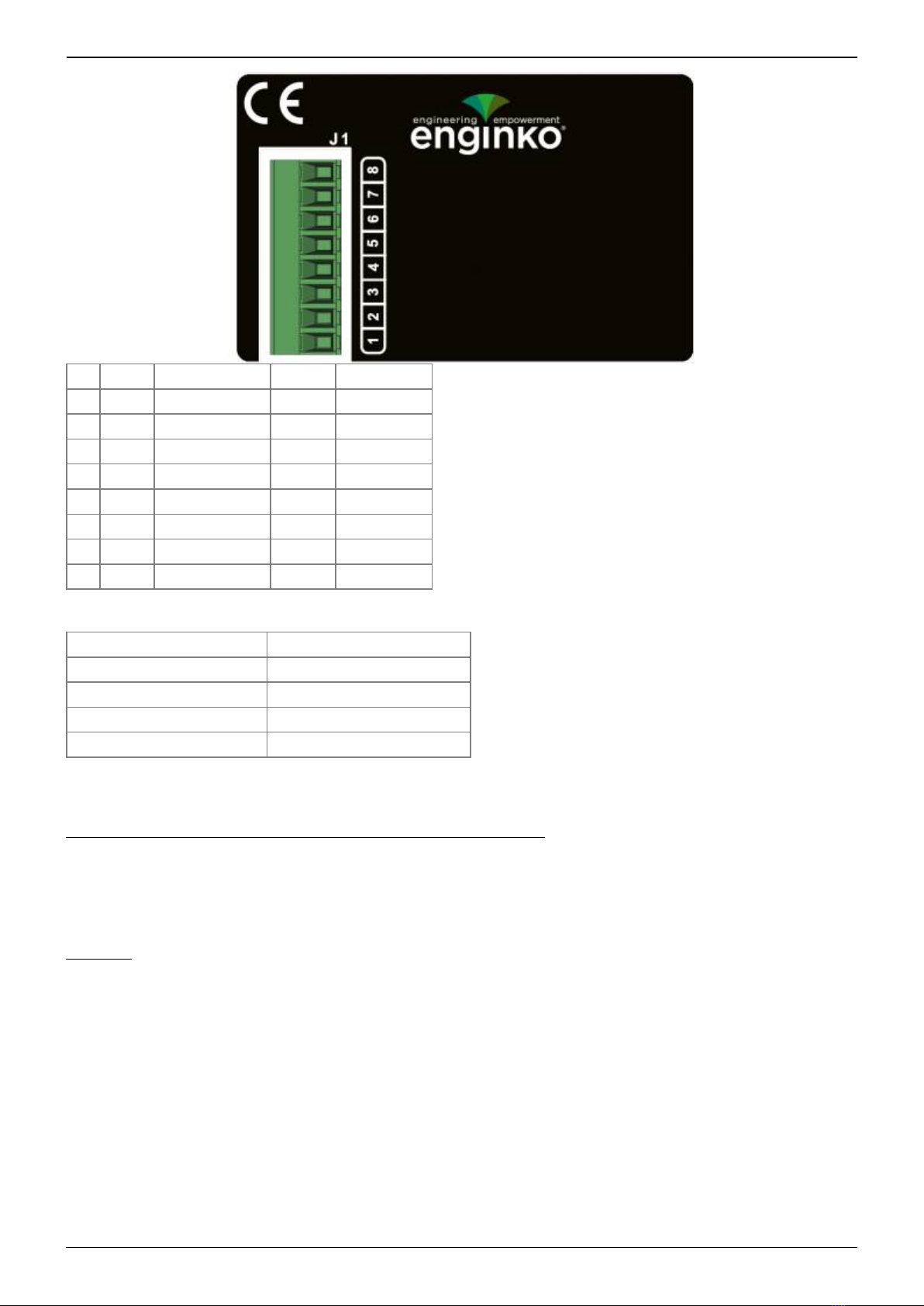

3.2 Analog inputs

2022/02/16 09:16 5/17 MCF-LW06424 Operating Manual

e n g i n k o . s u p p o r t . c e n t e r - http://www.enginko.com/support/

Pin Name Description Range Resolution

J1.1 AI1 Analog input 1 4-20mA 12 bit

J1.2 GA Common

J1.3 AI2 Analog input 2 4-20mA 12 bit

J1.4 GA Common

J1.5 AI3 Analog input 3 4-20mA 12 bit

J1.6 GA Common

J1.7 AI4 Analog input 4 4-20mA 12 bit

J1.8 GA Common

Current Loop (4-20mA)

Input resistance 125Ω

Absolute maximum value 24mA

Max error ±0.1%

Insulation 1000Vdc

Current values less than 3mA generate a “disconnected sensor” condition.

Caution: inputs are not galvanically isolated from each other.

3.2.1 Connection examples

1 sensor

Last update: 2022/02/16 09:15 manual_mcf-lw06424 http://www.enginko.com/support/doku.php?id=manual_mcf-lw06424

http://www.enginko.com/support/ Printed on 2022/02/16 09:16

2 sensors

3.3 Conﬁguration

To deploy the sensor, use LoRaWEB online tool, to setup LoRaWAN® credentials and other

preferences (only available for Windows®) :

LoRaWEB Tool (iot.mcf88.cloud/LoRaWeb)

Before connect the device the ﬁrst time, please install LoRaBridge applications and drivers:

https://iot.mcf88.cloud/LoRaWeb/#/download

Validate your settings reading data after the write.

enginko provides, upon free registration, user manuals, javascript examples, downlink generator,

uplink decoder, ﬁrmware updates and diﬀerent tools :

2022/02/16 09:16 7/17 MCF-LW06424 Operating Manual

e n g i n k o . s u p p o r t . c e n t e r - http://www.enginko.com/support/

3.4 System led

LoRaWAN® not conﬁgured Slow ﬂashing

Joining Quick ﬂashing

Sending Quick ﬂashing

Receiving Quick ﬂashing

Last update: 2022/02/16 09:15 manual_mcf-lw06424 http://www.enginko.com/support/doku.php?id=manual_mcf-lw06424

http://www.enginko.com/support/ Printed on 2022/02/16 09:16

Steady state Fixed

Data error Flashing 2 seconds

Connection error Flashing 1 second

3.5 Firmware update

Save the new ﬁrmware ﬁle (.exe) on the PC, run the ﬁle, select the USB FW port and start the update:

and waiting for the end message.

4. Setup

4.1 Period

Period is the interval (in minutes) between one measure and the next one. The sensor sends one

measures for every transmission. Value can be between 15 and 65535 minutes (default: 30 minutes).
