MCF-LW12TERPM Operating Manual

Important safety information

Read this manual before attempting to install the device! Failure to observe

recommendations included in this manual may be dangerous or cause a violation of the

law. The manufacturer will not be held responsible for any loss or damage resulting from

not following the instructions of this operating manual.

Do not dismantle or modify in any way.

The device is not intended to be used as a reference sensor, and enginko Srl will not be held

liable for any damage which may result from inaccurate readings.

Avoid mechanical stress

Do not use any detergent or alcohol to clean the device.

Disposal information for users

Pursuant to and in accordance with Article 14 of the Directive 2012/19/EU of the

European Parliament on waste electrical and electronic equipment (WEEE), and

pursuant to and in accordance with Article 20 of the Directive 2013/56/EU of the

European Parliament on batteries and accumulators and waste batteries.

The barred symbol of the rubbish bin shown on the equipment indicates that, at the end of its useful

life, the product must be collected separately from other waste.

Please note that the lithium batteries must be removed from the equipment before it is given as

waste and disposed separately. To remove the batteries refer to the speciﬁcations in the user manual.

For additional information and how to carry out disposal, please contact the certiﬁed disposal service

providers.

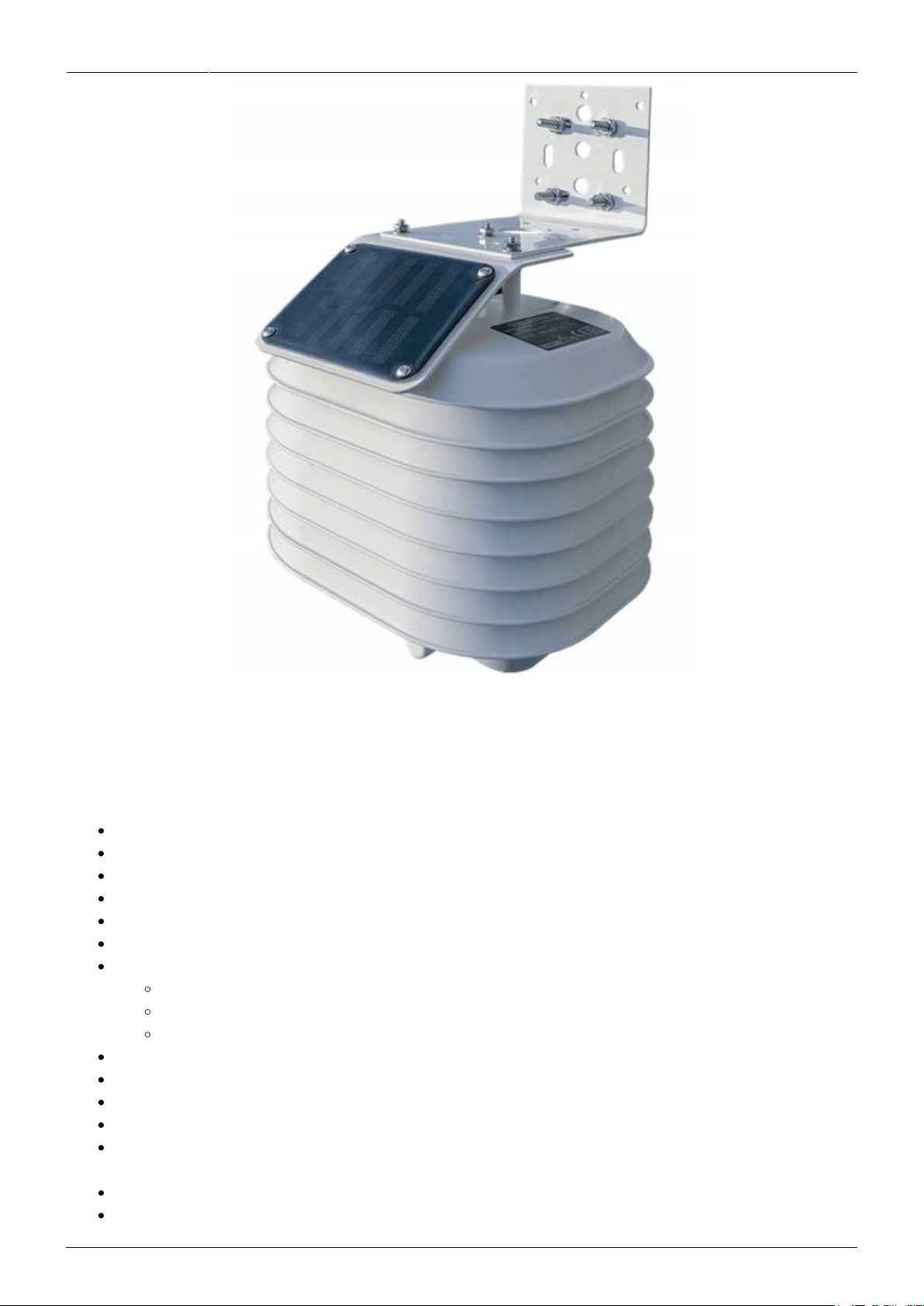

1. Description

The MCF-LW12TERPM is a solar powered sensor that reads temperature, humidity, pressure and PM

(PM1, PM2.5, PM10) and sends collected data over the LoRaWAN® network. Ideally suited for a wide

range of applications such as weather stations, urban monitoring, air quality, industrial,

environmental or farming projects.

Last update: 2022/02/08

12:03 manual_mcf-lw12terpm https://www.enginko.com/support/doku.php?id=manual_mcf-lw12terpm&rev=1644318191

https://www.enginko.com/support/ Printed on 2022/09/11 20:17

2. Overview

2.1 Technical data

CPU Cortex M0+

EEProm 32Kb

Flash 64k

Encryption AES 128 bit

Class A LoRaWAN® 1.0.2 stack EU868, AS923, AU915, US915

Temperature -30 ÷ 70°C (0 ÷ 65°C ±1.0°C)

Humidity 0% to 100% will following error @25°C:

From 0% to 20% ±5%

From 20% to 80% ±3%

From 80% to 100% ±5%

Pressure 300 ÷ 1100hPa (±1.0hPa)

PM sensor PM1\PM2.5 ±10%, PM10 ±30%

NFC for IoT node setup, FW upgrade and data reading

main 860mAh Li-Ion rechargeable battery and a 7200mAh Li-SOCl2 primary battery as backup

> 30 days of operation with no sun with main battery fully charged (20 hours of of direct

sunlight)

Wall or pole mounting

Storage temperature range -30 + 80°C

2022/09/11 20:17 3/19 manual_mcf-lw12terpm

e n g i n k o . s u p p o r t . c e n t e r - https://www.enginko.com/support/

Working temperature range -30 + 60°C

Protection class IP33

Dimensions (approx) L x H X P: 210 x 310 x 200mm

Weight 2.5kg

2.2 Installation

The installation must take place in a place where the LoRaWAN® signal coverage is good (SF=7

optimal, SF=12 weak).

Place the sensor in a way that the solar panel is not in the shade and exposed to the greatest possible

amount of sunlight during the day.

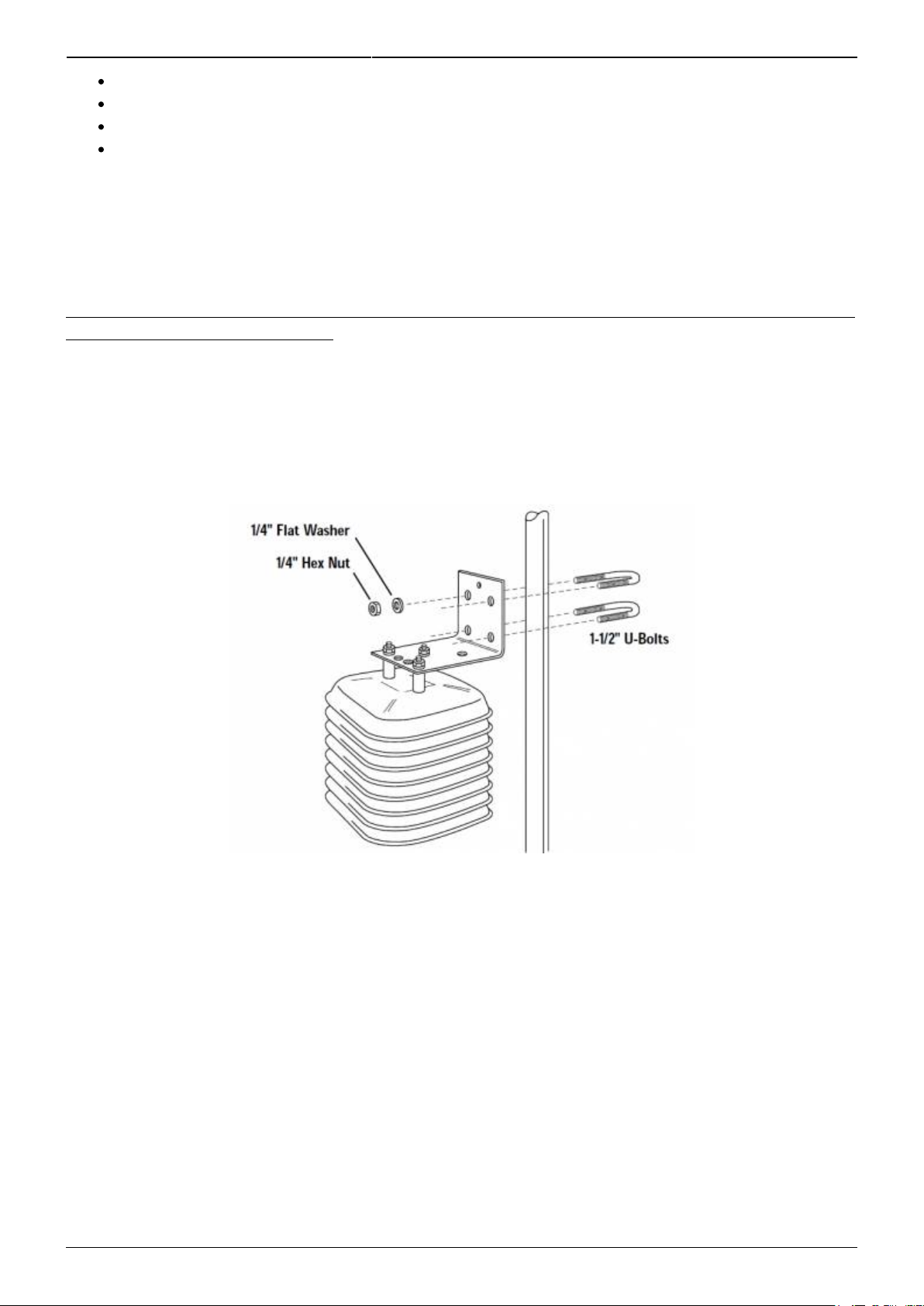

2.2.1 Pipe mount

Mount the sensor on pipe as in picture:

2.2.2 Wall mount

Mount the sensor on wall as in picture:

Last update: 2022/02/08

12:03 manual_mcf-lw12terpm https://www.enginko.com/support/doku.php?id=manual_mcf-lw12terpm&rev=1644318191

https://www.enginko.com/support/ Printed on 2022/09/11 20:17

2.3 Conﬁguration

To deploy the sensor, download the latest LoRa Tool Android App to setup LoRaWAN® credentials

and other preferences :

Always validate your settings by reading the NFC data after the sensor has restarted.

Conﬁguration can be done only via NFC.

No USB port available for the user.

2.4 Power ON/OFF

The sensor is shipped completely oﬀ to prevent battery consumption during storage. It is therefore

necessary to carry out a ﬁrst power-on prior to commissioning.

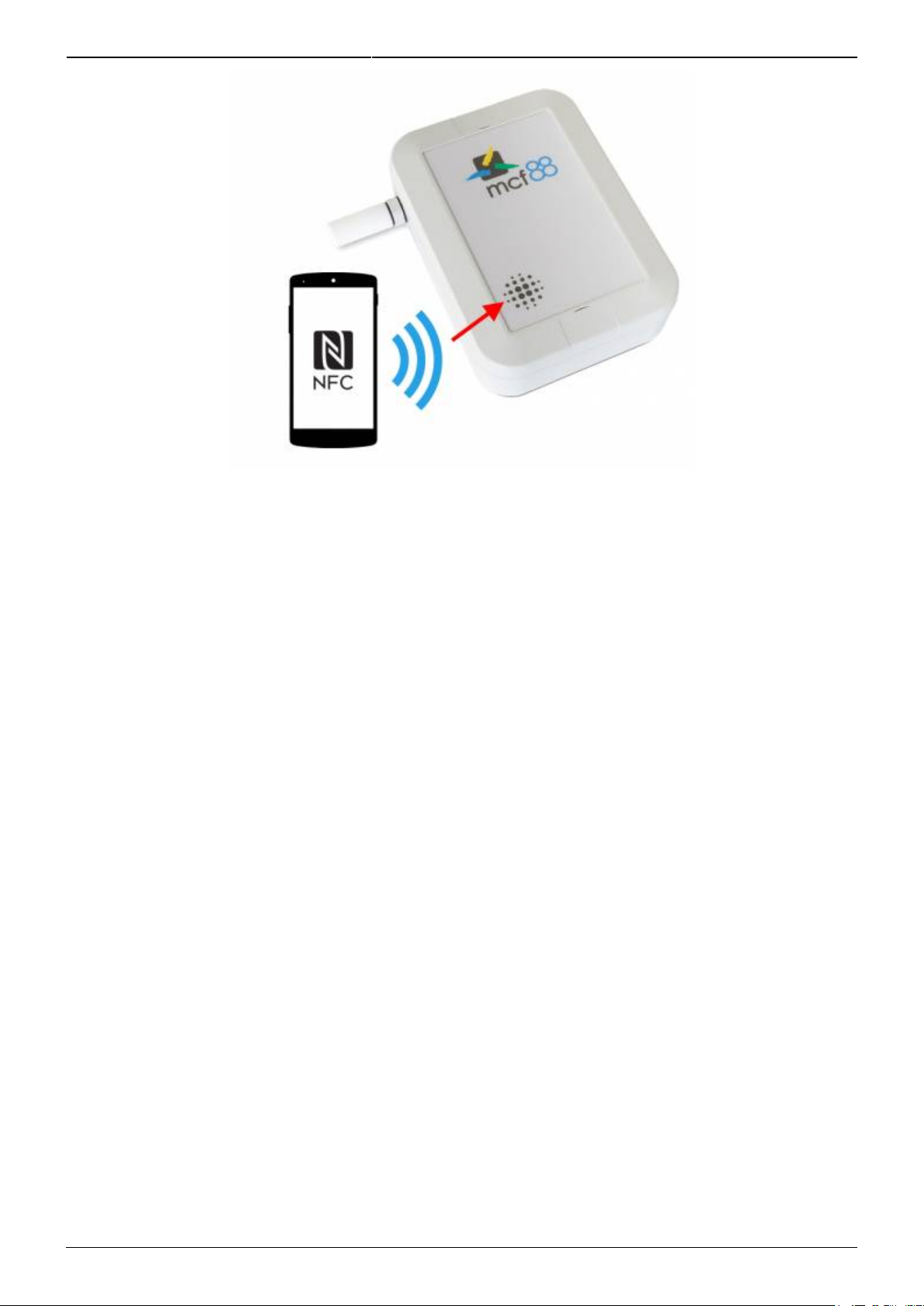

Move the NFC antenna of the mobile (the exact position varies depending on the model of the

smartphone) to the sensor antenna, in the area shown in the ﬁgure:

2022/09/11 20:17 5/19 manual_mcf-lw12terpm

e n g i n k o . s u p p o r t . c e n t e r - https://www.enginko.com/support/

At the ﬁrst power-on, sensor will take from 1 to 5 minutes to give an eﬀective measure of PM.

In case of long period inactivity, if necessary, is possible to shut-oﬀ again the sensor to prevent

battery consumption, via downlink or with LoRa Tool App:

Last update: 2022/02/08

12:03 manual_mcf-lw12terpm https://www.enginko.com/support/doku.php?id=manual_mcf-lw12terpm&rev=1644318191

https://www.enginko.com/support/ Printed on 2022/09/11 20:17

2.5 Backup battery

This sensor contains lithium battery, which must be disposed of separately.

MCF-LW12TERPM is provided with one Li-SOCl2 battery pack as backup:

Code Description

MCF-1S2PE 7200mAh battery pack

With this battery the sensor can run for 1 year with the rechargeable battery completely discharged.

Battery replacement can be done only by enginko or trained personnel.

2022/09/11 20:17 7/19 manual_mcf-lw12terpm

e n g i n k o . s u p p o r t . c e n t e r - https://www.enginko.com/support/

2.6 Firmware update

Save the ﬁrmware ﬁle (.FW) on the smartphone, and upload it with LoraTool App:

During the update, do not move the smartphone untill the end message.

3. Measures

3.1 Period

Last update: 2022/02/08

12:03 manual_mcf-lw12terpm https://www.enginko.com/support/doku.php?id=manual_mcf-lw12terpm&rev=1644318191

https://www.enginko.com/support/ Printed on 2022/09/11 20:17

Period is the interval (in minutes) between one measure and the next one. The sensor sends one

measures for every transmission. Value can be between 15 and 65535 minutes (default: 30 minutes).

Period interval can be set with App or with downlink command.

3.2 Temperature

3.3 Pressure

3.3.1 Altitude compensation

When the sensor is not installed at the sea level, the reading of barometric pressures at other

elevations must be compensated. Set the right altitude value with LoRa Tool app:

Value can be from -300 to 3000 meters.

Altitude can also be set with downlink command.
