Eneo PXD-2080MIR C Manual de usuario
User manual
1/2.9” Day/Night Network Dome Camera
PXD-2080MIR C
EN
Safety Precaution
03
CAUTION: TO REDUCE THE RISK OF ELECTIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
To prevent fire or shock hazard, do not expose the unit to rain or moisture.
To prevent electric shocks and risk of fire hazards, do NOT use other than
specific power source.
Warning :
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
Caution :
Any changes or modifications in construction of this device which are not expressly
approved by the party responsible for compliance could void the user's authority
to operate the equipment.
Mains power quality should be that of a typical commercial environment. If the user
of the model requires continued operation during power mains interruptions, it is
recommended that the model be powered from an uninterruptible power supply
(UPS) or a battery.
The symbol is intended to alert the user to the presence of important
operating and maintenance(servicing) instructions in the literature
accompanying the unit.
The symbol is intended to alert the user to the presence of uninsulated
"dangerous voltage" within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
MEGA-PIXEL NETWORK CAMERA
Safety Precaution
NOTICE
The image used in this instruction manual are processed to help comprehension
and may differ from actual video of the camera.
Avoid installing areas where has shock or vibration which results in the problems.
Pay attention to safety when laying the connection cable and observe that the cable
is not subjected to heavy loads, kinks or damage and no moisture can get in.
Never open the device such as boards or lens.
The warranty becomes void if repairs are undertaken by unauthorized persons.
Maintenance and repair have to be carried out only by authorized service centers.
Use only a mild detergent to clean the housing.
The camera should never be operated beyond the technical specifications.
This can lead to destruction.
The camera should never be operated in water.
04
MEGA-PIXEL NETWORK CAMERA
Contents
Safety Precaution
p.03~04
Contents
p.05
Features
p.06~07
Composition
p.07
Dimensions
p.08
Part Names
p.09
Installation Instructions
p.10~13
Operating Instructions
p.14~27
Specifications
p.28~29
05
MEGA-PIXEL NETWORK CAMERA
Features
Key Features
06
• Full HD, WDR, NETWORK CAMERA 1920 x 1080/25p
• ONVIF S & PSIA Conformance
• True Wide Dynamic Range
• Improved Noise figure with the enhanced 3D-NR
• Built-in f=2.8~10mm F1.4 Mega Pixel DC Auto Iris vari-focal lens
• Dual Filter Switcher
• Intelligent focusing status indicator on screen
• Pointing Zoom which enables the flexible zooming at any area.
• Smart Motion Zoom in combining with Pointing Zoom.
• Day & Night Simulation
• LSC (Lens Shade Compensation), Pixel Defect Compensation
• Motion Detection, Privacy Mask, Defog, Sens-up, D-Zoom(1.1x~8x),
BLC/HLC, Motion Deblur, Smart IR, D-WDR, H/V/HV-Flip, Tittle Set
• H.264 / MJPEG dual streaming
• Slot for Micro SD memory card verified up to 32GB
• Two way Audio & Alarm input /output
• Menu Control via either Local Joystick or WEB
• Zoom & Focus Adjustment on 3-Axis Gimbal
• OSD menu & Video Sub-out port for easy installation & maintenance
• Circuit protection against faulty connection in power polarity
• Isolated power supply against ground loop problem.
• IR-LED 30pcs
• LED ON/OFF Control
• PoE(IEEE Std. 802.3af)
• Flush mount (Optional mounting accessories are choosable)
• Anti-Scratch Hard Coated Clear bubble dome
• IP67 / IK10 Protection
MEGA-PIXEL NETWORK CAMERA
General Description
• With ICR mechanism,
- Enhances its sensitivity about 10x at night time
- Can accept the infrared light
• With PoE as well as 24VAC/12VDC dual power design,
- Offers the flexibility of installation
- Ensures the reliability
• With Intelligent Focus Indicator and FOCUS ADJUST menu,
- Offers easy adjustment of sharp focus
- Eliminates the mistake of the erratic focus adjustment
Features
07
Composition
MEGA-PIXEL NETWORK CAMERA
Torque Wrench:
3mm (1pc)
Mounting Screw:
4 x 30mm (3pcs)
Plastic Anchor:
6 x 30mm (3pcs)
Mounting
Template
Operating
Instruction
Network Dome Camera
Video Sub-out
Cable (1pc)
Wiring Connector
(1pc)
EMI Ferrite
Core (1pc)
Cable Signal
Sticker
Focus adjust:
Driver (1pc)
Connector fixing Screw:
2.5 x 5mm (1pc)

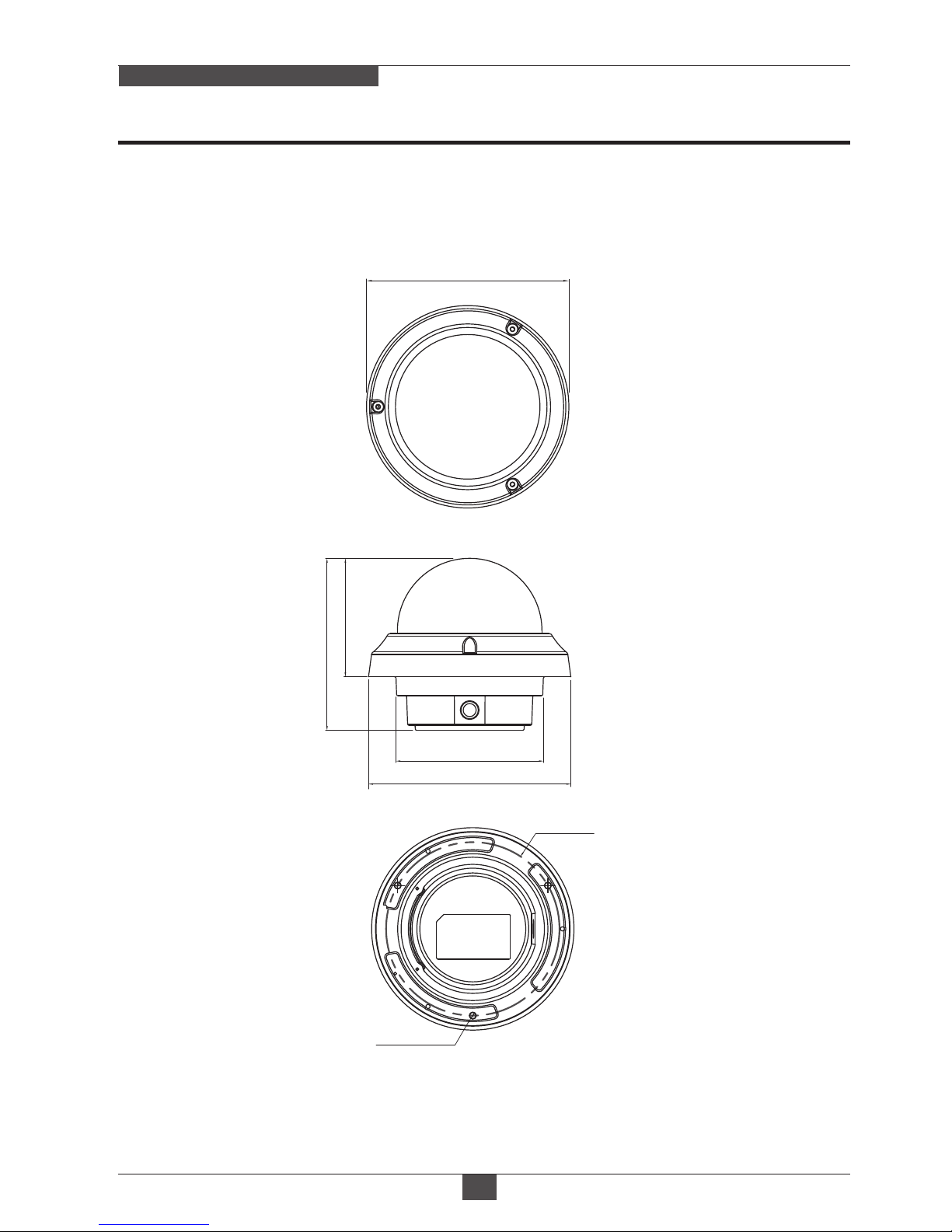

Dimensions
(unit : mm)
08
Ø140
119
PCD Ø120
Ø102
Ø140
3-Ø4.2
82
MEGA-PIXEL NETWORK CAMERA

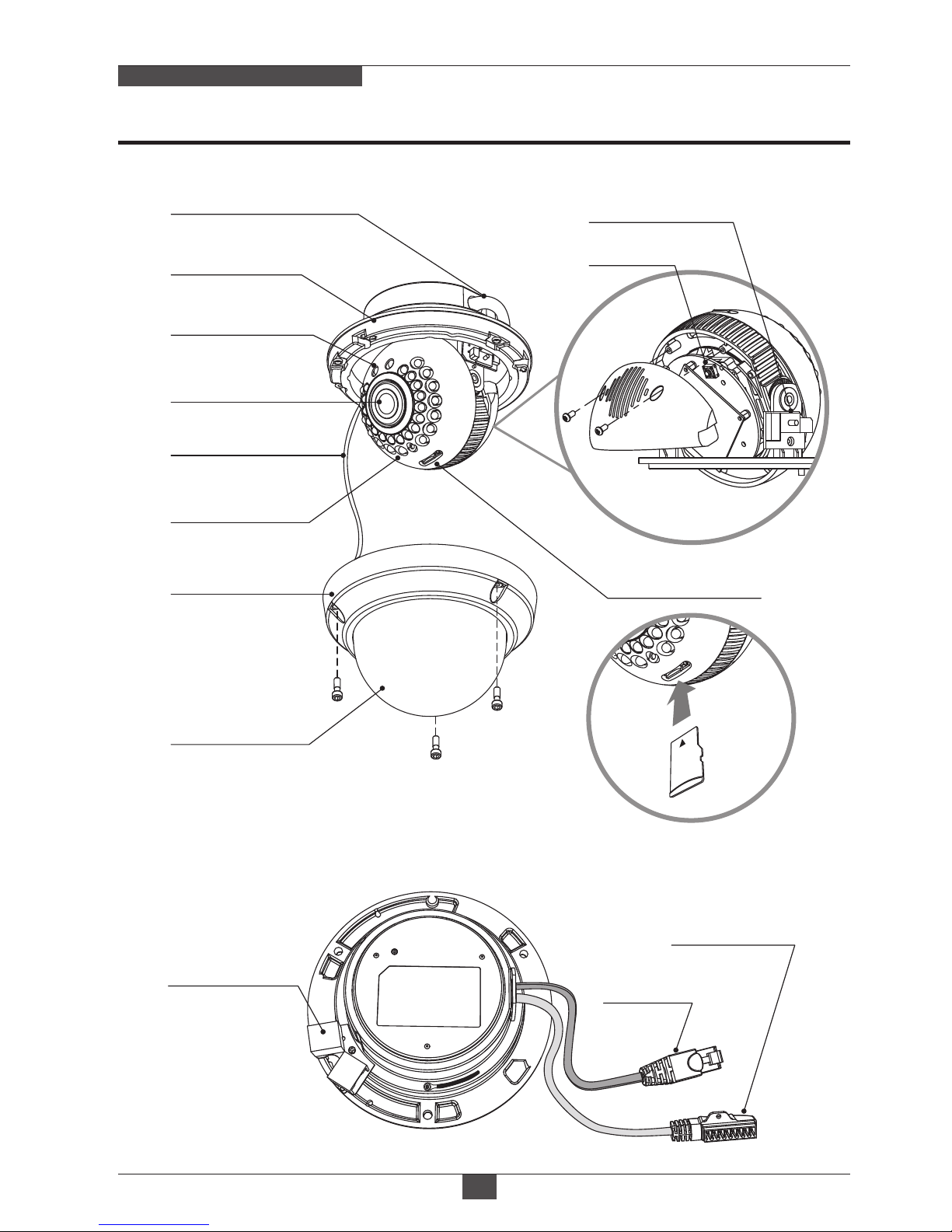

Part Names
09
MEGA-PIXEL NETWORK CAMERA
MICRO
SD-CARD SLOT
IP RESET
OSD CONTROL
JOY STICK
REAR VIEW
Micro
SD Card
BUBBLE DOME
3-AXIS GIMBAL
DOME COVER
SAFTY WIRE
FLUSH MOUNT
FOCUS / ZOOM
LENS
POWER CABLE
Power Supply
Connector
Ethernet
Connector
[ BOTTOM VIEW ]
ETHERNET &POWER CABLE
Coupler Board
Installation Instructions
10
1. Locate the mounting template at the installation position and drill the ceiling
or wall if needed.
2. Open the dome cover by loosening screws(4x12mm). Use the torque wrench
supplied.
3. Set the camera’s viewing angle and adjust Zoom/Focus of lens by using the
focus driver.
4. Put the dome cover to the dome base unit and tighten the assembly screws.
- Place the dome base unit on pre-drilled position and fix it through using mounting
screws (4x30mm).
- Route the Ethernet & Power cable to the connecting place.
Mounting Screw
(4x30mm)
Plastic Anchor
(6x30mm)
Torque
Wrench
MEGA-PIXEL NETWORK CAMERA
• Surface mount
: Choosable according to installation concept
• Pole mount adaptor
• Tilted mount
• Wall mount
(Requires additional
Surface mount)
• Tilted junction mount
■ Optional Mounting Accessories
