Operating Instructions
RIA452
Panel meter
RIA452 Endress+Hauser
2573
m³/min
RIA452
2Endress+Hauser
Brief overview
For rapid and easy commissioning:

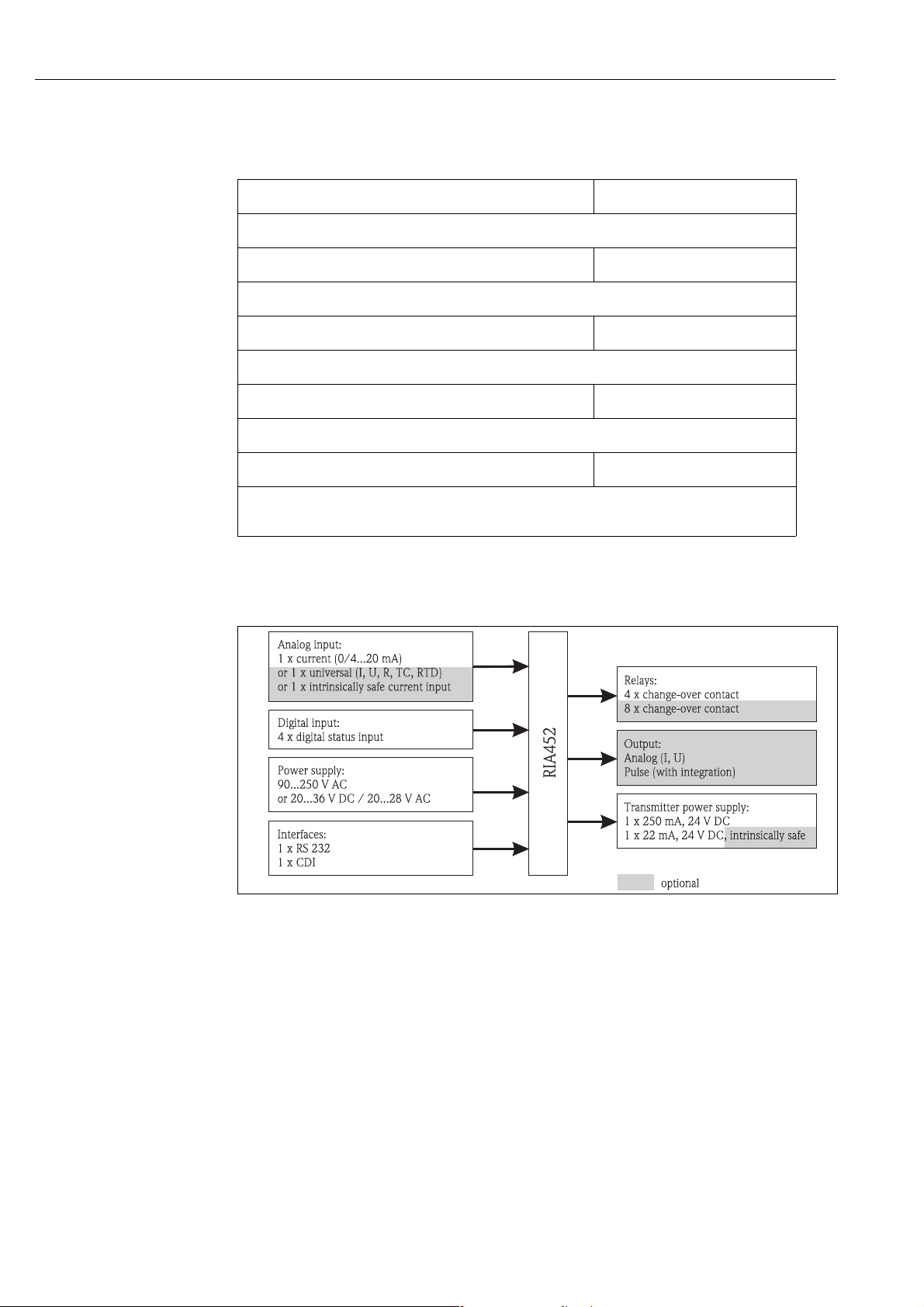

Block circuit diagram
G09-RIA452xx-05-00-xx-en-000
Fig. 1: RIA452 block circuit diagram
Safety instructions →ä3
Æ
Installation →ä5
Æ
Wiring →ä7
Æ
Display and operating elements →ä15
Æ
Commissioning →ä18
Device configuration - explanation and use of all the configurable
device functions with the associated value ranges and settings.
RIA452 Safety instructions
Endress+Hauser 3
1 Safety instructions
Safe operation of the process display unit is only guaranteed if these Operating Instructions have
been read and the safety instructions have been observed.
1.1 Designated use
The process display unit analyzes analog process variables and depicts them on its multicolored
display. Processes can be monitored and controlled using analog and digital outputs and limit relays.
The device provides the user with a wide range of software functions for this purpose.
Power can be supplied to 2-wire sensors with the integrated transmitter power supply.
– The device is seen as an associated electrical apparatus and may not be installed in hazardous
areas.
– The manufacturer does not accept liability for damage caused by improper or non-designated use.
The device may not be converted or modified in any way.
– The device is designed for installation in a panel and may only be operated in an installed state.
1.2 Installation, commissioning and operation
This device has been constructed to state-of-the-art technology and meets all applicable standards
and EU directives. The device, however, can be a source of application-related danger if used
improperly or other than intended.
Installation, wiring, commissioning and maintenance of the device must only be carried out by
trained technical personnel. They must have read and understood these Operating Instructions and
must follow the instructions they contain. The information in the electrical wiring diagrams (see
Section 4 'Wiring') must be observed closely.
1.3 Operational safety
Technical improvement
The manufacturer reserves the right to adapt technical details to the most up-to-date technical
developments without any special announcement. Contact your local sales center for information
about the current state of and possible extensions to the Operating Instructions.
1.4 Return
For a return, e.g. in case of repair, the device must be sent in protective packaging. The original
packaging offers the best protection. Repairs must only be carried out by your supplier's service
organization.
!Note!
Please enclose a note describing the fault and the application when sending the unit in for repair.
Identification RIA452
4Endress+Hauser
1.5 Notes on safety conventions and icons
The safety instructions in these Operating Instructions are labeled with the following safety icons
and symbols:
"Caution!
This symbol indicates an action or procedure which, if not performed correctly, can result in
incorrect operation or destruction of the device.
#Warning!
This symbol indicates an action or procedure which, if not performed correctly, can result in injury,
a safety hazard or the destruction of the device.
!Note!
This symbol indicates an action or procedure which, if not performed correctly, can have an indirect
effect on operation or trigger an unexpected response on the part of the device.
2 Identification
2.1 Device designation
2.1.1 Nameplate
Compare the nameplate on the device with the following diagram:
G09-RIA452xx-18-00-xx-xx-000
Fig. 2: Nameplate of the process display unit (example)
1 Order code and serial number of the deviceTab/
2 Power supply
3 Software version number
4 Ambient temperature
5 Power consumption
2.2 Scope of delivery
The scope of delivery of the process display unit comprises:
• Process display unit for panel mounting
• Multilanguage Brief Operating Instructions as hard copy
• Operating Instructions on CD-ROM
• CD-ROM with PC configuration software and interface cable RS232 (optional)
• Fixing clips
• Sealing ring
!Note!
Please note the device accessories in Section 8 'Accessories' in the Operating Instructions.
RIA452-A211A11A
12345B123BE
Software:
Order Code:
Ser.No.:
Made in Germany 20XX
-20°C (-4°F) < Ta < 60°C (140°F)
20-36V 20-28V 50/60Hz
ILU10xA 24VA
1
2
3
5
4
RIA452 Installation
Endress+Hauser 5
2.3 Certificates and approvals
CE mark, declaration of conformity
The process display unit is designed to meet state-of-the-art safety requirements, has been tested
and left the factory in a condition in which it is safe to operate. The device meets the relevant
standards and directives as per IEC 61 010-1 "Safety requirements for electrical equipment for
measurement, control and laboratory use".
The device described in these Operating Instructions thus meets the legal requirements of the EU
directives. The manufacturer confirms that the device has been tested successfully by affixing the
CE mark.
3 Installation
3.1 Installation
The permitted ambient conditions (see Section 10 "Technical data" in the Operating Instructions)
must be observed when installing and operating. The device must be protected against the effects
of heat.
3.1.1 Dimensions
Please note the installation depth of 150 mm (5.91 inches) for the measuring device plus cable.
Additional dimensions are provided in →Fig. 3 and Section 10 "Technical data" in the Operating
Instructions.
3.1.2 Mounting location
Installation in panel with cutout 92x92 mm (3.62x3.62 inches) (as per 'EN 60529'). The mounting
location must be free from vibrations.
3.1.3 Orientation
Horizontal +/- 45° in every direction.
Installation RIA452
6Endress+Hauser
3.2 Installation instructions
The required panel cutout is 92x92 mm (3.62x3.62 inches). Please note the installation depth of
150 mm (5.91 inches) for the measuring device plus cable.

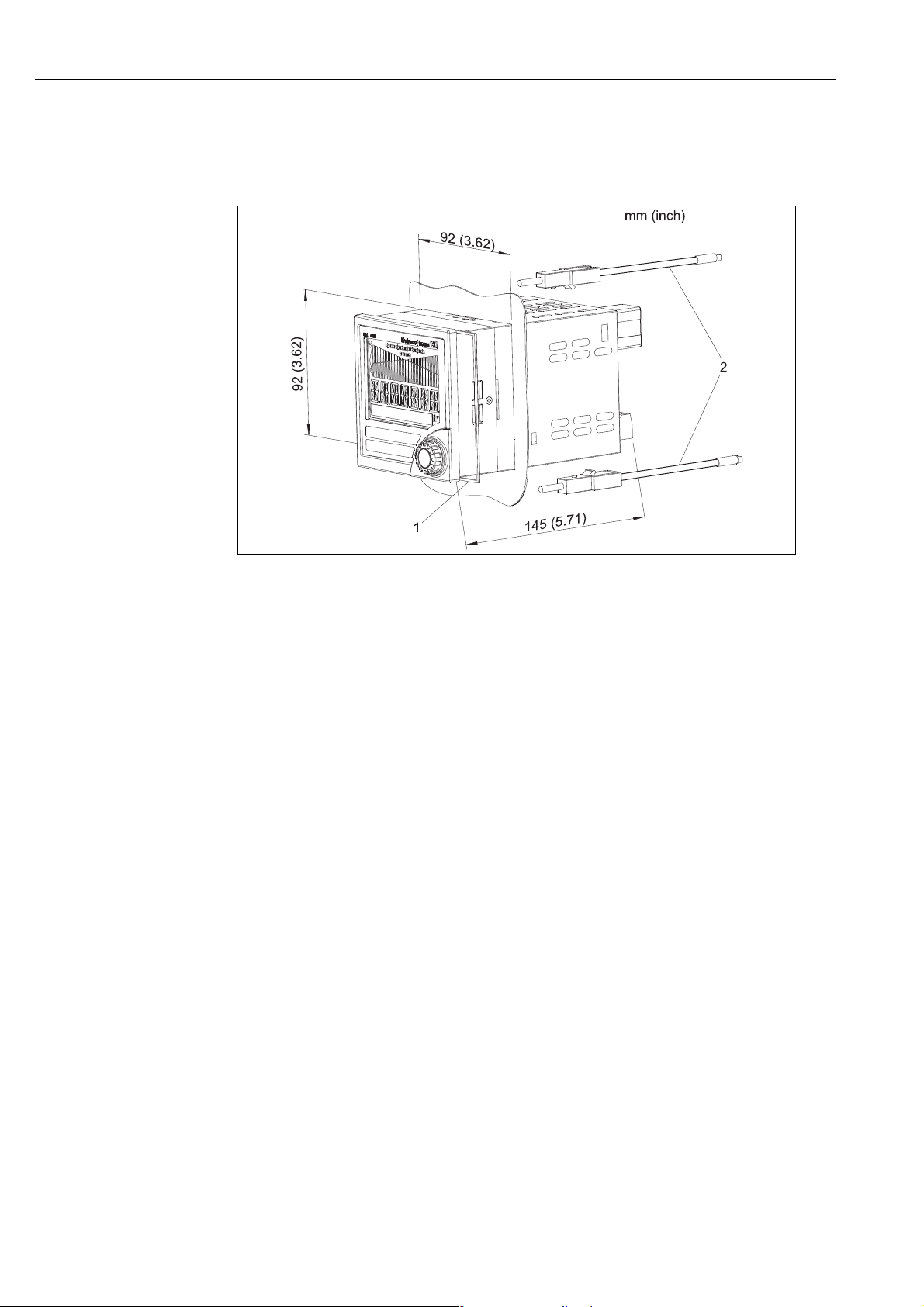

G09-RIA452xx-17-01-06-xx-001
Fig. 3: Installation in panel
1. Push the device with the sealing ring (item 1) through the panel cutout from the front.
2. Keep the device horizontal and suspend the two fixing clips (item 2) in the recesses provided.
3. Tighten the screws of the fixing clips evenly with a screwdriver.
4. Remove the protective strip from the display.
The dimensions of the process display unit are provided in the "Technical data" section of the
Operating Instructions.
RIA452 Wiring
Endress+Hauser 7
4 Wiring
4.1 Quick wiring guide

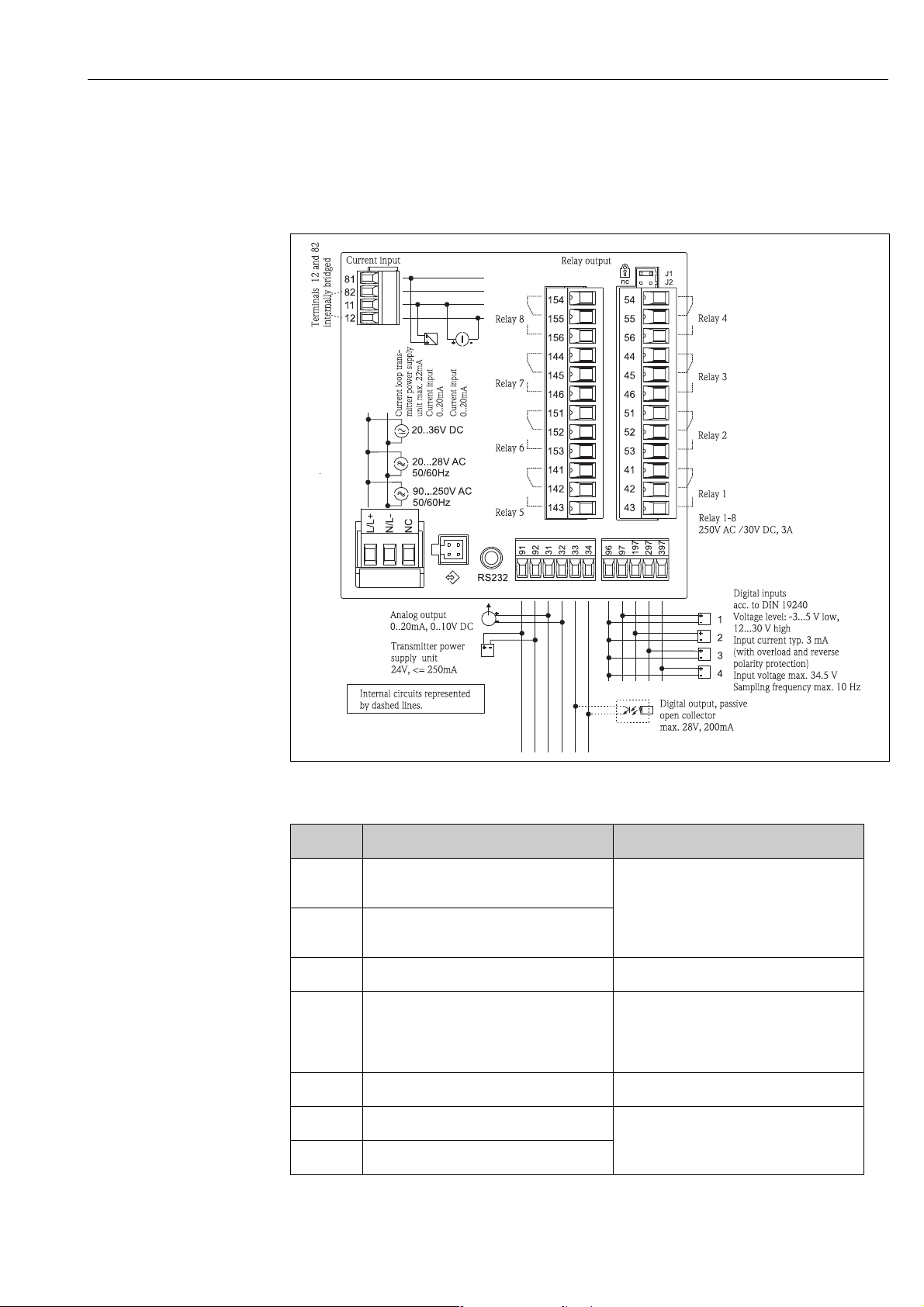

G09-RIA452ZZ-04-01-xx-en-000
Fig. 4: Terminal assignment of the process display unit (universal input →Page 9)
Terminal Terminal assignment Type
L/L+ L for AC
L+ for DC
Power supply
N/L- N for AC
L- for DC
NC Not connected
J1 Jumper for locking device operation via
hardware. If the jumper is set to J1, the
configuration cannot be modified.
!Note!
The device can always be configured with the
PC software via RS232 even if the jumper is set
to J1.
J2 Not connected
11 + 0/4 to 20 mA signal Current input
12 Signal ground (current)
Wiring RIA452
8Endress+Hauser
81 24 V sensor power supply 1 Transmitter power supply (optionally
intrinsically safe)
82 Ground, sensor power supply 1
41 Normally closed (NC)
Relay 142 Common (COM)
43 Normally open (NO)
51 Normally closed (NC)
Relay 252 Common (COM)
53 Normally open (NO)
44 Normally closed (NC)
Relay 345 Common (COM)
46 Normally open (NO)
54 Normally closed (NC)
Relay 455 Common (COM)
56 Normally open (NO)
141 Normally closed (NC)
Relay 5 (optional)142 Common (COM)
143 Normally open (NO)
151 Normally closed (NC)
Relay 6 (optional)152 Common (COM)
153 Normally open (NO)
144 Normally closed (NC)
Relay 7 (optional)145 Common (COM)
146 Normally open (NO)
154 Normally closed (NC)
Relay 8 (optional)155 Common (COM)
156 Normally open (NO)
96 Ground for digital status inputs
Digital inputs
97 + digital status input 1
197 + digital status input 2
297 + digital status input 3
397 + digital status input 4
Terminal Terminal assignment Type
RIA452 Wiring
Endress+Hauser 9
Universal input option
The device can be optionally equipped with a universal input instead of a current input.

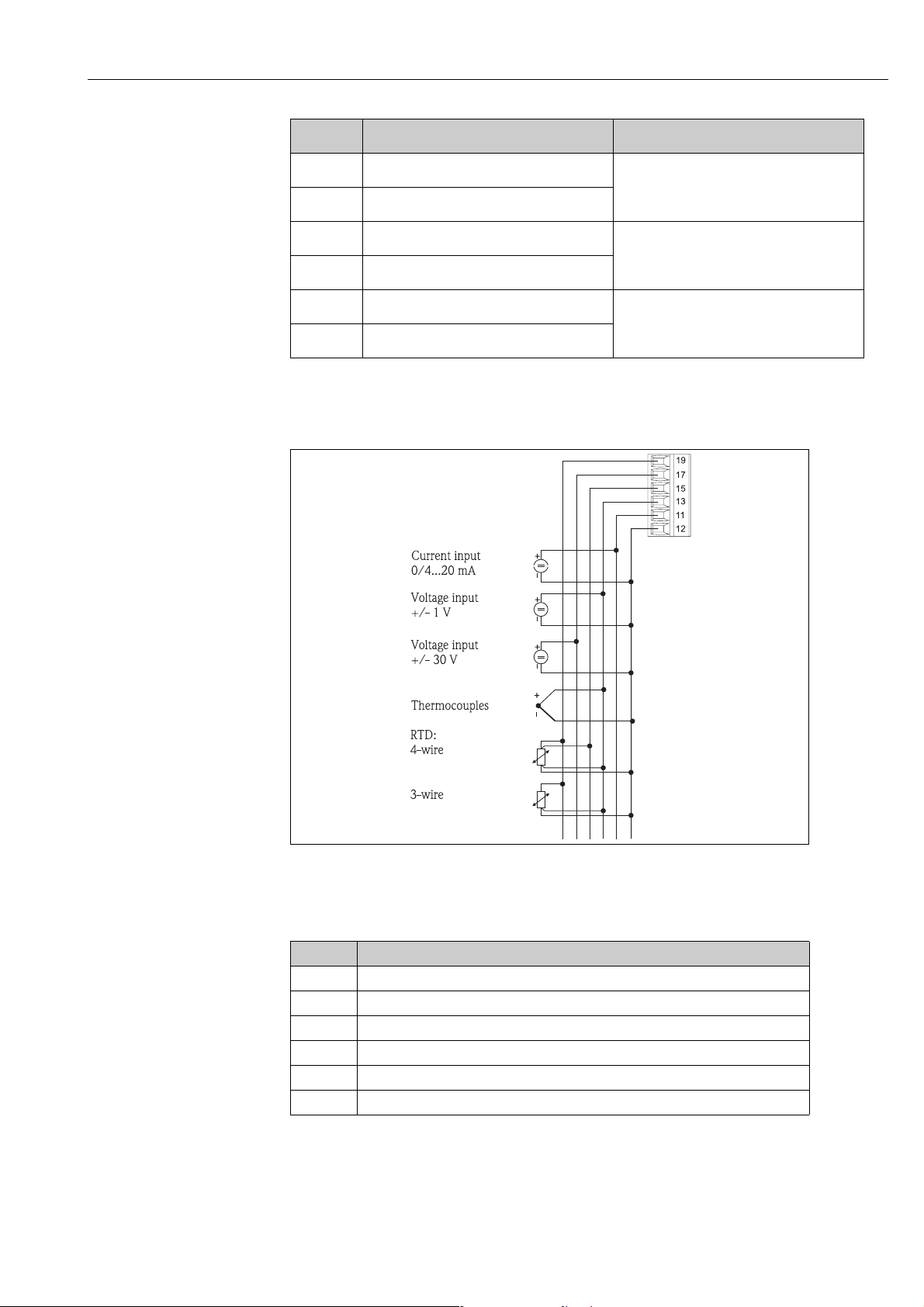

G09-RIA452xx-04-10-xx-en-002
Fig. 5: Universal input terminal assignment
Terminal assignment
31 + analog output
Analog output (optional)
32 Ground, analog output
33 + digital output
Digital output (optional)
34 Ground, digital output
91 24 V sensor power supply 2
Transmitter power supply
92 Ground, sensor power supply 2
Terminal Terminal assignment Type
Terminal Terminal assignment
11 + 0/4 to 20 mA signal
12 Signal ground (current, voltage, temperature)
13 + 1 V, + thermocouples, - resistance thermometer signal (3/4 wire)
15 + resistance thermometer signal (4-wire)
17 + 30 V
19 + resistance thermometer power supply (3-wire/4-wire)
Wiring RIA452
10 Endress+Hauser
4.2 Connecting the device
"Caution!
Do not install or wire the device when it is connected to the power supply. Failure to comply with
this precaution can result in irreparable damage to the electronics.
4.2.1 Connecting the power supply
"Caution!
• Before wiring the device, ensure that the supply voltage corresponds to the specification on the
nameplate.
• For the 90 to 250 V AC version (power supply connection), a switch marked as a separator, as
well as an overvoltage organ (rated current ≤10 A), must be fitted in the supply line near the
device (easy to reach).

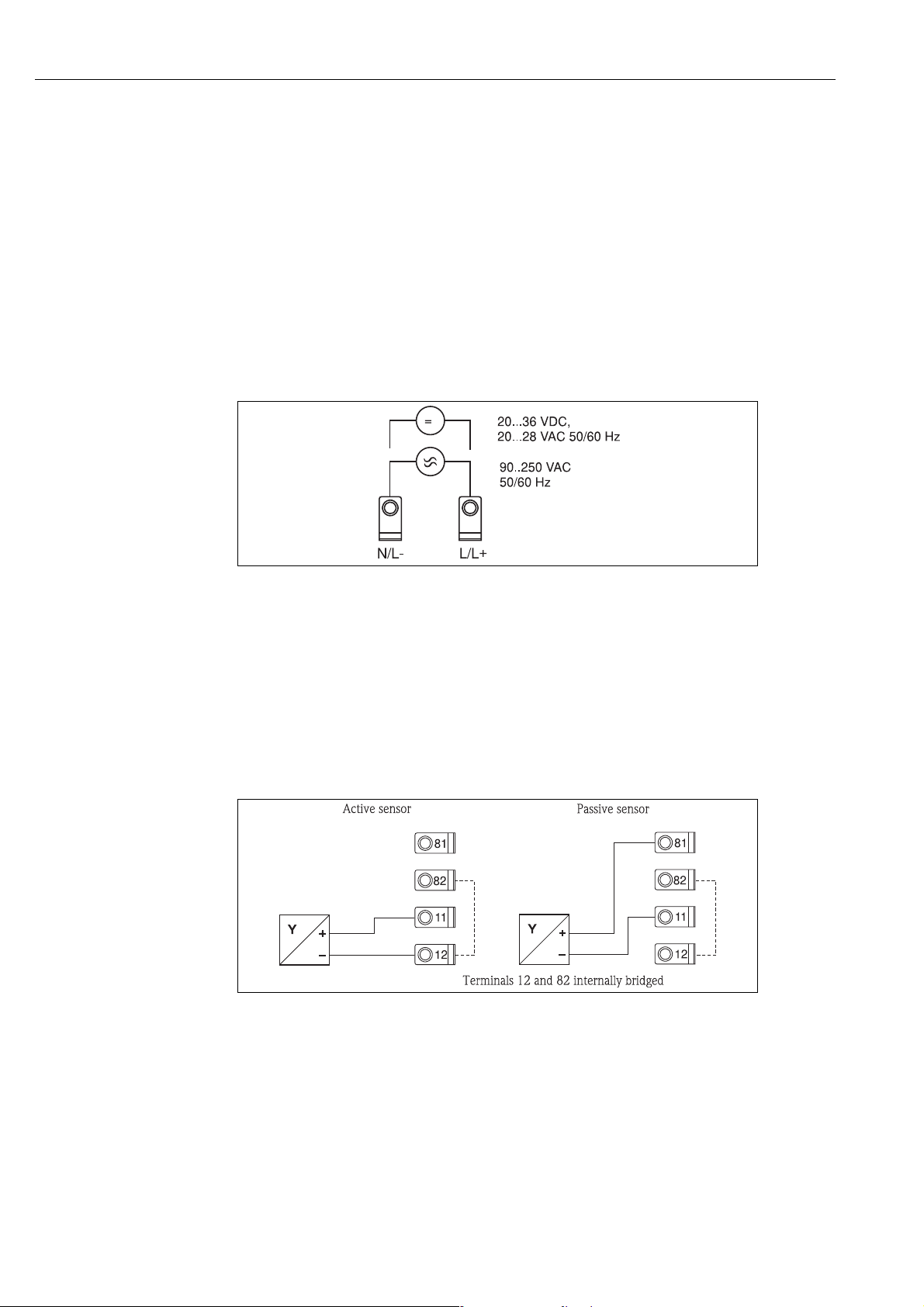

G09-RIA452xx-04-10-xx-xx-000
Fig. 6: Connecting the power supply
4.2.2 Connecting external sensors
!Note!
Active and passive sensors with analog, TC, resistance and RTD sensors can be attached to the
device.
Depending on the type of signal of the sensor in question, the terminals can be freely selected.
Current input 0/4 to 20 mA
G09-RIA452xx-04-10-xx-en-001
Fig. 7: Connection of the two-wire sensor to the current input 0/4 to 20 mA
