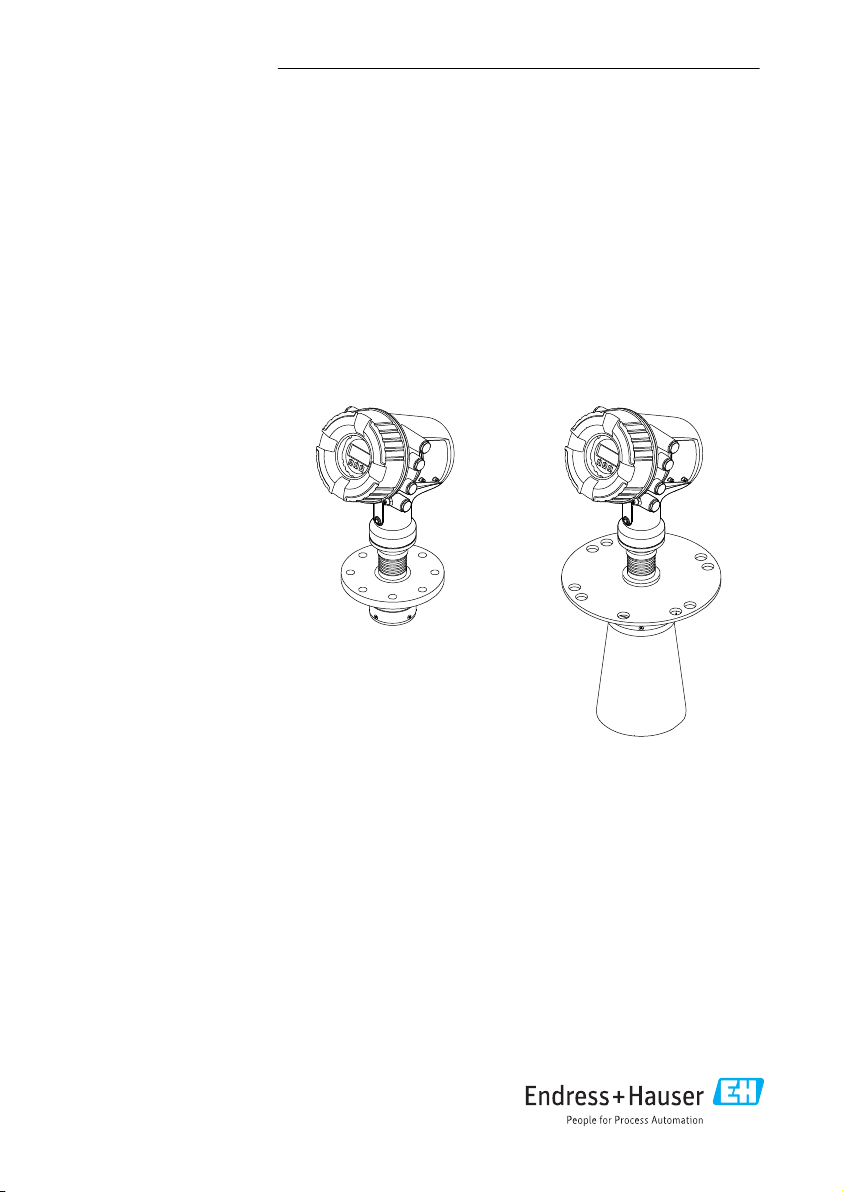

Brief Operating Instructions

Micropilot NMR84

Tank Gauging

These Instructions are Brief Operating Instructions; they are

not a substitute for the Operating Instructions pertaining to

the device.

Detailed information about the device can be found in the

Operating Instructions and the other documentation:

Available for all device versions via:

• Internet: www.endress.com/deviceviewer

• Smart phone/tablet: Endress+Hauser Operations App

KA01197G/00/EN/04.20

71497773

2020-09-22

Micropilot NMR84

2 Endress+Hauser

Order code:

Ext. ord. cd.:

Ser. no.:

www.endress.com/deviceviewer Endress+Hauser

Operations App

XXXXXXXXXXXX

XXXXX-XXXXXX

XXX.XXXX.XX

Serial number

A0023555

Micropilot NMR84 Table of contents

Endress+Hauser 3

Table of contents

1 About this document .............................................................. 3

1.1 Document conventions .................................................................. 3

1.2 Documentation ........................................................................ 6

2 Basic safety instructions .......................................................... 7

2.1 Requirements for the personnel ............................................................ 7

2.2 Designated use ........................................................................ 7

2.3 Workplace safety ...................................................................... 8

2.4 Operational safety ......................................................................8

2.5 Product safety ......................................................................... 8

3 Product description ............................................................... 9

3.1 Product design ........................................................................ 9

4 Incoming acceptance and product identification ................................... 9

4.1 Incoming acceptance ................................................................... 9

4.2 Product identification .................................................................. 10

4.3 Storage and transport .................................................................. 10

5 Installation ...................................................................... 11

5.1 Installation conditions .................................................................. 11

6 Electrical connection ............................................................ 13

6.1 Terminal assignment .................................................................. 13

6.2 Connecting requirements ............................................................... 29

6.3 Ensuring the degree of protection ......................................................... 30

7 Commissioning .................................................................. 31

7.1 Operating methods .................................................................... 31

7.2 Terms related to tank measurement ....................................................... 34

7.3 Initial settings ........................................................................ 35

7.4 Configuration of the radar measurement .................................................... 37

7.5 Configuration of the inputs .............................................................. 38

7.6 Linking measured values to tank variables ................................................... 46

7.7 Configuration of the limit evaluation ....................................................... 47

7.8 Configuration of the signal output ......................................................... 49

1 About this document

1.1 Document conventions

1.1.1 Safety symbols

DANGER

This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in

serious or fatal injury.

WARNING

This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in

serious or fatal injury.

About this document Micropilot NMR84

4 Endress+Hauser

CAUTION

This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in

minor or medium injury.

NOTICE

This symbol contains information on procedures and other facts which do not result in

personal injury.

1.1.2 Electrical symbols

Alternating current

Direct current and alternating current

Direct current

Ground connection

A grounded terminal which, as far as the operator is concerned, is grounded via a grounding

system.

Protective earth (PE)

Ground terminals that must be connected to ground prior to establishing any other

connections.

The ground terminals are located on the interior and exterior of the device:

• Interior ground terminal: protective earth is connected to the mains supply.

• Exterior ground terminal: device is connected to the plant grounding system.

1.1.3 Tool symbols

Phillips head screwdriver

Flat blade screwdriver

Torx screwdriver

Allen key

Open-ended wrench

1.1.4 Symbols for certain types of information and graphics

Permitted

Procedures, processes or actions that are permitted

Micropilot NMR84 About this document

Endress+Hauser 5

Preferred

Procedures, processes or actions that are preferred

Forbidden

Procedures, processes or actions that are forbidden

Tip

Indicates additional information

Reference to documentation

Reference to graphic

Notice or individual step to be observed

Series of steps

Result of a step

Operation via operating tool

Write-protected parameter

1, 2, 3, ...

Item numbers

A, B, C, ...

Views

Safety instructions

Observe the safety instructions contained in the associated Operating Instructions

About this document Micropilot NMR84

6 Endress+Hauser

1.2 Documentation

The following documentation types are available in the Downloads area of the Endress

+Hauser website (www.endress.com/downloads):

For an overview of the scope of the associated Technical Documentation, refer to the

following:

•W@M Device Viewer (www.endress.com/deviceviewer): Enter the serial number from

nameplate

•Endress+Hauser Operations App: Enter the serial number from the nameplate or scan

the 2D matrix code (QR code) on the nameplate

1.2.1 Technical Information (TI)

Planning aid

The document contains all the technical data on the device and provides an overview of the

accessories and other products that can be ordered for the device.

1.2.2 Brief Operating Instructions (KA)

Guide that takes you quickly to the 1st measured value

The Brief Operating Instructions contain all the essential information from incoming

acceptance to initial commissioning.

1.2.3 Operating Instructions (BA)

The Operating Instructions contain all the information that is required in various phases of

the life cycle of the device: from product identification, incoming acceptance and storage, to

mounting, connection, operation and commissioning through to troubleshooting,

maintenance and disposal.

It also contains a detailed explanation of each individual parameter in the operating menu

(except the Expert menu). The description is aimed at those who work with the device over

the entire life cycle and perform specific configurations.

1.2.4 Description of Device Parameters (GP)

The Description of Device Parameters provides a detailed explanation of each individual

parameter in the 2nd part of the operating menu: the Expert menu. It contains all the device

parameters and allows direct access to the parameters by entering a specific code. The

description is aimed at those who work with the device over the entire life cycle and perform

specific configurations.

1.2.5 Safety Instructions (XA)

Depending on the approval, the following Safety Instructions (XA) are supplied with the

device. They are an integral part of the Operating Instructions.

The nameplate indicates the Safety Instructions (XA) that are relevant to the device.

1.2.6 Installation instructions (EA)

Installation Instruction are used to replace a faulty unit with a functioning unit of the same

type.

Micropilot NMR84 Basic safety instructions

Endress+Hauser 7

2 Basic safety instructions

2.1 Requirements for the personnel

The personnel must fulfill the following requirements for its tasks:

‣Trained, qualified specialists must have a relevant qualification for this specific function

and task.

‣Are authorized by the plant owner/operator.

‣Are familiar with federal/national regulations.

‣Before starting work, read and understand the instructions in the manual and

supplementary documentation as well as the certificates (depending on the application).

‣Follow instructions and comply with basic conditions.

2.2 Designated use

Application and measured materials

The measuring device described in these Operating Instructions is intended for the

continuous, contact-less level measurement of liquids. The device must be installed in metallic

stilling wells. Operation is completely harmless to humans and animals.

Depending on the version ordered, the measuring device can also measure potentially

explosive, flammable, poisonous and oxidizing media.

Measuring devices for use in hazardous areas, in hygienic applications or in applications

where there is an increased risk due to process pressure, are labeled accordingly on the

nameplate.

To ensure that the measuring device remains in proper condition for the operation time:

‣Only use the measuring device in full compliance with the data on the nameplate and the

general conditions listed in the Operating Instructions and supplementary documentation.

‣Check the nameplate to verify if the device ordered can be put to its intended use in the

approval-related area (e.g. explosion protection, pressure vessel safety).

‣Use the measuring device only for media against which the process-wetted materials are

adequately resistant.

‣If the measuring device is not operated at atmospheric temperature, compliance with the

relevant basic conditions specified in the associated device documentation is absolutely

essential.

‣Protect the measuring device permanently against corrosion from environmental

influences.

‣Observe the limit values in the "Technical Information".

The manufacturer is not liable for damage caused by improper or non-designated use.

Residual risk

During operation the sensor may assume a temperature near the temperature of the

measured material.

Danger of burns due to heated surfaces!

‣For high process temperatures: Install protection against contact in order to prevent burns.

Basic safety instructions Micropilot NMR84

8 Endress+Hauser

2.3 Workplace safety

For work on and with the device:

‣Wear the required personal protective equipment according to federal/national

regulations.

2.4 Operational safety

Risk of injury.

‣Operate the device in proper technical condition and fail-safe condition only.

‣The operator is responsible for interference-free operation of the device.

Conversions to the device

Unauthorized modifications to the device are not permitted and can lead to unforeseeable

dangers.

‣If, despite this, modifications are required, consult with the manufacturer.

Repair

To ensure continued operational safety and reliability,

‣Carry out repairs on the device only if they are expressly permitted.

‣Observe federal/national regulations pertaining to repair of an electrical device.

‣Use original spare parts and accessories from the manufacturer only.

Hazardous area

To eliminate a danger for persons or for the facility when the device is used in the hazardous

area (e.g. explosion protection, pressure vessel safety):

‣Based on the nameplate, check whether the ordered device is permitted for the intended

use in the hazardous area.

‣Observe the specifications in the separate supplementary documentation that is an integral

part of these Instructions.

2.5 Product safety

This measuring device is designed in accordance with good engineering practice to meet state-

of-the-art safety requirements, has been tested, and left the factory in a condition in which it

is safe to operate. It meets general safety standards and legal requirements.

NOTICE

Loss of degree of protection by opening of the device in humid environments

‣If the device is opened in a humid environment, the degree of protection indicated on the

nameplate is no longer valid. This may also impair the safe operation of the device.

2.5.1 CE mark

The measuring system meets the legal requirements of the applicable EC guidelines. These are

listed in the corresponding EC Declaration of Conformity together with the standards applied.

Endress+Hauser confirms successful testing of the device by affixing to it the CE mark.

Micropilot NMR84 Product description

Endress+Hauser 9

3 Product description

3.1 Product design

1 1

2 2

A0027766

 1 Design of Micropilot NMR84

1 Electronics housing

2 Display and operating module (can be operated without opening the cover)

3 Process connection (flange)

4 Planar antenna

5 Antenna extension (for antennas ≥ 200 mm (8 in))

4 Incoming acceptance and product identification

4.1 Incoming acceptance

Upon receipt of the goods check the following:

• Are the order codes on the delivery note and the product sticker identical?

• Are the goods undamaged?

• Do the nameplate data match the ordering information on the delivery note?

• If required (see nameplate): Are the Safety Instructions (XA) enclosed?

If one of these conditions is not satisfied, contact your Endress+Hauser Sales Center.

Incoming acceptance and product identification Micropilot NMR84

10 Endress+Hauser

4.2 Product identification

The following options are available for identification of the measuring device:

• Nameplate specifications

• Extended order code with breakdown of the device features on the delivery note

• Enter serial numbers from nameplates in W@M Device Viewer

( www.endress.com/deviceviewer ): All information about the measuring device is

displayed.

• Enter the serial number from the nameplates into the Endress+Hauser Operations App or

scan the 2-D matrix code (QR code) on the nameplate with the Endress+Hauser Operations

App: all the information for the measuring device is displayed.

For an overview of the scope of the associated Technical Documentation, refer to the

following:

• The W@M Device Viewer: Enter the serial number from the nameplate

(www.endress.com/deviceviewer)

• The Endress+Hauser Operations App: Enter the serial number from the nameplate or scan

the 2-D matrix code (QR code) on the nameplate.

4.2.1 Manufacturer address

Endress+Hauser SE+Co. KG

Hauptstraße 1

79689 Maulburg, Germany

Address of the manufacturing plant: See nameplate.

4.3 Storage and transport

4.3.1 Storage conditions

• Storage temperature: –50 to +80 °C (–58 to +176 °F)

• Store the device in its original packaging.

4.3.2 Transport

NOTICE

Housing or antenna may be damaged or break away.

Risk of injury

‣Transport the measuring device to the measuring point in its original packaging or at the

process connection.

‣Do not fasten lifting devices (hoisting slings, lifting eyes etc.) at the housing or the antenna

but at the process connection. Take into account the mass center of the device in order to

avoid unintended tilting.

‣Comply with the safety instructions, transport conditions for devices over 18kg (39.6lbs)

(IEC61010).

Otros manuales para Micropilot NMR84

Tabla de contenidos

Otros manuales de Instrumento de medición de Endress+Hauser

Endress+Hauser

Endress+Hauser FQG60 Manual del operador

Endress+Hauser

Endress+Hauser Deltapilot M FMB51 Especificaciones técnicas

Endress+Hauser

Endress+Hauser FlowFit P CPA 240 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar S PMD75 Especificaciones técnicas

Endress+Hauser

Endress+Hauser Proline Promass 83 Manual de usuario

Endress+Hauser

Endress+Hauser Deltapilot S FMB70 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag L 800 Especificaciones técnicas

Endress+Hauser

Endress+Hauser Proline Cubemass C 100 PROFIBUS DP Manual de usuario

Endress+Hauser

Endress+Hauser Levelflex FMP54 Instrucciones de instalación

Endress+Hauser

Endress+Hauser Proline Promass 80E Manual

Endress+Hauser

Endress+Hauser Deltabar FMD72 Especificaciones técnicas

Endress+Hauser

Endress+Hauser Memocheck CYP02D Manual de usuario

Endress+Hauser

Endress+Hauser Memocheck Sim CYP03D Manual de usuario

Endress+Hauser

Endress+Hauser Liquiline System CA80AM Manual de usuario

Endress+Hauser

Endress+Hauser Smartec S CLD132 Manual de usuario

Endress+Hauser

Endress+Hauser ria45 Manual de usuario

Endress+Hauser

Endress+Hauser Levelflex FMP51 Manual de usuario

Endress+Hauser

Endress+Hauser Prosonic S FMU90 Manual de usuario

Endress+Hauser

Endress+Hauser Deltapilot S FMB70 Manual de usuario

Endress+Hauser

Endress+Hauser StamoLys CA 71 CR Manual de usuario

Endress+Hauser

Endress+Hauser Promonitor NRF560 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Cubemass C 500 Manual

Endress+Hauser

Endress+Hauser Liquiphant M Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag H 100 EtherNet/IP Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario

Acterna

Acterna MS1400 Manual de usuario

R&S

R&S ZPH Manual de usuario
