Endress+Hauser Micropilot M FMR231 Manual de usuario

BA226F/00/en/08.06

52009947

Valid as of software version:

01.04.00

Operating Instructions

Micropilot M FMR231

Level-Radar

Brief operating instructions Micropilot M FMR231 with PROFIBUS PA

2Endress+Hauser

Brief operating instructions

L00-FMR2xxxx-19-00-00-en-039

!Note!

This operating manual explains the installation and initial start-up for the level transmitter. All

functions that are required for a typical measuring task are taken into account here. In addition, the

Micropilot M provides many other functions that are not included in this operating manual, such as

optimising the measuring point and converting the measured values.

An overview of all device functions can be found on Page 98.

The operating manual BA 221F/00/en "Description of the instrument functions for Micropilot M"

provides an extensive description of all device functions, which can be found on the enclosed

CD-ROM.

… …

KA159F/00/a2/08.06

52006292

… …

Micropilot M FMR230, FMR231 - Brief operating instructions

- dome

ceiling

- horizontal

cyl.

- bypass

…

- unknown

- DC: <1.9

- DC: 1.9 … 4

-DC:4…10

- DC: >10

- standard

- calm

surface

- add. agitator

…

input E

(see sketch)

input F

(see sketch)

only for

bypass +

stilling well

-ok

- too small

- too big

- unknown

- manual

displayed

(see sketch)

D and L are confirm

or specify

range

suggestion

000

measured value

Group

selection

basic setup

safety settings

system

parameter

display

envelope curve

linearisation

extended calibr.

output (HART, FF)

profibus param.(PA)

092

language

diagnostics

0A0

present

error

002

tank shape

004

process

cond.

005

empty

calibr.

006

full

calibr.

007

pipe

diameter

008

dist./

meas value

051

check

distance

003

medium

cond.

052

range of

mapping

053

start

mapping

008

dist./

meas value

flange:

reference point

of measurement

- envel. curve

- incl. FAC

- incl. cust. map

- single curve

- cyclic

= 100: unlocked

100: locked

= 2457: unlocked

2457: locked

0E1

plot settings

0E2

recording

curve

0A1

error

0A4

unlock

parameter

threaded connection:

reference point of

measurement

HART

PA, FF

}

Contrast: +or +

Micropilot M FMR231 with PROFIBUS PA Table of contents

Endress+Hauser 3

Table of contents

1 Safety instructions . . . . . . . . . . . . . . . . 4

1.1 Designated use . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.2 Installation, commissioning and operation . . . . . . . . 4

1.3 Operational safety . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.4 Notes on safety conventions and symbols . . . . . . . . . 5

2 Identification . . . . . . . . . . . . . . . . . . . . 6

2.1 Device designation . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.2 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.3 Certificates and approvals . . . . . . . . . . . . . . . . . . . . 9

2.4 Registered trademarks . . . . . . . . . . . . . . . . . . . . . . . 9

3 Mounting . . . . . . . . . . . . . . . . . . . . . . 10

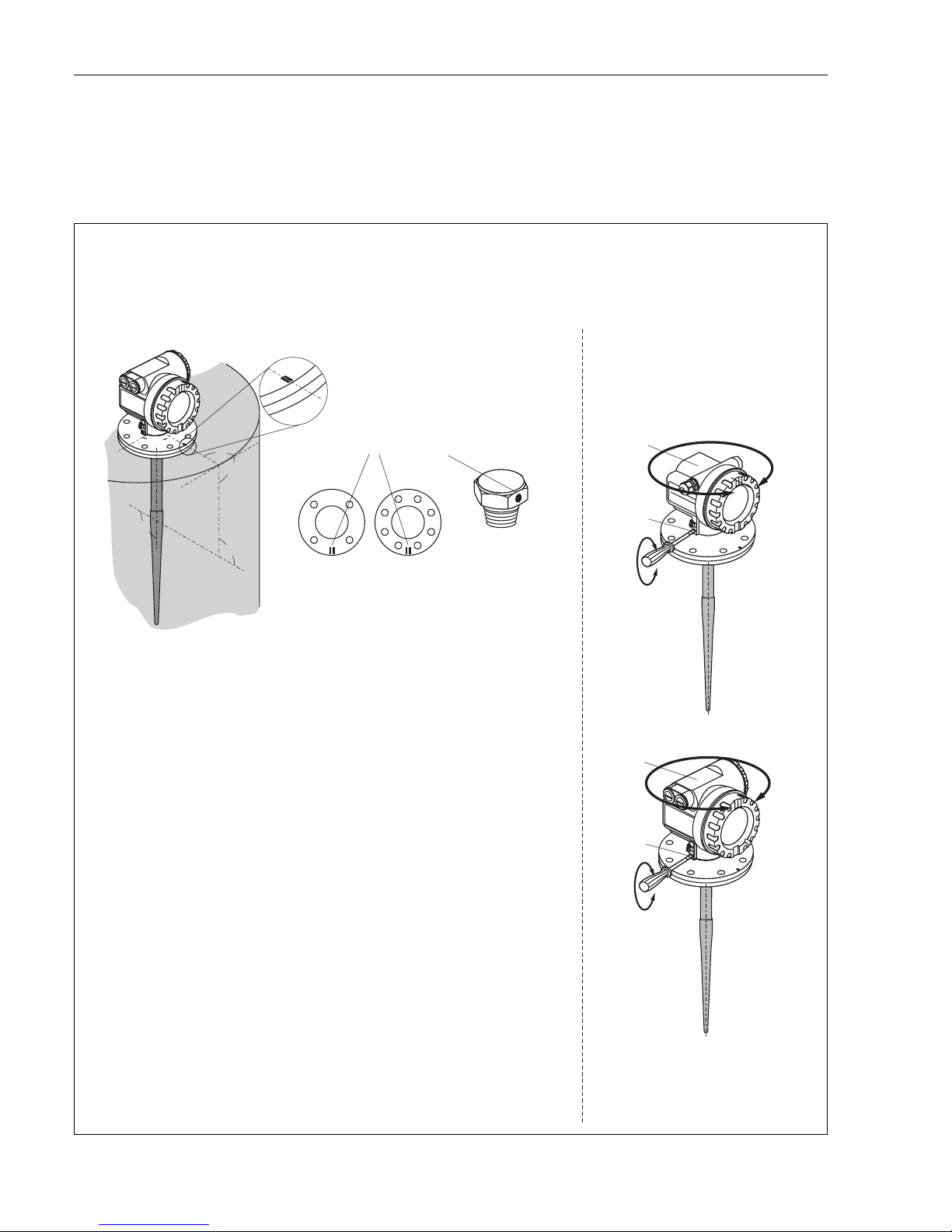

3.1 Quick installation guide . . . . . . . . . . . . . . . . . . . . . 10

3.2 Incoming acceptance, transport, storage . . . . . . . . . 11

3.3 Installation conditions . . . . . . . . . . . . . . . . . . . . . . 12

3.4 Installation instructions . . . . . . . . . . . . . . . . . . . . . 20

3.5 Post-installation check . . . . . . . . . . . . . . . . . . . . . . 22

4 Wiring . . . . . . . . . . . . . . . . . . . . . . . . 23

4.1 Quick wiring guide . . . . . . . . . . . . . . . . . . . . . . . . 23

4.2 Connecting the measuring unit . . . . . . . . . . . . . . . 26

4.3 Recommended connection . . . . . . . . . . . . . . . . . . 27

4.4 Degree of protection . . . . . . . . . . . . . . . . . . . . . . . 27

4.5 Post-connection check . . . . . . . . . . . . . . . . . . . . . . 27

5 Operation . . . . . . . . . . . . . . . . . . . . . . 28

5.1 Quick operation guide . . . . . . . . . . . . . . . . . . . . . . 28

5.2 Display and operating elements . . . . . . . . . . . . . . . 30

5.3 Local operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

5.4 Display and acknowledging error messages . . . . . . 36

5.5 PROFIBUS PA communication . . . . . . . . . . . . . . . . 37

6 Commissioning. . . . . . . . . . . . . . . . . . 53

6.1 Function check . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

6.2 Switching on the measuring device . . . . . . . . . . . . 53

6.3 Basic Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

6.4 Basic Setup with the VU 331 . . . . . . . . . . . . . . . . . 56

6.5 Basic Setup with the Endress+Hauser oprating

program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

7 Maintenance. . . . . . . . . . . . . . . . . . . . 72

8 Accessories. . . . . . . . . . . . . . . . . . . . . 73

9 Trouble-shooting . . . . . . . . . . . . . . . . 76

9.1 Trouble-shooting instructions . . . . . . . . . . . . . . . . 76

9.2 System error messages . . . . . . . . . . . . . . . . . . . . . . 77

9.3 Application errors . . . . . . . . . . . . . . . . . . . . . . . . . 79

9.4 Orientation of the Micropilot . . . . . . . . . . . . . . . . . 81

9.5 Spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

9.6 Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

9.7 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

9.8 Software history . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

9.9 Contact addresses of Endress+Hauser . . . . . . . . . . . 90

10 Technical data . . . . . . . . . . . . . . . . . . . 91

10.1 Additional technical data . . . . . . . . . . . . . . . . . . . . 91

11 Appendix. . . . . . . . . . . . . . . . . . . . . . . 98

11.1 Operating menu PA (display modul), ToF Tool . . . . 98

11.2 Description of functions . . . . . . . . . . . . . . . . . . . . 100

11.3 Function and system design . . . . . . . . . . . . . . . . . 101

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Safety instructions Micropilot M FMR231 with PROFIBUS PA

4Endress+Hauser

1 Safety instructions

1.1 Designated use

The Micropilot M FMR 231 is a compact radar level transmitter for the continuous, contactless

measurement of liquids, pastes and sludge. The device can also be freely mounted outside closed

metal vessels because of its operating frequency of about 6 GHz and a maximum radiated pulsed

energy of 1mW (average power output 1 µW). Operation is completely harmless to humans and

animals.

1.2 Installation, commissioning and operation

The Micropilot M has been designed to operate safely in accordance with current technical, safety

and EU standards. If installed incorrectly or used for applications for which it is not intended,

however, it is possible that application-related dangers may arise, e.g. product overflow due to

incorrect installation or calibration. For this reason, the instrument must be installed, connected,

operated and maintained according to the instructions in this manual: personnel must be authorised

and suitably qualified. The manual must have been read and understood, and the instructions

followed. Modifications and repairs to the device are permissible only when they are expressly

approved in the manual.

1.3 Operational safety

1.3.1 Hazardous areas

Measuring systems for use in hazardous environments are accompanied by separate "Ex

documentation", which is an integral part of this Operating Manual. Strict compliance with the

installation instructions and ratings as stated in this supplementary documentation is mandatory.

• Ensure that all personnel are suitably qualified.

• Observe the specifications in the certificate as well as national and local standards and regulations.

1.3.2 FCC approval

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause

undesired operation.

"Caution!

Changes or modifications not expressly approved by the part responsible for

compliance could void the user’s authority to operate the equipment.

Micropilot M FMR231 with PROFIBUS PA Safety instructions

Endress+Hauser 5

1.4 Notes on safety conventions and symbols

In order to highlight safety-relevant or alternative operating procedures in the manual, the following

conventions have been used, each indicated by a corresponding symbol in the margin.

Safety conventions

#Warning!

A warning highlights actions or procedures which, if not performed correctly, will lead to personal

injury, a safety hazard or destruction of the instrument

"Caution!

Caution highlights actions or procedures which, if not performed correctly, may lead to personal

injury or incorrect functioning of the instrument

!Note!

A note highlights actions or procedures which, if not performed correctly, may indirectly affect

operation or may lead to an instrument response which is not planned

Explosion protection

0Device certified for use in explosion hazardous area

If the device has this symbol embossed on its name plate it can be installed in an explosion hazardous

area

-Explosion hazardous area

Symbol used in drawings to indicate explosion hazardous areas. Devices located in and wiring

entering areas with the designation “explosion hazardous areas” must conform with the stated type

of protection.

.Safe area (non-explosion hazardous area)

Symbol used in drawings to indicate, if necessary, non-explosion hazardous areas. Devices located in

safe areas still require a certificate if their outputs run into explosion hazardous areas

Electrical symbols

%Direct voltage

A terminal to which or from which a direct current or voltage may be applied or supplied

&Alternating voltage

A terminal to which or from which an alternating (sine-wave) current or voltage may be applied or

supplied

)Grounded terminal

A grounded terminal, which as far as the operator is concerned, is already grounded by means of an

earth grounding system

*Protective grounding (earth) terminal

A terminal which must be connected to earth ground prior to making any other connection to the

equipment

+Equipotential connection (earth bonding)

A connection made to the plant grounding system which may be of type e.g. neutral star or

equipotential line according to national or company practice

Temperature resistance of the connection cables

States, that the connection cables must be resistant to a temperature of at least 85 °C.

t >85°C

Identification Micropilot M FMR231 with PROFIBUS PA

6Endress+Hauser

2 Identification

2.1 Device designation

2.1.1 Nameplate

The following technical data are given on the instrument nameplate:

L00-FMR2xxxx-18-00-00-en-002

Fig. 1: Information on the nameplate of the Micropilot M with PROFIBUS PA (example)

2.1.2 Ordering structure

Ordering structure Micropilot M FMR 231

10 Approval:

A Non-hazardous area

F Non-hazardous area, WHG

1 ATEX II 1/2 G EEx ia IIC T6, IECEx Zone 0/1

2 ATEX II 1/2 G EEx ia IIC T6, XA, IECEx Zone 0/1

Note safety instruction (XA) (electrostatic charging)!

6 ATEX II 1/2 G EEx ia IIC T6, WHG, IECEx Zone 0/1

7 ATEX II 1/2 G EEx ia IIC T6, WHG, XA, IECEx Zone 0/1

Note safety instruction (XA) (electrostatic charging)!

3 ATEX II 1/2 G EEx em [ia] IIC T6, IECEx Zone 0/1

8 ATEX II 1/2 G EEx em [ia] IIC T6, WHG, IECEx Zone 0/1

4 ATEX II 1/2 G EEx d [ia] IIC T, IECEx Zone 0/16

G ATEX II 3 G EEx nA II T6, XA,

fully insutalted antenna: Note safety instruction (XA) (electrostatic charging)!

H ATEX II 1/2G EEx ia IIC T6, ATEX II 3D, XA,

fully insutalted antenna: Note safety instruction (XA) (electrostatic charging)!

S FM IS - Cl.I Div.1 Gr. A-D

T FM XP - Cl.I Div.1 Group A-D

N CSA General Purpose

U CSA IS - Cl.I Div.1 Group A-D

V CSA XP - Cl.I Div.1 Group A-D

K TIIS EEx ia IIC T4

L TIIS EEx d [ia] IIC T4

M TIIS EEx d [ia] IIC T1

I NEPSI Ex ia IIC T6

J NEPSI Ex d [ia] IIC T6

R NEPSI Ex nAL IIC T6

Y Special version

FMR 231- Product designation (part 2)

Micropilot M FMR231 with PROFIBUS PA Identification

Endress+Hauser 7

Ordering structure Micropilot M FMR 231 (continued)

20 Antenna; Inactive length:

A PPS antistatic 360mm/14", Viton, 316L; nozzle height max 100mm/4"

B PPS antistatic 510mm/20", Viton, 316L; nozzle height max 250mm/10"

E PTFE 390mm/15", fully insulated; nozzle height max 100mm/4"

F PTFE 540mm/21", fully insulated; nozzle height max 250mm/10"

H PTFE antistatic 390mm/15", fully insul.; nozzle height max 100mm/4"

J PTFE antistatic 540mm/21", fully insul.; nozzle height max 250mm/10"

Y Special version

30 Process connection:

GGJ 1½" BSPT (R 1½")

GGS 1½" BSPT (R 1½")

GNJ NPT 1½"

GNS NPT 1½"

TEJ Tri-Clamp ISO2852 DN40-51 (2"), 316L

TLJ Tri-Clamp ISO2852 DN70-76.1 (3"), 316L

MFJ DIN11851 DN50 PN40, 316L

HFJ DIN11864-1 A DN50 Tube DIN11850, 316L

BFJ DN50 PN10/16 A, 316L flange EN1092-1 (DIN2527 B)

CFJ DN50 PN10/16 B1, 316L flange EN1092-1 (DIN2527 C)

CFK DN50 PN10/16, PTFE>316L flange EN1092-1 (DIN2527)

BMJ DN80 PN10/16 A, 316L flange EN1092-1 (DIN2527 B)

CMJ DN80 PN10/16 B1, 316L flange EN1092-1 (DIN2527 C)

BNJ DN80 PN25/40 A, 316L flange EN1092-1 (DIN2527 B)

CNJ DN80 PN25/40 B1, 316L flange EN1092-1 (DIN2527 C)

CMK DN80 PN10/16, PTFE>316L flange EN1092-1 (DIN2527)

BQJ DN100 PN10/16 A, 316L flange EN1092-1 (DIN2527 B)

CQJ DN100 PN10/16 B1, 316L flange EN1092-1 (DIN2527 C)

CQK DN100 PN10/16, PTFE>316L flange EN1092-1 (DIN2527)

BWJ DN150 PN10/16 A, 316L flange EN1092-1 (DIN2527 B)

CWJ DN150 PN10/16 B1, 316L flange EN1092-1 (DIN2527 C)

CWK DN150 PN10/16, PTFE(black)>316L flange EN1092-1 (DIN2527)

PTFE(black) = conductive cladding

AEJ 2" 150lbs RF, 316/316L flange ANSI B16.5

AEK 2" 150lbs, PTFE>316/316L flange ANSI B16.5

ALJ 3" 150lbs RF, 316/316L flange ANSI B16.5

AMJ 3" 300lbs RF, 316/316L flange ANSI B16.5

ALK 3" 150lbs, PTFE>316/316L flange ANSI B16.5

APJ 4" 150lbs RF, 316/316L flange ANSI B16.5

AQJ 4" 300lbs RF, 316/316L flange ANSI B16.5

APK 4" 150lbs, PTFE>316/316L flange ANSI B16.5

AVJ 6" 150lbs RF, 316/316L flange ANSI B16.5

AVK 6" 150lbs, PTFE(black)>316/316L flange ANSI B16.5

PTFE(black) = conductive cladding

KEJ 10K 50A RF, 316L flange JIS B2220

KEK 10K 50A, PTFE>316L flange JIS B2220

KLJ 10K 80A RF, 316L flange JIS B2220

KLK 10K 80A, PTFE>316L flange JIS B2220

KPJ 10K 100A RF, 316L flange JIS B2220

KPK 10K 100A, PTFE>316L flange JIS B2220

KVJ 10K 150A RF, 316L flange JIS B2220

KVK 10K 150A, PTFE(black)>316L flange JIS B2220

PTFE(black) = conductive cladding

YY9 Special version

FMR 231- Product designation (part 1)

Identification Micropilot M FMR231 with PROFIBUS PA

8Endress+Hauser

Ordering structure Micropilot M FMR 231 (continued)

40 Output; Operation:

A 4-20mA SIL HART; 4-line display VU331, envelope curve display on site

B 4-20mA SIL HART; w/o display, via communication

K 4-20mA SIL HART; Prepared for FHX40, remote display (Accessory)

C PROFIBUS PA; 4-line display VU331, envelope curve display on site

D PROFIBUS PA; w/o display, via communication

L PROFIBUS PA; Prepared for FHX40, remote display (Accessory)

E FOUNDATION Fieldbus; 4-line display VU331, envelope curve display on site

F FOUNDATION Fieldbus; w/o display, via communication

M FOUNDATION Fieldbus; Prepared for FHX40, remote display (Accessory)

Y Special version

50 Housing:

A F12 Alu, coated IP65 NEMA4X

B F23 316L IP65 NEMA4X

C T12 Alu, coated IP65 NEMA4X, separate conn. compartment

D T12 Alu, coated IP65 NEMA4X+OVP, separate conn. compartment,

OVP=overvoltage protection

Y Special version

60 Cable entry:

2 Gland M20 (EEx d > thread M20)

3ThreadG1/2

4 Thread NPT1/2

5PlugM12

6 Plug 7/8"

9Specialversion

70 Gas-tight feed through:

ANotselected

C Selected

80 Additional option:

A Basic version

B EN10204-3.1B (316L wetted parts) Inspection certificate

S GL/ABS/NK marine certificate

Y Special version

FMR 231- Complete product designation

Micropilot M FMR231 with PROFIBUS PA Identification

Endress+Hauser 9

2.2 Scope of delivery

"Caution!

It is essential to follow the instructions concerning the unpacking, transport and storage of

measuring instruments given in the chapter "Incoming acceptance, transport, storage" on Page 11!

The scope of delivery consists of:

• Assembled instrument

• Endress+Hauser oprating program (on the enclosed CD-ROM

• Accessories (→Chap. 8)

Accompanying documentation:

• Short manual (basic setup/troubleshooting): housed in the instrument

• Operating manual (this manual)

• Approval documentation: if this is not included in the operating manual.

!Note!

The operating manual "Description of Instrument Functions" you can be found on the enclosed CD-

ROM.

2.3 Certificates and approvals

CE mark, declaration of conformity

The device is designed to meet state-of-the-art safety requirements, has been tested and left the

factory in a condition in which it is safe to operate. The device complies with the applicable

standards and regulations as listed in the EC declaration of conformity and thus complies with the

statutory requirements of the EG directives. Endress+Hauser confirms the successful testing of the

device by affixing to it the CE mark.

2.4 Registered trademarks

KALREZ®, VITON®, TEFLON®

Registered trademark of the company, E.I. Du Pont de Nemours & Co., Wilmington, USA

TRI-CLAMP®

Registered trademark of the company, Ladish & Co., Inc., Kenosha, USA

ToF®

Registered trademark of the company Endress+Hauser GmbH+Co. KG, Maulburg, Germany

PulseMaster®

Registered trademark of the company Endress+Hauser GmbH+Co. KG, Maulburg, Germany

PhaseMaster®

Registered trademark of the company Endress+Hauser GmbH+Co. KG, Maulburg, Germany

PROFIBUS®

Registered trademark of the PROFIBUS Trade Organisation, Karlsruhe, Germany

Mounting Micropilot M FMR231 with PROFIBUS PA

10 Endress+Hauser

3Mounting

3.1 Quick installation guide

L00-FMR231xx-17-00-00-en-003

90°

DN50

ANSI 2”

DN80…150

ANSI 3…6”

F12/F23 housing

T12 housing

Turn housing

Observe orientation when installing!

Installation in tank (free space):

Mark on process connector facing the nearest tank wall!

The housing can be turned 350°

in order to simplify access to the

display and the terminal compartment

Allen key

4 mm

1½” BSPT (R 1½”)

1½ NPT

mark at instrument flange

or threaded boss

Otros manuales para Micropilot M FMR231

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Instrumento de medición de Endress+Hauser

Endress+Hauser

Endress+Hauser Gammapilot M FMG60 Manual de usuario

Endress+Hauser

Endress+Hauser prowirl 77 Manual de usuario

Endress+Hauser

Endress+Hauser analytikjena SPECORD PLUS Manual de usuario

Endress+Hauser

Endress+Hauser Cerabar PMP21 Manual de usuario

Endress+Hauser

Endress+Hauser Micropilot NMR81 Especificaciones técnicas

Endress+Hauser

Endress+Hauser RID14 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Prowirl R 200 Manual de usuario

Endress+Hauser

Endress+Hauser HART Proline Promass 80 Manual de usuario

Endress+Hauser

Endress+Hauser Micropilot FMR67 Manual

Endress+Hauser

Endress+Hauser Solimotion FTR20 Manual de usuario

Endress+Hauser

Endress+Hauser EngyCal RH33 Especificaciones técnicas

Endress+Hauser

Endress+Hauser Waterpilot FMX11 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Prosonic Flow E 100 HART Manual de usuario

Endress+Hauser

Endress+Hauser LPGmass Especificaciones técnicas

Endress+Hauser

Endress+Hauser OUSAF44 Manual de usuario

Endress+Hauser

Endress+Hauser Gammapilot M FMG60 Manual de usuario

Endress+Hauser

Endress+Hauser dosimass Manual de usuario

Endress+Hauser

Endress+Hauser Gammapilot FMG50 Manual de usuario

Endress+Hauser

Endress+Hauser iTEMP TMT85 Especificaciones técnicas

Endress+Hauser

Endress+Hauser Levelflex FMP56 Manual de usuario

Endress+Hauser

Endress+Hauser dosimass Manual

Endress+Hauser

Endress+Hauser Prosonic M FMU40 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Cubemass C 100 PROFIBUS DP Manual de usuario

Endress+Hauser

Endress+Hauser Memograph M RSG40 Manual

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario

Acterna

Acterna MS1400 Manual de usuario

R&S

R&S ZPH Manual de usuario
