BA01281C/07/EN/01.13

71238090

Operating Instructions

Flowfit CUA252

Flow assembly for CUS52D turbidity sensor

Endress+Hauser

Document information

Warnings

The structure, signal words and safety colors of the signs comply with the specifications of

ANSI Z535.6 ("Product safety information in product manuals, instructions and other

collateral materials").

Symbols

Safety message structure Meaning

DANGER

Causes (/consequences)

Consequences if safety

message is not heeded

‣Corrective action

This symbol alerts you to a dangerous situation.

Failure to avoid the situation will result in a fatal or serious

injury.

WARNING

Causes (/consequences)

Consequences if safety

message is not heeded

‣Corrective action

This symbol alerts you to a dangerous situation.

Failure to avoid the situation can result in a fatal or serious

injury.

CAUTION

Causes (/consequences)

Consequences if safety

message is not heeded

‣Corrective action

This symbol alerts you to a dangerous situation.

Failure to avoid this situation can result in minor or more

serious injuries.

NOTICE

Cause/situation

Consequences if safety

message is not heeded

‣Action/note

This symbol alerts you to situations that can result in

damage to property and equipment.

Additional information, tips

Permitted or recommended

Forbidden or not recommended

Flowfit CUA252

Endress+Hauser 3

Table of contents

1 Basic safety instructions . . . . . . . . . . . . . 4

1.1 Requirements for personnel . . . . . . . . . . . . . . . . . . 4

1.2 Designated use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.3 Occupational safety . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.4 Operational safety . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.5 Product safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2 Incoming acceptance and product

identification . . . . . . . . . . . . . . . . . . . . . . 6

2.1 Incoming acceptance . . . . . . . . . . . . . . . . . . . . . . . . 6

2.2 Product identification . . . . . . . . . . . . . . . . . . . . . . . . 6

2.3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.4 Certificates and approvals . . . . . . . . . . . . . . . . . . . . 6

3 Installation . . . . . . . . . . . . . . . . . . . . . . . . 7

3.1 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

3.2 Installation conditions . . . . . . . . . . . . . . . . . . . . . . . 8

3.3 Installation instructions . . . . . . . . . . . . . . . . . . . . 10

3.4 Sensor installation . . . . . . . . . . . . . . . . . . . . . . . . 13

3.5 Post-installation check . . . . . . . . . . . . . . . . . . . . . 13

4 Commissioning. . . . . . . . . . . . . . . . . . . . 14

5 Maintenance. . . . . . . . . . . . . . . . . . . . . .15

5.1 Cleaning the assembly . . . . . . . . . . . . . . . . . . . . . 15

5.2 Cleaning the sensor . . . . . . . . . . . . . . . . . . . . . . . 15

5.3 Cleaning agent . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

5.4 Checking and replacing the seals . . . . . . . . . . . . 16

6 Repair. . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

6.1 Spare parts kits . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

6.2 Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

6.3 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

7 Accessories . . . . . . . . . . . . . . . . . . . . . . . 18

7.1 Connection accessories . . . . . . . . . . . . . . . . . . . . . 18

7.2 Bubble trap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

7.3 Wall mounting kit . . . . . . . . . . . . . . . . . . . . . . . . . 19

8 Technical data . . . . . . . . . . . . . . . . . . . . 20

8.1 Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

8.2 Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

8.3 Mechanical construction . . . . . . . . . . . . . . . . . . . 21

Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Basic safety instructions Flowfit CUA252

4Endress+Hauser

1 Basic safety instructions

1.1 Requirements for personnel

‣Installation, commissioning, operation and maintenance of the measuring system must

only be carried out by specially trained technical personnel.

‣The technical personnel must be authorized for the specified activities by the system

operator.

‣Electrical connection must only be carried out by a certified electrician.

‣Technical personnel must have read and understood these Operating Instructions and

must adhere to them.

‣Faults at the measuring point may only be rectified by authorized and specially trained

personnel.

Repairs not described in the enclosed Operating Instructions may only be carried out

directly at the manufacturer’s or by the service organization.

1.2 Designated use

The CUA252 flow assembly is designed for the installation of the CUS52D turbidity sensor.

Its main areas of application are:

• Final turbidity measurement in the outlet of waterworks

• Turbidity measurement in the inlet of waterworks

• Turbidity measurement at all stages of the process

• Turbidity measurement for filter monitoring and filter backwashing

• Turbidity measurement in drinking water networks

Any other use than the one described here compromises the safety of persons and the entire

measuring system and is therefore not permitted.

The manufacturer is not liable for damage resulting from improper or non-designated use.

1.3 Occupational safety

As the user, you are responsible for complying with the following safety conditions:

• Explosion protection guidelines (only devices approved for use in explosion hazardous

areas)

• Installation instructions

• Local prevailing standards and regulations

Electromagnetic compatibility

This device has been tested for electromagnetic compatibility in accordance with the

applicable European standards for industrial applications.

The electromagnetic compatibility indicated only applies to a device that has been connected

in accordance with the instructions in these Operating Instructions.

1.4 Operational safety

‣Before commissioning the entire measuring point, make sure all the connections are

correct. Ensure that electrical cables and hose connections are not damaged.

‣Do not operate damaged products, and secure them against unintentional

commissioning. Label and identify the damaged product as defective.

‣If faults cannot be rectified, you must take the products out of service and secure them

against unintentional commissioning.

Flowfit CUA252 Basic safety instructions

Endress+Hauser 5

1.5 Product safety

The product is designed to meet state-of-the-art safety requirements, has been tested and

left the factory in a condition in which it is safe to operate.

Relevant regulations and European standards have been observed.

Incoming acceptance and product identification Flowfit CUA252

6Endress+Hauser

2 Incoming acceptance and product

identification

2.1 Incoming acceptance

• Make sure the packaging is undamaged!

• Notify the supplier of any damage to the packaging. Keep the damaged packaging until the

matter has been settled.

• Make sure the contents are not damaged!

• Notify the supplier of any damage to the delivery contents. Keep the damaged products

until the matter has been settled.

• Check the delivery to make sure nothing is missing. Compare it against the shipping

documents and your order.

• Pack the product for storage and transportation in such a way that it is reliably protected

against impact and moisture. The original packaging offers the best protection.

Furthermore, the permitted ambient conditions must also be observed (see "Technical

data").

• If you have any questions, contact your supplier or your local sales center.

2.2 Product identification

2.2.1 Nameplate

You can find the following information on the nameplate:

• Manufacturer details

•Ordercode

• Extended order code

• Serial number

• Operating conditions

• Safety information symbols

Compare the order code on the nameplate with your order.

2.2.2 Identifying the product

The order code and serial number of your device can be found in the following locations:

• On the nameplate

• In the shipping documents

To discover what product version you have, enter the order code on the nameplate into

the search screen at the following address:

www.products.endress.com/order-ident

2.3 Scope of delivery

The scope of delivery comprises:

• 1 Flowfit CUA252 flow assembly in the version ordered

• 1 Set of Operating Instructions BA01281C/07/EN

If you have any questions, contact your supplier or your local sales center.

2.4 Certificates and approvals

Declaration of Conformity

The product meets the requirements of the harmonized European standards.

As such, it complies with the legal specifications of the EC directives.

The manufacturer confirms successful testing of the product by affixing to it the 4mark.

Flowfit CUA252 Installation

Endress+Hauser 7

3Installation

3.1 Dimensions

a0022255

Fig. 1: Dimensions in mm (inch)

Connections NPT ¾" Rp ¾ Glue-in port

D25

ANSI 2" Hose

D25

Hose

D12

G1¼

Xmm(inch) 70 (2.76) 64 (2.52) 22 (0.87) 71 (2.80) 74 (2.91) 74 (2.91) 0

Ymm(inch) Ø 58(2.28) Ø 58(2.28) Ø 58(2.28) Ø 152 (5.98) Ø 58(2.28) Ø 58(2.28) Ø 58(2.28)

Installation Flowfit CUA252

8Endress+Hauser

3.2 Installation conditions

To ensure that medium flows through the assembly in a bypass configuration, the pressure

p1 must be greater than the pressure p2. This is achieved by installing an orifice plate in the

main pipe.

a0022258

Fig. 2: Connection example involving a bypass and an orifice plate in the main pipe (supply from below)

p1 p2 p1 > p2

Flowfit CUA252 Installation

Endress+Hauser 9

No measures to increase pressure are required for branch pipes that branch off from the

main pipe.

a0022259

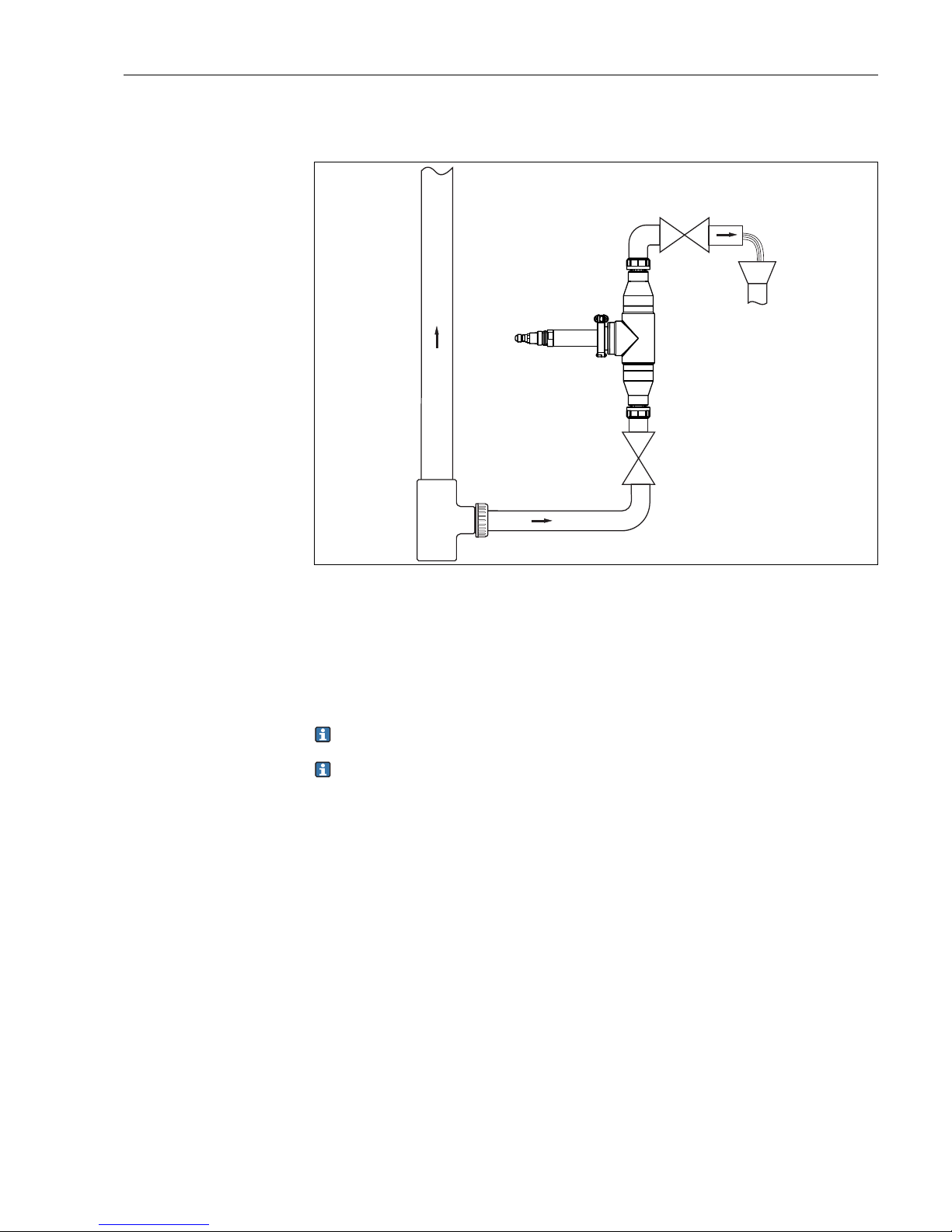

Fig. 3: Connection example involving an open outlet

The inlet and outlet connection of the flow assembly are always identical, the system is

symmetrical.

Install the flow assembly vertically.

The supply must be connected at the bottom (upward flow in the pipe).

Avoid buckles and loops in the hose system.

Pay attention to the installation instructions (flow direction) for the sensor.

Many fluids tend to develop gas bubbles in a depressurized state.

Operating the flow assembly under pressure (adjustable valve after the flow assembly)

prevents this behavior in many cases.

Installation Flowfit CUA252

10 Endress+Hauser

3.3 Installation instructions

3.3.1 Measuring system

A complete measuring system consists of:

• Flowfit CUA252 flow assembly

• Turbimax CUS52D sensor

• Transmitter, e.g. Liquiline CM442

•Measuringcable

a0022262

Fig. 4: Measuring system (example)

1 Process pipe

2 Liquiline CM442 transmitter

3Measuringcable

4 Return line with shutoff valve

5 CUA252 flow assembly with CUS52D sensor

6 Supply line with shutoff valve

Tabla de contenidos

Otros manuales de Instrumento de medición de Endress+Hauser

Endress+Hauser

Endress+Hauser Proline Promag 51 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promass 84 Instrucciones de instalación

Endress+Hauser

Endress+Hauser Proline Promass 300 Manual del operador

Endress+Hauser

Endress+Hauser Levelflex M FMP40 Manual de usuario

Endress+Hauser

Endress+Hauser Cleanfit W CPA450 Manual de usuario

Endress+Hauser

Endress+Hauser Deltatop DP71B Manual de usuario

Endress+Hauser

Endress+Hauser Liquiline System CA80PH Manual de usuario

Endress+Hauser

Endress+Hauser airtrol CPC 200 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promass I 300 PROFIBUS PA Manual de usuario

Endress+Hauser

Endress+Hauser Micropilot NMR81 Especificaciones técnicas

Endress+Hauser

Endress+Hauser Proline Prosonic Flow90U Manual

Endress+Hauser

Endress+Hauser Proline Promass O 100HART Manual de usuario

Endress+Hauser

Endress+Hauser PROFIBUS-PA PROline promass 80 Especificaciones técnicas

Endress+Hauser

Endress+Hauser SS500XP Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag W 500 Manual

Endress+Hauser

Endress+Hauser Liquiphant FTL64 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promass E 300 HART Manual de usuario

Endress+Hauser

Endress+Hauser CNGmass Especificaciones técnicas

Endress+Hauser

Endress+Hauser Turbimax CUS52D Manual de usuario

Endress+Hauser

Endress+Hauser Cerabar S PMP71 Especificaciones técnicas

Endress+Hauser

Endress+Hauser Proline t-mass 65 Manual de usuario

Endress+Hauser

Endress+Hauser Levelflex M FMP41C Manual de usuario

Endress+Hauser

Endress+Hauser Proline 500 Especificaciones técnicas

Endress+Hauser

Endress+Hauser Deltabar FMD72 Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario

Acterna

Acterna MS1400 Manual de usuario

R&S

R&S ZPH Manual de usuario
