SET
AC DC ACDC
ALR
LOCK

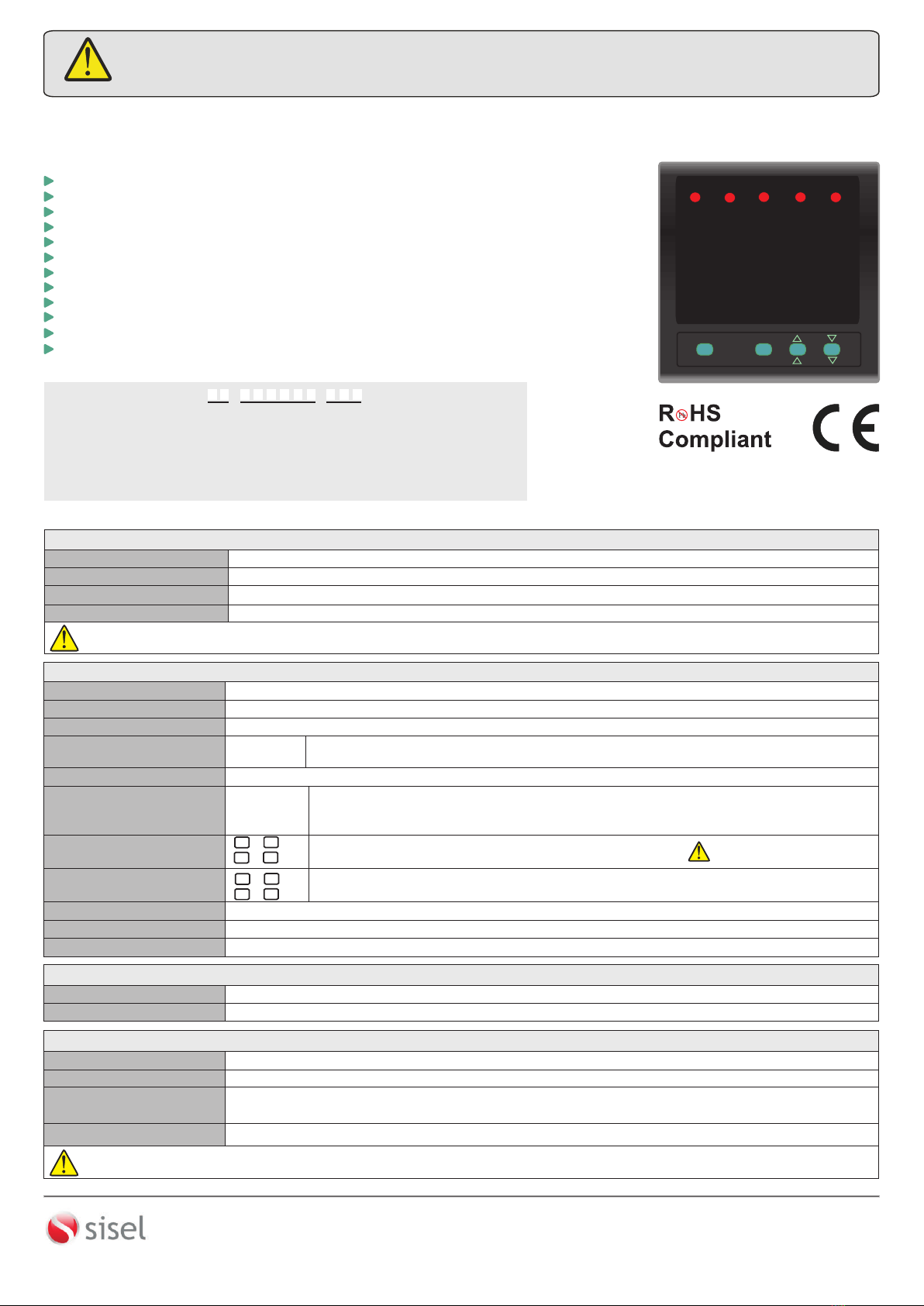

ENDA EPA942
PROGRAMMABLE AMMETER
0.000
OUT
&
ConF Out1 Out2
SET
*
* tYpE
d.pnt
Opnt
Adr5
bAUd
U5ET
H5ET
UPLL
HYSU
dLYU
LOLL
HYSL
Current Conversion Ratio
It can be adjusted between 5.00(/5) and 9999(/5). If this
parameter changes, upper limit value is set to maximum scale
,minimum limit value is set to minimum scale and hysteresis
Measuring Method
It can be adjusted to ac , dc or acdc. LEDs on the top of the
display indicates the adjusted measurement method.
Decimal Indicator
If measured value is lower than 10, it can be shown as (0.000),
(0.00), (0.0) or (0), (For DC measurements (0.00) ).
If measured value between 10 and 100, it can be shown as
(0.00) ,(0.0) or (0), (For DC measurements (0.0) or (0) ).
If measured value between 100 and 1000, it can be shown as
(0.0) or (0), (For DC measurements only (0).
If measured value is higher than 1000, it can be shown as (0) (For
DC measurements only (0) ).
If device includes relay, dPnt type may change according to
relay parameters value.
Samping Time
If 1 ( 1 ) is selected ; sampling time of the measurement is 250ms,
If 2 ( 2 ) is selected, it is 500ms.
If 3 ( 3 ) is selected, it is 750ms.
If 4 ( 4 ) is selected, it is 1 second.
Device Address
It can be adjusted between 1 - 247 .
Baud Rate
It can be adjusted as OFF, 1200, 2400, 4800, 9600,
19200, 38400, 57600 and 115200
OtYp
dLyL
ASET Alarm Output Relay Contact Position
Can be adjusted as n.o or n.c .
If n.o is selected, in case of alarm, Alr relay is activated.
Alarm Upper Limit Value
It can be adjusted between minimum and maximum scale
that is specified with c.tr.r parameter. This parameter
can’t be lower than H5Et value.
PROGRAMMING MODE
Measured Value Measured Value
LOCK LOCK
L0C UL0C
0.00 0.00
LOCKING & UNLOCKING KEYPAD
SET
UPLL LOLL U5ET
0.00
0.00
Measured
Value
+
By pressing to SET key for 3 seconds, quick menu is entered.
QUICK MENU
&&01.01 2015
Year
Day.Month
If these keys are pressed and held together, revision date appears as day,
month and year.
While revision information displayed and if one of the pressed key is
released, measured value is displayed again.
Measured Value
SET
0.00
REVISION NUMBER
(*) c.t.r.r. , tYPE , d.Pnt and 0ptn parameters are available
for only that devices have no relays.
(**) Adr5 and bAUd parameters are available for only that
devices have ModBus.
*
*
*
*
*
*
iIncludes in R extension devices. i
EPA942 PROGRAMMING DIAGRAM
LOCK
Lock / Unlock
Keypad Locks / Unlocks keypad.
3/5
& & &
SET SET
Used for displaying and configuring the selected parameter value.
Programming
Key
Used for increasing the setpoint value and changing parameters.
When held down for a few seconds, configured numeric value increases faster.
When held down for a few seconds, configured numeric value increases faster.
Used for decreasing the setpoint value and changing parameters.
Increment
Key
Decrement
Key
SET
If these keys are pressed and held for 3 seconds, “Programming Mode” is entered or it returns to “Running Mode”.
If and keys are pressed while parameter names are displayed, than it returns to measured value.
Out1
It can be adjusted as n.o. or If is selected, incase
of alarm, out relay is activated.
Output Relay Contact Position
N.c.n.o
Upper Limit Value
It can be adjusted between minimum and maximum scale
that is specified with c.tr.r parameter. This parameter can’t
be lower than ( ) value.l0ll - HY5U - HY5U
Hysteresis Value for Upper Limit
It can be adjusted between 0 and ctrr /5 parameter.
This parameter can’t be higher than ( - -
HY5L). When ctrr changed, HY5U gets the value of
0.1 .
Upll l0ll
Delay Time for Upper Limit Alarm
It can be adjusted between 0 and 900 .
Lower Limit Value
It can be adjusted between lower scale and upper scale that
is specified with c.tr.r parameter. This parameter can’t be
higher than value.UPLL - HY5U - HY5L
Hysteresis Value for Lower Limit
It can be adjusted between 0 and Ctrr /5 . This
parameter can’t be higher than - -
value. When ctrr is changed, HY5U gets the value of
0.1 .
UPLL L0LL HY5U
Delay Time for Lower Limit Alarm
It can be adjusted between 0 and 900 seconds.
Includes in 2R extension devices.
Hysteresis Alarm Value for Upper Limit
Can be adjusted between 0 and 20. This parameter can’t
be higher than U5Et or 20 value. When ctrr changed,
H5Et gets the value of 0.1 .
SET
SETTING UP THE PARAMETERS
tYPE dC ACdC
If key is pressed, the current value of the parameter appears by flashing on the display.
SET
After the setting up the parameters, if set key is pressed again, adjusted parameter name appears on display.
By using “UP” or “DOWN” navigation keys, selected parameter can be adjusted to the desired value.
SET
SET
Powered on device by pressing key dPAr message appears
on display and device reset to default settings.
Measured current value is higher than maximum scale.
Measured current value is lower than minimum scale.
DEFAULT SETTINGS
ERROR MESSAGES
EPA942-E-01-190130
