Encore ENKVM-USB Manual de usuario
ENKVM-USB
2-Port USB KVM switch with built-in cables
User Guide
0
Package Contents
•1 USB KVM Switch with Attached Cables
•1 User Guide
Requirements
Console
•A VGA, SVGA, or Multisync monitor capable of the highest resolution that you will be
using on any computer in the installation
•A USB Keyboard
•A USB Mouse
Computers
The following equipment must be installed on each computer that is to be connected to the
system:
•A VGA, SVGA or Multisync video port
•A USB Type A port

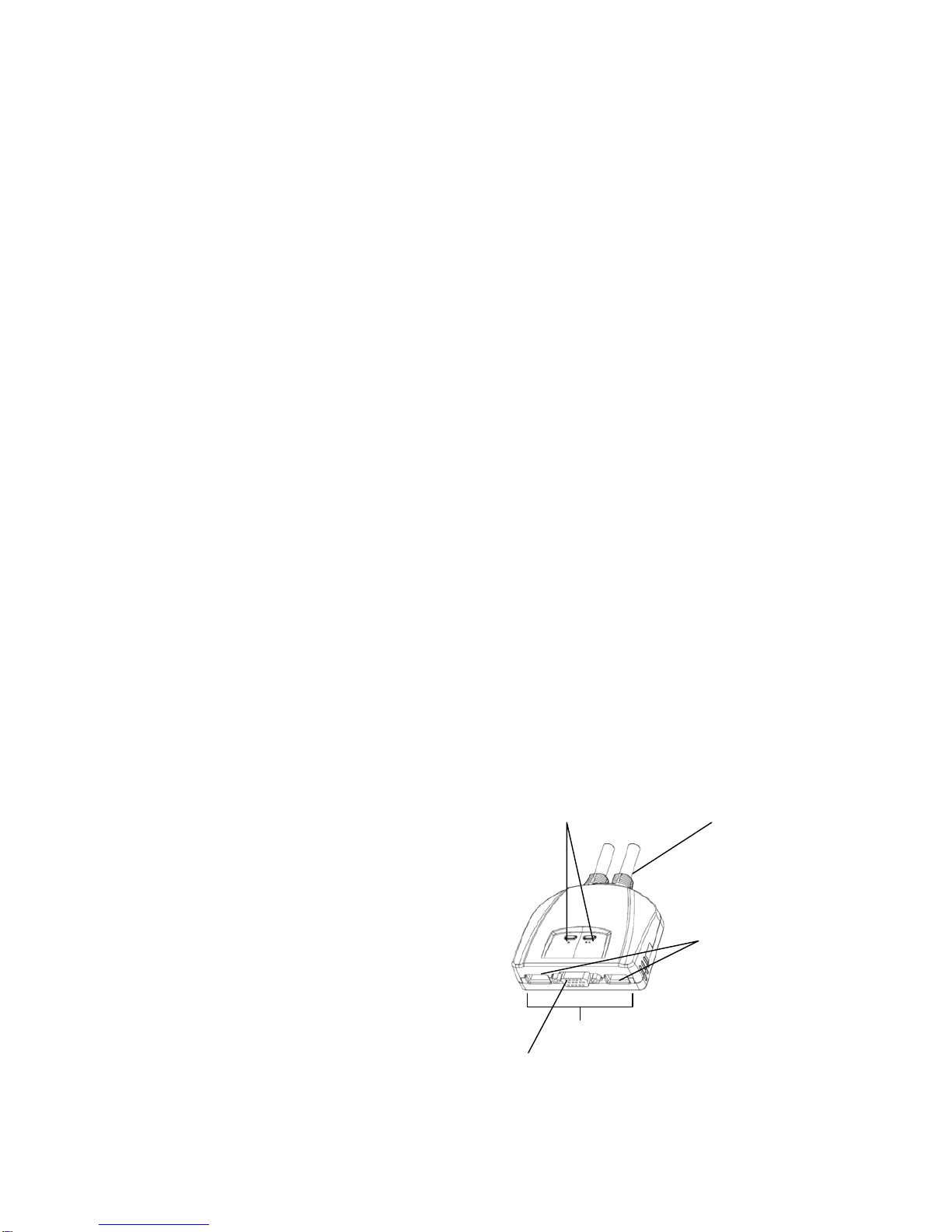

Overview
1. Port LEDs
2. KVM Cables
3. Console Ports
1 2
3
4
5
4. USB keyboard/Mouse connector
5. Video Connector
1
Installation
NOTE:
1. Before you begin, make sure that the power to all the devices you will be connecting has
been turned off. You must unplug the power cords of any computers that have the
Keyboard Power On function. Otherwise, the switch will receive power from the
computer.
2. To prevent damage to your equipment, make sure that all the devices you will be
connecting are properly grounded.
Installing your new ENKVM-USB involves the following steps:
1. Plug your keyboard, monitor, and mouse into their ports on the ENKVM-USB. The
keyboard and mouse ports are labeled with an icon to distinguish them.
Note: When using a wireless composite keyboard and mouse, its USB cable must be
plugged into the ENKVM-USB’s keyboard port for the Hotkeys to function.
2. Plug the USB and video connectors of the attached KVM cables into their respective
ports on the computers you are installing.
3. Turn on the power to the computers.
Note: The ENKVM-USB by default links to the first computer you turn on.
Operation
Hotkey Port Selection
All Hotkey port switches begin with tapping the [Scroll] key twice, and then press the [Enter]
key.
[Scroll] [Scroll] [Enter]
Invokes Auto Scan Mode
Start Auto Scan. Tapping the [Scroll] key twice, and press the [A] key. Then, press the [Enter]
key.
[Scroll] [Scroll] [A] [Enter]
Cancel Auto Scan Mode
Press [ESC] or [Space] key
2
Auto Scan Interval
While Auto Scan running, set up the interval to “n” second intervals - where “n” is a number
from 1 – 4.
Note: The “n” stands for the number of seconds that the focus dwells on a port before
switching to the other one. Replace the “n” with a number between 1 and 4 when
entering this hotkey combination. (See the table, below.)
Scan Interval Table
n Secs.
1 3 secs.
2 5 secs.(Default)
3 10 secs.
4 20 secs.
Hotkey Configuration
After invoking Hotkey System Mode [Ctrl] + [F12], key-in one of the following keys to perform
the corresponding function:
Key Function
F1 Sets the PC Compatible keyboard operating platform.
F2 Sets the Mac keyboard operating platform.
F3 Sets the Sun keyboard operating platform.
F4 Prints out the current hotkey, keyboard operating platform, and language code
settings.
[ESC] or
[Space] Cancel operation platform setting
R [Enter] Resets the Hotkey settings to their default status.
3
Troubleshooting
Symptom Possible Cause Action
Keyboard / Mouse
needs to be reset. Unplug the keyboard / mouse from the Console
Keyboard Port, then plug it back in.
Hotkey sequence
input incorrectly. Resend the Hotkey command - press and
release each key in the sequence individually.
Keyboard
and/or
Mouse Not
Responding Switch needs to be
reset. Turn off the computers; wait 5 seconds; turn the
computers back on.
Video
Problems
Resolution and/or
Refresh rate set too
high. Select a lower resolution and/or bandwidth.
Specifications
Function ENKVM-USB
Computer Connections 2
Port Selection Hotkey
Keyboard 1 x USB Type A Female (Black)
Video 1 x HDB-15 Female (Blue)
Console
Ports Mouse 1 x USB Type A Female (Black)
Keyboard/ Mouse 2 x USB Type A Male (Black)
Connectors
KVM
Ports Video 2 x HDB-15 Male (Blue)
LEDs Selected 2 (Green)
Cable
Length Computers 1.2m
Emulation Keyboard/ Mouse USB
Video 2048 x 1536; DDC2B
Scan Interval 3, 5, 10, 20 Seconds
Operating Temp. 0-50°C
Storage Temp. -20-60°C
Environment Humidity 0-80% RH, Non-condensing
Housing Plastic
Weight 0.31 kg
Physical
Properties Dimensions
(L x W x H) 7.90 x 7.90 x 2.50 cm
4
Keyboard Emulation Mapping
The USB 101/104 key keyboard can emulate the functions of the Sun or Mac keyboard. The
corresponding functions are shown in the table below.
Sun Keyboard
Note: When using [Ctrl] combinations, press and release the [Ctrl] key, then press and release
the activation key.
USB Keyboard Sun Keyboard
[Ctrl] [T] Stop
[Ctrl] [F2] Again
[Ctrl] [F3] Props
[Ctrl] [F4] Undo
[Ctrl] [F5] Front
[Ctrl] [F6] Copy
[Ctrl] [F7] Open
[Ctrl] [F8] Paste
[Ctrl] [F9] Find
[Ctrl] [F10] Cut
[Ctrl] [1]
[Ctrl] [2]
[Ctrl] [3]
[Ctrl] [4]
[Ctrl] [H] Help
5
Mac Keyboard
Note: When using key combinations, press and release the first key, then press and release
the second key.
USB Keyboard Mac Keyboard
[Shift] Shift
[Ctrl] Ctrl
[Win]
[Ctrl] [1]
[Ctrl] [2]
[Ctrl] [3]
[Ctrl] [4]
[Alt] L Alt/Option
[Prt_Sc] F13
[Scroll Lock] F14
[Desktop Menu] =
[Enter] Return
[Back Space] Delete
[Ins] Help
[Ctrl] [Win] F15
6
ENKVM-USB
Concentrador KVM de tipo USB con 2 puertos
Manual del usuario
7
Requisitos
Consola
•Un monitor VGA, SVGA o Multisync capaz de representar la resolución más elevada
que vaya a usar con cualquiera de los ordenadores a instalar
•Un teclado USB
•Un ratón USB
Ordenadores
En cada ordenador que vaya a conectar al sistema se tienen que instalar los siguientes
componentes:
•Un puerto gráfi co VGA, SVGA o Multisync
•Un puerto USB de tipo A
Presentación del hardware
1. Indicadores LED de los puertos
2. Cables KVM
3. Conector gráfico
4. Conector USB para teclado/ratón
5. Puertos de consola
1 2
3
4
5
8
Instalación
Nota:
1. Antes de empezar, apague todos los dispositivos que vaya a conectar. Si alguno de los
ordenadores utiliza la función de Encender a través del teclado, tendrá que desconectar su
cable de alimentación. En caso contrario, el concentrador recibirá la electricidad a través del
ordenador.
2. Para evitar daños en los dispositivos, verifi que estén conectados a tierra correctamente.
La instalación del ENKVM-USB incluye los pasos siguientes:
1. Conecte el teclado, el ratón y el monitor a los puertos correspondientes del ENKVM-USB.
Los puertos para teclado y ratón vienen marcados para su identifi cación.
Nota: Si emplea un conjunto de teclado y ratón inalámbricos, su cable USB debe
conectarse al puerto para teclado del ENKVM-USB para que las teclas de acceso
directo funcionen.
2. Conecte los conectores USB ca y tarjeta gráfi de los cables KVM incluidos a los puertos
correspondientes de cada uno de los ordenadores que quiera instalar.
3. Encienda los ordenadores.
Nota: Por defecto, el ENKVM-USB establece la conexión con el primer ordenador
encendido.
