Enable-IT 828 Manual de usuario

Ethernet Extension Experts

Enable-IT 828 Gigabit

Ethernet & PoE+ Extender

User Manual



Page 2 of 14 Ethernet Extension Experts

may be reproduced in any form or by any means or used to make any derivative work (such

as translation, transformation, or adaptation) without written permission from Enable-IT, Inc.

Enable-IT, Inc reserves the right to revise this documentation and to make changes in

content from time to time without obligation on the part of Enable-IT, Inc to provide

notification of such revision or change.

Enable-IT, Inc provides this documentation without warranty, term, or condition of any kind,

either implied or expressed, including, but not limited to, the implied warranties, terms or

conditions of merchantability, satisfactory quality, and fitness for a particular purpose.

Enable-IT, Inc may make improvements or changes in the product(s) and/or the

program(s) described in this documentation at any time.

If there is any software on removable media described in this documentation, it is furnished

under a license agreement included with the product as a separate document, in the hard

copy documentation. If you are unable to locate a copy, please contact Enable-IT, Inc and a

copy will be provided to you.

UNITED STATES GOVERNMENT LEGEND

If you are a United States government agency, then this documentation and the software

described herein are provided to you subject to the following:

All technical data and computer software are commercial in nature and developed solely at

private expense. Software is delivered as "Commercial Computer Software" as defined in

DFARS 252.227-7014 (June 1995) or as a "commercial item" as defined in FAR 2.101 (a)

and as such is provided with only such rights as are provided in Enable-IT, Inc's standard

commercial license for the Software.

Technical data is provided with limited rights only as provided in DFAR 252.227-7015 (Nov

1995) or FAR 52.227-14 (June 1987), whichever is applicable. You agree not to remove or

deface any portion of any legend provided on any licensed program or documentation

contained in, or delivered to you in conjunction with, this User Guide.

Unless otherwise indicated, Enable-IT, Inc registered trademarks are registered in the

United States and may or may not be registered in other countries

Page 3 of 14 Ethernet Extension Experts

CONTENTS

ABOUT THIS GUIDE 4

1 INTRODUCING THE ENABLE-IT 828 GIGABIT ETHERNET &POE+ EXTENDER 5

About the 828 Gigabit Ethernet & PoE+ Extender 5

Key Benefits 6

Summary of Features 6

Typical Use Applications 7

2 INSTALLING THE ENABLE-IT 828 GIGABIT ETHERNET &POE+ EXTENDER 8

Site Plan – Installation Design Considerations 8

Unpacking the 828 Gigabit Ethernet & PoE+ Extender 9

Perform an out of the box Test 9

Performing the On-Site Installation 9

Mounting the 828 Gigabit Ethernet & PoE+ Extender 10

Attaching cabling and devices 10

Troubleshooting & PoE+ output control (DIP switch) 11

3 TECHNICAL SUPPORT

Online Technical Services 11

World Wide Web Site 11

Returning Products for Repair 11

4ENABLE-IT INC.LIMITED WARRANTY 12

5CONTACT US 14

Page 4 of 14 Ethernet Extension Experts

ABOUT THIS GUIDE

This guide provides all the information needed to install and use the Enable-IT

828 Gigabit Ethernet & PoE+ Extender. This guide is intended for use by

technicians who are responsible for installing and setting up network equipment.

Consequently, it is assumed that the installer has a basic working knowledge of

LANs (Local Area Networks) and voice telecom wiring.

If the information in the release notes that are shipped with your product differs

from the information in this guide, follow the instructions in the release notes.

Most user guides and release notes are available in Adobe Acrobat

Reader Portable Document Format (PDF) or HTML on the Enable-IT World Wide

Web site: http://www.ethernetextender.com/manuals/828-Manual.pdf

Page 5 of 14 Ethernet Extension Experts

INTRODUCING THE 828 GIGABIT ETHERNET &POE+ EXTENDER

Congratulations on purchasing the Enable-IT’s 828 Gigabit Ethernet & PoE+ Extender

— the fastest and simplest method to stretch your broadband solutions for in-building

deployment in commercial office buildings, hotels, and multi-tenant residential units.

The 828 Gigabit Ethernet & PoE+ Extender offers the Lowest Cost Solution in a simple

design for rapid install using existing Category 5, 5e or 6 wiring (All 4-pairs required).

This chapter contains introductory information about The 828 Gigabit Ethernet & PoE+

Extender and how it can be used in your network. It covers the following topics:

•About the 828 Gigabit Ethernet & PoE+ Extender

•Key Benefits

•Summary of Features

•Typical Applications

About the 828 Gigabit Ethernet & PoE+ Extender

The 828 Gigabit Ethernet & PoE+ Extender solves the problem of high costs associated

with stretching your backbone with traditional fiber or a series of hubs/repeaters.

In many office buildings, preferred network access is a dedicated Ethernet line,

however Ethernet over twisted pair wiring has its distance limitations of just 328 ft.

Gigabit Ethernet requires all 4-pair (8 wires) found in Category rated 5, 5e and 6

wiring. In order to drive Ethernet signal further, one would have to add repeaters to

each segment of 328ft twisted pair cabling; this is often insufficient and to costly in

multi-story buildings. Fortunately, the Enable-IT 828 Gigabit Ethernet & PoE+

Extender can push the reach of Ethernet to more than (6) six times the typical

Ethernet distance over existing Category 5, 5e or 6 wiring (All 4-pairs required).

To increase the durability and use of the product providing maximum future technology

protection, the 828 Gigabit Ethernet & PoE+ Extender meets the challenge of modern

switched LANs and allows you to add features and capacity as your network expands.

The Enable-IT 828 Gigabit Ethernet & PoE+ Extender has been tested to provide full

duplex transport up to 1,000MB/s over CAT5 cabling regardless of distance up to 2,000ft

/ 610m.

* Actual throughput rate will vary on the quality of the copper wire, twisted pair and environmental

factors – but you can expect full wire speed regardless of distance or number of 828 Extenders

used.

Model

Wiring

LAN Data Rate

Max. Distance

828 (4) pair CAT 5 up to CAT6 1,000Mbps FD 2,000ft / 610m

Page 6 of 14 Ethernet Extension Experts

Key Benefits

The following list identifies the 828 Gigabit Ethernet & PoE+ Extender key benefits.

•Dramatic cost reduction over any competing technology (Copper or Fiber)

•Extreme Broadband technology that delivers Full Speed Gigabit Ethernet up to

five times the IEEE 802.3 distance limit over Category 5 wiring or better.

•Provides one scalable infrastructure for Internet access, POTS, VoIP, video, and

virtual private networking.

•Rapid installation with small box profile, no programming and no firmware to

upgrade.

•Low profile box for extending your (10/100/1000) Ethernet and PoE+

•Option for disabling PoE output on remote end for supporting non-PoE devices.

Summary of Features

The Enable-IT 828 Gigabit Ethernet & PoE+ Extender has the following features:

•Full Gigabit Ethernet speed over existing CAT 5e up to CAT 6 wiring

•Uses LAN standard RJ-45 ports (10/100/1000Mbps data and PoE+ 56vdc)

•Rapid Plug and Go installation – no programming required

•Optional 2.1mm DC power jack or PoE powered (Standard)

•Drives Ethernet 1000 Mbps full-duplex service delivery with native PoE+ (60w-56vdc)

•Network Equipment independence – Transparent to protocols/applications/MAC

Specifications: Functionality:

Power Indicator LED Data Rates 10/100/1000Mbps Full Duplex

100Mbps Link status/Activity LED Full Duplex/Half Duplex status/Collisions

1000Mbps Link status/Activity LED Protocol independent

Dimensions: 828 LAN port pins:

Height: 3.5" (88.9mm) Pins 1 & 2 – 10/100/1000Mbs Data

Depth: 1.0 " (25.4mm) Pins 3 & 6 – 10/100/1000Mbs Data

Width: 4.5” (114.3mm) Pins 4 & 5 – 1000Mbs Data & PoE+

Pins 7 & 8 – 1000Mbs Data & PoE+

Environment

Operating temp: -32°F to 176°F (-35°to 80°C) Interfaces

Storage temp: -32°F to 180°F (-35°to 83°C) (3) RJ-45 10/100/1000 LAN Auto negotiate

Humidity 5% to 95%, non-condensing (1) 5v 2A DC Power jack 2.1mm (optional use)

(4) DIP Switches for disabling PoE output

Page 7 of 14 Ethernet Extension Experts

Typical Use Applications

Enable-IT 828 Gigabit Ethernet & PoE+ Extender can be quickly installed on existing or

new Category rated wiring infrastructures where extension of backbone services is

required and expensive fiber options are prohibitive. The 828 Gigabit Ethernet & PoE+

Extender allows a standard Ethernet segment to be deployed quickly over existing

Category 5, 5e or 6 wiring (All 4-pairs required).

Installers have the convenience of a 10/100/1000Mbps LAN Ethernet Extender for peace

of mind connectivity and no device maintenance. Rapid installation allows for minimal

interruption and the Broadband technology allows for investment protection up to 10 -15

years with no firmware or replacement issues. Carriers and Access Providers can came

and go, but the 828 Gigabit Ethernet & PoE+ Extender technologies continue to provide

lasting value such as the other utilities like Water, gas and electricity.

The Enable-828 Gigabit Ethernet & PoE+ Extender is suited for the following key environments:

•Commercial Buildings (Multi-Tenant Extender)

•Business Parks (Multi-Tenant Extender)

•Apartments (Multi-Residential Extender)

•Hotels (Multi-Hospitality Extender)

•Business Suites (Multi-Hospitality Extender)

•School Campuses (University, K-12)

•College Housing (Multi-Residential Extender)

•Mining Operations – Quarries, Mine shafts

•Nautical Infrastructure – Cruise ships, Marinas, dive operations, subs

•Video Surveillance/Security

•WiFi Deployment – ISP’s, RV Parks, Construction sites

•Manufacturing – Foundries, pharmaceutical, aerospace, automotive,

petroleum, concrete plants, etc.

•Retail POS – Department stores, Bars, restaurants, retail spaces

•Government – Naval ships, FEMA, Housing, USGS, National Parks, Forestry,

Research stations, NASA, utilities, etc.

•Education – outdoor camps, college campuses

•Healthcare – Hospitals, elder care, outpatient facilities

•Entertainment – Movie theaters, home entertainment, fairs, outdoor venues

Page 8 of 14 Ethernet Extension Experts

INSTALLING THE 828 GIGABIT ETHERNET &POE+ EXTENDER

The Enable-IT 828 Gigabit Ethernet & PoE+ Extender units have an individual distance

restriction of approximately 900ft or 275m over existing Category 5, 5e or 6 wiring (All 4-

pairs required) from device extension to device extension. The 828 units can

communicate 400ft / 122m distance out each LAN port – so placing the 828 in the

middle of your run is ideal. 828 units are designed to be daisy chained in a series to

further extend distance. Up to (4) 828 units can be used in series to reach 2,000ft /

610m. Optional DIP switch setting for the last end 828 is selectable for disabling the

PoE output if installing a non-PoE powered device.

This chapter describes the recommended installation process for the Enable-IT 828

Gigabit Ethernet & PoE+ Extender. It covers the following topics:

•Site Plan – Installation Design Considerations

•Unpacking the Enable-IT 828 Gigabit Ethernet & PoE+ Extender

•Perform an out of the box Test

•Performing the On-Site Installation

Site Plan - Installation Design Considerations

The planning process should involve a site walkthrough and discovery survey. Electrical

Cable measurement tools are the most reliable method to determine the longest run of

hidden wiring. Estimate the best locations to position the 828 unit to adequately reach

desired connectivity for your overall run. Document your findings to use in designing a

network topology to support the Ethernet Switches and backbone connectivity. Key

points to remember in your Site Survey.

•Individual distance limitation of 800ft or 240m from end to end.

•Daisy Chain distance limitation of 2,000ft or 610m from end to end.

•4 Pair CAT 5 wiring up to CAT 6 .30 Gage or better cabling is required for the

Gigabit Ethernet transmission.

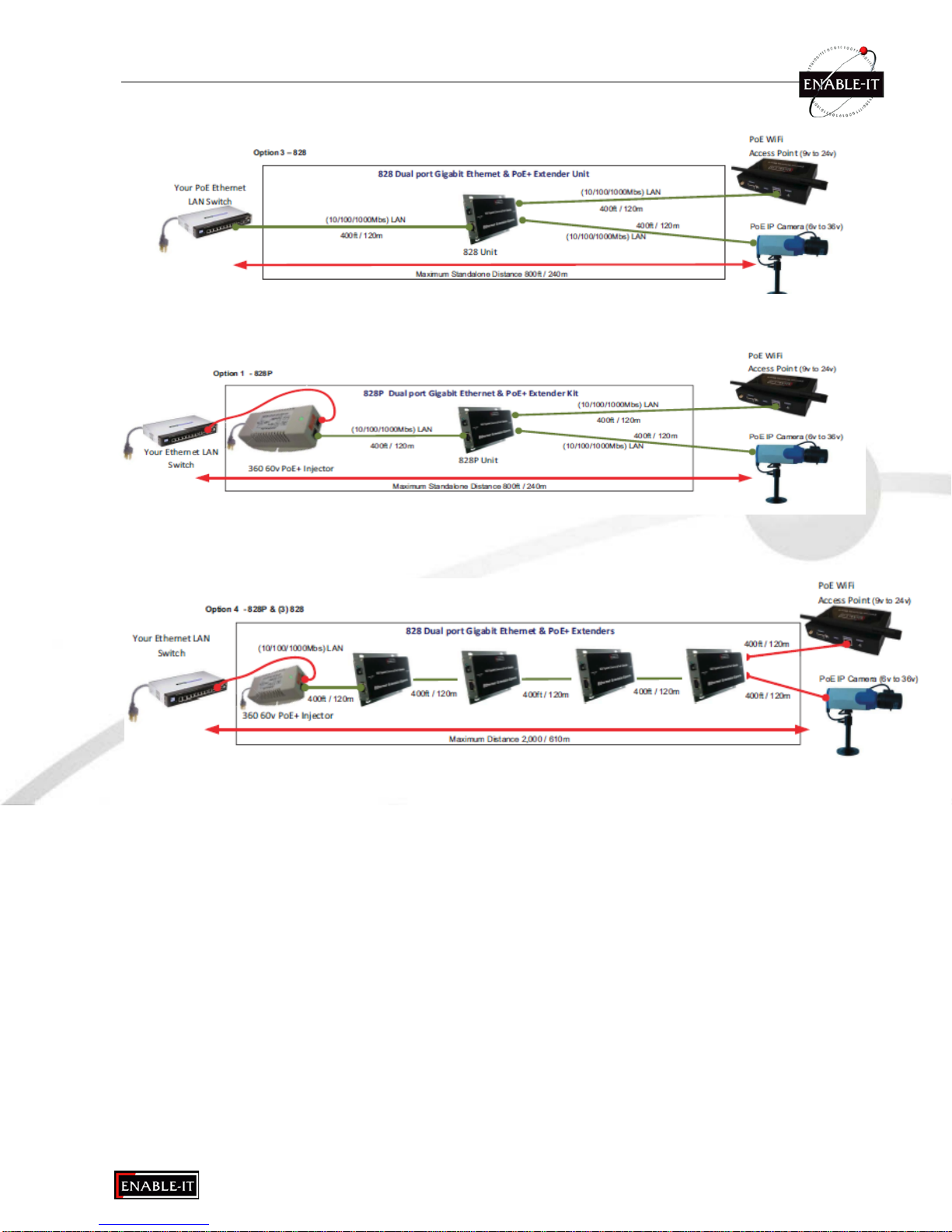

Options for installation include standalone use or daisy chain configurations with the

ability to disable the PoE output. Here is a list of possible installation options:

1) Standalone 828 unit with optional 5v-2A power adapter.

2) Standalone 828 unit powered by your PoE injector or PoE switch.

3) 828P Kit with 60w-56v PoE+ injector

4) 828P Kit with 60w-56v PoE+ injector and multiple 828 units for maximum extension.

For details see diagrams of each option under the Installation section.

Page 9 of 14 Ethernet Extension Experts

Unpacking the Enable-IT 828 Gigabit Ethernet & PoE+ Extender

Carefully remove the Enable-IT 828 Gigabit Ethernet & PoE+ Extender and all packing

materials from the box. Verify that the items listed below are present. Make sure that the

equipment supplied matches what you ordered. If any items are missing or damaged,

please contact Enable-IT or your distributor for assistance.

•(1) The Enable-IT 828 Gigabit Ethernet & PoE+ Extender Unit

•(1) Enable-IT 828 Gigabit Ethernet & PoE+ Extender User Manual (this manual)

Perform an out of the box Test

We highly recommend a quick test to ensure the working order of you 828 Gigabit

Ethernet & PoE+ Extender. To perform this test, attach the 828 Input port to your

PoE LAN switch, PoE Injector, or if using an optional 5v power adapter – your LAN

device. On power up the 828 will show power and connectivity LED’s. Next

connect your PoE device to the output port of the 828 or if using a non-PoE

powered device – Make sure to set the DIP switch to disable PoE output.

Test your connectivity from end to end.

LED indicators will provide visual operational status of the 828 Extender.

Input RJ-45 Port:

Power LED - Solid Green LED (left side of RJ-45 port) indicates the

5v power source is on and good.

Input LED - Solid Yellow LED (right side of RJ-45 port) indicates

Gigabit Ethernet connectivity detected.

- No LED lit (right side of RJ-45 port) indicates 10Mbs

or 100Mbs Ethernet connectivity detected.

Output RJ-45 Port:

Gigabit LED - Solid Yellow LED (left side of RJ-45 port) indicates

Gigabit Ethernet connectivity and activity.

10/100 LED - Solid Green LED (right side of RJ-45 port) indicates

100Mbs Ethernet connectivity and activity.

- No LED lit (right side of RJ-45 port) indicates

10Mbs Ethernet connectivity.

Performing the On-Site Installation

After removing the Enable-IT 828 Gigabit Ethernet & PoE+ Extender from the box and

performing the out of the box testing all that remains to install the Extender on-site is to

mount the Extender and attach the LAN device cabling.

Choose your installation type desired from the following list of options:

Option 1: Standalone 828 unit with optional 5v-2A power adapter.

Page 10 of 14 Ethernet Extension Experts

Option 2: Standalone 828 unit powered by your PoE injector or PoE switch.

Option 3: 828P Kit with 60w-56v PoE+ injector.

Option 4: 828P Kit with 60w-56v PoE+ injector and multiple 828 units.

Mounting the Enable-IT 828 Gigabit Ethernet & PoE+ Extender

The Enable-IT 828 Gigabit Ethernet & PoE+ Extenders are designed for quick wall

mounting. Choose a location to mount the Enable-IT 828 where the inline midpoint

is no further than 400ft / 122m from your source Ethernet LAN and destination

endpoint. When wall-mounting the Enable-IT 828 Gigabit Ethernet & PoE+ Extender

it is recommended that you use the appropriate screw anchors for your mounting

surface. If mounting on existing plywood use wood screws; if mounting onto drywall

or sheetrock, use plastic drywall anchors to secure your installation.

Before applying power, determine if your end device requires PoE power. The default

DIP switch setting has PoE output Disabled. To enable PoE output change the DIP

switch position to ON – DOWN position.

Depending on distance you can safely power PoE devices requiring 6v to 48v.

Attach your cabling and devices and apply power. Your equipment should now be

powered up and functioning.

Otros manuales para 828

Tabla de contenidos

Otros manuales de Extensor de Enable-IT

Enable-IT

Enable-IT 865W PRO Manual de usuario

Enable-IT

Enable-IT 824C Manual de usuario

Enable-IT

Enable-IT 865Q PRO Manual de usuario

Enable-IT

Enable-IT 821WP Manual de usuario

Enable-IT

Enable-IT 860 Series Manual de usuario

Enable-IT

Enable-IT 821P Manual de usuario

Enable-IT

Enable-IT 828WP Manual de usuario

Enable-IT

Enable-IT 824P Manual de usuario

Enable-IT

Enable-IT 821CW Manual de usuario

Enable-IT

Enable-IT 850 CPE Manual de usuario

Enable-IT

Enable-IT 824 Manual de usuario

Enable-IT

Enable-IT 865XW PRO Manual de usuario

Enable-IT

Enable-IT 860XC PRO Manual de usuario

Enable-IT

Enable-IT 865XS PRO Manual de usuario

Enable-IT

Enable-IT 821 Manual de usuario

Enable-IT

Enable-IT 860 Pro Rev B Manual de usuario

Enable-IT

Enable-IT 860XSC PRO Manual de usuario

Enable-IT

Enable-IT 860 PRO Rev C Manual de usuario

Enable-IT

Enable-IT 865QW PRO Manual de usuario

Enable-IT

Enable-IT 865 PTZQ PRO Manual de usuario

Enable-IT

Enable-IT 865XC PRO Manual de usuario

Enable-IT

Enable-IT 868 PRO Manual de usuario

Enable-IT

Enable-IT 865Q PRO Manual de usuario

Enable-IT

Enable-IT 865C PRO Manual de usuario

Manuales populares de Extensor de otras marcas

SY HDBT-60T Manual de usuario

Appsys ProAudio

Appsys ProAudio ADX-16 Manual de usuario

Atlona

Atlona RS232 Manual de usuario

IDK

IDK OPF-TH1000-A Manual de usuario

Worx

Worx Landroid RadioLink WA0864 Hoja de especificaciones

TP-Link

TP-Link TL-WA730RE Manual de usuario

Camplex

Camplex CMX-HDMI-SFPL Manual de usuario

SC&T

SC&T HE03-4K Manual de usuario

Marmitek

Marmitek MegaView70 Manual de usuario

Samsung

Samsung SCS-26UC4 Manual de usuario

Foxun

Foxun SX-GES24 Manual de usuario

MuxLab

MuxLab 500771 Manual de usuario

foxunhd

foxunhd SX-AEX01 Manual de usuario

TERK Technologies

TERK Technologies LFIRX2 Manual de usuario

Devolo

Devolo Audio Extender Manual

Edimax

Edimax EW-7438RPn V2 Manual de usuario

Shinybow USA

Shinybow USA SB-6335T5 Manual de usuario

SECO-LARM

SECO-LARM ENFORCER EVT-PB1-V1TGQ Manual de usuario
