1 10H52200GM60 – Rev. 5 – 06/2014

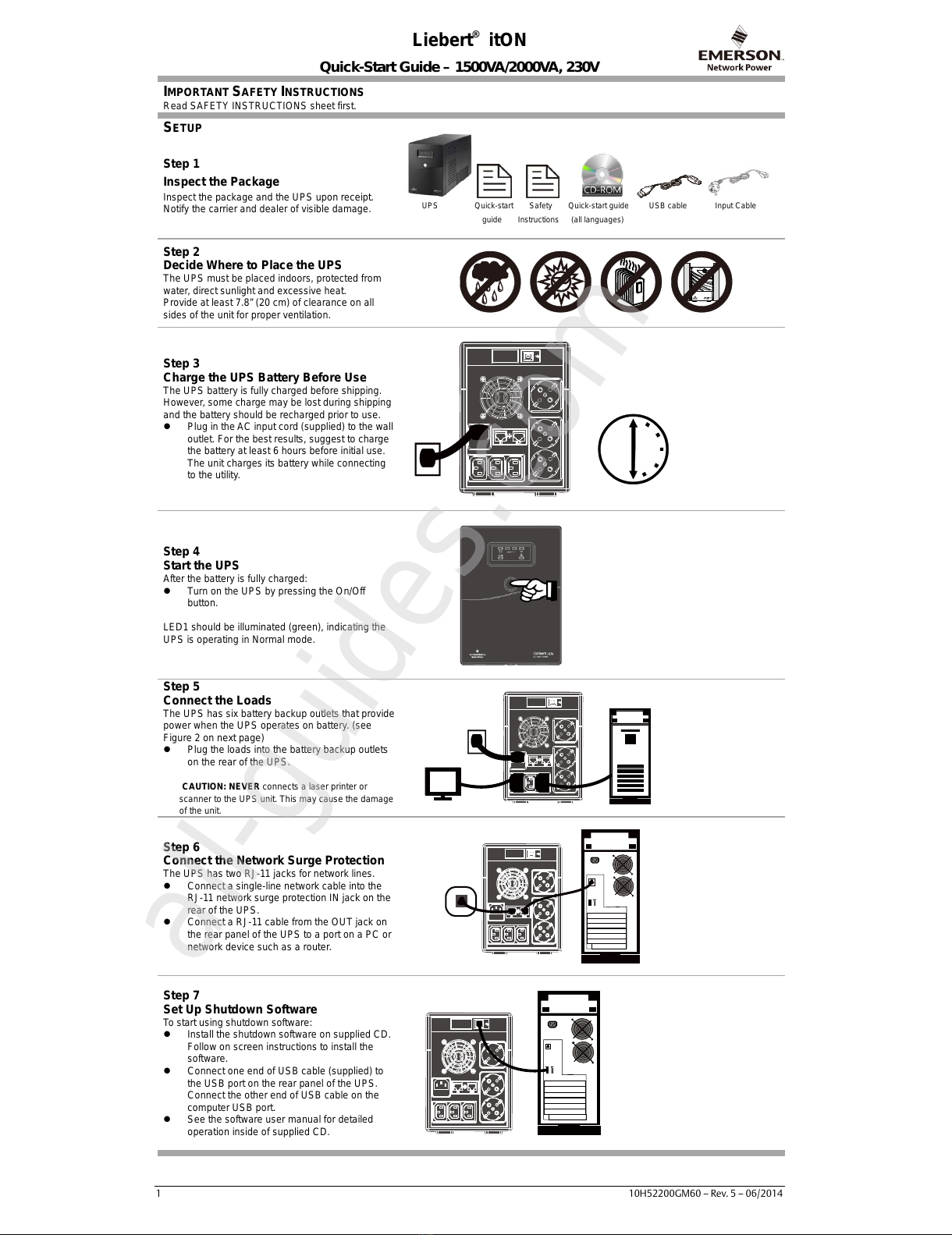

Liebert®itON

Quick-Start Guide – 1500VA/2000VA, 230V

1BIMPORTANT SAFETY INSTRUCTIONS

Read SAFETY INSTRUCTIONS sheet first.

SETUP

4BStep 1

Inspect the Package

Inspect the package and the UPS upon receipt.

Notify the carrier and dealer of visible damage.

 

UPS Quick-start Safety Quick-start guide USB cable Input Cable

guide Instructions (all languages)

5BStep 2

Decide Where to Place the UPS

The UPS must be placed indoors, protected from

water, direct sunlight and excessive heat.

Provide at least 7.8” (20 cm) of clearance on all

sides of the unit for proper ventilation.

6BStep 3

Charge the UPS Battery Before Use

The UPS battery is fully charged before shipping.

However, some charge may be lost during shipping

and the battery should be recharged prior to use.

Plug in the AC input cord (supplied) to the wall

outlet. For the best results, suggest to charge

the battery at least 6 hours before initial use.

The unit charges its battery while connecting

to the utility.

7BStep 4

Start the UPS

After the battery is fully charged:

Turn on the UPS by pressing the On/Off

button.

LED1 should be illuminated (green), indicating the

UPS is operating in Normal mode.

8BStep 5

Connect the Loads

The UPS has six battery backup outlets that provide

power when the UPS operates on battery. (see

Figure 2 on next page)

Plug the loads into the battery backup outlets

on the rear of the UPS.

CAUTION: NEVER connects a laser printer or

scanner to the UPS unit. This may cause the damage

of the unit.

Step 6

Connect the Network Surge Protection

The UPS has two RJ-11 jacks for network lines.

Connect a single-line network cable into the

RJ-11 network surge protection IN jack on the

rear of the UPS.

Connect a RJ-11 cable from the OUT jack on

the rear panel of the UPS to a port on a PC or

network device such as a router.

Step 7

Set Up Shutdown Software

To start using shutdown software:

Install the shutdown software on supplied CD.

Follow on screen instructions to install the

software.

Connect one end of USB cable (supplied) to

the USB port on the rear panel of the UPS.

Connect the other end of USB cable on the

computer USB port.

See the software user manual for detailed

operation inside of supplied CD.



All manuals and user guides at all-guides.com

all-guides.com

10H52200GM60 – Rev. 5 – 06/2014 2

10BUPS CONTROLS AND CONNECTIONS

Figures 1 – Front Panel LEDs



Figure 2 – Rear Panel

UPS Status, Alarm Conditions and Alerts

Condition LED Color Solid/Flashing Audible Alarm

Normal mode LED 1 Green Solid (none)

Battery mode LED 1 Green Flashes Every 10 seconds

Load level at Normal mode LED 3-6 Green Solid Overload: every 0.5 second

Battery level at Battery mode LED 3-6 Green Solid Low battery: every second

Fault LED 2 Red Solid Continuous until UPS shuts down

Battery replacement LED 2 Red Solid Every 2 seconds



9BTROUBLESHOOTING

If the UPS malfunctions during operation, check the following chart for proper adjustment. For further assistance, please contact your local

Emerson Network Power representative.

Problem Possible Causes Solutions

Utility is normal, but LED is not

illuminated.

Battery capacity may be low.

The UPS battery reached end of life.

The UPS may not be turned on.

Recharge the UPS at least 6 hours.

Properly trained and qualified service personnel

replace the battery with the same type of

battery ,do not attempt to replace the battery

yourself.

Press the On/Off button to turn on the UPS.

Alarm buzzer beeps continuously

although utility power is normal.

The UPS may be overloaded. Disconnect some equipment from the UPS.

UPS does not provide expected

backup time.

The UPS may be overloaded

Battery voltage may be low.

The UPS battery reached end of life.

Disconnect some equipment from the UPS.

Recharge the UPS at least 6 hours.

Properly trained and qualified service personnel

replace the battery with the same type of

battery ,do not attempt to replace the battery

yourself.

Utility is normal, but UPS status

LED flashes.

The power cord may not be

connected properly.

Connect the power cord securely into a wall outlet.



3BSPECIFICATIONS

Model Liebert itON 1500 Liebert itON 2000

Capacity (VA/W) 1500/900 2000/1200

Net Weight, lb. (kg) 24 (11.1) 25 (11.5)

Dimensions – W x D x H (mm) 146 x 391 x 205

Line Input Nominal Voltage 220 - 240VAC

Line Input Voltage Range ** 170 - 280VAC

Line Frequency 50Hz / 60Hz (auto sensing)

Output Voltage (Utility Power Normal) 230VAC

Output Voltage (Battery Operation) ±10%

On-Battery Wave Form Stepped sinewave

Battery Type – VDC x Ah x Quantity 12V x 9 Ah x 2 12V x 9 Ah x 2

Typical Recharge Time 4 hours to 90%

Battery Run Time* – Half Load 5 minutes 3 min 10 Sec

Operating Temperature, °F (°C) 32 to 104 (0 to 40)

Storage Temperature, °F (°C) -4 to 122 (-20 to 50)

Operating /Storage Relative Humidity 0 – 90%, non-condensing



*Battery run time may vary depending on load. ** Depending of output load.

Emerson and Business-Critical Continuity are trademarks of Emerson Electric Co. or one of its affiliated companies.

Battery backup

outlets

(3 x IEC C13)

LED 1

(status)

LED 3-6

(

Load/Batter

level

)

On/Off button

LED 2 (fault)

USB interface

Battery backup

outlets

(3 x Schuko)

AC mains inlet

& fuse

RJ-11 jacks (2)

Network surge

protection
