Rosemount™ 3051 Pressure Transmitter

NOTICE

This guide provides basic guidelines for Rosemount™ 3051 Transmitters. It does not provide

instructions for configuration, diagnostics, maintenance, service, troubleshooting, Explosion-proof,

Flameproof, or intrinsically safe (I.S.) installations. Refer to Rosemount 3051 Reference Manual for

more instructions. This manual is also available electronically at Emerson.com/Rosemount.

WARNING

Explosions could result in death or serious injury.

Installation of device in an explosive environment must be in accordance with appropriate local,

national, and international standards, codes, and practices. Review the approvals section of the

Rosemount 3051 Reference Manual for any restrictions associated with a safe installation.

Before connecting a HART®-based communicator in an explosive atmosphere, make sure the

instruments in the loop are installed in accordance with intrinsically safe or non-incendive field

wiring practices.

In an explosion-proof/flameproof installation, do not remove the transmitter covers when power

is applied to the unit.

WARNING

Process leaks

Process leaks may cause harm or result in death.

To avoid process leaks, only use the O-ring designed to seal with the corresponding flange adapter.

Electrical shock

Electrical shock can result in death or serious injury.

Avoid contact with the leads and terminals. High voltage that may be present on leads can cause

electrical shock.

Conduit/cable entries

Unless otherwise marked, the conduit/cable entries in the housing enclosure use a ½–14 NPT

form. Only use plugs, adapters, glands, or conduit with a compatible thread form when closing

these entries.

Entries marked M20 are M20 x 1.5 thread form. On devices with multiple conduit entries, all

entries will have the same thread form.

Contents

System readiness........................................... 3

Transmitter installation..................................5

Safety instrumented systems installation.....20

Product Certifications.................................. 21

Quick Start Guide February 2019

2 Emerson.com/Rosemount

1 System readiness

Confirm HART revision capability

•If using HART-based control or asset management systems, confirm the

HART capability of those systems prior to transmitter installation. Not all

systems are capable of communicating with HART Revision 7. This

transmitter can be configured for either HART Revision 5 or 7.

•For instructions on how to change the HART revision of your transmitter,

see Switch HART revision mode.

1.1 Confirm correct device driver

•Verify the latest device driver (DD/DTM™) is loaded on your systems to

ensure proper communications.

•Download the latest device driver at Emerson.com or

Fieldcommgroup.org.

Rosemount 3051 device revisions and drivers

Table 1-1 provides the information necessary to ensure you have the correct

device driver and documentation for your device.

Table 1-1: Rosemount 3051 with 4-20mA HART Protocol Device Revisions

and Files

Release

date

Device identification Device Driver

identification

Review

Instructions

Review

Functio

nality

NAMUR

hardwa

Revisio

n(1)

(2) (1) HART

Softwa

Revisio

n(3)

HART

univers

revisio

Device

Revisio

n(4)

Rosemount

2088,

2090P, and

2090F

Pressure

Transmitter

Change

descrip

tion

Aug-16 1.1.xx 1.0.xx 3 7 10 with HART

and 1–5 Vdc

Low Power

Protocol

Reference

Manual

with 4–20

mA HART

and 1–5 Vdc

Low Power

Protocol

(5)

5 9

Jan-13 N/A 1.0.xx 1 7 10 (6)

5 9

February 2019 Quick Start Guide

Quick Start Guide 3

Table 1-1: Rosemount 3051 with 4-20mA HART Protocol Device Revisions

and Files (continued)

Release

date

Device identification Device Driver

identification

Review

Instructions

Review

Functio

nality

NAMUR

hardwa

Revisio

n(1)

(2) (1) HART

Softwa

Revisio

n(3)

HART

univers

revisio

Device

Revisio

n(4)

Rosemount

2088,

2090P, and

2090F

Pressure

Transmitter

Change

descrip

tion

Jan-98 N/A N/A 178 5 3 Reference

Manual

N/A

(1) NAMUR Revision is located on the hardware tag of the device. Differences in level

3 changes, signified above by xx, represent minor product changes as defined per

NE53. Compatibility and functionality are preserved and product can be used

interchangeably.

(2) NAMUR Revision is located on the hardware tag of the device. Differences in level

3 changes, signified above by xx, represent minor product changes as defined per

NE53. Compatibility and functionality are preserved and product can be used

interchangeably.

(3) HART Software Revision can be read using a HART capable configuration tool.

Value shown is minimum revision that could correspond to NAMUR Revisions.

(4) Device Driver file names use Device and DD Revision, e.g. 10_01. HART Protocol is

designed to enable legacy device driver revisions to continue to communicate with

new HART devices. To access new functionality, the new Device Driver must be

downloaded. It is recommended to download new Device Driver files to ensure full

functionality.

(5) HART Revision 5 and 7 Selectable, local operator interface (LOI), scaled variable,

configurable alarms, expanded engineering units.

(6) Rosemount 3051G Pressure Transmitter updated electronics hardware design.

Intrinsic Safety temperature classification change.

Quick Start Guide February 2019

4 Emerson.com/Rosemount

2 Transmitter installation

2.1 Mount the transmitter

2.1.1 Liquid applications

Procedure

1. Place taps to the side of the line.

2. Mount beside or below the taps.

3. Mount the transmitter so that the drain/vent valves are oriented

upward.

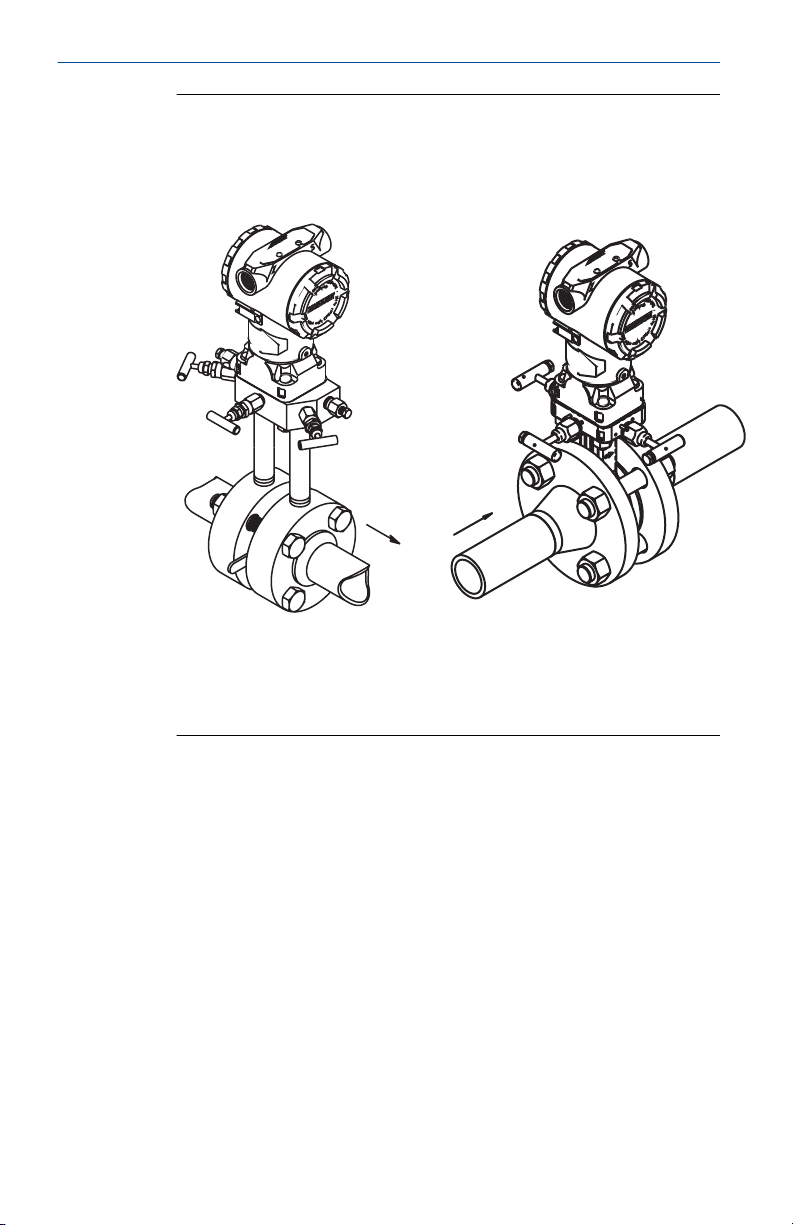

Figure 2-1: Coplanar and In-line Liquid Applications

A. Coplanar

B. In-line

2.1.2 Gas applications

Procedure

1. Place taps in the top or side of the line.

2. Mount beside or above the taps.

February 2019 Quick Start Guide

Quick Start Guide 5

Figure 2-2: Coplanar and In-line Gas Applications

Flow

A. Coplanar

B. In-line

2.1.3 Steam applications

Procedure

1. Place taps to the side of the line.

2. Mount beside or below the taps.

3. Fill impulse lines with water.

Quick Start Guide February 2019

6 Emerson.com/Rosemount

Figure 2-3: Coplanar and In-line Steam Applications

A B

Flow

A. Coplanar

B. In-line

Figure 2-4: Panel and pipe mounting

1. 5/6 x 1½ panel bolts are customer supplied.

February 2019 Quick Start Guide

Quick Start Guide 7

2.1.4 Bolting considerations

If the transmitter installation requires assembly of the process flanges,

manifolds, or flange adapters, follow the assembly guidelines to ensure a tight

seal for optimal performance characteristics of the transmitters. Use only

bolts supplied with the transmitter or sold by Emerson as spare parts. Figure

2-5 illustrates common transmitter assemblies with the bolt length required

for proper transmitter assembly.

Figure 2-5: Common Transmitter Assemblies

A. Transmitter with coplanar flange

B. Transmitter with coplanar flange and optional flange adapters

C. Transmitter with traditional flange and optional flange adapters

D. Transmitter with coplanar flange and optional manifold and flange

adapters

Bolts are typically carbon steel (CS) or stainless steel (SST). Confirm the

material by viewing the markings on the head of the bolt and referencing

Table 2-1. If bolt material is not shown in Table 2-1, contact a local Emerson

representative for more information.

Use the following bolt installation procedure:

Procedure

1. CS bolts do not require lubrication and the SST bolts are coated with a

lubricant to ease installation. However, no additional lubricant should

be applied when installing either type of bolt.

2. Finger-tighten the bolts.

3. Torque the bolts to the initial torque value using a crossing pattern.

See Table 2-1 for initial torque value.

Quick Start Guide February 2019

8 Emerson.com/Rosemount

4. Torque the bolts to the final torque value using the same crossing

pattern. See Table 2-1 for final torque value.

5. Verify that the flange bolts are protruding through the isolator plate

before applying pressure.

Table 2-1: Torque Values for the Flange and Flange Adapter Bolts

Bolt material Head markings Initial

torque

Final torque

B7M

300 in-lb

650 in-lb

SST

316

STM

316

B8M

150 in-lb 300 in-lb

2.1.5 In-line gage transmitter orientation

The low side pressure port (atmospheric reference) on the in-line gage

transmitter is located in the neck of the transmitter, behind the housing. The

vent path is 360° around the transmitter between the housing and sensor.

(See Figure 2-6)

Keep the vent path free of any obstruction, including but not limited to paint,

dust, and lubrication by mounting the transmitter so that the process can

drain away.

February 2019 Quick Start Guide

Quick Start Guide 9

Figure 2-6: In-line Gage Low Side Pressure Port

A. Low side pressure port (atmospheric reference)

2.1.6 Consider housing rotation

To improve field access to wiring or to better view the optional LCD display:

Procedure

1. Loosen the housing rotation set screw using a -in. hex wrench.

2. Turn the housing left or right maximum up to 180° from its original

position.(1)

Note

Over-rotating can damage the transmitter.

3. Re-tighten the housing rotation set screw to no more than 7 in-lb

when desired location is reached.

Figure 2-7: Housing Rotation Set Screw

A. Housing rotation set screw (5/64-in.)

(1) Rosemount 3051D original position aligns with “H” side; Rosemount 3051G original

position is the opposite side of bracket holes.

Quick Start Guide February 2019

10 Emerson.com/Rosemount
