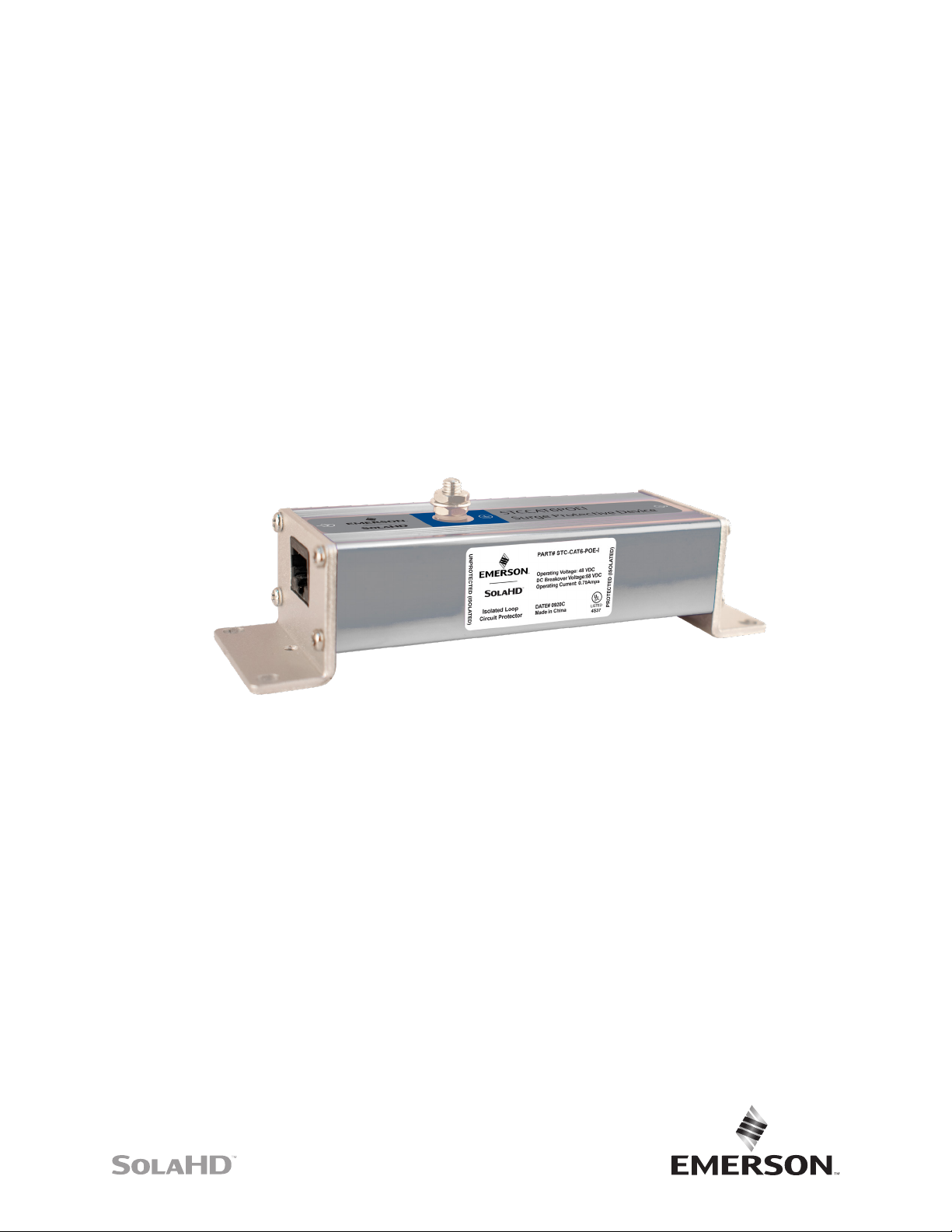

Emerson SOLAHD STCCAT6P0EI Manual de usuario

Surge Protective Devices

STCCAT6P0EI

Safety Information

Important Information

Read these instructions carefully and look at the equipment to become

familiar with the device before trying to install, operate, service or maintain it.

The following special messages may appear throughout thisbulletin or on the

equipment to warn of potential hazards or to call attention to information that

clarifies or simplifies a procedure.

The addition of either symbol to a “Danger”or “Warning” safety label

indicates that an electrical hazard exists which will result inpersonal

injury if the instructions are not followed.

This is the safety alert symbol. It is used to alert you to potential

personal injury hazards. Obey all safety messagesthat follow this

symbol to avoid possible injury or death.

DANGER

DANGER indicates a hazardous situation which, if not avoided,

will result in death or serious injury.

WARNING

WARNING indicates a hazardous situation which, if not avoided,

could result in death or serious injury.

CAUTION

CAUTION indicates a hazardous situation which, if not avoided,

could result in minor or moderateinjury.

NOTICE

NOTICE is used to address practices not related to physical injury. The safety

alert symbol shall not be used with this signal word.

Please Note

Electrical equipment should be installed, operated, serviced, and maintained only

by qualified personnel. No responsibility is assumed by Appleton Grp LLC d/b/a

Appleton Group for any consequences arising out of the use of this material.

A qualified person is one who has skills and knowledge related to the

construction, installation, and operation of electrical equipment andhas received

safety training to recognize and avoid the hazards involved.

Page: 1

STCCAT6P0EI

Introduction

The SolaHD STCCATCAT6P0EI is designed for use with Category 6 Power-Over-Ethernet transmission line

applications. It limits surges and transients at computers and video equipment.

The STCCATCAT6P0EI is available with an isolated ground option to be used at the equipment end in order to

help prevent circulating ground currents.

DANGER

HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH

• Apply appropriate personal protective equipment (PPE) and follow safe electrical work practices. See NFPA 70E,

NOM-029-STPS or CSA Z462.

• This equipment must only be installed and serviced by qualied electrical personnel.

• Turn o󰀨 all power supplying this equipment before working on or inside equipment.

• Always use a properly rated voltage sensing device to conrm power is o󰀨.

• Replace all devices, doors and covers before turning on power to this equipment.

• This equipment must be e󰀨ectively grounded per all applicable codes. Use an equipment-grounding conductor

to connect this equipment to the power system ground.

• Conrm that the Surge Protective Device voltage rating on the module or nameplate label is not less than the

operating voltage.

• Do not place this product in service on any line capable of supplying more than 750 mA continuously.

Failure to follow these instructions will result in death or serious injury.

WARNING: This product can expose you to chemicals including DINP, which is known to the State of California

to cause cancer, and DIDP which is known to the State of California to cause birth defects or other reproductive

harm. For more information go to: www.P65Warnings.ca.gov.

STCCAT6P0EI

Page: 2

Installation

1. Turn off power to circuit prior to installation.

2. Mount the SPD as close as possible to the equipment. #6 hardware is recommended.

3. Connect a #10 ground wire using a 10-32 ring terminal (not provided) to the SPD ground stud. Connect

the opposite end of the wire to a “building approved ground”. Keep ground wire as short and straight as

possible to maximize performance.

4. Connect the STCCAT6P0EI supply cable (with RJ-45 connector) to the INPUT side of the SPD.

5. Complete the circuit by connecting the CAT5 cable (provided) from the output of the SPD to the

equipment.

6. Apply power to circuit and verify operation.

Higher Operating Currents

* For applications requiring higher Operating Currents, input connections can be

paralleled to meet the desired rating.

Page: 3

STCCAT6P0EI

General Technical Specifications

STCCAT6P0EI

Operating Voltage up to 57 VDC

Clamping Voltage 68 VDC

Operating Current* 0.75 Amp Per Pin

Peak Surge Current 10 kA (8 x 20 µs) Per Pair

Insertion Loss < 0.1 dB

Topology Two Port Series

Modes of

Protection

All Lines (1-8) Protected (L-L) and (L-G)

Signal High-Low; High-Ground; Low-Ground

Transmission Speeds 10BaseT; 100BaseT; 1000BaseT

SPD Technology GDT, SAD, Series PTC

Input/Output Connection RJ-45 Jacks

(Isolated)

CAT 5 Output Cable Unshielded RJ-45,

7 in. (.18M)

Ground

Terminal 10-32 Stud (Isolated)

Operating

Temperature

-40°C to +85°C (operating current adjusted to

40% @ +85°C)

Operating Humidity 0-95% Non-Condensing

Material Aluminum

Mounting Flange

Weight (oz / g) 5 oz [142 g]

Certiﬁcation UL 497B Listed, Tested to IEC 802.11

(Complies to IEEE 802.3AT and 802.3AF)

Limited Warranty 5 Year

Model Reference

Model Application

STCCAT6P0EI CAT6 Protection with Isolated Ground

STCCAT6P0EI

Page: 4

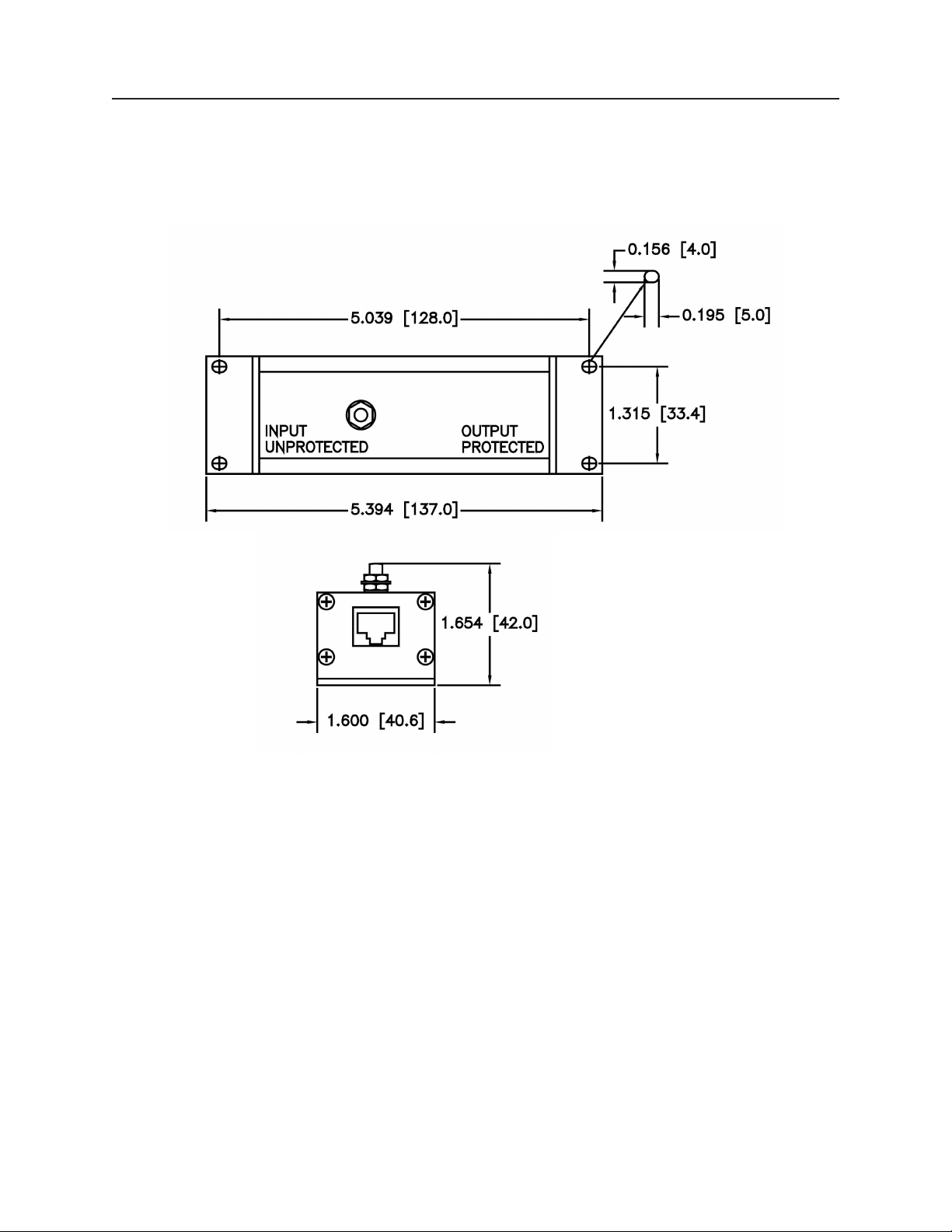

Dimensions (in. / mm.)

Page: 5

STCCAT6P0EI

Technical Support

Website: www.solahd.com

Technical Support E-Mail: solahd.technicalservices@emerson.com

Toll-Free: (800) 377-4384

USA: (847) 268-6651

Warranty

Please refer to the “Terms & Conditions of Sale” document.

While every precaution has been taken to ensure accuracy and completeness in this manual, Appleton Grp LLC d/b/a Appleton Group

assumes no responsibility, and disclaims all liability for damages resulting from use of this information or for any errors or omissions.

STCCAT6P0EI

A272-352 Rev. 0 10/2020

The Emerson logo is a trademark and service mark of Emerson Electric Co.

Appleton Grp LLC d/b/a Appleton Group. SolaHD is a registered trademark of Appleton Grp LLC.

United States

(Headquarters)

Appleton Grp LLC

9377 W. Higgins Road

Rosemont, IL 60018

United States

T +1 800 621 1506

Australia Sales Office

Bayswater, Victoria

T +61 3 9721 0348

Europe

ATX SAS

Espace Industriel Nord

35, rue André Durouchez,

CS 98017

80084 Amiens Cedex 2

France

T +33 3 2254 1390

China Sales Office

Shanghai

T +86 21 3338 7000

Canada

EGS Electrical Group Canada

Ltd.

99 Union Street

Elmira ON, N3B 3L7

Canada

T +1 888 765 2226

Middle East Sales Office

Dammam, Saudi Arabia

T +966 13 510 3702

Chile Sales Office

Las Condes

T +56 2928 4819

India Sales Office

Chennai

T +91 44 3919 7300

Korea Sales Office

Seoul

T +82 2 3483 1555

PN# 9638_r

Asia Pacific

EGS Private Ltd.

Block 4008, Ang Mo Kio

Ave 10,

#04-16 TechPlace 1,

Singapore 569625

T +65 6556 1100

Latin America

EGS Comercializadora

Mexico S de RL de CV

Calle 10 N°145 Piso 3

Col. San Pedro de los Pinos

Del. Álvaro Obregon

Ciudad de México. 01180

T +52 55 5809 5049
