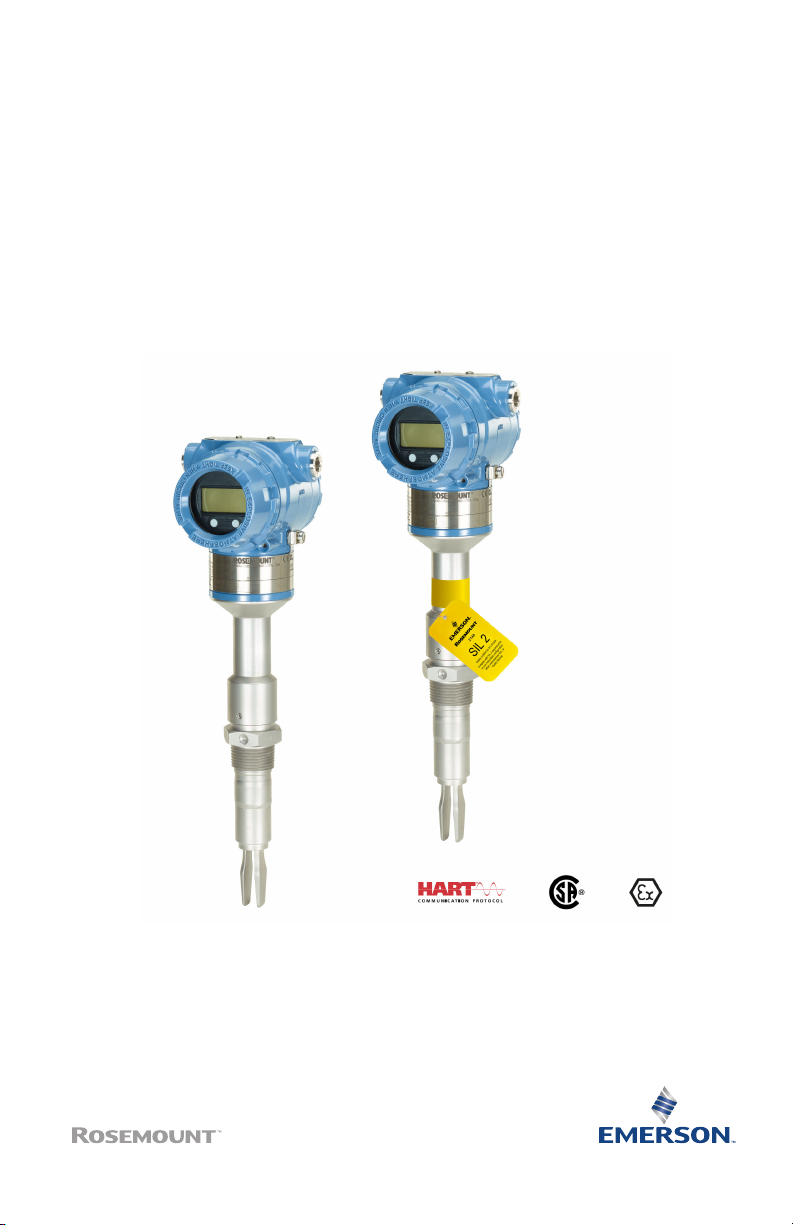

Emerson Rosemount 2140 Manual de usuario
Quick Start Guide
00825-0100-4140, Rev AC
August 2020
Rosemount™ 2140 and 2140:SIS Level
Detectors
Vibrating Fork
Contents
About this guide...........................................................................................................................3
Installation................................................................................................................................... 5
Prepare the electrical connections..............................................................................................11
Connect wiring and power-up.................................................................................................... 14
Configuration.............................................................................................................................19
Quick Start Guide August 2020
2 Rosemount 2140 and 2140:SIS Level Detectors
1 About this guide
This Quick Start Guide provides basic guidelines for the Rosemount™ 2140
and 2140:SIS Level Detectors. Refer to the Rosemount 2140 and 2140:SIS
Reference Manual for more instructions. The manual and this guide are also
available electronically at Emerson.com/Rosemount.
WARNING
Failure to follow safe installation and servicing guidelines could result in
death or serious injury.
•Ensure the level detector is installed by qualified personnel and in
accordance with applicable code of practice.
•Use the level detector only as specified in this manual. Failure to do so
may impair the protection provided by the level detector.
•The weight of a level detector with a heavy flange and extended fork
length may exceed 37 lb. (18 kg). A risk assessment is required before
carrying, lifting, and installing the level detector.
•For installations in hazardous locations, the level detector must be
installed according to the Rosemount™ 2140 and 2140:SIS Level
Detectors Product Certifications document
Explosions could result in death or serious injury.
•Verify that the operating atmosphere of the level detector is consistent
with the appropriate hazardous locations certifications.
•Before connecting a handheld communicator in an explosive
atmosphere, ensure that the instruments in the loop are installed in
accordance with intrinsically safe or non-incendive field wiring practices.
•In explosion-proof/flameproof and non-incendive/type n installations, do
not remove the housing covers when power is applied to the level
detector.
•Both housing covers must be fully engaged to meet flameproof/
explosion-proof requirements.
August 2020 Quick Start Guide
Quick Start Guide 3
WARNING
Electrical shock could cause death or serious injury.
•Avoid contact with the leads and terminals. High voltage that may be
present on leads can cause electrical shock.
•Ensure the power to the level detector is off, and the lines to any other
external power source are disconnected or not powered while wiring the
level detector.
•Ensure the wiring is suitable for the electrical current and the insulation is
suitable for the voltage, temperature, and environment.
Process leaks could result in death or serious injury.
•Ensure the level detector is handled carefully. If the process seal is
damaged, gas might escape from the vessel (tank) or pipe.
WARNING
Physical access
Unauthorized personnel may potentially cause significant damage to and/or
misconfiguration of end users’ equipment. This could be intentional or
unintentional and needs to be protected against.
Physical security is an important part of any security program and
fundamental to protecting your system. Restrict physical access by
unauthorized personnel to protect end users’ assets. This is true for all
systems used within the facility.
CAUTION
Hot surfaces
The flange and process seal may be hot at high process
temperatures.
Allow to cool before servicing.
Quick Start Guide August 2020
4 Rosemount 2140 and 2140:SIS Level Detectors
2 Installation
2.1 Fork alignment in a pipe installation
Figure 2-1: Correct Fork Alignment for Pipe Installation
OK
OK
A
B
A
B
A. Tri Clamp process connections have a circular notch
B. Threaded process connections have a groove
2.2 Fork alignment in a vessel (tank) installation
Figure 2-2: Correct Fork Alignment for Vessel (Tank) Installation
OK
OK
OK
C
A
B
A. Tri Clamp process connections have a circular notch
B. Threaded process connections have a groove
C. Flanged process connections have a circular notch
August 2020 Quick Start Guide
Quick Start Guide 5
2.3 Mounting the threaded version
2.3.1 Seal and protect the threads
•Use anti-seize paste or PTFE tape according to site procedures.
A gasket may be used as a sealant for BSPP (G) threaded connections.
2.3.2 Threaded vessel (tank) or pipework connection
•Vertical installation.
A
B
•Horizontal installation.
A
B
A. Tighten using the hexagon nut only
B. Gasket for BSPP (G) threaded connection
Quick Start Guide August 2020
6 Rosemount 2140 and 2140:SIS Level Detectors
2.3.3 Threaded flange connection
Procedure
1. Place the customer-supplied flange and gasket on the vessel (tank)
nozzle.
A
A. Gasket (customer supplied)
2. Tighten the bolts and nuts with sufficient torque for the flange and
gasket.
3. Screw the level detector into the flange thread.
A
A. Tighten using the hexagon nut only
August 2020 Quick Start Guide
Quick Start Guide 7
2.4 Mounting the flanged version
Procedure
1. Lower the level detector into the nozzle.
A
A. Gasket (customer supplied)
2. Tighten the bolts and nuts with sufficient torque for the flange and
gasket.
Quick Start Guide August 2020
8 Rosemount 2140 and 2140:SIS Level Detectors
2.5 Mounting the Tri Clamp version
Procedure
1. Lower the level detector into the flange face.
A
A. Seal (supplied with Tri Clamp)
2. Fit the Tri Clamp.
August 2020 Quick Start Guide
Quick Start Guide 9
2.6 Adjust display orientation (optional)
To improve field access to wiring or to better view the optional LCD display:
Procedure
1. Loosen the set screw until the level detector housing can rotate
smoothly.
Do not unscrew all the way. Rotating the housing, without this screw
in place, can damage the internal wiring.
2. First, rotate the housing clockwise to the desired location.
If the desired location cannot be achieved due to thread limit, rotate
the housing counterclockwise.
3. Re-tighten the set screw.
Figure 2-3: Housing Rotation
Do not attempt to rotate the display beyond the thread limits
H3/32 in. torque 30 in-lb (3 Nm)
Quick Start Guide August 2020
10 Rosemount 2140 and 2140:SIS Level Detectors
