This guide describes installation and activation of the Sensi Predict™Condensate Switch

Monitor accessory. The accessory provides indication of system shutdown by condensate level

switches responding to excessive water levels. One or more switches may be monitored.

To install, connect the free wires of the condensate switch monitor to either end of the

condensate switch chain as shown below. Plug the connector into one of the accessory ports

of the Sensi Predict Data Hub and ensure that the red stripe on the 3-pin connector side of the

wire is facing up, as illustrated below. See back for validation procedure.

CONDENSATE SWITCH MONITOR CONNECTIONS

BEFORE INSTALL

0037-7658001

NOTE: Please verify that the condensate switch is rated

to control the connected load.

NOTE: The condensate switch monitor MUST be wired

in parallel

Ensure that the red stripe on the 3-pin connector side

of the wire is facing up, as shown above

CONDENSATE

SWITCH WIRES

R,C, OR Y

CONTROL WIRE INDOOR DEVICE

R,C, OR Y

CONTROL WIRE

CONDENSATE

SWITCH MONITOR

TO CONDENSATE SWITCH(S)

CONDENSATE

SWITCH WIRES

R,C, OR Y

CONTROL WIRE

R,C, OR Y

CONTROL WIRE

TO CONDENSATE SWITCH(S)

CONDENSATE SWITCH MONITOR INSTALLATION GUIDE

WARNING

ELECTRICAL SHOCK/FIRE HAZARD

• Installer must be qualied technician

• Connect only to a 24 volt class 2 circuit

• Follow all local and national codes and ordinances

• Ensure proper operation of HVAC system, following manufacturer’s instructions

The Sensi Predict PRO Portal can be accessed at sensipredictpro.com

For login support, contact your ofﬁce administrator.

For support within the PRO Portal, call 1-877-424-1715.

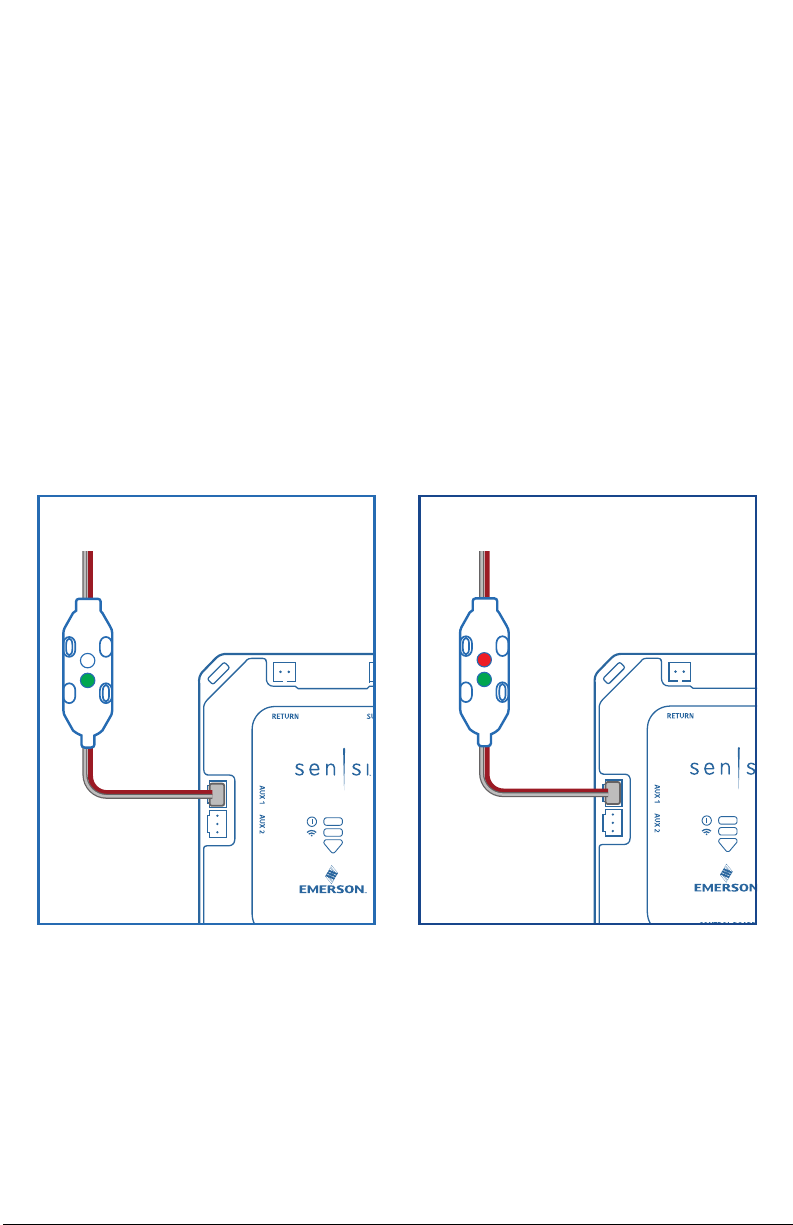

When the Condensate Switch Monitor is connected to the Data Hub the green light will be on, as

shown in Figure A. If the monitor’s green LED does not illuminate and the Data Hub is powered

on, unplug the 3-pin connector, ﬂip over and reinsert.

Proper connection to the condensate switch may be conﬁrmed by momentarily opening the

switch and observing that the red light comes on, as seen in Figure B. (24 volt system power

must be on and the control wire being interrupted must be active for this step.) If the red light

does not indicate when the switch is open, please verify that the switch is operating correctly.

In the event of a condensate switch opening the red light will illuminate and the Sensi Predict

system will detect an open status. Sensi Predict technicians will not trigger a homeowner alert

unless an actual condensate event is diagnosed. When the condensate switch closes (after

removing the clog and draining the water) the red light will go out.

SENSOR LED LIGHTS

ﬁg.a ﬁg.b

SENSOR LED LIGHT INDICATORS

0037-7658001

The Sensi Predict PRO Portal can be accessed at sensipredictpro.com

For login support, contact your ofﬁce administrator.

For support within the PRO Portal, call 1-877-424-1715.
