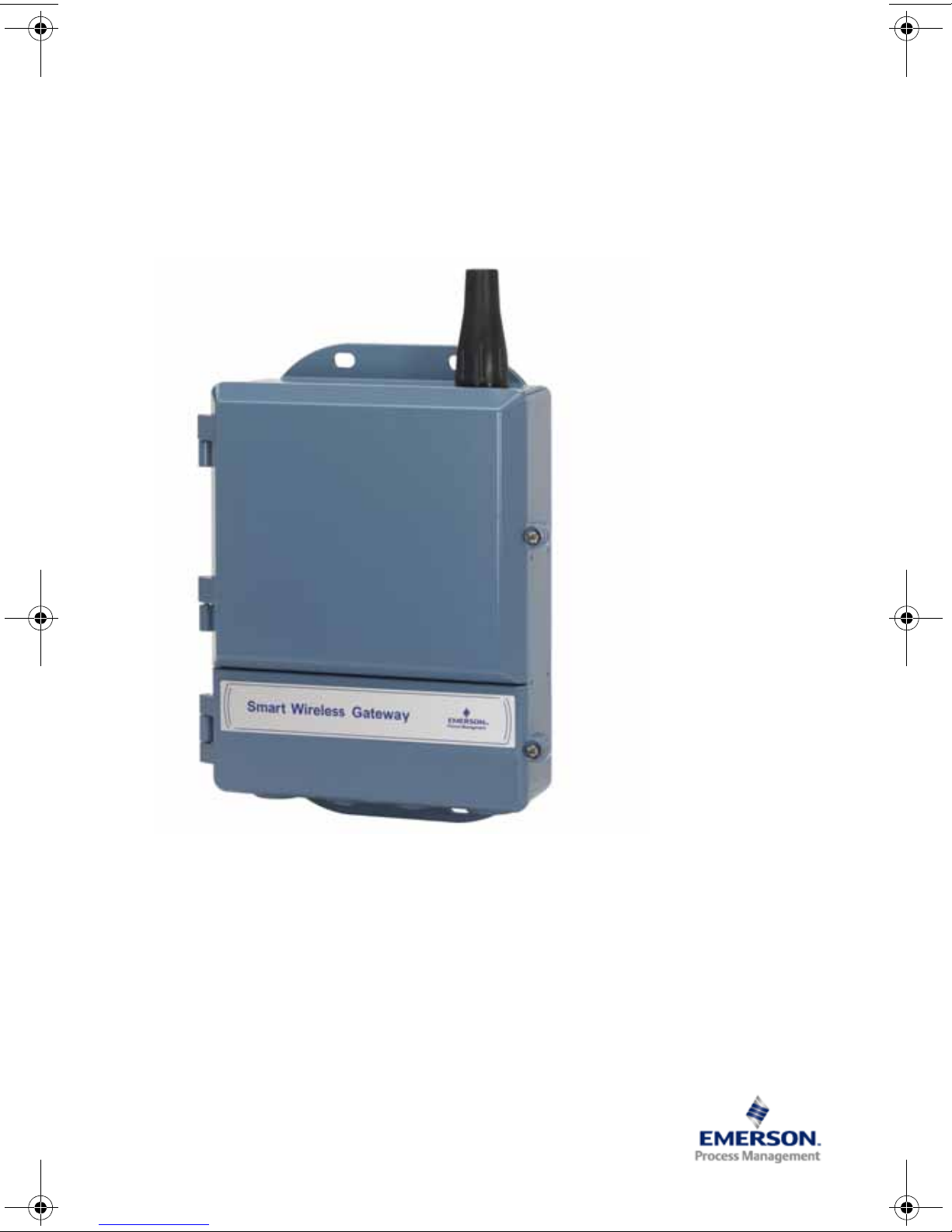

Emerson Smart Wireless Gateway Manual de usuario
Quick Start Guide
00825-0200-4420, Rev EA
April 2013
Smart Wireless Gateway
00825-0200-4420_EA.fm Page 1 Monday, April 1, 2013 1:17 PM
April 2013
2
Quick Start Guide
NOTICE
This installation guide provides basic guidelines for the Smart Wireless Gateway. It does not
provide instructions for diagnostics, maintenance, service, or troubleshooting. Refer to the
Smart Wireless Gateway Reference Manual (Document Number 00809-0200-4420) for more
information and instructions. The manual and this QIG are available electronically on
www.emersonprocess.com.
Explosions could result in death or serious injury:
Installation of this device in an explosive environment must be in accordance with the
appropriate local, national, and international standards, codes, and practices. Please review the
Product Certifications section for any restrictions associated with a safe installation.
Avoid contact with the leads and terminals. High voltage that may be present on leads can
cause electrical shock. This device complies with Part 15 of the FCC Rules. Operation is subject
to the following conditions. This device may not cause harmful interference. This device must
accept any interference received, including interference that may cause undesired operation.
This device must be installed to ensure a minimum antenna separation distance of 20 cm from
all persons.
00825-0200-4420_EA.fm Page 2 Monday, April 1, 2013 1:17 PM
Quick Start Guide
3
April 2013
Wireless considerations
Power up sequence
The Smart Wireless Gateway (Gateway) should be installed and functioning
properly before Power Modules are installed in any wireless field devices. Wireless
field devices should also be powered up in order of proximity from the Smart
Wireless Gateway beginning with the closest. This will result in a simpler and
faster network installation.
Antenna position
The antenna should be positioned vertically, and be approximately 3 ft. (1 m)
from large structures or buildings to allow for clear communication to other
devices.
Mounting height
For optimal wireless coverage, the Gateway or remote antenna is ideally mounted
15-25 ft. (4,6 - 7,6 m) above ground or 6 ft. (2 m) above obstructions or major
infrastructure.
Gateway redundancy
If the wireless Gateway was ordered with redundancy (Gateway Redundancy code
RD), please see appendix D in the reference manual (doc. # 00809-0200-4420) for
additional installation instructions.
General considerations
PC requirements
Operating System (optional software only)
Windows XP Professional, Service Pack 3
Windows Server 2003 Service Pack 2
Windows Server 2003 R2 Service Pack 2
Windows Server 2008 (Standard Edition), Service Pack 2
Windows Server 2008 R2 Standard Edition, Service Pack 1
Windows 7 Professional, Service Pack 1
Windows 7 Enterprise, Service Pack 1
Applications
Internet Explorer 6.0 or higher
Mozilla Firefox 1.5 or higher
.Net Framework 2.0 (for OPC proxy only)
Hard Disk Space
AMS™ Wireless Configurator: 1.5 GB
Gateway Setup CD: 250 MB
00825-0200-4420_EA.fm Page 3 Monday, April 1, 2013 1:17 PM
April 2013
4
Quick Start Guide
Step 1: Initial connection and configuration
DeltaV™ ready
If the Gateway was ordered DeltaV Ready (Data Protocols Code 5), then Step 1:
Initial Connection and Configuration is not required. Proceed to Step 2: Physical
Installation, and connect the Gateway to a DeltaV 10.3 or newer control network.
Initial connection and configuration
To configure the Smart Wireless Gateway, a local connection between a
PC/Laptop and the Gateway needs to be established.
Powering the gateway
Bench top power will be needed to power the Gateway by wiring a 24 VDC
(nominal) power source, with at least 250 mA, to the power terminals.
Figure 1. Gateway Terminal Block Diagram
Establishing a connection
Note
For information on how to connect with a Windows®7 PC, please see the technical note
(document number: 00840-0900-4420).
1. Connect the PC/Laptop to the Ethernet 1 (Primary) receptacle on the
Gateway.
+
+
+
+
+
-
-
-
-
-
AB
S
S
S
S
24 VDC
(nominal)
Power Input
Serial
Modbus
Not
Us
e
d
Not
Us
e
d
N
ot
Us
e
d
Not
Us
e
d
Case
(Covered)
S
Ethernet 2
with Power Ethernet 2 Ethernet 1
(Secondary) (Primary)
00825-0200-4420_EA.fm Page 4 Monday, April 1, 2013 1:17 PM
Quick Start Guide
5
April 2013
Step 1 continued...
Figure 2. Gateway PC/Laptop Connection Illustration
2. To establish the PC/Laptop settings begin with Start>Settings>Network
Connections.
a. Select Local Area Connection.
b. Right click to select Properties.
c. Select Internet Protocol (TCP/IP), then click the Properties button.
Do not connect to the Ethernet 2 with Power (Covered) port. This port supplies power and
could damage the PC/Laptop.
+ +
+
+
+
-
--
-
-A B S S
SS
S
24V DC24V DC
PowerInputPowerInput ModbusModbus Not UsedNot Used NotUsedNot Used
Not UsedNot Used NotUsedNot Used
CaseCase
S
POEPOE P2P2 P1P1
Ethernet 1
Receptacle
PC/Laptop
00825-0200-4420_EA.fm Page 5 Monday, April 1, 2013 1:17 PM
April 2013
6
Quick Start Guide
Step 1 continued...
Note
If the PC/Laptop is from another network, record the current IP address and other settings so the
PC/Laptop can be returned to the original network after the Gateway has been configured.
d. Select the Use the following IP address button
e. Input 192.168.1.12 in the IP address block.
f. Input 255.255.255.0 in the Subnet Mask.
g. Select OK for both the Internet Protocol (TCP/IP) Properties window and the
Local Area Connection Properties window.
Note
Connecting to the Gateway's secondary Ethernet port will require different network settings.
Please see Table 1 for additional network settings.
3. Disable Proxies.
a. Open a standard web browser (Internet Explorer, Mozilla Firefox, or other).
b. Navigate Tools>Internet Options>Connections>LAN Settings
c. Uncheck the box under Proxy Server.
Table 1. Default IP Addresses
Gateway PC / Laptop
Ethernet 1 192.168.1.10 192.168.1.12
Ethernet 2 192.168.2.10 192.168.2.12
Ethernet 1 (DeltaV Ready) 10.5.255.254 10.5.255.200
Ethernet 2 (DeltaV Ready) 10.9.255.254 10.9.255.200
Table 2. Subnet Settings
Subnet Mask
Default 255.255.255.0
DeltaV 255.254.0.0
00825-0200-4420_EA.fm Page 6 Monday, April 1, 2013 1:17 PM
Quick Start Guide
7
April 2013
Step 1 continued...
Configure the Smart Wireless Gateway
To complete initial configuration for the gateway:
1. Access the default web page for the Gateway at https://192.168.1.10.
a. Log on as User: admin.
b. Type in password: default.
2. Navigate to Setup>Ethernet Protocol>Address to enter the Network Settings.
a. Configure a static IP Address or set for DHCP and enter a Hostname
b. Restart Application at Setup>Restart Apps.
3. Disconnect the power and Ethernet from the Gateway.
00825-0200-4420_EA.fm Page 7 Monday, April 1, 2013 1:17 PM
April 2013
8
Quick Start Guide
Step 1 continued...
00825-0200-4420_EA.fm Page 8 Monday, April 1, 2013 1:17 PM
Quick Start Guide
9
April 2013
Step 2: Physical installation

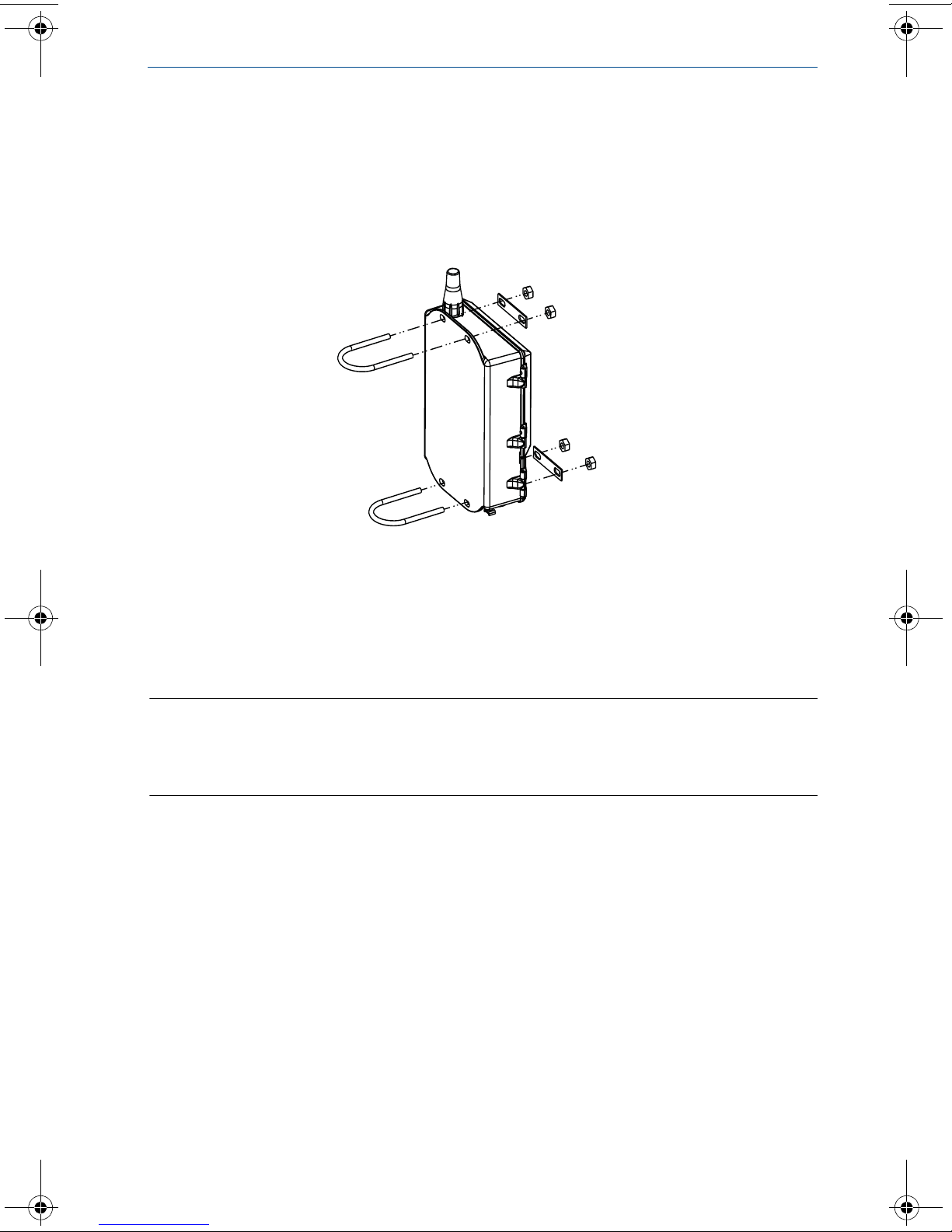

Pipe mount
Tools Needed:
2-in. (51 mm) mounting pipe or mast
Two 5/16-in. (7,9 mm) u-bolts supplied with Gateway
1/2-in. socket-head wrench
For installing the Gateway in a pipe mount:
1. Insert one u-bolt around the pipe, through the top mounting holes of the
Gateway enclosure, and through the washer plate.
2. Use a 1/2-in. socket-head wrench to fasten the nuts to the u-bolt.
3. Repeat for the second u-bolt and the lower mounting holes.
Best practice
If the Gateway was ordered with Output Code 2, run a secondary Ethernet Cable when installing
cable conduit from the Gateway to a convenient indoor location to simplify future configuration
changes.
00825-0200-4420_EA.fm Page 9 Monday, April 1, 2013 1:17 PM
April 2013
10
Quick Start Guide
Remote antenna (optional)
The remote antenna options provide flexibility for mounting the Gateway based
on wireless connectivity, lightning protection, and current work practices.
When installing remote mount antennas for the Smart Wireless Gateway, always use established
safety procedures to avoid falling or contact with high-power electrical lines.
Install remote antenna components for the Smart Wireless Gateway in compliance with local
and national electrical codes and use best practices for lightning protection.
Before installing, consult with the local area electrical inspector, electrical officer, and work area
supervisor.
The Smart Wireless Gateway remote antenna option is specifically engineered to provide
installation flexibility while optimizing wireless performance and local spectrum approvals. To
maintain wireless performance and avoid non-compliance with spectrum regulations, do not
change the length of cable or the antenna type.
If the supplied remote mount antenna kit is not installed per these instructions, Emerson Process
Management is not responsible for wireless performance or non-compliance with spectrum regulations.
