Document Part # 026-4950 Rev 0 08-OCT-2014 Page 1 of 14

Visit our website at http://www.emersonclimate.com/ for the latest technical documentation and updates.

This document will guide you through setting up and commissioning the M400 Control Techniques VFD

Drive in the E2 controller.

Note that Open MODBUS Description files require E2 firmware version 3.01F01 or higher.

The keypad and display gives information about the operating status of the drive and trip codes. It provides

the ability to change parameters, stopping and starting the drive, and the ability to perform a drive reset.

Figure 1 - Unidrive M400 Keypad Details

E2 Setup with M400 VFD Drive

for 527-0431

Quick Start Guide

Document Part # 026-4950 Rev 0 08-OCT-2014 Page 2 of 14

Visit our website at http://www.emersonclimate.com/ for the latest technical documentation and updates.

STEP 1: Configuring M400 VFD Drive

Note: Do not connect the device communications to E2 controller.

1. Press right/ left arrow key and go to Pr MM.000 then press . Select Reset 60Hz defs then press

Note: Pressing allows you to enter and exit parameter edit mode.

2. Press to return the drive into the No Action display.

3. Go to Pr 00.005 (Drive Config), then press . Select Preset, then press .

4. Set Pr 00.010 (User Security Status), then press . Select All Menus, then press .

5. Set Pr 06.004 (Start/Stop Logic), then press . Select 6, then press .

6. Set Pr 11.023 (Serial Address), then press . Select 2, then press .

7. Set Pr 11.024 (Serial Mode), then press . Select 8 1 NP, then press .

8. Set Pr 11.020 (Serial Reset), then press . Select On to reset communications.

Note: The device will flash to On and returns to Off, press .

9. Set Pr 12.000 (Parameter mm.000), then press . Select Save Parameters, then press .

10.Press to return the drive into the No Action display.

Note: The drive is now ready to communicate with the E2 controller and ready for test/run.

Keypad Number Keypad Description

1 (Enter) The Enter button is used to enter parameter view or edit mode, or to accept a

parameter edit.

2 (Navigation)

The Navigation keys can be used to select individual parameters or to edit parameter

values. In keypad mode, the “Up” and “Down” keys are also

used to increase or decrease the motor speed.

3 (Start) The Start key is used to start the drive in keypad mode.

4 (Stop/Reset) The Stop / Reset key is used to stop and reset the drive in keypad mode. It can also be

used to reset the drive in terminal mode.

5 (Escape) The Escape key is used to exit from the parameter edit / view mode or disregard a

parameter edit.

Document Part # 026-4950 Rev 0 08-OCT-2014 Page 3 of 14

Visit our website at http://www.emersonclimate.com/ for the latest technical documentation and updates.

STEP 2: Uploading the Description File to the E2 Controller

1. From UltraSite, connect to your E2 controller.

2. Right-click on the E2 icon and select Description File Upload.

3. Browse to the location of the description file and click Upload.

4. Once the upload is complete, reboot the E2 controller.

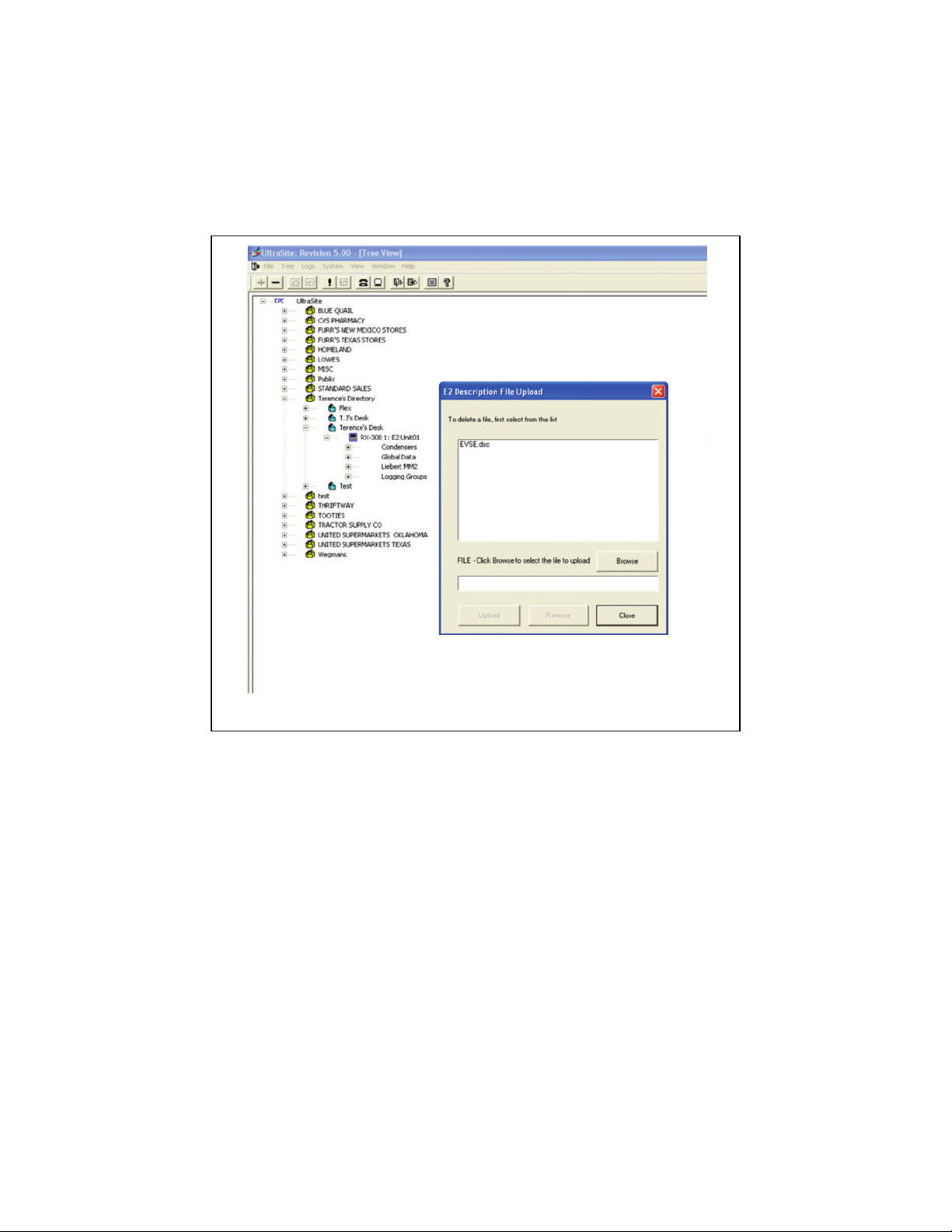

Figure 2 - E2 Description File Upload Window

Document Part # 026-4950 Rev 0 08-OCT-2014 Page 4 of 14

Visit our website at http://www.emersonclimate.com/ for the latest technical documentation and updates.

STEP 3: Activating the License of the Device

1. From the E2 front panel (or via Terminal Mode), press , (System Configuration) and

(Licensing).

2. Press (ADD FEATURE) and enter the license key. Press to save changes.

Figure 3 - Add License Screen

Document Part # 026-4950 Rev 0 08-OCT-2014 Page 5 of 14

Visit our website at http://www.emersonclimate.com/ for the latest technical documentation and updates.

STEP 4: Setting the Baud Rate in the E2 Controller

1. Press , (System Configuration), (Remote Communication) and (TCP/IP Setup).

2. Press (NEXT TAB) to shift over to the Serial tab. Select COM port, then set Baud rate to 19200,

Data Size to 8, Parity to None and Stop Bits to 1.

Figure 4 - Set the Baud Rate, Data Size, Parity and Stop Bits

Document Part # 026-4950 Rev 0 08-OCT-2014 Page 6 of 14

Visit our website at http://www.emersonclimate.com/ for the latest technical documentation and updates.

STEP 5: Wiring the M400 VFD Device

Wire the device as shown below.

Note: Do not connect device communications to the E2 controller.

Figure 5 - Wire the M400 VFD Device

Document Part # 026-4950 Rev 0 08-OCT-2014 Page 7 of 14

Visit our website at http://www.emersonclimate.com/ for the latest technical documentation and updates.

STEP 6: Adding the Device to the E2 Controller

1. Press , (System Configuration), (Network Setup), (Connected I/O Boards & Controllers).

2. Press (NEXT TAB) to shift over to the C4: Third Party tab. The name of the device will display in

the list. Highlight the device name and enter the number of devices. Then press to save

changes.

Figure 6 - Third Party Tab

Document Part # 026-4950 Rev 0 08-OCT-2014 Page 8 of 14

Visit our website at http://www.emersonclimate.com/ for the latest technical documentation and updates.

STEP 7: Commissioning the Device to the E2 Controller

1. Press , (System Configuration), (Network Setup), (Network Summary).

2. On the Network Summary screen, press (COMMISSION) and select the preferred MODBUS port.

Select the MODBUS device address and press .

Figure 7 - Select the MODBUS Port

Figure 8 - Enter the MODBUS Device Address

Document Part # 026-4950 Rev 0 08-OCT-2014 Page 9 of 14

Visit our website at http://www.emersonclimate.com/ for the latest technical documentation and updates.

3. After setting and saving the device address, press to go to the Status screen.

4. Press , ,to shift over to the Setpoints tab. Set values for Motor Voltage, Motor RPM

and Motor FLA from the motor plate of the device.

Figure 9 - Device Status Screen

Figure 10 - Setpoints Tab

Document Part # 026-4950 Rev 0 08-OCT-2014 Page 10 of 14

Visit our website at http://www.emersonclimate.com/ for the latest technical documentation and updates.

5. Press to go back to the Status screen. Connect device communications to the E2 controller,

then the device will appear Online.

6. Press to go to the Actions menu, then select (Application Commands).

Figure 11 - M400 VFD Device Status

Figure 12 - Actions Menu
