Introduction

Section 1: Introduction

1.1 General Application

Actuators are designed for "on-off" or modulating control of any quarter-turn ball,

buttery, rotary plug or damper style valve application.

1.2 Technical Data

Supply Pressure 40-160 psig, see product nameplate

Supply Medium Any pneumatic uid compatible with materials of construction

Temperature Rating Standard Range: -20°F to 210°F

Optional Range: -65°F to 300°F

Angular Rotation 90 degrees ± 8 degrees

NOTE:

Language translations of the safety related portions of this document are available at

www.emerson.com

Section 1: Introduction

July 2019

Installation, Operation and Maintenance Manual

MAN-02-01-39-0704-EN Rev. 0

Introduction

1.3 Installation

The actuator can be mounted parallel or perpendicular to pipeline. The actuator can be

installed in any convenient position including vertical, horizontal or upside down.

A. Begin by bolting the mounting bracket to actuator only hand tight.

B. Install coupling on valve. Remove or disable any stops on the valve.

Use only the actuator position stops!

C. Install the actuator and bracket to valve being sure to leave all fastener

connections hand tight. If possible, stroke valve and actuator to a half open

position and physically shift actuator back and forth until coupling and all fasteners

are centered then tighten all bolts and nuts. This procedure will accurately align

valve stem to actuator output shaft and prolong valve stem seal life.

D. Cycle valve / actuator assembly and conrm smooth operation.

E. Adjust the actuator travel stops for perfect valve alignment in both open and

closed positions.

NOTE:

If the valve disk is torque seated (E.G. Vanessa buttery), close the valve against the

actuator stop, then unscrew the stop until turns freely, then screw the stop back in until it

stops, then turn the stop with a wrench one additional turn and lock into place.

F. Tubing Connections – some models utilize two pistons for added power. Spring

return (single acting) dual cylinders designs require one “jumper” to make the

supply port common on both pistons. Double acting (air to air) dual cylinder

designs require two “jumpers.” See Figure 1 for typical arrangement.

CAUTION

Use correct length mounting bolts! Mounting bolts used in actuator mounting pad may

interfere with the actuator rotary mechanism. Select bolts that will not extend more than

two threads above the back of the mounting pad.

Section 1: Introduction

Installation, Operation and Maintenance Manual

MAN-02-01-39-0704-EN Rev. 0 July 2019

Maintenance

Section 2: Maintenance

Actuators are factory lubricated and in general do not require periodic lubrication or

maintenance while in service. Actuators should be visually inspected periodically for

corrosion damage and promptly repaired. Actuators should be operated at least annually

to assure proper operation.

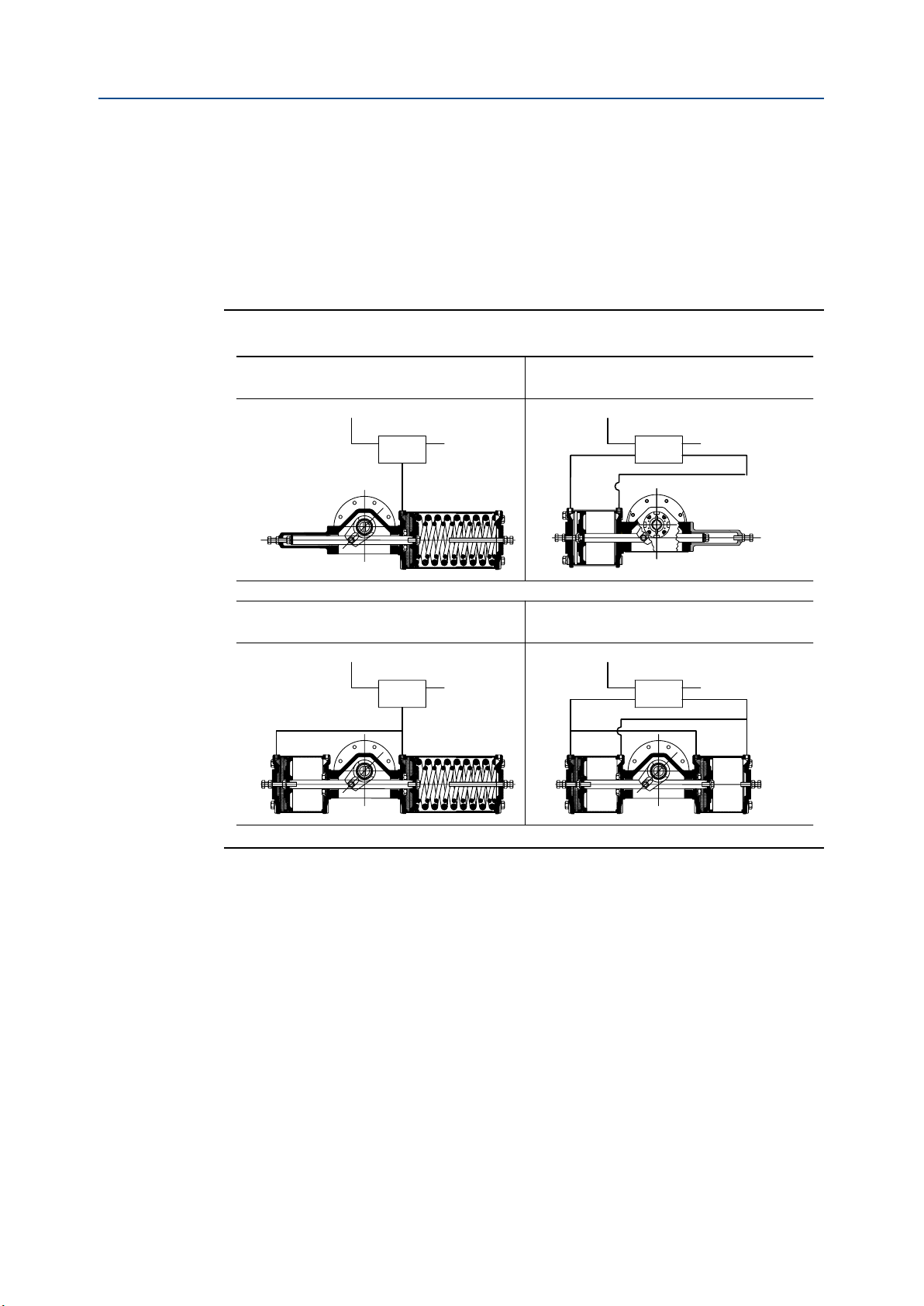

Figure 1

SINGLE ACTING ACTUATOR

TWO CYLINDERS WITH JUMPER

DOUBLE ACTING ACTUATOR

TWO CYLINDERS WITH JUMPER

SUPPLYSUPPLY

EXHAUS

XHAUST

SOLENOID

POSITIONER

SOLENOID

POSITIONER

SINGLE ACTING ACTUATOR

ONE CYLINDER

DOUBLE ACTING ACTUATOR

ONE CYLINDER

SUPPLYSUPPLY

EXHAUS

XHAUST

SOLENOID

POSITIONER

SOLENOID

POSITIONER

SHUT

OPEN

Section 2: Maintenance

July 2019

Installation, Operation and Maintenance Manual

MAN-02-01-39-0704-EN Rev. 0

Jackscrew Override

Section 3: Jackscrew Override

The jackscrew option is intended for infrequent or emergency on-site operation of the

automated valve.

3.1 Jackscrew Operating Instructions

1. Disengage power supply and vent air from actuator.

2. Operate the handwheel to drive the actuator into the desired position. Valve

position can be veried by checking the actuator position indicator. For models

006 through 270, the jackscrew must be returned to the fully retracted position

before actuator can resume normal operation. Back the jackscrew out until it

stops. Air will leak from the jackscrew unless it has been fully retracted against its

internal seal.

3.2 Actuator Stroke Adjustment

The jackscrew has a built-in actuator stroke adjustment, see Figure 2 and 3.

3.3 Models 006 through 270

See Figure 2:

1. Retract the jackscrew override completely by rotating counter clockwise.

2. Loosen the lock nut and turn the brass adjusting screw to the desired position.

The handwheel will rotate with the adjusting screw. Never make stroke

adjustments by turning the handwheel only.

3. Tighten lock nut.

3.4 Models 370, 740 & 575

See Figure 3:

1. Retract the jackscrew override completely by rotating clockwise.

2. Loosen the stroke adjusting screw and lock nut.

3. Using the handwheel, turn the jackscrew to adjust the actuator to the

desired position.

4. Screw the adjusting screw until it stops and tighten lock nut.

Section 3: Jackscrew Override

Installation, Operation and Maintenance Manual

MAN-02-01-39-0704-EN Rev. 0 July 2019

Jackscrew Override

Figure 2 Jackscrew Override - Models 006 through 270

OPEN

SHUT

OPEN

SHUT

JACKSCREW FULLY RETRACTED JACKSCREW EXTENDED

Actuator stroke

adjusting screw

Jackscrew seal

Stroke adjusting screw

Jackscrew

Lock nut

Seal

Note: Air escapes unless

jackscrew is fully retracted

Figure 3 Jackscrew Override - Models 370, 575 & 740

OPEN

SHUT

OPEN

SHUT

Lock nut

Sealed jackscrew

assembly

Handwheel

Lock nut

Stroke

adjusting

screw

Stroke adjusting screw

Figure 4 Hydraulic Override

OPEN

SHUT

OPEN

SHUT

Selector valve

Reservoir

Handle

Manual Handpump Specications:

1. Maximum reservoir ll volume = 75 cu. in.

2. Pump relief pressure = 1500 psi

3. Pump volume/stroke = 0.66 cu. in.

4. Handle length = 24 in.

Section 3: Jackscrew Override

July 2019

Installation, Operation and Maintenance Manual

MAN-02-01-39-0704-EN Rev. 0

Jackscrew Override

Single-Acting Spring-Return Two Pistons

Models: 012, 046, 058, 059, 072, 100, 144, 270, 344, 345, 420, 740, 944, 945, 1150,

1480, 1929, 1930, 2380

2916 7 303928

43 41 24 32 18 19 20 3531 25

37 1 14 15 17 21 33 34 52 57

51545049565553132264462738

11 42 48

43 24

32 31 35 25

12a

12b 13

15b

31 41 36

4b 69

38 27 46 426 253 55 54

56 49 50 51

55 55 56

15a

3512b

13c

Single-Acting Spring-Return One Piston

Models: 006, 015, 023, 036, 050, 135, 210, 370 and 575

2916 7 303928

43 41 24 32 18 19 20 3531 25

37 1 14 15 17 21 33 34 52 57

51545049565553132264462738

11 42 48

43 24

32 31 35 25

12a

12b 13

15b

31 41 36

4b 69

38 27 46 426 253 55 54

56 49 50 51

55 55 56

15a

3512b

13c

Section 3: Jackscrew Override

Installation, Operation and Maintenance Manual

MAN-02-01-39-0704-EN Rev. 0 July 2019

Jackscrew Override

Double-Acting Air to Air Two Pistons

Models: 012, 059, 072, 100, 144, 270, 345, 420, 740, 945, 1150, 1480, 1930, 2380

2916 7 303928

43 41 24 32 18 19 20 3531 25

37 1 14 15 17 21 33 34 52 57

51545049565553132264462738

11 42 48

43 24

32 31 35 25

12a

12b 13

15b

31 41 36

4b 69

38 27 46 426 253 55 54

56 49 50 51

55 55 56

15a

3512b

13c

Double-Acting Air to Air One Piston

Models: 006, 015, 023, 036, 050, 135, 210, 370, 575

SEC

TION A-A, MODELS 003-1150

42 48

SECTION A-A, MODELS 1480-2380

SECTION A-A, MODELS 135 - 1150

YOKE SHOWN AT MID-STROKE, POINTER OMITTED FOR CLARITY

3512b

13c

Section 3: Jackscrew Override

Tabla de contenidos

Otros manuales de Controladores de Emerson

Emerson

Emerson Fisher FIELDVUE DVC6005 Series Guía de configuración

Emerson

Emerson Bettis 2000 Series E796 M2CP Manual

Emerson

Emerson Fisher 627 Series Manual de usuario

Emerson

Emerson Fisher CS400 Series Manual de usuario

Emerson

Emerson DIXELL iCHILL IC100D EVO Manual de usuario

Emerson

Emerson Fisher 4660 Manual de usuario

Emerson

Emerson Dixell WING XW220L Diagrama de cableado

Emerson

Emerson EIM HQ Series Manual de usuario

Emerson

Emerson Fisher 2052 Manual de usuario

Emerson

Emerson TARTARINI PS/80-1 Manual de usuario

Emerson

Emerson FISHER 67 Manual de usuario

Emerson

Emerson Unidrive M400 Manual de usuario

Emerson

Emerson dixell WING XW260L Diagrama de cableado

Emerson

Emerson Fisher HSRL Series Manual de usuario

Emerson

Emerson Bettis XTE3000 Manual de usuario

Emerson

Emerson CASH VALVE B Manual de usuario

Emerson

Emerson White-Rodgers 11B79-3 Manual de usuario

Emerson

Emerson dixell XR02CX Diagrama de cableado

Emerson

Emerson Dixell XM660K Diagrama de cableado

Emerson

Emerson Fisher 1052 Manual de usuario

Emerson

Emerson Dixell XC645D Diagrama de cableado

Emerson

Emerson Dixell XR10C Instrucciones de funcionamiento

Emerson

Emerson Dixell XR44CX Diagrama de cableado

Emerson

Emerson Damcos KC 65 Manual de usuario

Manuales populares de Controladores de otras marcas

Digiplex

Digiplex DGP-848 Instrucciones de funcionamiento

YASKAWA

YASKAWA SGM series Manual de usuario

Sinope

Sinope Calypso RM3500ZB Manual de usuario

Isimet

Isimet DLA Series Style 2 Manual de instalación

LSIS

LSIS sv-ip5a Manual de usuario

Rockwell Automation

Rockwell Automation 1769-L31 Manual de usuario

Airflow

Airflow Uno hab Manual de usuario

ABB

ABB ACS580-01 drives Manual de usuario

Panasonic

Panasonic GM1 Series Manual de usuario

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manual de usuario

Panasonic

Panasonic FP? Positioning Unit RTEX Manual de usuario

Samson

Samson Type 5824 Manual de servicio

Alpha IP

Alpha IP MIOB 21001 Manual de usuario

Siemens

Siemens OpenAir GMA 1 Series Manual de usuario

Surecom

Surecom SR-629 Manual de usuario

Fishman

Fishman TriplePlay Manual de usuario

Regulus

Regulus SRS1 T Manual de usuario

3M MicroTouch EX113 Manual de usuario
