Elo TouchSystems P400 EMV BRACKET KIT Manual de usuario

E906829 EMV-SELF-SERV-VF-P400

FOR USE ON:

E796783 ELO-STAND-SELF-SERVICE-15-22-COUNTERTOP

E796965 ELO-STAND-SELF-SERVICE-15-22-FLOOR-TOP

ASSEMBLY INSTRUCTIONS, ELO P400 EMV BRACKET KIT

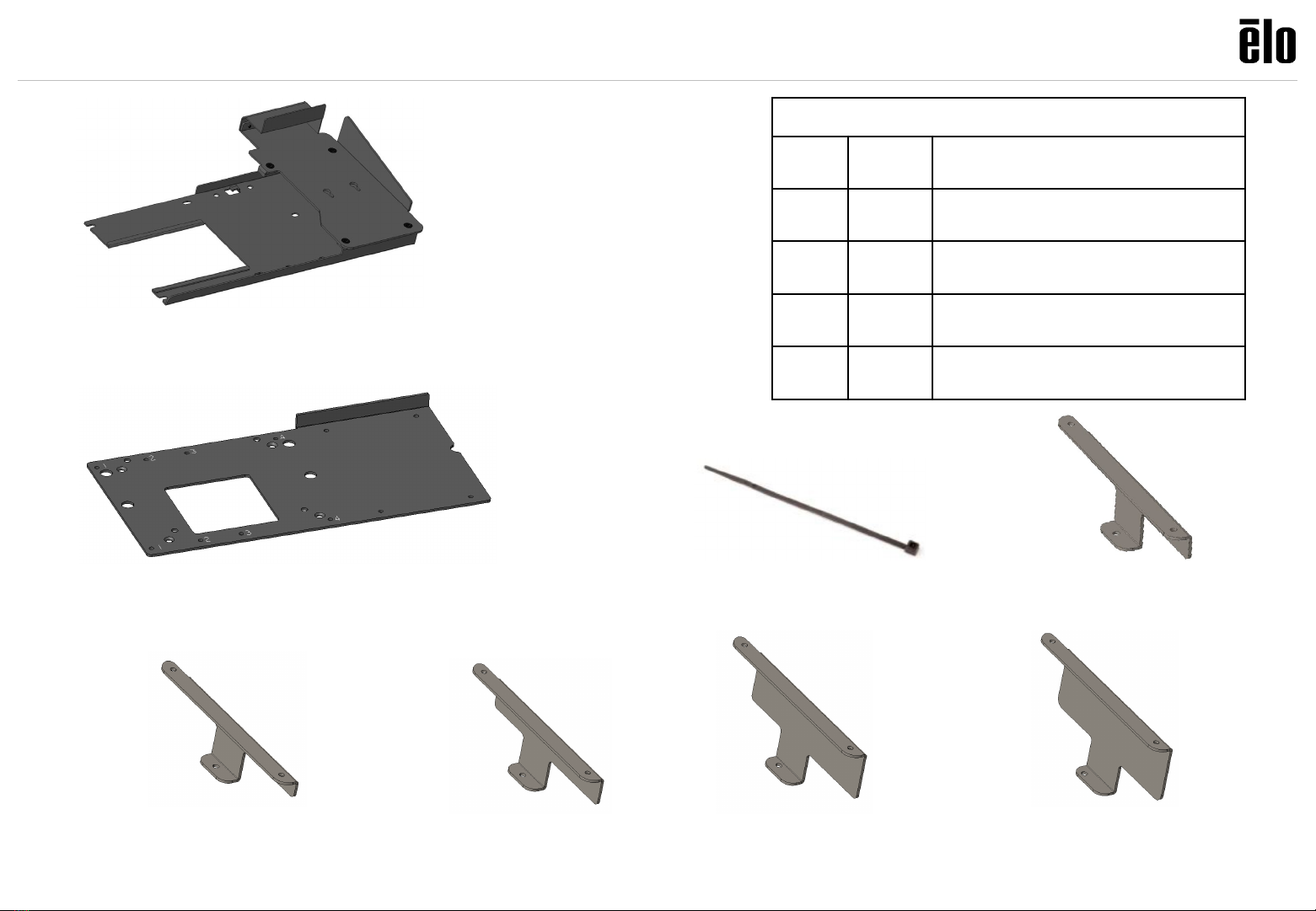

Contents for Kit: E906829, EMV-SELF-SERV-VF-P400

Screws

Bag CQty.2 SCREW, M3X8, PAN-HEAD,

CROSS-RECESS

Bag NQty.1 SCREW, M4X10, PAN-HEAD,

CROSS-RECESS

Bag PQty.4 SCREW, M4X5, PAN-HEAD,

CROSS-RECESS

Bag RQty.4 SCREW, M4X6, FLAT-HEAD,

CROSS-RECESS

Bag QQty.2 SCREW, M3X6, PAN-HEAD,

CROSS-RECESS

EMV Arm Assembly

Qty. 1

EMV Mount Plate, Long

Qty. 1

EMV Edge Bracket, 15 Android

(bag label “15 A”)

Qty. 1

EMV Edge Bracket, 22 Android

(bag label “22 A”)

Qty. 1

EMV Edge Bracket, 15

Windows

(bag label “15 W”)

Qty. 1

EMV Edge Bracket, 22

Windows

(bag label “22 W”)

Qty. 1

Tie-wrap

Qty. 2

EMV Edge Bracket, 22 Android 4.0

(bag label “22 A4”)

Qty. 1

Remove Fill Plate on Display Bracket.

Add the EMV Mount Plate to the

Display Bracket using (4) screws from

bag “R”.

Add (2) screws to EMV Mount Plate from bag “P”

at position 1, 2,3 or 4. Leave ~3mm (1/8”) gap

(for EMV Arm).

Position “1” for 15” in portrait.

Position “2” for 22” in portrait.

Position “3” for 15” in landscape.

Position “4” for 22” in landscape.

Assemble EMV Arm to Display Bracket. Add

(2) screws from bag “P” at right most position

“A” to secure EMV Arm to Display Bracket.

1234

Remove and save EMV Cover Plate and screws.

Add (2) screws for mounting EMV terminal from

bag “Q”. Don’t tighten screws completely. Leave

approximately 3/32” (2mm) gap under screw

head.

Attach EMV terminal cable to terminal and slide

terminal screws into keyholes on Arm Assembly.

Route EMV terminal cable and tie-wrap.

For portrait installations, setup is complete.

For landscape installations, proceed to step 7.

Cover Plate Attach Cover Plate

and screws.

Remove plastic cover from right edge of display.

Add Edge Bracket using (2) screws from bag “C”.

Use Edge Bracket “15 A” for Android 15”

Use Edge Bracket “22 A” for Android 22” 2.0/3.0

Use Edge Bracket “22 A4” for Android 22” 4.0

Use Edge Bracket “15 W” for Windows 15”

Use Edge Bracket “22 W” for Windows 22”

Return to Wallaby™assembly instructions

(QIG600073/QIG600074) to complete installation.
