Elite HILO-FLEX Manual de usuario

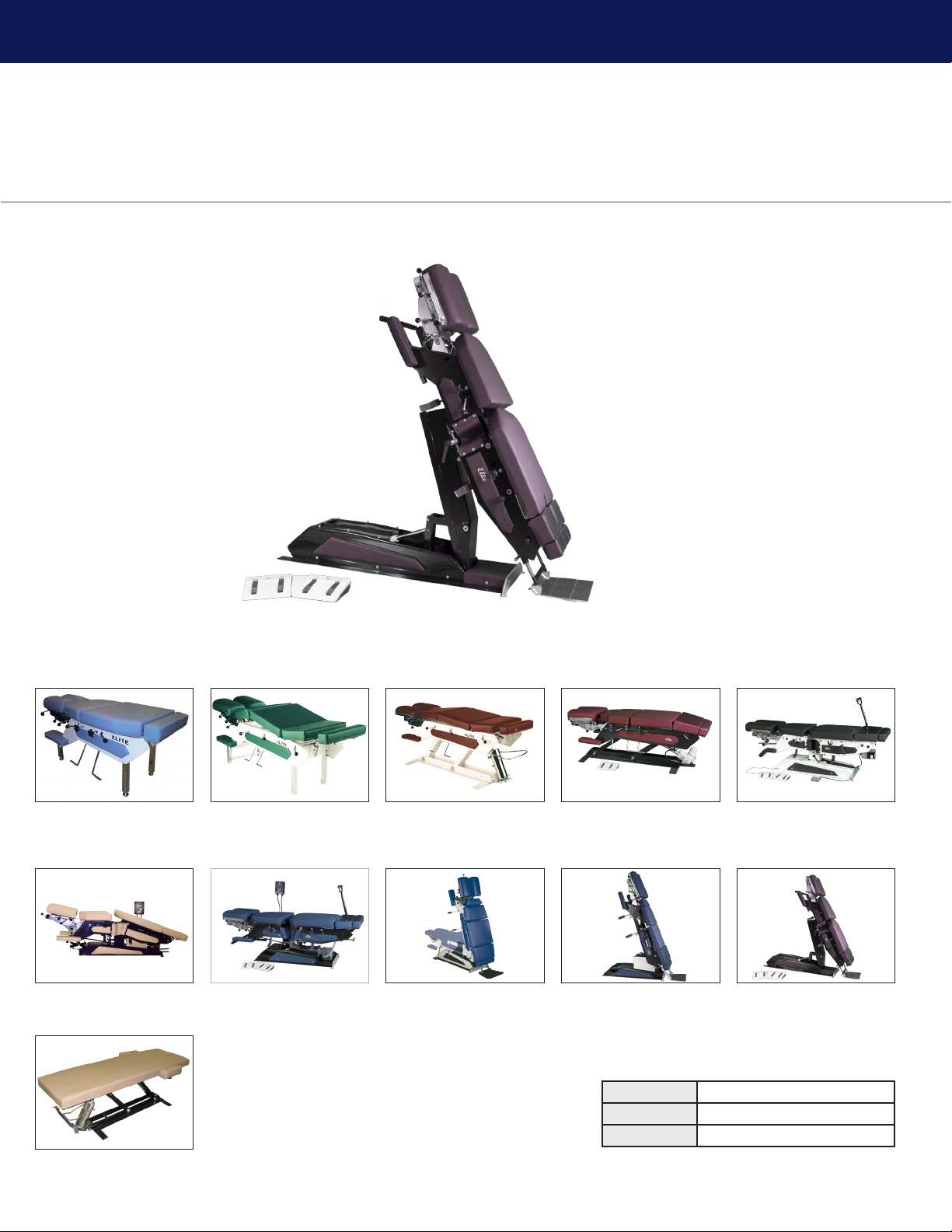

Child Stationary Stationary Pump Control Elevation Electric Elevation
erapy / Massage
Automatic Flex
Manual Flex
High Low High Low & Elevation High Low FlexAutomatic Manual Flex
ELITE High Low Manual Flex
USER MANUAL
High Low Manual Flex Table
Serial Number
Model HILO-FLEX
Date
22 John Street
Hagersville, Ontario
Canada
NOA-1H0
1-800-689-4730
www.elite-chirotables.com
ELITE Manufacturing, ©2009, All rights Reserved
22 John Street ¤ Hagersville, ON NOA-1HO ¤ 1 800 689•4730, fax 905 768•0822 ¤ www.elite-chirotables.com
TABLE OF CONTENTS | III
Contents
1 Safety Instructions 1
Important Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Electrical Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . 1
2 Drops & Cushions 2
Drops . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Elevate Cushion & Ankle Rest . . . . . . . . . . . . . . . . . . . . . . . . . 2
3 Headpiece 3
Standard Headpiece . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Headpiece - Adjusting the Position . . . . . . . . . . . . . . . . . . . . . . 4
Headpiece Optional Dual Drop - How to use the Toggle Drop. . . . . . . . . . . 5
Headpiece Optional Dual Drop - How to use the Forward Motion Drop . . . . . . 7
HP-Flex Headpiece . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
HP-Flex-L Headpiece . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Installing the Paper Roller . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4 Thoracic Breakaway 11
Thoracic Breakaway - How to release the breakaway . . . . . . . . . . . . . . 11
Thoracic Breakaway - How to use the drop. . . . . . . . . . . . . . . . . . . 13
5 Table Overview 15
Manual Flexion Function - Step By Step . . . . . . . . . . . . . . . . . . . . 16
Table Elevation (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Table Lateral Flex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Table Distraction (optional) . . . . . . . . . . . . . . . . . . . . . . . . .18
Installing Flex Straps . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
6 Table Maintenance & Support 19
Part List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
All Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Flexion Model Only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Table Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Maintenance & Care Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Control Box Fuse Replacement . . . . . . . . . . . . . . . . . . . . . . . . 23
| 1
1 Safety Instructions
Please study the Safety Instructions and all Operating In-
structions in this manual before operating your new ELITE
table. Failure to follow these instructions may result in injury
to you or your patient.
Important Notice
Doctors and patients must keep hands, ngers and feet clear
and away when the table is raised or lowered. Injury could
ensue.
Patients hands should be kept on the Arm Rest.
Do not allow patients to get on or o table when table is
raising or lowering
Patients should get on or o table when table is at it’s lowest
position, and all motion ceased.
Never leave table unattended, or in operation with patients or
children present
Electrical Safety Instructions
If your table is equipped with an electric motor, connect the
table only to an outlet which is grounded and connected to a
properly fused or breaker-controlled circuit.
Make certain all electrical cords are in good condition.
Power cords have to be away from all pinch points or moving
parts, especially EA Electric Elevation Table, High Low, and
High Low Elevation Table and Flex table.
2|

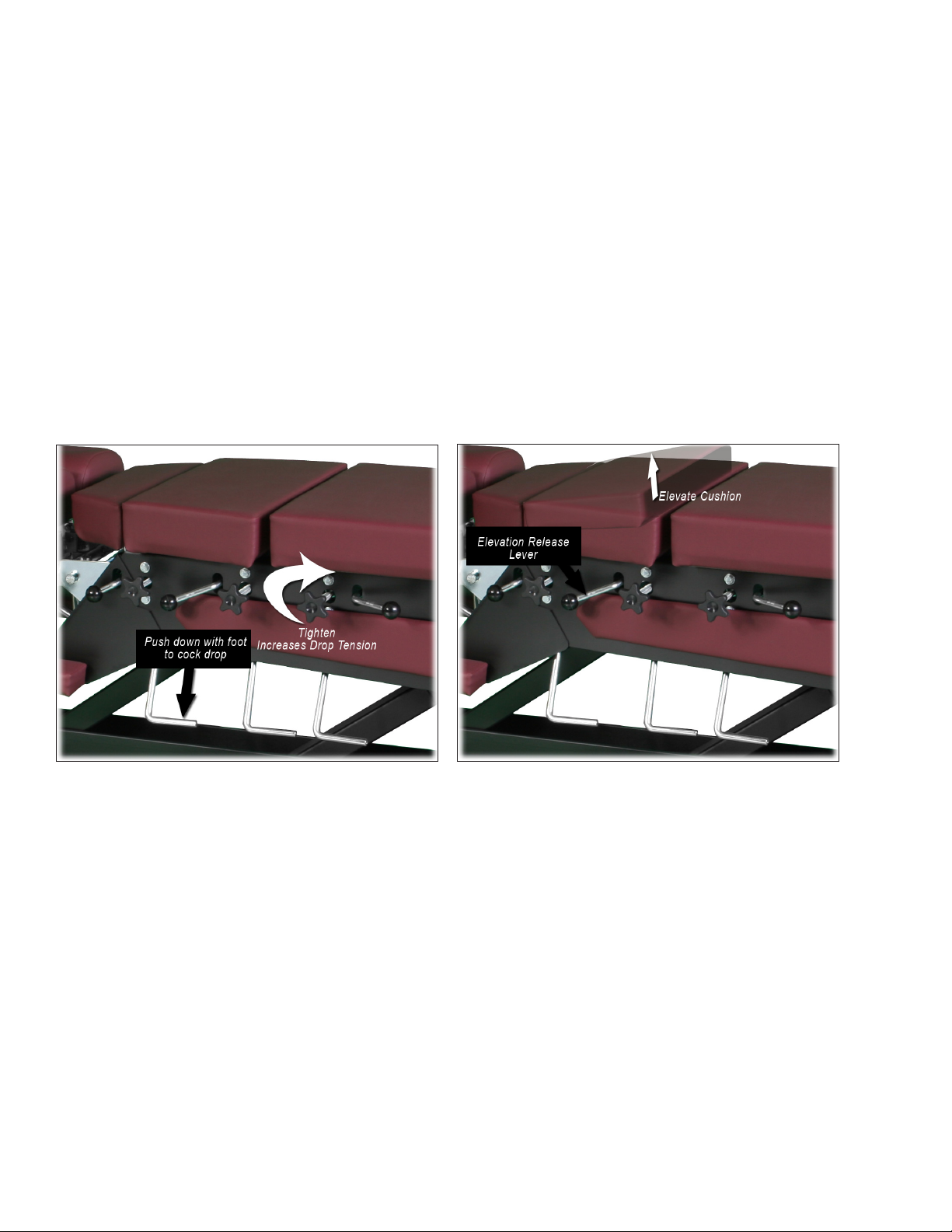

Elevate Cushion & Ankle Rest
Elevation of the cushion or ankle rest sections is achieved by
placing ngers beneath cushion frame and lifting to desired
angle. To return cushion or ankle rest to normal horizontal
position, pull up on the cushion elevation release lever.
For controls on the main portion of the table, headpiece
excluded.
Drops
Drop tension is adjusted by turning the drop tension adjust
knob. Turn clockwise to tighten or counter-clockwise to
loosen.
Tension adjustments are very sensitive.
Recommended: Half turn and test for desired drop pres-
sure.
2 Drops & Cushions
| 3
3 Headpiece
Elite tables can be ordered with a variety of dierent head-
rests.

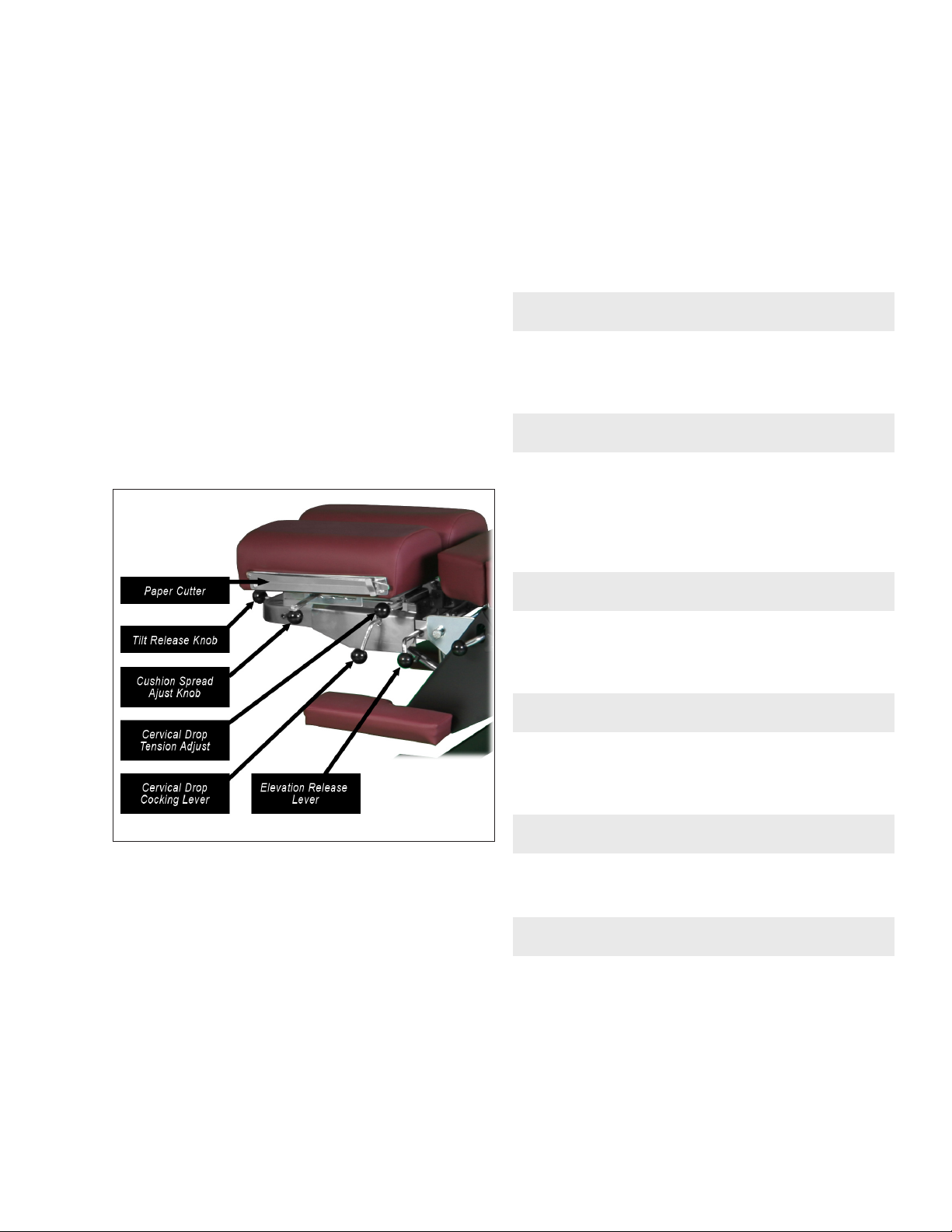

Standard Headpiece
Our standard multidirectional headpiece includes tilt, eleva-
tion and spread. e headpiece also contains a cervical drop
either forward motion oriented or straight down motion.
Paper Cutter
Use the Paper Cutter to cleanly tear/cut the headrest
paper.
Tilt Release Knob
To raise the headpiece to the desired angle pull up on the
headpiece bracket until desired tilt is reached. To lower
the headpiece tilt press the Tilt release knob and move
headpiece to desired angle.
Cushion Spread Adjust Knob
Lift knob slightly and move forward or backward to
achieve desired cushion spread.
Cervical Drop Tension Adjust
Turn knob clockwise to tighten drop tension, counter-
clockwise to decrease tension.
Cervical Drop Cocking Lever
Push down lever to cock the drop.
Elevation Release Lever
To lower rear headpiece cushion, pull up and release. To
raise rear side of headpiece, place hands under both sides
of the face cushion base and raise to desired height
4|
Headpiece - Adjusting the Position

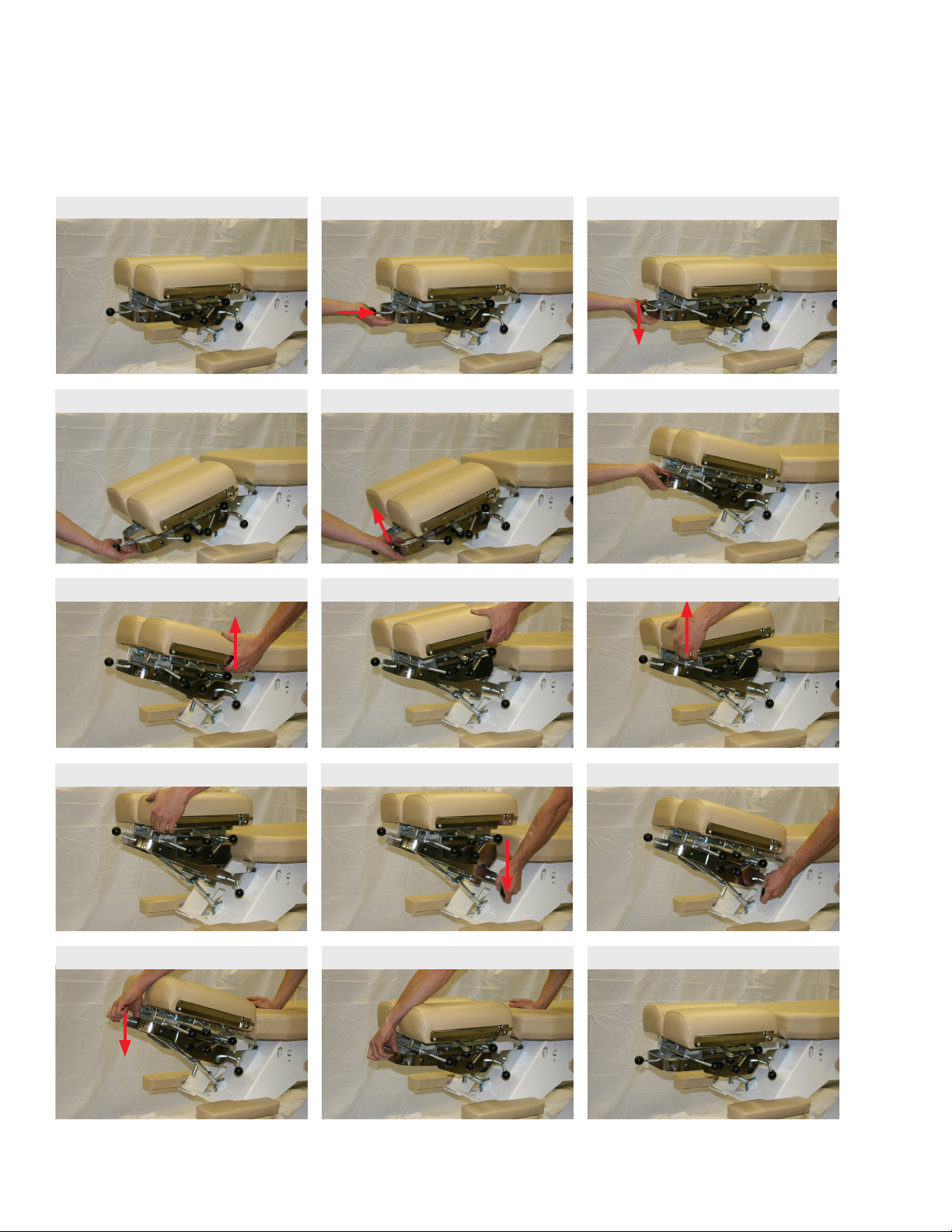

e following illustrates the various position adjustments for the standard headpiece.
1. Neutral Position 2. Push knob in 3. Tilt down
4. Headpiece tilted down 5. Grasp bar and tilt up 6. Headpiece tilted up
7. Raise back side of headrest 8. Headrest back side raised 9. Raise front of headrest
10. Headrest elevated 11. Lower rear of headrest 12. Headrest rear lowered
13. Lower front of headrest 14. Release knob 15. Headrest back in neutral position
| 5

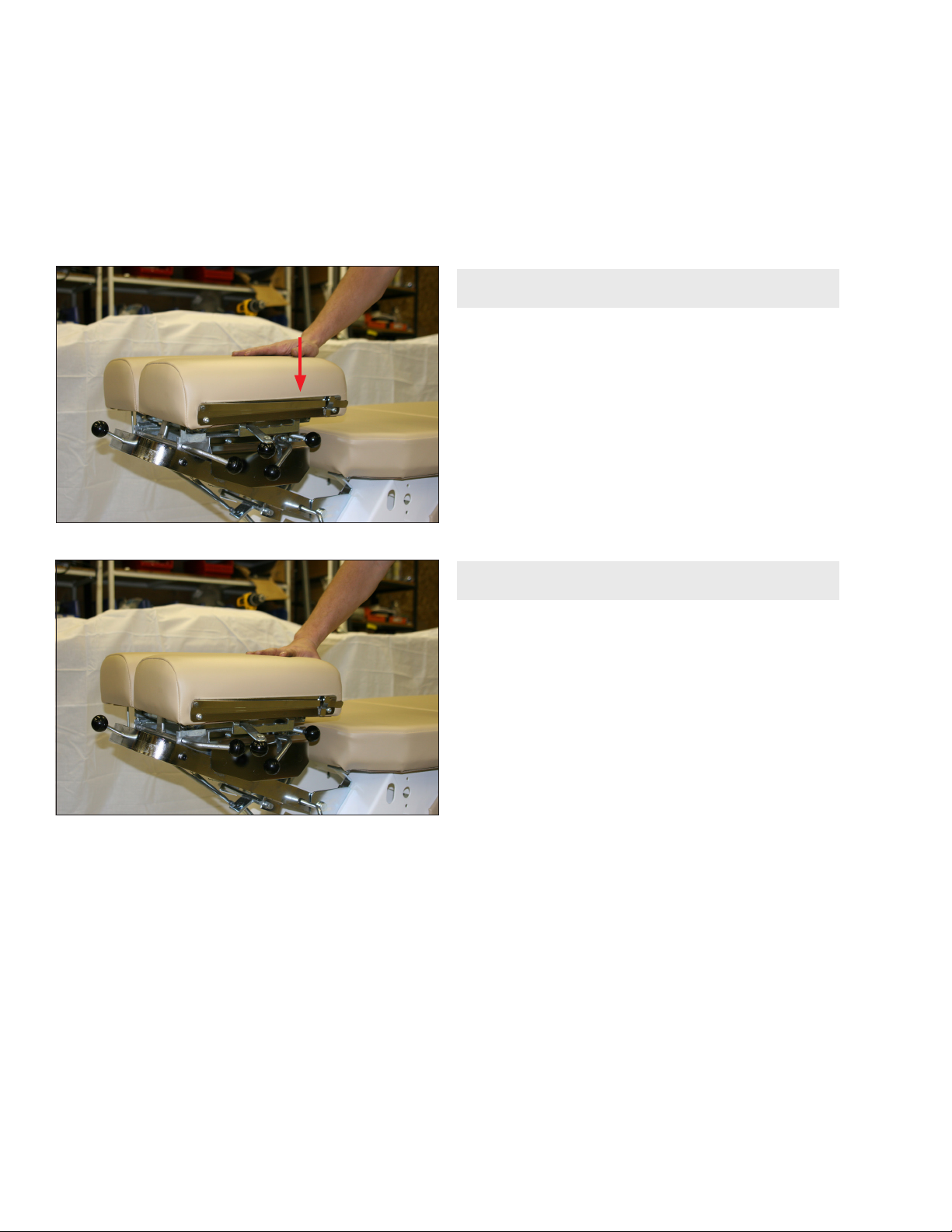

Headpiece Optional Dual Drop - How to use the Toggle Drop
Our optional dual drop headpiece has both forward motion oriented and straight down motion.
e following illustrates how to perform a toggle drop.
Toggle Drop (Straight) - Start
To perform a forward motion drop follow these steps.
Adjust the drop tension to desired setting. Turn knob
clockwise to increase drop tension and counter clock wise
to decrease tension.
Once the desired tension is set you will use the toggle drop
cocking lever.
Toggle Drop - Cocking Lever
Grasp the toggle drop cocking lever.
Toggle Drop -Cocking the Drop
Pull the lever towards you to cock the drop.
6|

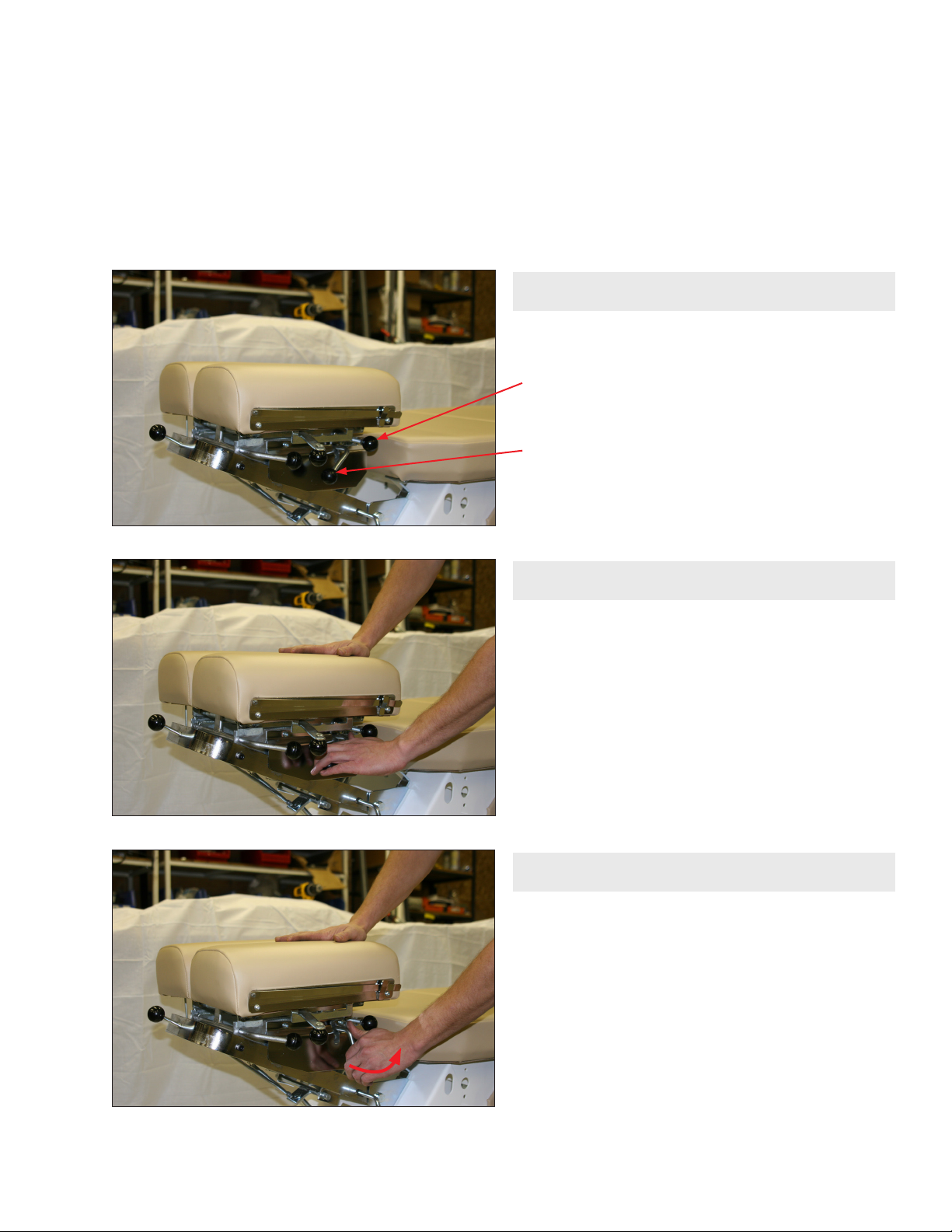

Toggle Drop - Deploying the drop
Once the drop has been cocked push in a forward motion
and the drop will release.
Toggle Drop - Deployed Drop
Headpiece will drop to the un-cocked position.
