Electrolux W365H Manual de usuario

Operating manual

W365H, W375H/N, W385N/M, W3105H/N/M,

W3130H/N/M, W3180H/N/M, W3240H,

W3250N/M, W3300H, W3330N/M

Exacta

438 9060-11/2H01

05.43

Contents

General ..................................................................................................... 1:1

Program buttons................................................................................... 1:1

Option buttons ...................................................................................... 1:2

Start-button .......................................................................................... 1:3

Lights for program indication................................................................ 1:3

Detergent container.............................................................................. 1:4

Display information............................................................................... 1:5

Error code ............................................................................................ 1:6

Wash program .......................................................................................... 2:1

Program 2H01 ...................................................................................... 2:1

Wash program description ................................................................... 2:2

Error codes ............................................................................................... 3:1

Maintenance ............................................................................................. 4:1

The manufacturer reserves the right to make changes in design

and materials specifications.

Safety

This machine can only be used with water. Never use dry cleaning

agents.

Do not allow children to operate the machine.

Do not hose down or spray the machine with water.

All mechanical and electrical installation must be carried out by

qualified personnel.

Do not bypass the door locking device.

Should the machine malfunction, please report the fault to the

technician responsible for the machine.

1:1

438 9025-31/01

5123

5124

5125

5126

5127

5348

5128

5129

5116-5122

General

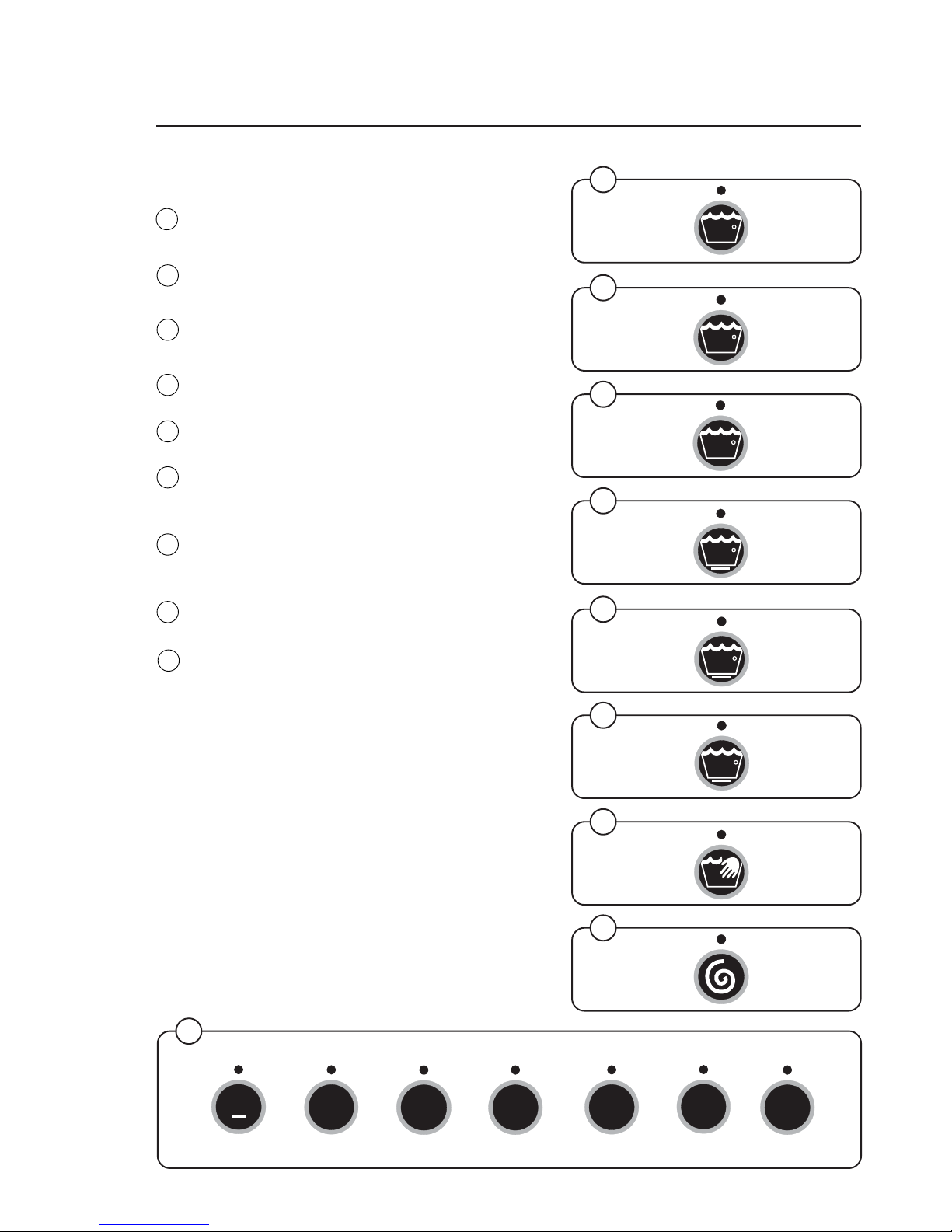

Program buttons

Normal wash program, max 95°C.

Normal wash program, max 60°C.

Normal wash program, max 40°C.

Permanent Press wash program, max 60°C.

Half load.

Permanent Press wash program, max 40°C.

Half load.

Delicate wash program with gentle action,

max 30°C.

Half load.

Hand wash program with very gentle action,

max 30°C.

Half load.

Only extraction program.

Regarding program, see instruction sign.

Fig.

1:2

438 9025-31/01

5130

5131

5349

5133

5356

5132

20 S

STOP

5362, 5363, 5970, 5971

C D

Option buttons

"Express"

Decreases the temp. and shorter time in prewash

and main wash.

"Heavy Soiled"

Normally gives a prewash, longer wash time and

more water in the rinses. Can be used together

with Normal and Permanent Press programs.

"Gentle Extraction"

Ensures gentle extraction in all programs. There

will be no intermediate extraction, only 20

seconds extraction in the end of the program.

"Extra Rinse"

Gives an extra rinse in all programs.

Not shown on the program indication.

"Rinse Stop"

Program stops before finishing the last rinse.

Press START-button and the machine fills water

and the program continues.

"Pre-rinse"

Gives two pre-rinses and high water level in all

programs.

Regarding function, see instruction sign and

program description.

Fig.

General

1:3

438 9025-31/01

5134

Start-button

•START:

Press button to start a program.

•RAPID ADVANCE:

To get Rapid Advance function, keep the

button pressed as long as requested.

• PAUSE:

Press shortly on the start-button to get a

pause function.

Lights for program indication

When a program is selected, the lights are lit and

shows what is included in the program selected.

When the program is started only the light in the

program sequence is lit. As the program

continues the lights are lit.

General

Fig.

Prerinse

Prewash

Main wash

Rinse

Final extraction

Program end

Lights

1:4

438 9025-31/01

5343

Detergent container

Compartment 1 – Pre wash, powder or liquid

detergent

Compartment 2 – Main wash, powder detergent

Compartment 3 – Softener

Compartment 4 – Main wash, liquid detergent

Fig.

General

1:5

438 9025-31/01

2252

3141

2253

3141

General

Display information

•The clock symbol and two figures are now lit

in the display. The two figures show the time

remaining until the end of the wash.

The two time figures are not displayed

immediately after installation. The relevant

program has to have been used at least once

before the remaining time is displayed.

•Immediately after starting, the colon “:” flashes

in the display. This means that as long as it is

flashing, a new program can be selected

(without losing anything). You still have the

opportunity to change your mind if you have

chosen the wrong program.

• Press PAUSE/START.

•Select new program

•If the new program is more expensive than the

one you have paid for, the difference appears

in the display. Insert more coins until 00

appears in the display (coin meter machines

only).

• Press START again once the new program

has been selected.

•If you would like to see the temperature of the

water while the program is running, hold down

one of the program selection buttons. (Only

applies in certain countries.)

•The temperature now appears in the display.

For coin meter machines, the price for the

selected program is displayed. Insert coins/

tokens corresponding to the displayed value.

Fig.

1:6

438 9025-31/01

2243 A

Error code

Error code can be shown in the display. For

further information, see separate chapter.

Fig.

General
